SIMPLY INVISIBLE

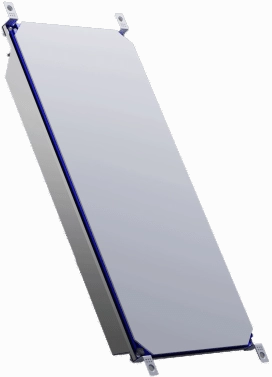

Building upon 20 years of R&D at the cutting edge of invisible speaker technology, the iB update to the Mobius5iB S200 not only provides significant acoustic upgrades, but introduces an entirely new installation technology for plaster finishes. Development of brand newproprietry high frequency transducers in combination with Aminas Optidrive, Opti-damping and Reduced Resonance Exciter technology results in greater low frequency extension, higher sensitivity and smooth high frequency response well in to the ultrasonic region. The slimline Mobius5iB S200 features an all-new integrated backbox that is acoustically tuned and provides protection to the speaker from any potential contaminants ensuring a trouble free installation and long life. The streamlined installation process automatically aligns the speaker to the correct depth, ultimately resulting in a faster, easier installation.
Example Applications:
nvisible audio installations with space limitations or when installing into a curved wall or
ceiling. Can be supplied with high-impedance 100/70V transformer for integration into high
impedance audio systems
Specifications:
| Nominal impedance | 4 Ohms |
| Power handling (100 hour continuous/peak) | 50W/100W |
| Sensitivity (@ 1m/2.83Vrms | 84dBSPL (with 2mm plaster skim) |
| Frequency response (-6dB) | 90Hz - 30kHz |
| Usable frequency range ( /-10dB) | 65Hz - 32kHz |
| Dispersion angle | 180 x 180 at specified frequency range |
| Electrical connection | Blue butt-splice crimp terminals (14-16 AWG) |
| Dimensions | 450mm x 200mm x 77mm (173/4 x 77/8 x 31/16) |
| Product weight | 2.3Kg (2lb 7oz) |
| Fixing requirements | All fixings provided |
| In-line protection unit | APUi50C_2, APU-RS8iC, APU-RS16iC, or the new Guardian active APU |
| Manufacturer limited warranty | 10 years |
