Power and Performance
The 9000P power amplifier matches the 9000A with a dedicated 100W per channel into 8 ohms, making it the perfect like-for-like accompaniment for the 9000Q preamplifier.
However, following the success and acclaim of the Audiolab 8300MB mono power amplifier option, the 9000P offers dual functionality with bridged-mode functionality, thus converting it to a monoblock power amplifier that offers 300W into 8 ohms.
When it comes to power amplifiers, the 9000P stands unmatched at its price point, with few able to rival its exceptional specifications, performance, and quality. Its versatility is a testament to its greatnesswhether used as a stereo power amplifier with a preamplifier, streamer, or transport, as an add-on to enhance an existing system, or in a monoblock setup for those demanding higher power. The 9000P truly sets a new standard in the world of audio excellence.
Specifications
General Information
- Model: 9000P
- Type: Power Amplifier
Design Philosophy and Core Technology
- Amplifier Type: Class AB Power Amplifier
- Technology: Complementary Feedback Technology (CFB)
- Modes: Stereo and Bridge (Mono)

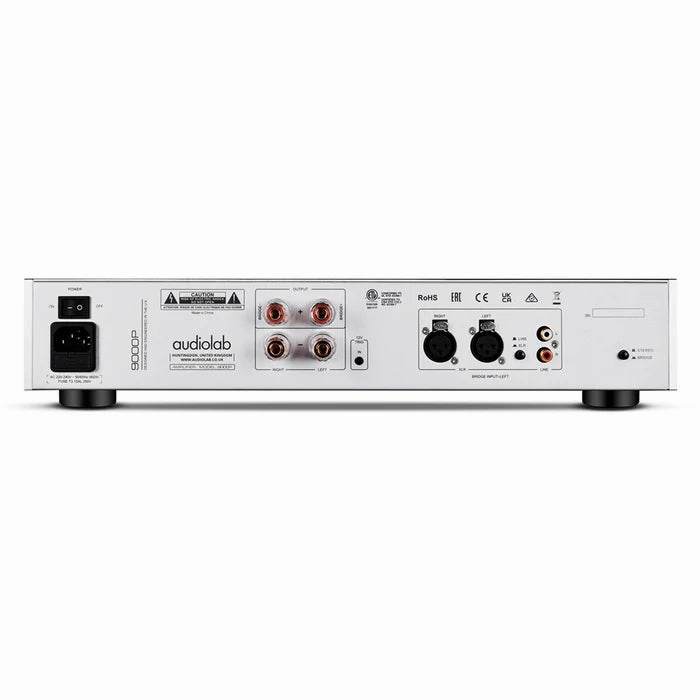

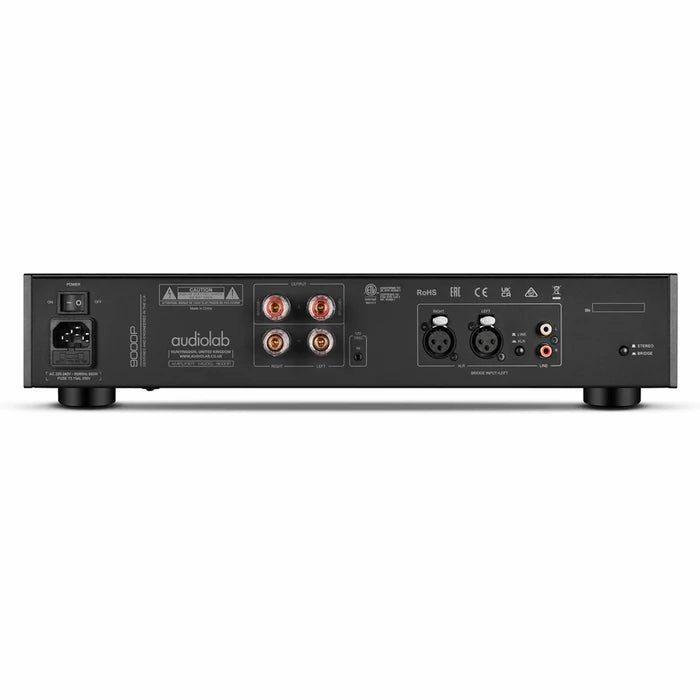

Inputs and Outputs
- Inputs:
- 1 x RCA Analog
- 1 x XLR
- 1 x 12V Trigger
- Outputs:
- 1 x Stereo Speaker
Power Amplifier Section (Stereo/Bridge Mode)
- Gain:
- 29dB (RCA)
- 23dB (XLR)
- Rated Power Output:
- Stereo:
- 2 x 100W @ 8 ohms (THD < 1%)
- 2 x 160W @ 4 ohms (THD < 1%)
- Bridged (Mono):
- 300W @ 8 ohms (THD < 1%)
- 380W @ 4 ohms (THD < 1%)
- Stereo:
- Frequency Response: 20Hz - 20kHz ( /- 0.3dB)
- Total Harmonic Distortion (THD): < 0.002% (1kHz)
- Input Sensitivity:
- 1Vrms (RCA)
- 2Vrms (XLR)
- Input Impedance: 10k ohms
- Signal-to-Noise Ratio (S/N): > 112dB (A-weighted)
- Max Output Current: 15A
General Specifications
- Standby Power Consumption: < 0.5W
- Net Weight: 9.2kg
- Gross Weight: 10.6kg
- Dimensions (W x H x D): 444 x 90 x 327 mm
- Carton Size (W x H x D): 514 x 165 x 470 mm
- Finish: Black/Silver
Power Requirements
- Region-Specific:
- 220-240V - 50/60Hz
- 100-120V - 50/60Hz
Standard Accessories
- Included:
- Power Cord
- User Manual
