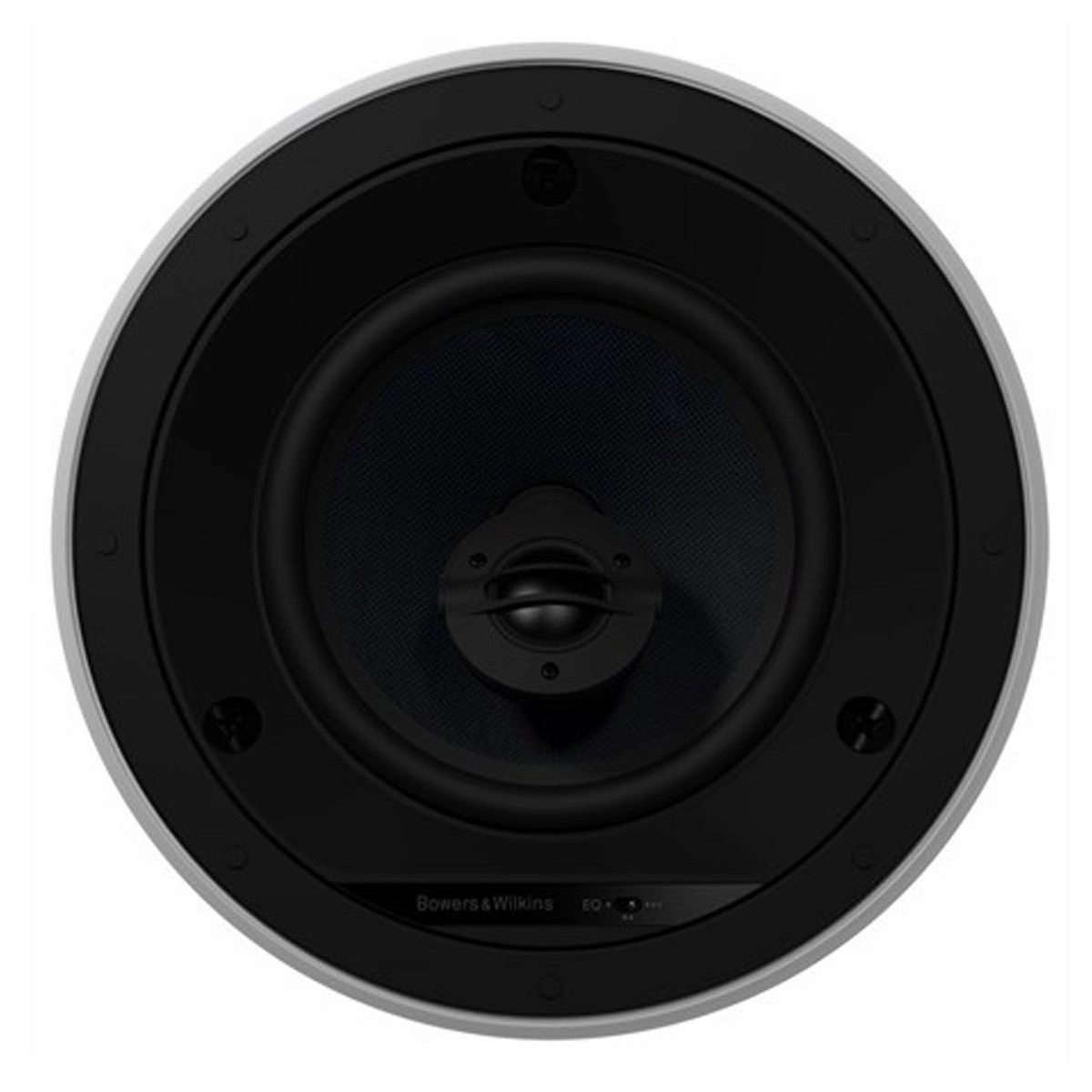

CCM662 6" In-Ceiling Speaker

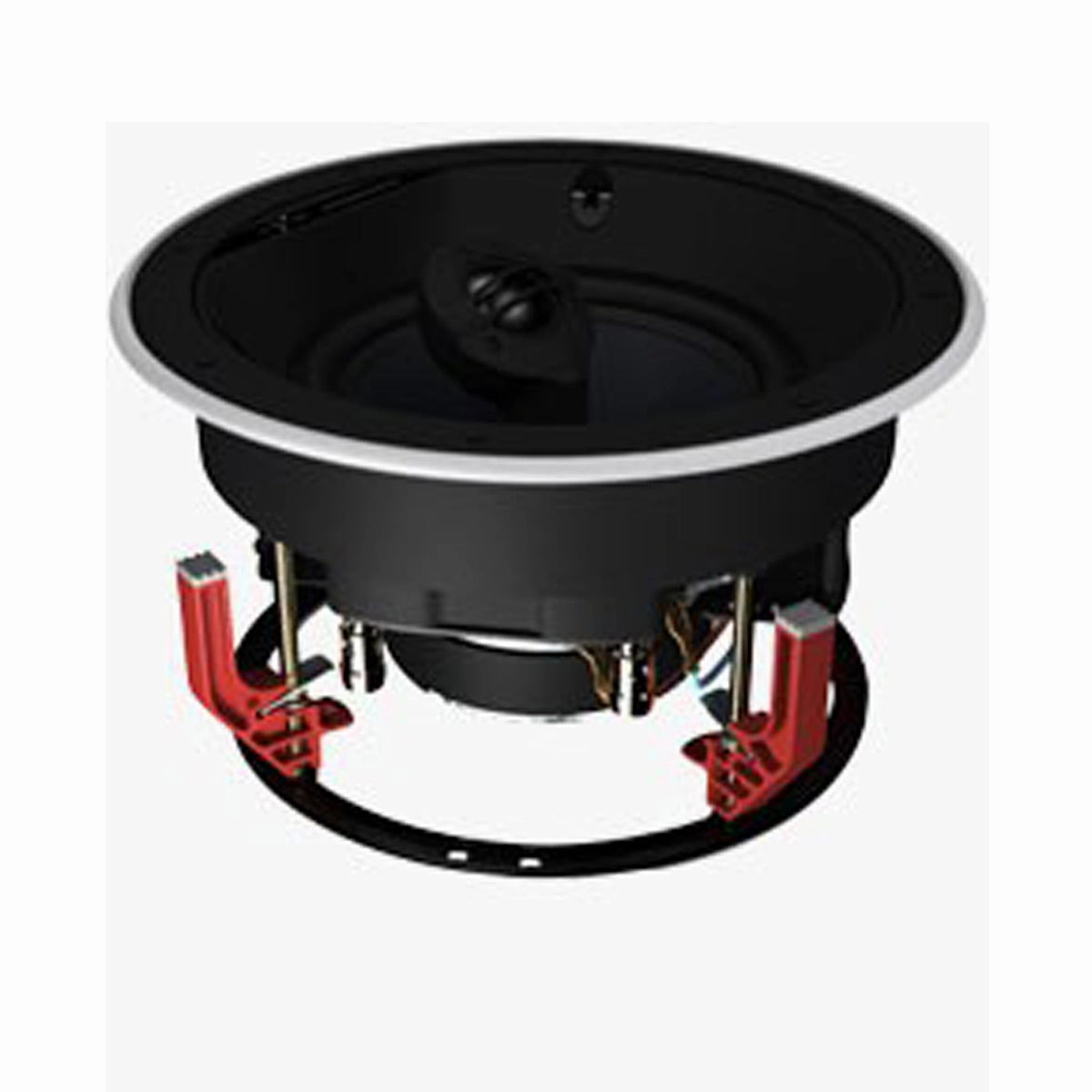

The top 6" in-ceiling speaker in the CI 600 series. This high-performance speaker features a Nautilus swirl-loaded 25mm (1") aluminium dome tweeter that pivots for adjustable off-axis treble response. Other highlights include a bass/midrange driver with a rigid die-cast chassis, a three-position EQ switch, superior crossover components, gold plated terminals and an impressive maximum amp power of 150W. Installation couldnt be easier, thanks to their QuickDogs fixing system and plug-and-play connection.
CCM662 Specifications:
- Description: 2-way in-ceiling system
- Drive Units: 1x @ 25mm (1in) Nautilus swirl loaded aluminium dome tweeter; 1x @ 150mm (6in) blue Kevlar cone bass/midrange
- Frequency Range (-6dB): 45Hz 50kHz
- Recommended Amp Power: 25 150w
- Sensitivity SPL (2.83V, 1m): 88dB
- Impedance Nominal (min): 8 ohms (4.5 ohms)
- Frame Diameter: 240mm (9.5in)
- Cut-out Diameter: 202mm (8in)
- Depth Behind Surface: 133mm (5.2in)
- Protrusion: 4mm (0.2in)
- Pre-mount Kit: C6
- Back Box: 6C
