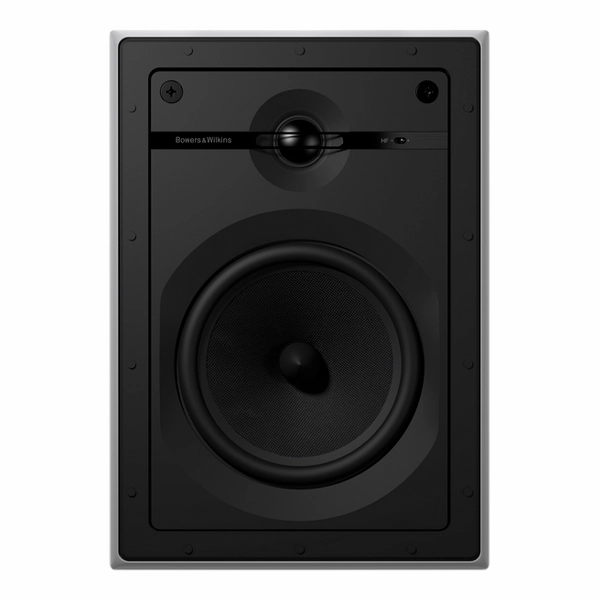

The CWM664 has the same basic features and dimensions as the CWM663, but uses a soft dome Nautilus tube-loaded tweeter instead of an aluminium dome, and a black glass fibre bass/midrange cone instead of blue Kevlar. Installation is just as easy, thanks to our new QuickDogs fixing system and plug-and-play connection.
| Description | 2-way in-wall system |
| Drive units | 1x 25mm (1in) Nautilus tube loaded aluminium dome tweeter 1x 150mm (6in) black glassfibre cone bass/midrange |
| Frequency Range (-6dB) | 45Hz 35kHz |
| Maximum Amp Power | 25 130w |
| Sensitivity SPL (2.83V, 1m) | 87.5dB |
| Impedance Nominal (min) | 8 (4.5) |
| Frame height | 315mm (12.4in) |
| Frame width | 221mm (8.7in) |
| Cut-out height | 279mm (11in) |
| Cut-out width | 183mm (7.2in) |
| Depth behind surface | 95mm (3.7in) |
| Protrusion | 4mm (0.2in) |
