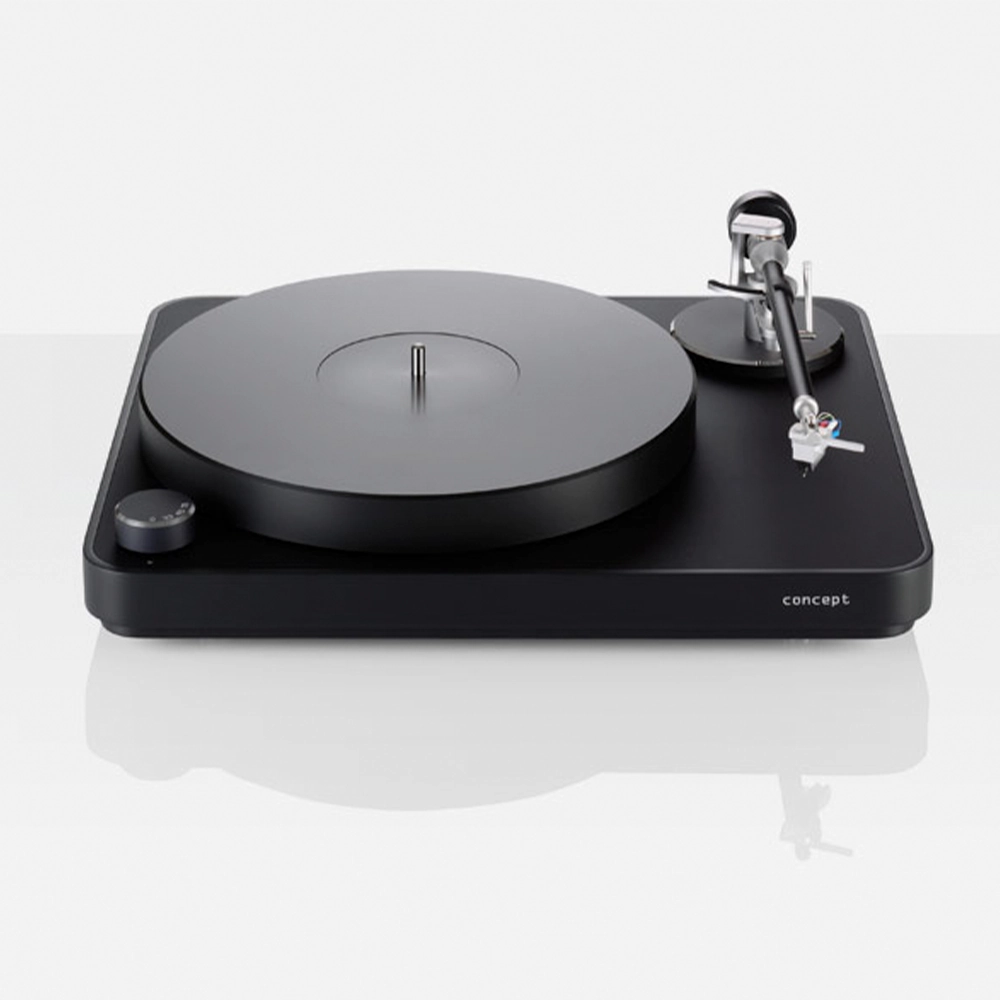

Beneath the sleek, contemporary exterior is a level of technical sophistication unique to Clearaudio.
The concepts body is carefully crafted from medium-density wood fibre (or, optionally, pressure-formed solid wood) with a selection of smart made-to-match surface finishes. The bodys upper layer incorporates a special high-tech satined plastic compound designed to minimise unwanted resonance.
The DC motor is fed by an external voltage-stabilised power supply and is completely decoupled from the turntables body to ensure no mechanical interference.
The concept tonearm features a magnetic bearing that is friction-free for extremely low distortion and superb performance. The package is completed with the high quality concept MM or concept MC cartridge (Upgrade possible).
Innovative, high-performing, user-friendly and affordable. Now thats what we call an unbeatable concept.

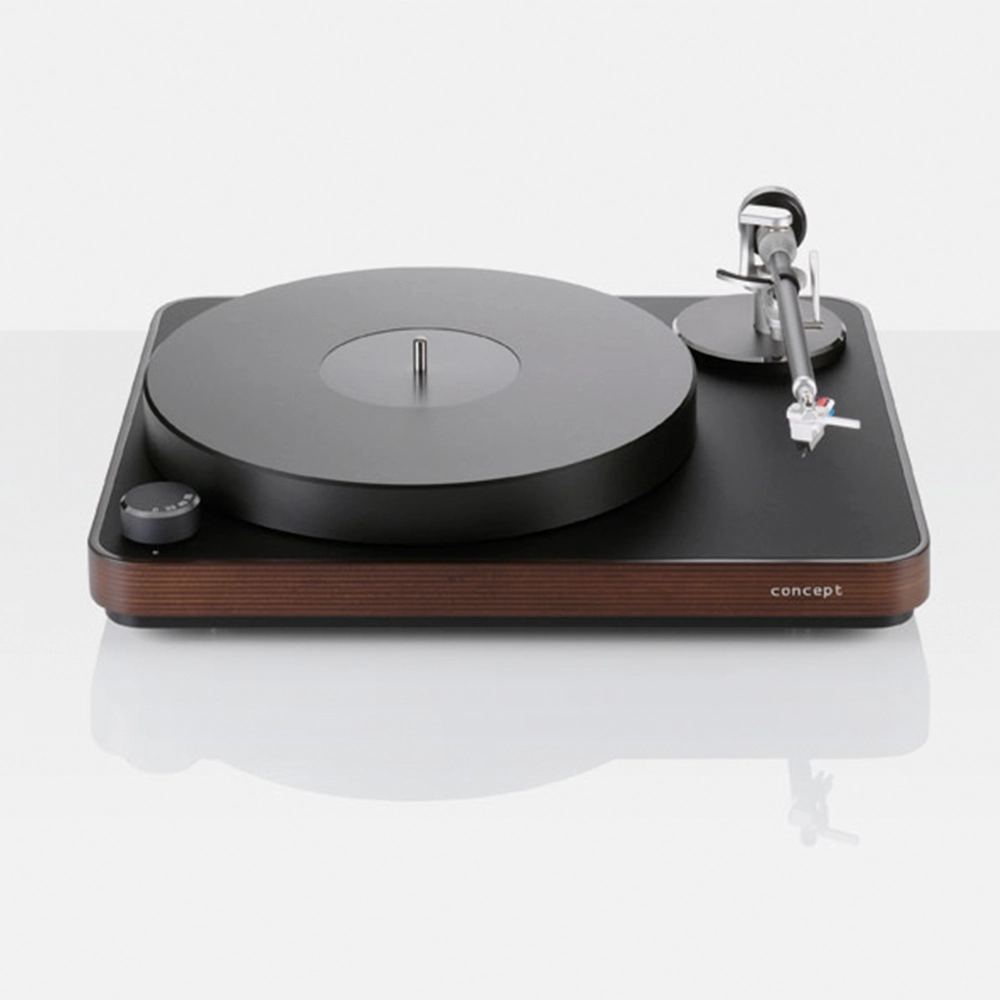

Silver and Wood chassis is available as special order.
Please email [email protected] for combinations not listed.
Construction Details | Resonance-optimised bodywork; body comprises medium-density wood fibre or pressure-formed solid wood; upper layer incorporates high-tech satined plastic compound. |
Speed ranges | Electronic speed selection, 33 , 45 rpm (78 rpm optional) |

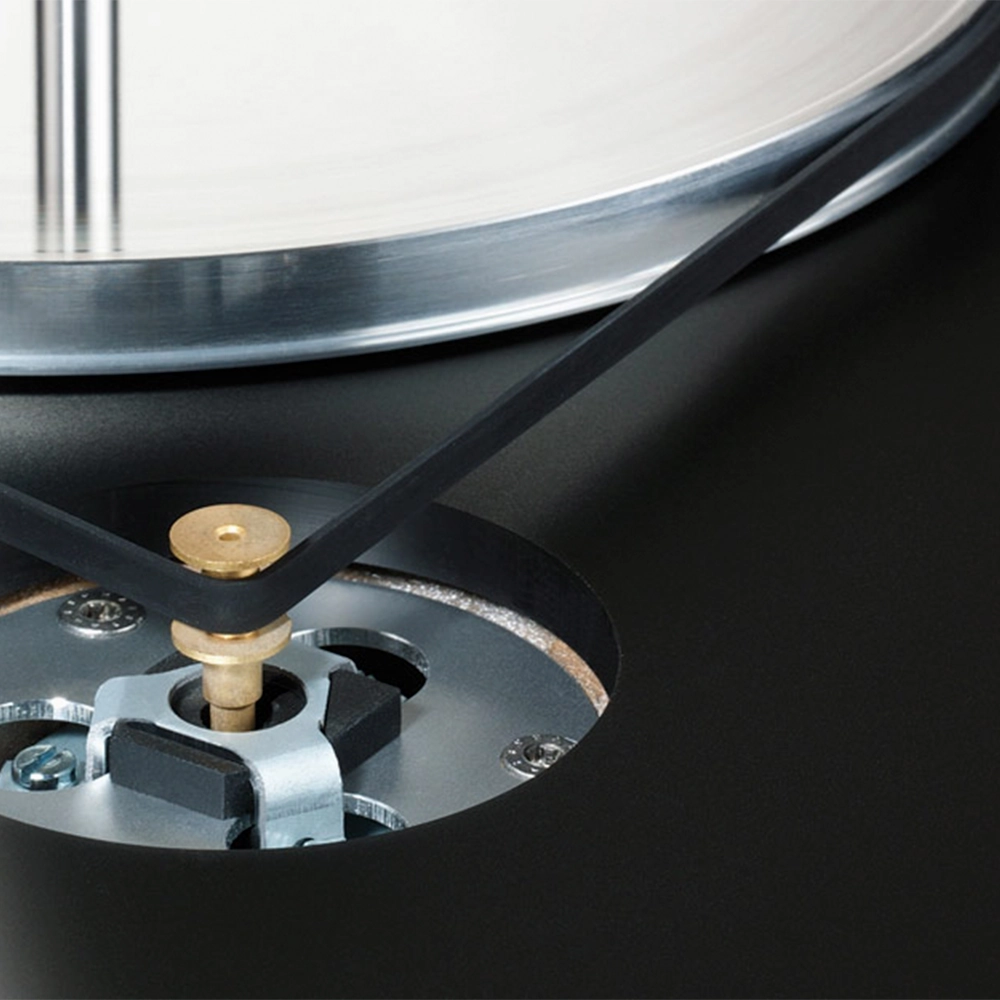

Drive unit | Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies. |
Bearing | Polished and tempered steel shaft in a sintered bronze housing, running on a Teflon thrust-pad. |
Platter | Synthetic material, CNC precision milled surface; 30mm / 1.18 inch thickness; aluminum sub-platter |
Speed variation | 0.05 % |
Power consumption | Max. consumption: 1.5 Watt |
Weight | Approx. 7.5kg / Wood: 7.9kg (incl. motor, tonearm and cartridge) |
Dimensions (W/D/H in inches) | Approx. 16.54 x 13.78 x 4.92 (with tonearm) |
Dimensions (W/D/H in mm) | Approx. 420 x 350 x 125 (with tonearm) |
Warranty | 2 years* |
