Specifications:
| Category | Details |
|---|---|
| Dimensions / Weight | 121.5mm (H) x 220mm (W) x 356mm (D) / 7.5kg |

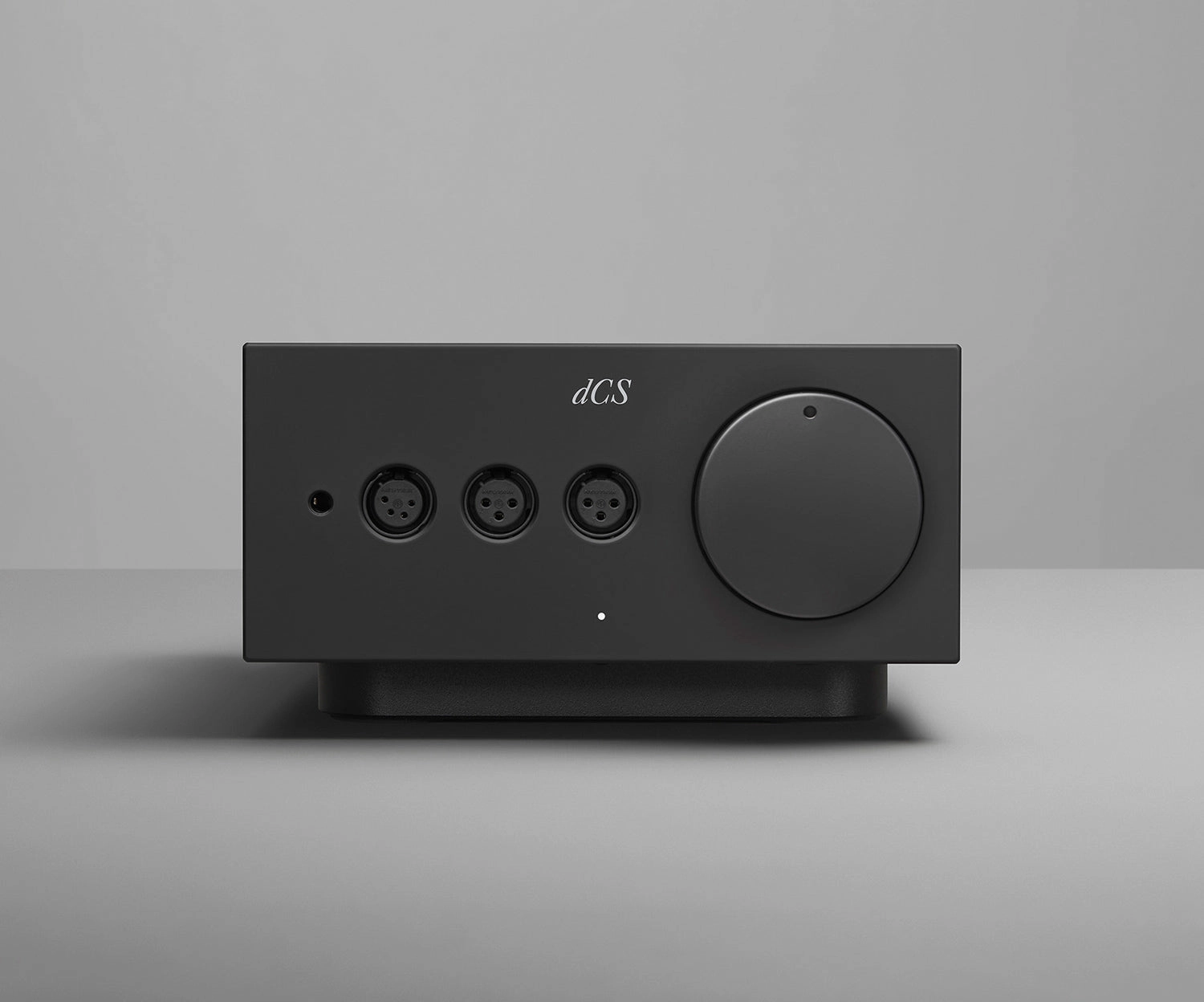

| Headphone Outputs | - 1 x dual 3-pin balanced XLR (right & left) |
| - 1 x single 4-pin balanced XLR | |
| - 1 x single 1/4 (6.35mm) headphone jack | |
| Signal to Noise Ratio | 110dB (20Hz-20kHz A-weighted) |
| (Referenced to 6V rms balanced input & output) | |

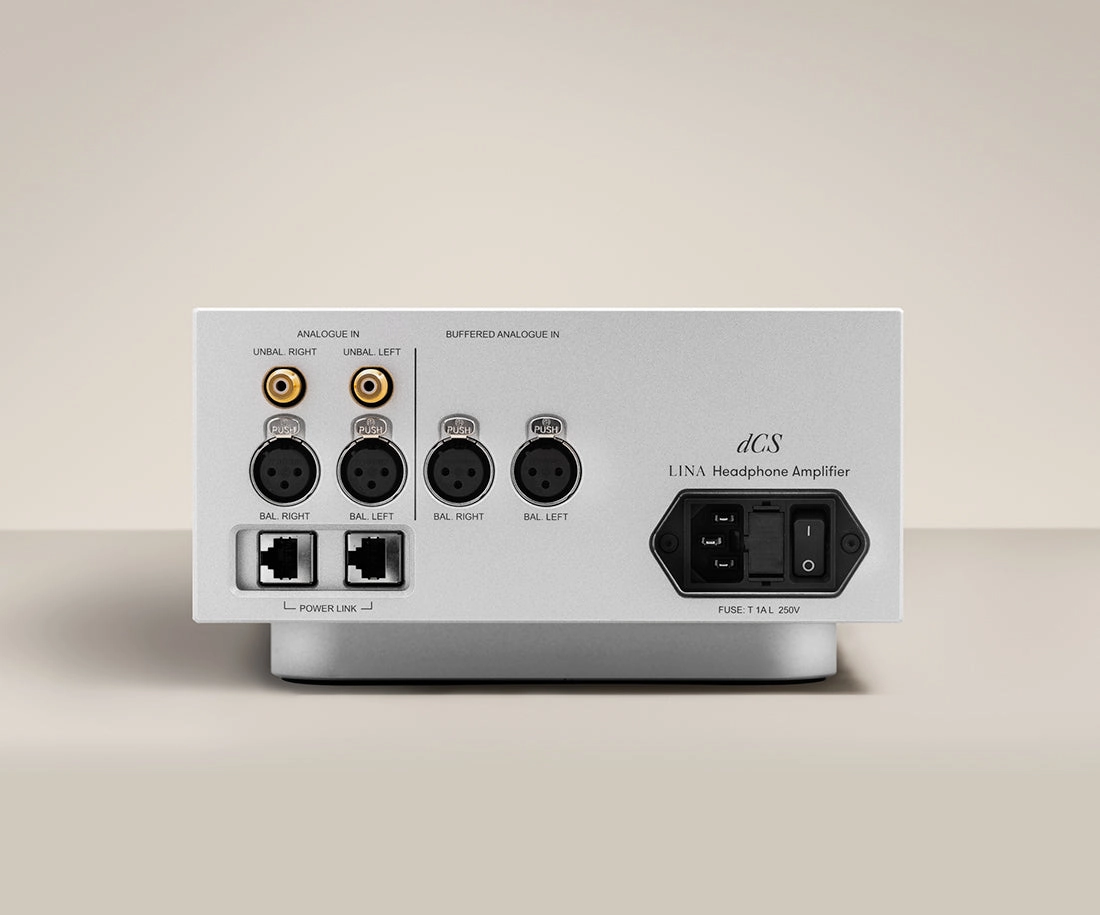

| Analogue Inputs | - 1 x stereo pair unbalanced RCA (48k impedance) |
| - 1 x stereo pair unbuffered balanced XLR (16k impedance) | |
| - 1 x stereo pair buffered balanced XLR (96k impedance) | |
| THD N | <0.005% @ 1kHz, 6V rms balanced output into 30 (80kHz bandwidth) |
| Frequency Response | 1Hz - 100kHz (Better than 0/-3dB) |
