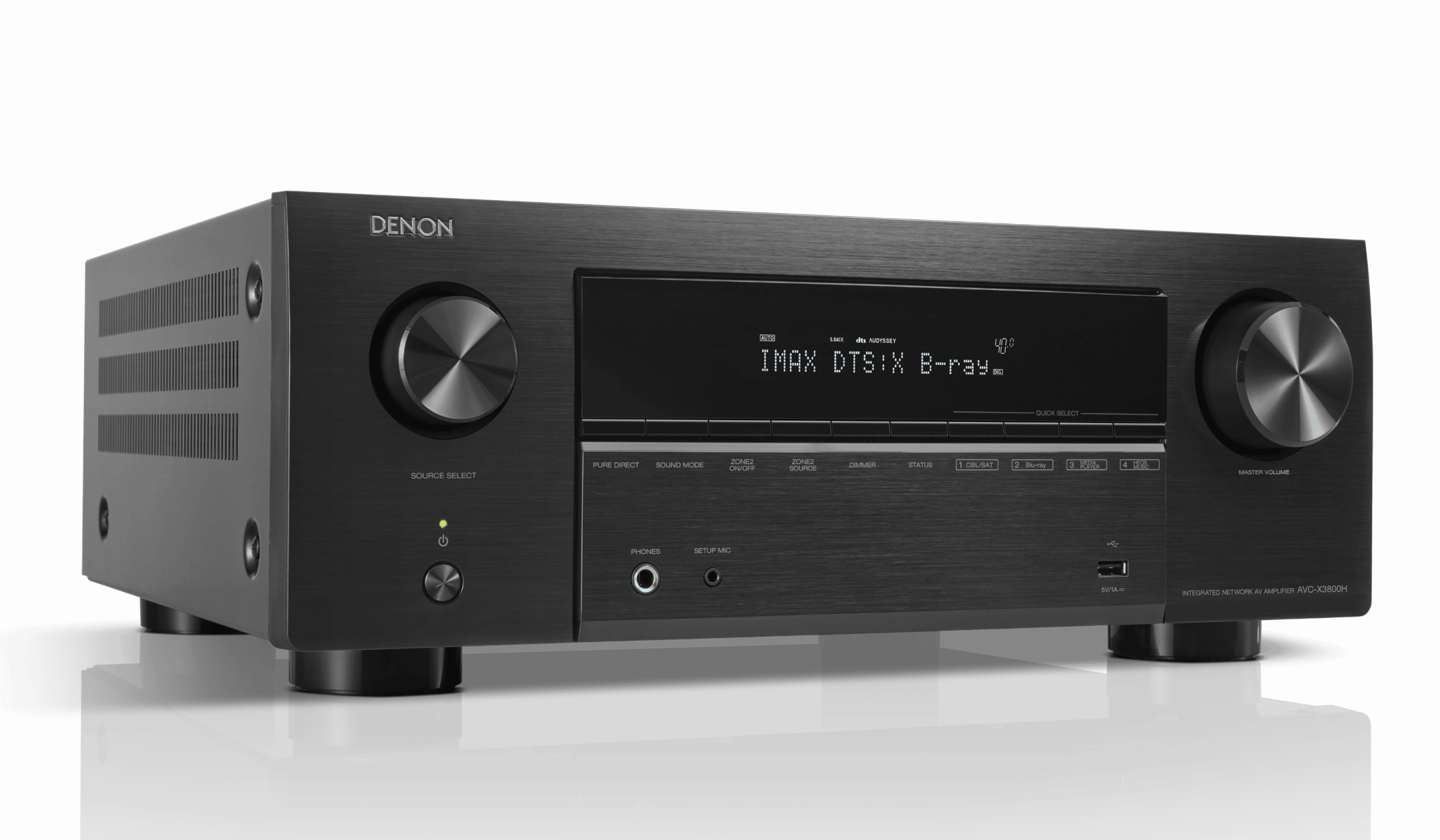

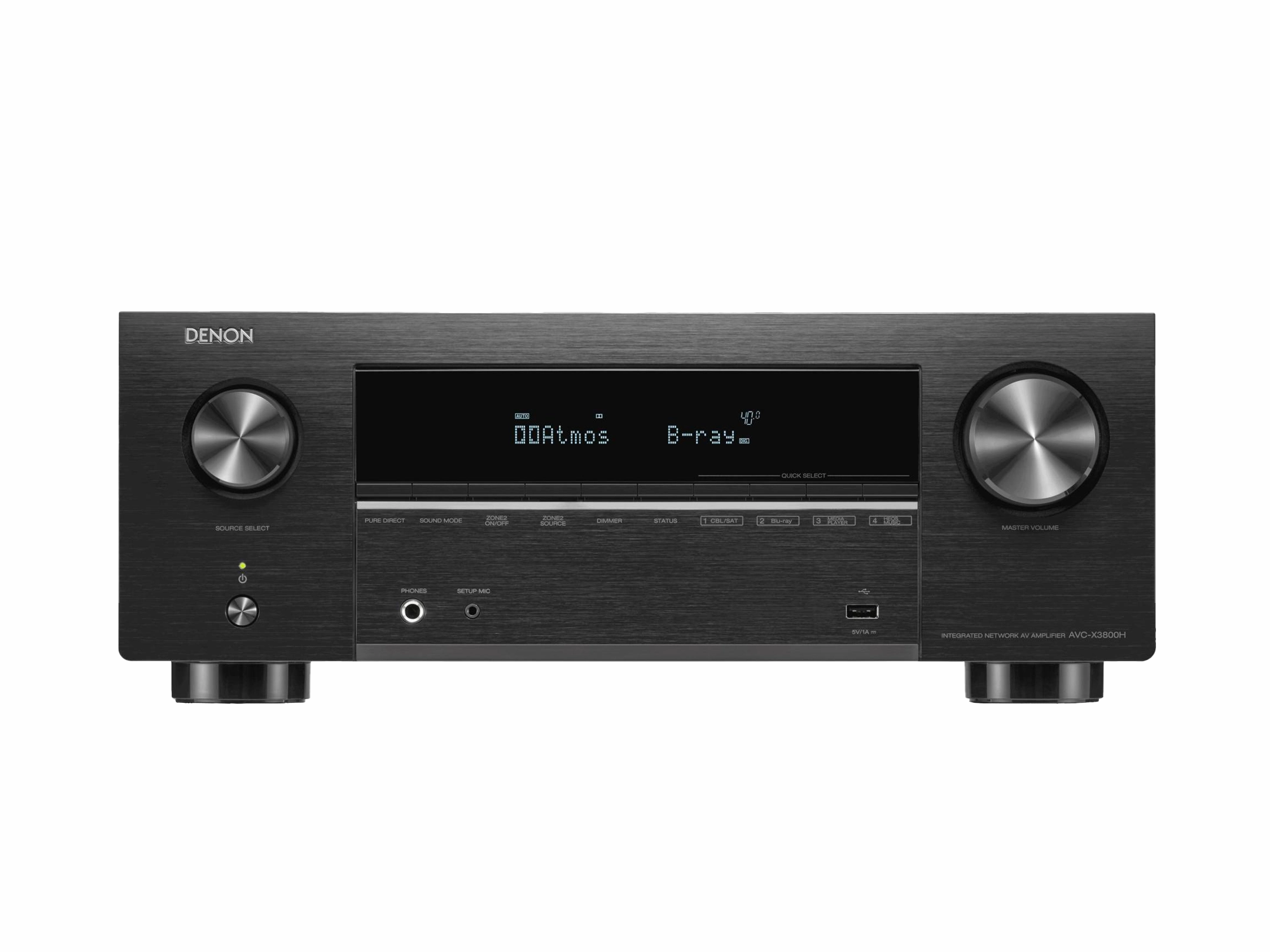

Denon AVC-X3800H 9.4 Ch 8K AV Receiver
with HEOS Built-in
With 9 channels of amplification, up to 4 independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro-3D, the AVC-X3800H envelops larger living spaces in theatre-quality sound. Enjoy amazing 8K video quality and with HEOS Built-in, wirelessly stream and share online music between rooms.
- 9.4 channels
- 180 watts per channel
- 8K Ultra HD
- 3D Audio
- HEOS Built-in
- 6 HDMI inputs
The HEOS AppBrings It All Together

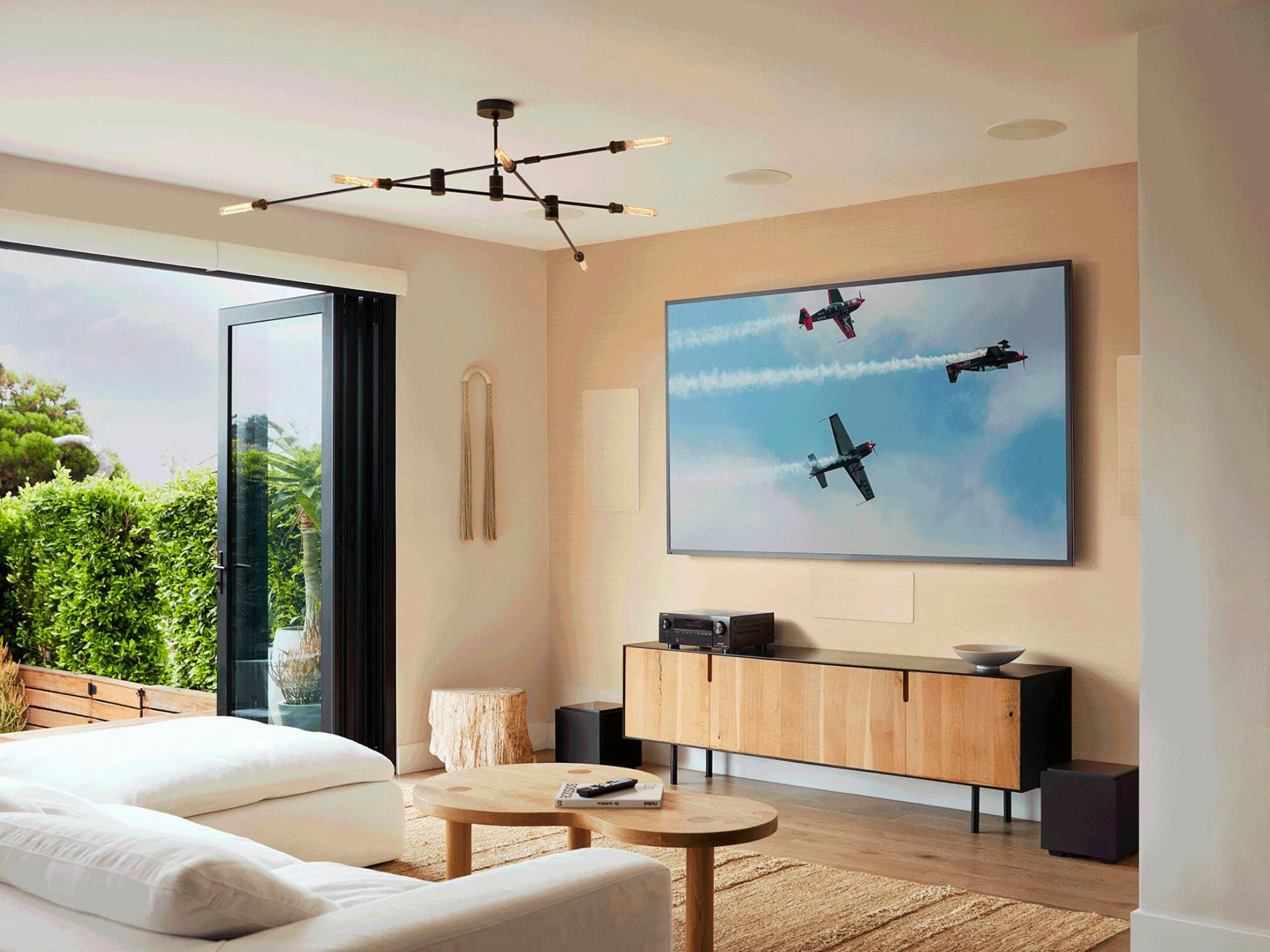

Fill your entire home with stellar sound. With HEOS, you can pair all of your Denon devices on your network to create a captivating audio experience.
- Seamless multi-room audio
- Vivid & spacious sound
- Full voice control
Start filling your home with sound.
Specifications
| Multichannel Surround | |
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 11.4 |
| Sound Enhancements | |
| Discrete Power Amplifier | Yes |
| Pure Direct | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Audyssey LFC | Yes |
| Dirac Live Upgradability | Yes |
| Compressed Audio Restorer | Yes |
| Network | |
| Media Server | Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| HDMI | |
| HDMI Inputs: Back, Front | 6, No |
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, 1 |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10 , Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
| Multi-room / CI | |
| Multi-Room Zones | 2 |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Remote In / Out | Yes, Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
| Others | |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |

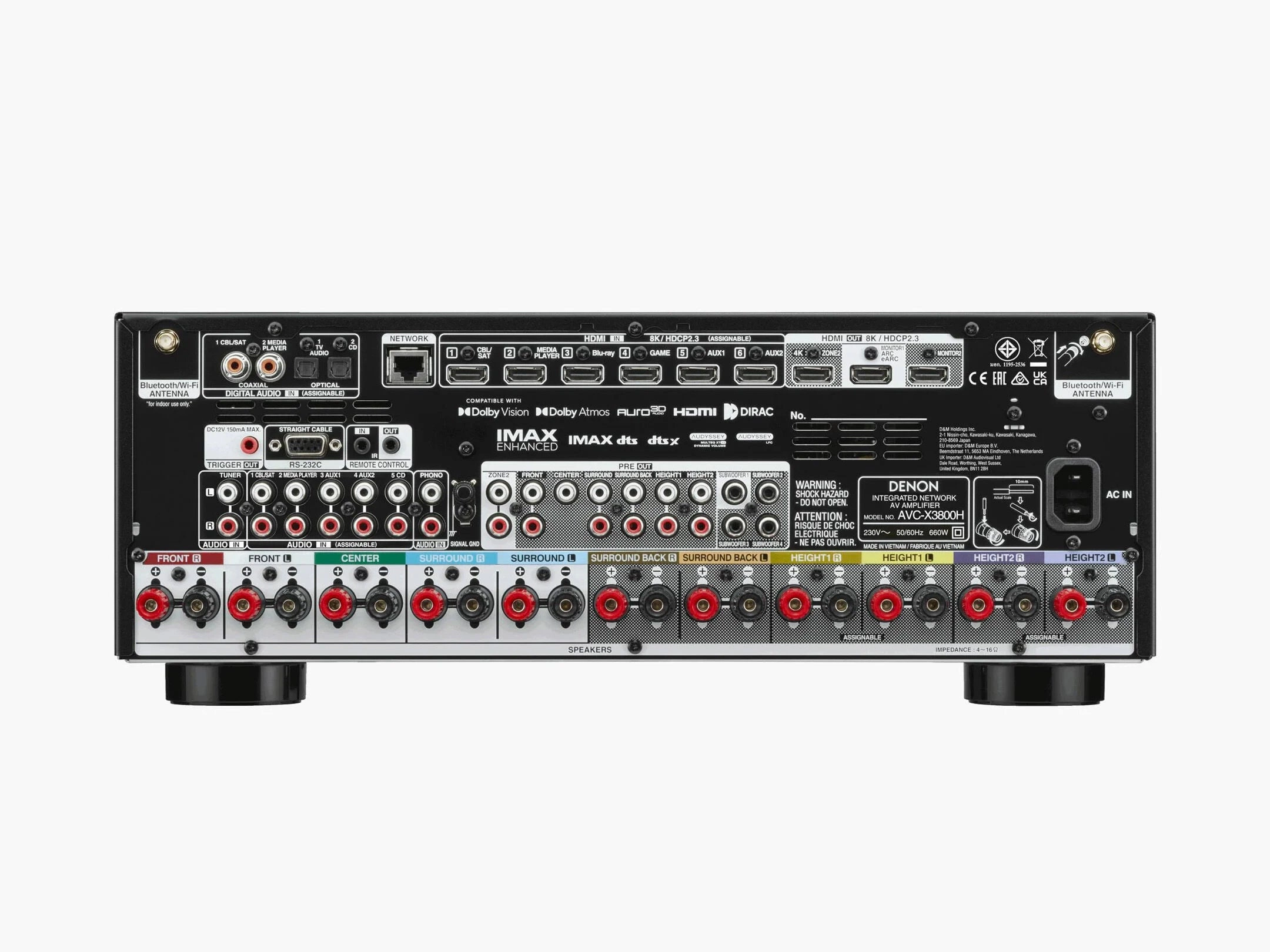

| Inputs/Outputs | |
| HDMI In, Out | 6, 3 |
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analogue In, Out | 6 / No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2 / 2 |
| Multi-Room Out: Analog, Digital | 1 / No |
| Multichannel Pre-Out | Yes (11.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | No |
| Specifications | |
| Number of Power Amps | 9 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 105W |
| Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) | 135W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 180W |
| General | |
| System Remote Control | RC-1253 |
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| Power Consumption in W | 660W |
| Power Consumption No-Sound (ECO On / Off) in W | 60W/100W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | |
| Antenna:Horizontal:(W x D x H) in mm ( Antenna:Vertical :(W x D x H) in mm) w/o Antenna :(W x D x H) in mm | 434 x 389 x 167 ( 434 x 389 x 236 ) 434 x 379x 167 |
| Weight in kg | 12.5 |
| Carton Weight (inc. product) in kg | 15.1 |
