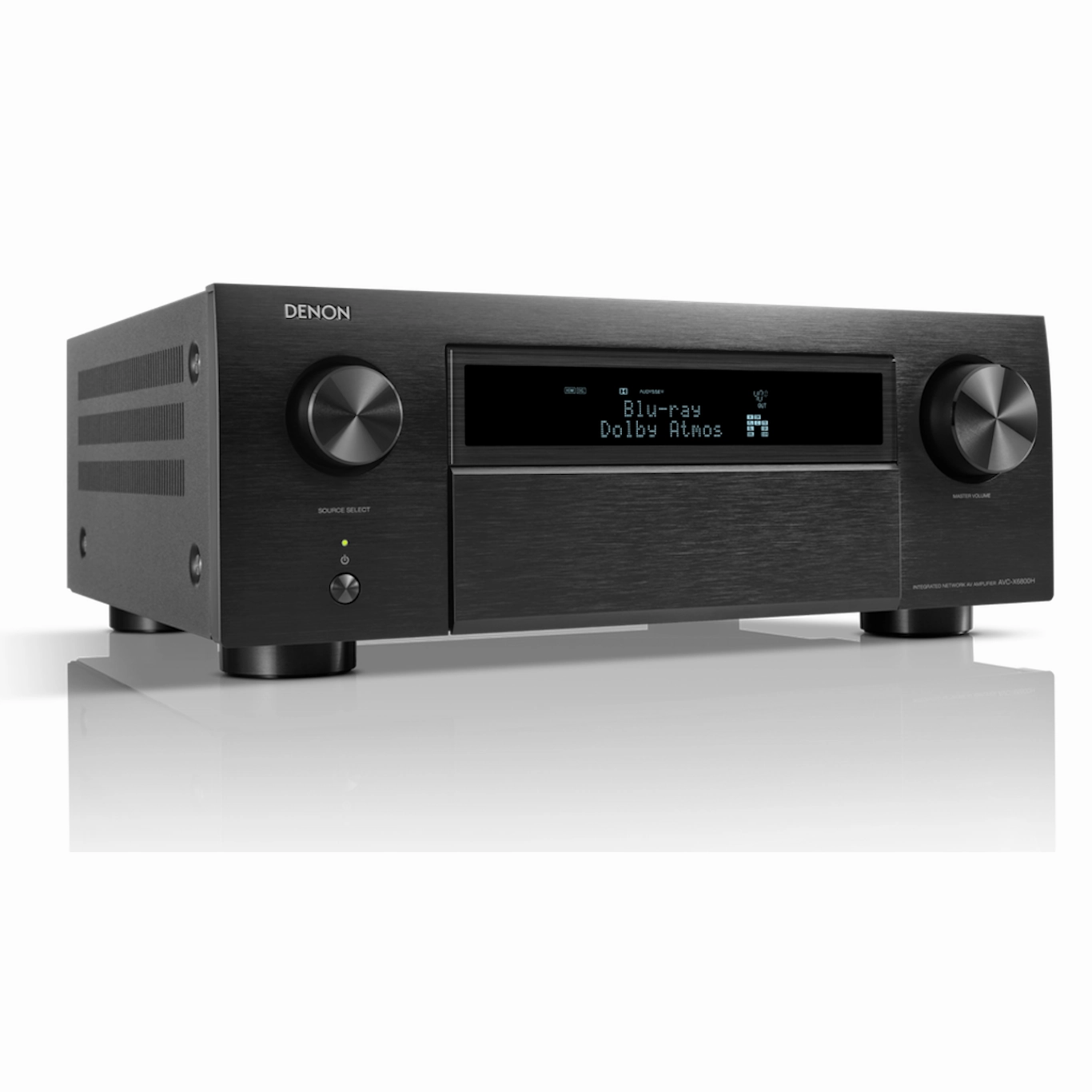

Denon AVR-X6800H 11.4 Ch. 8K AV Receiver with HEOS Built-in
Designed and manufactured in Japan, the AVR-X6800H drives 11.4 channels of amplification for an upscaled experience. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X6800H envelops larger living spaces in breathtaking 3D audio. With HEOS Built-in, wirelessly stream your favorite music.
- 11.4 channels
- 140W per channel
- 8K Ultra HD
- 3D Audio
- HEOS Built-in
- Seven HDMI Inputs
Technical Information | |
| Number of Power Amps | 11 |
| Power Output | 140 watts per channel (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive) 175 watts per channel (6 ohm,1kHz,0.7% 2ch Drive) 250 watts per channel (6 ohm,1kHz,10% 1ch Drive) |
Other | |
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
| Front Display | 2-Line FLD |
| GUI Languages | English, Spanish, French |
General | |
| System Remote Control | RC-1256 |
| Power Consumption in W | 750W |
| Power Consumption No-Sound (ECO on/off) in W | 65W/110W |
| Standby Consumption in W | 0.1W |
| CEC Standby Consumption in W | 0.5W |
| Network Standby Consumption in W | Less than 2.0W |
Maximum Dimensions | |
| Antenna, Horizontal: (W D H) in inches | 17.1 15.3 6.6 |
| Antenna, Vertical: (W D H) in inches | 17.1 15.3 9.3 |
| w/o Antenna: (W D H) in inches | 17.1 14.9 6.6 |
| Weight in lbs | 34.4 lbs |
| Weight in lbs (Packaging) | 40.1 lbs |

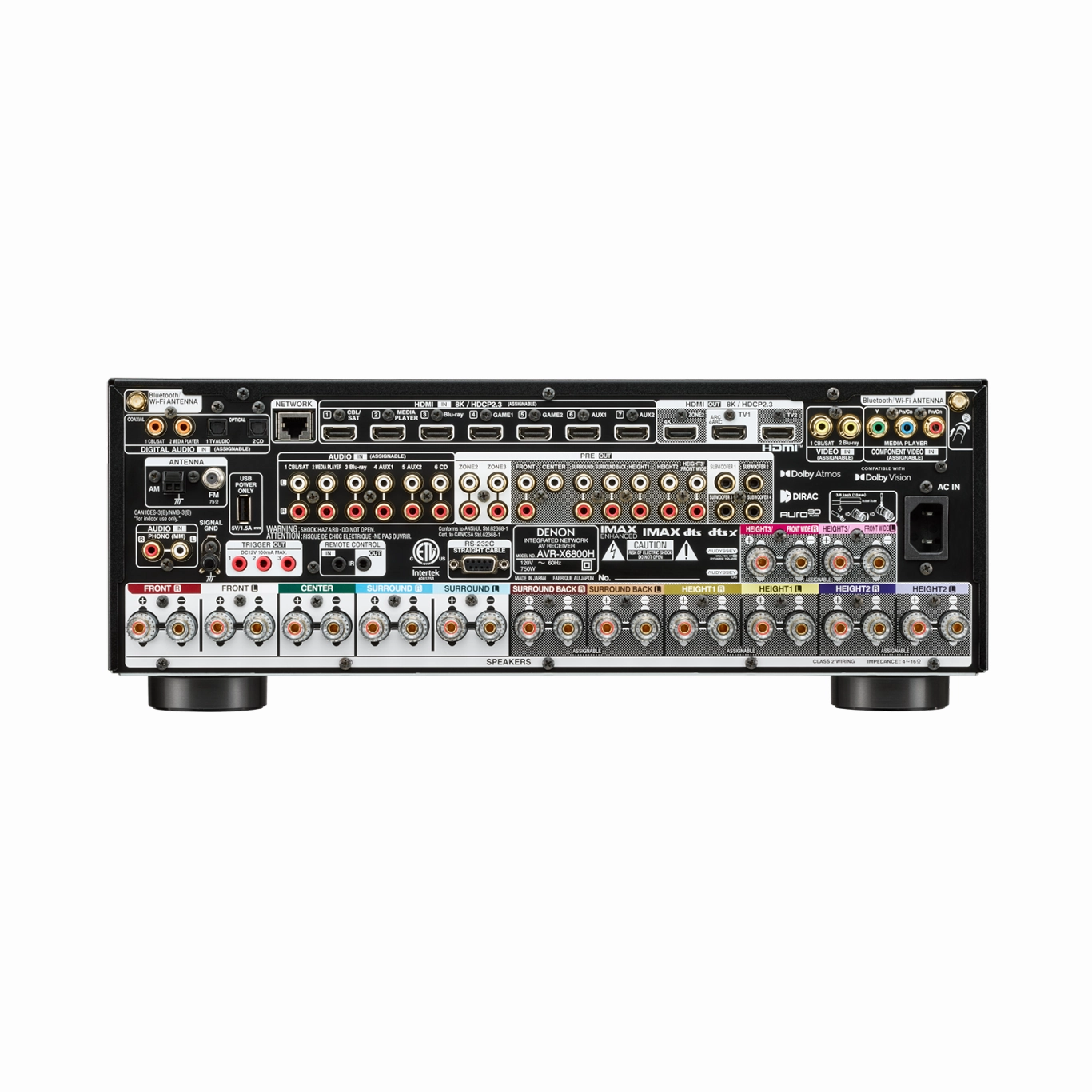

Inputs/Outputs | |
VIDEO | |
| HDMI In/Out | 7/3 |
| AUDIO | |
| Analog In/Out | 6/0 |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 2 / 2 |
| Multi-Room Out: Analog / Digital | 2 / 0 |
| Multichannel Pre-Out | Yes (13.4) |
| Subwoofer Out | 4 (independent) |
Other | |
| Number of Speaker Terminals | 13 |
| Speaker A/B | Assignable |
| Bi-Amp Drive | Assignable |
| Multi-Room Speaker Terminal Assignable | Assignable |
