Amplifier
- Power Amplifier Rated output & THD (8ohm)100 W 100 W (8 /ohms, 20 Hz to 20 kHz, T.H.D. 0.05 %)
- Power Amplifier Rated output & THD (4ohm)125 W 125 W (4/ohms, 1 kHz, T.H.D. 0.1%)
- Frequency Response20 Hz to 20 kHz : 1.5 dB
- Connected loudspeaker Impedance4 16 /ohms

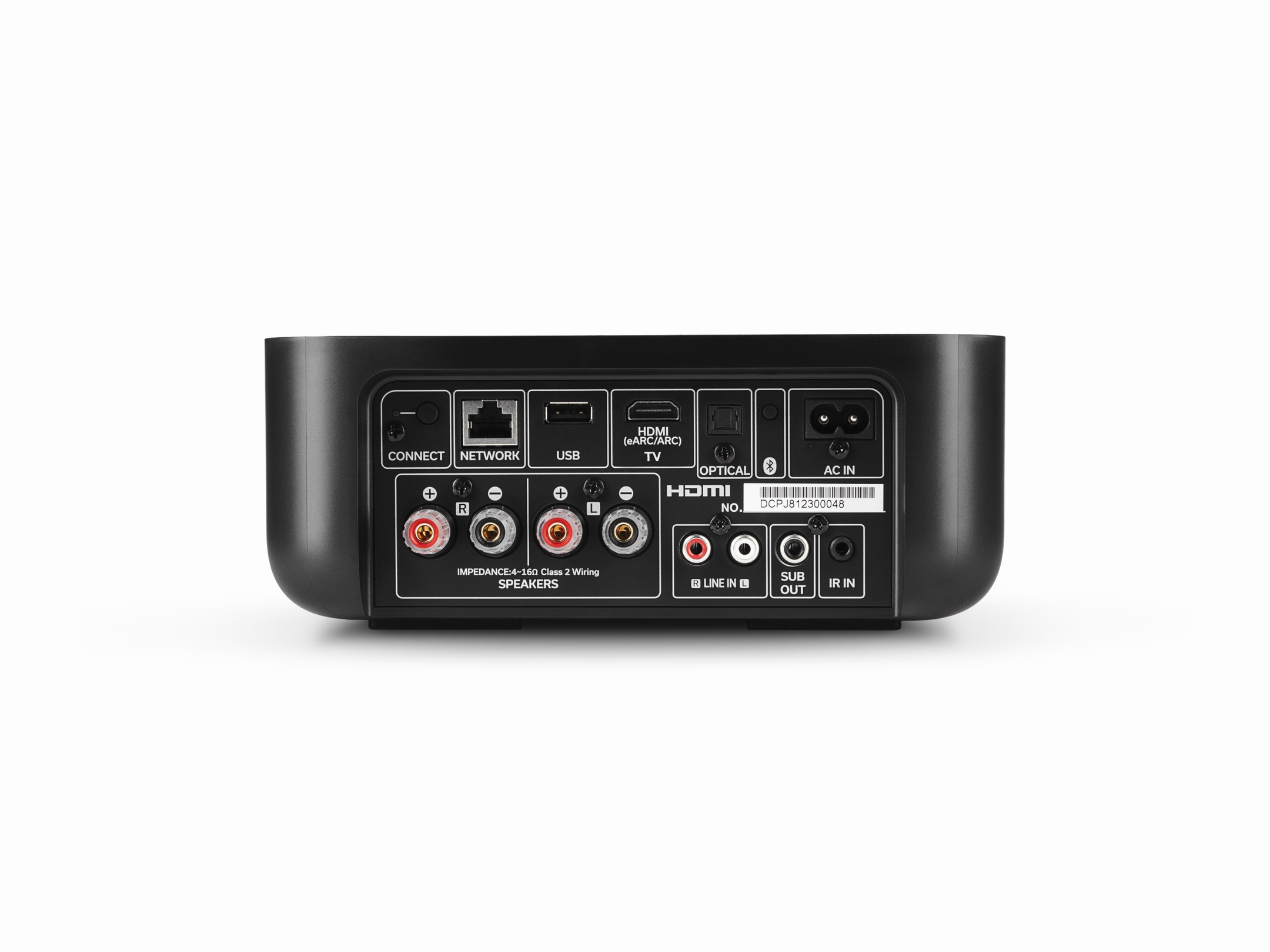

Audio Inputs / Outputs
- Loudspeaker Binding Posts4-way binding posts
- Digital InputsHDMI (eARC), TOSLINK
- Analog InputsRCA L/R
- Subwoofer OutRCA Mono
Audio Options
- Channel AssignmentsStereo (Default), Dual Mono
- Volume Limit80-100%
- Balance-15dB to 15dB
- Adjustable High Pass / Low Pass Filters40-250 Hz / 40-120 Hz
- EQBass, Treble -5dB to 5dB
- Sound ModesStereo, Direct, Virtual, Denon Dialog Enhancer, Night Mode
- TV Sound GroupingYes
Audio Format Support
- DecodingDolby Digital , Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCMYes / Yes
- Stereo File Formats (HEOS network share or USB)WMA: up to and including 192 kbps AAC & MP3: up to and including 320 kbps WAV, ALAC, FLAC: up to and including 24-bit/192kHz DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth ReceiveBT 4.2
- AirPlayAirplay 2
- SpotifySpotify Connect
Music Services and Sources
- Music Services Supported (HEOS, subject to change and local availability)Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile deviceYes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage)Network share, DLNA
- USB Storage Device PlaybackYes (FAT32, NTFS formatted drives)
Networking & Control
- Wired ConnectivityEthernet
- Wireless ConnectivityDual band, 802.11 a/b/g/n/ac
- IR Input3.5mm
- IR LearningYes
- Control System Compatibility via TCP/IPCrestron, Control4, AMX
- HEOS AppiOS, Android, Kindle Fire
General
- Product ColorBlack
- User InterfaceVolume up/down, Play / Pause, Quick Select 1/2/3, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (H x W x D) mm86.2 x 217 x 234mm
- Weight (kg)2 KG
