Product Details

Description:

The original Te Kaitora cartridge was the result of collaboration between Dynavector Japan and Dynavector New Zealand. The Te Kaitora allowed analogue enthusiasts to embark on a voyage of discovery to the outer limits of vinyl reproduction.

The improved Te Kaitora Rua continues the journey by incorporating many of the newest features of its Dynavector stable-mates, the XV-1s and XX-2. The Te Kaitora Rua has even managed to improve on the original's silk-like treble and openness.

Note: Te Kaitora means"The Discoverer"in the language of the NZ Maori people, Rua, is"the second version".

Improvements

  • The wire for the coil has been changed tothe PCOCC copper wirefrom the silver wire. It sounds a much smoother and has a much better musical performance.
  • A titanium headpiecefor maximum ridgity along with a miniature stainless steel bolt coupling the front and rear yokes to the magnetic circuit assembly.
  • A 6mm long boron cantilever with the Pathfinder (PF) line contact stylus as used with both Dynavector XV-1s and XX-2.

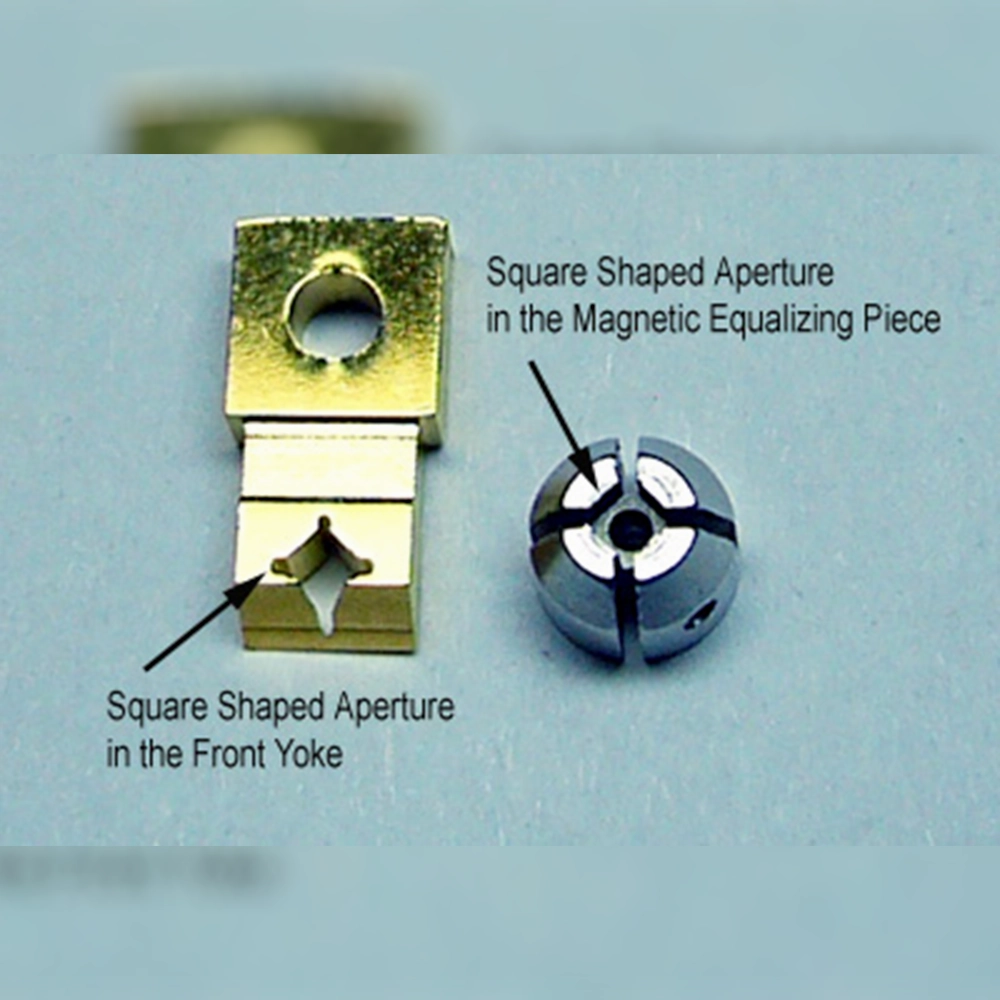

  • The ingenious square shaped armature and matching square shaped aperture in the front yokeproviding much improved linearity in the magnetic flux distribution.

  • Alnico magnets are used for high magnetic flux density.

Specifications

Typelow output moving coil cartridge with flux damper and alnico magnet
Output Voltage0.26mV (at 1KHz, 5cm/sec.)
Channel Separation30 dB (at 1KHz)
Channel balance1.0 dB (at 1KHz)
Frequency response20 - 20,000Hz ( 1dB)
Compliance10 mm/N
Tracking force1.8 - 2.2 g
Impedance6 ohms
Recommended load impedance> 30 ohms
Cantilever6mm length solid boron
Stylus tipPF Line contact shape, stylus radius: 7 x 30 micron
Weight9.8 g
