Built for stunning visual performance

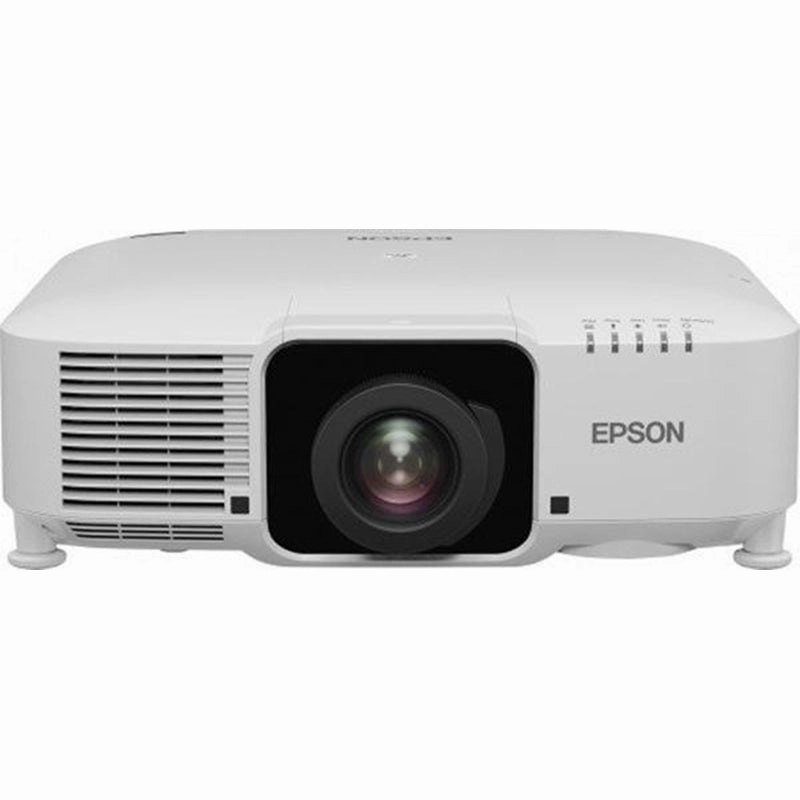

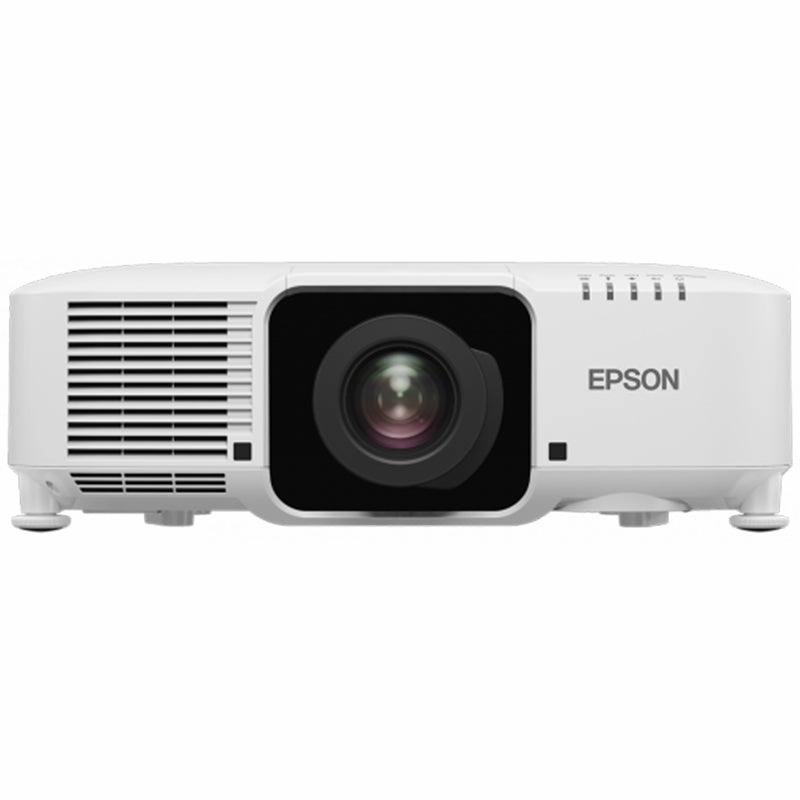

This highly versatile 6,000 lumens installation projector is sold as 'body only' and pairs seamlessly with Epsons existing lens family to deliver bright, true-to-life images in a wide variety of environments: from visitor attractions to lecture theatres, museums to meeting rooms. The high lumens EB-PU1006W offers WUXGA resolution with 4K enhancement, HDR and advanced installation features.
Produce vivid, engaging images
Captivate customers and audiences with projections that will live long in the memory. The 6,000 lumens EB-PU1006W projects clear whites, vivid colour detail, deep blacks, defined shadows and high contrast imagery - thanks to HDR and 3LCD technology. Exceptional image detail and clarity is achieved with 4K Enhancement.
Build your perfect projection solution
The EB-PU1006W accommodates different lenses to suit your most challenging projection environments, including a zero-offset ultra-short-throw lens. Epson supplies the projector as body only, without a lens, which puts the power to build the right projection solution, for the right application, in your hands.
Transport and store with ease
As it's lightweight and compact, this installation projector is transportable and will save on valuable storage space, providing size and cost advantages to projector fleets. The projector's unobtrusive design also allows it to blend seamlessly into your chosen environment.
Discover installation agility
Produce large-scale, extremely bright displays, even as part of multi-projector installations where edge blending, stacking and lens flexibility is key. Epson Projector Professional Tool makes advanced installation techniques easy, such as projection mapping, while the optional external camera module (ELPEC01) uses built-in processing for PC-free geometry correction for stacking. The EB-PU1006W also features NFC for multi-projector set up, making diagnostics and installations easier using the Epson Projector Config Tool.
Enjoy the benefits of PC-free stacking
The ELPEC01 is an optional external camera module that can be easily integrated with EB-PU Series projectors and ELPLX Series lenses. It enables the use of in-built processing for PC-free stacking, which means two supported projectors can be stacked to double the brightness, without using external computerware. This reduces the need for additional external equipment and their associated costs.
Take control of your projected images
Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, stacking, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.
Create customised content
The EB-PU1006W includes a built-in media player with network content upload capability. This allows playlists to be loaded onto a USB storage device and played directly from the projector. Create customised content with your smartphone or tablet using the Epson Creative Projection App, or create and schedule playlists using Epson Projector Content Manager software.
Trust in the world's No.1 projectors manufacturer1
Epson has been the world's No.1 projector manufacturer1 since 2001. Our commitment to product quality, technology and relationships, is backed by unparalleled service and support.
Specifications
Image and Display:
- Projection System: 3LCD Technology, RGB liquid crystal shutter
- LCD Panel: 0.76 inch with C2 Fine
- Color Light Output:
- 6,000 Lumen
- 4,200 Lumen (economy)
- Portrait Colour Light Output: 6,000 Lumen
- White Light Output:
- 6,000 Lumen
- 4,200 Lumen (economy)
- Portrait White Light Output: 6,000 Lumen
- Resolution: WUXGA
- Resolution Enhancement: 4K enhancement
- Aspect Ratio: 16:10
- Contrast Ratio: Over 5,000,000:1
- Native Contrast: 2,000:1
- Colour Reproduction: Up to 1.07 billion colours
- Colour Video Processing: 10 Bits
- HDR Support: HDR10, HLG
Lens and Optical:
- Light Source: Laser
- Laser Light Source Life:
- 20,000 hours (High Durability)
- 30,000 hours (Eco Durability)
- Keystone Correction:
- Manual Vertical: 45
- Manual Horizontal: 30
- Throw Ratio: 0.35 - 10.11:1
- Zoom: Motorized
- Lens Shift: Varies by lens
- Screen Size: Varies by lens
- Projection Distance Wide/Tele: Varies by lens
- Projection Lens F Number: Varies by lens
- Projection Lens Focal Length: Varies by lens
- Projection Lens Focus: Motorized
- Offset: Varies by lens
- Interchangeable Lens: Yes
- Standard Lens: Not included
Connectivity and Features:
- Interfaces:
- USB 2.0-A (2x)
- USB 2.0 Type B (Service Only)
- RS-232C
- Ethernet Interface (100 Base-TX / 10 Base-T)
- Wireless LAN IEEE 802.11a/b/g/n (optional)
- VGA in
- DVI in
- HDMI (HDCP 2.3)
- Near Field Communication (NFC)
- USB content playback
- Remote
- Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
- Advanced Features:
- Security: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
- Other Features:
- 21:9 aspect ratio support
- 4K enhancement
- A/V mute
- Auto Power On
- Auto source search
- Direct Power on/off
- Edge Blending
- Horizontal and vertical keystone correction
- Lens position memory
- Long light source life
- OSD copy function
- Point correction
- Power on button
- Quick Corner
- Schedule Function
- Super resolution
- Web Control
- Web Remote
- iProjection App
- Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
- Projector Control: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery
Build and General Specifications:
- Power Consumption:
- Normal On-Mode: 295 Watt
- Normal Peak-Mode: 367 Watt
- Eco Peak-Mode: 310 Watt
- Energy Saving Standby: 0.5 Watt
- Heat Dissipation: 1,247.8 BTU/hour (max)
- Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
- Product Dimensions: 545 mm x 436 mm x 189 mm (WxDxH)
- Product Weight: 15.4 kg
- Noise Level:
- Normal: 30 dB (A)
- Economy: 28 dB (A)
- Supported Temperature:
- Storage: -10 C - 60 C
- Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
- Included Software:
- Epson Creative Projection
- Epson Projector Config Tool
- Epson Projector Content Manager
- Epson Projector Management
- Epson Projector Professional Tool
- Options:
- Air filter
- Camera module
- Ceiling mount
- Wireless LAN unit
- Room Type / Application:
- Boardroom
- Large Meeting Room / Auditorium
- Meeting room / Classroom
- Projection Mapping
- Rental / Staging
- Signage / Retail
- Visitor Attraction
- Positioning: Ceiling Mounted, Desktop, Flying Frame
- Colour: White
- Warranty: 36 months Carry in
