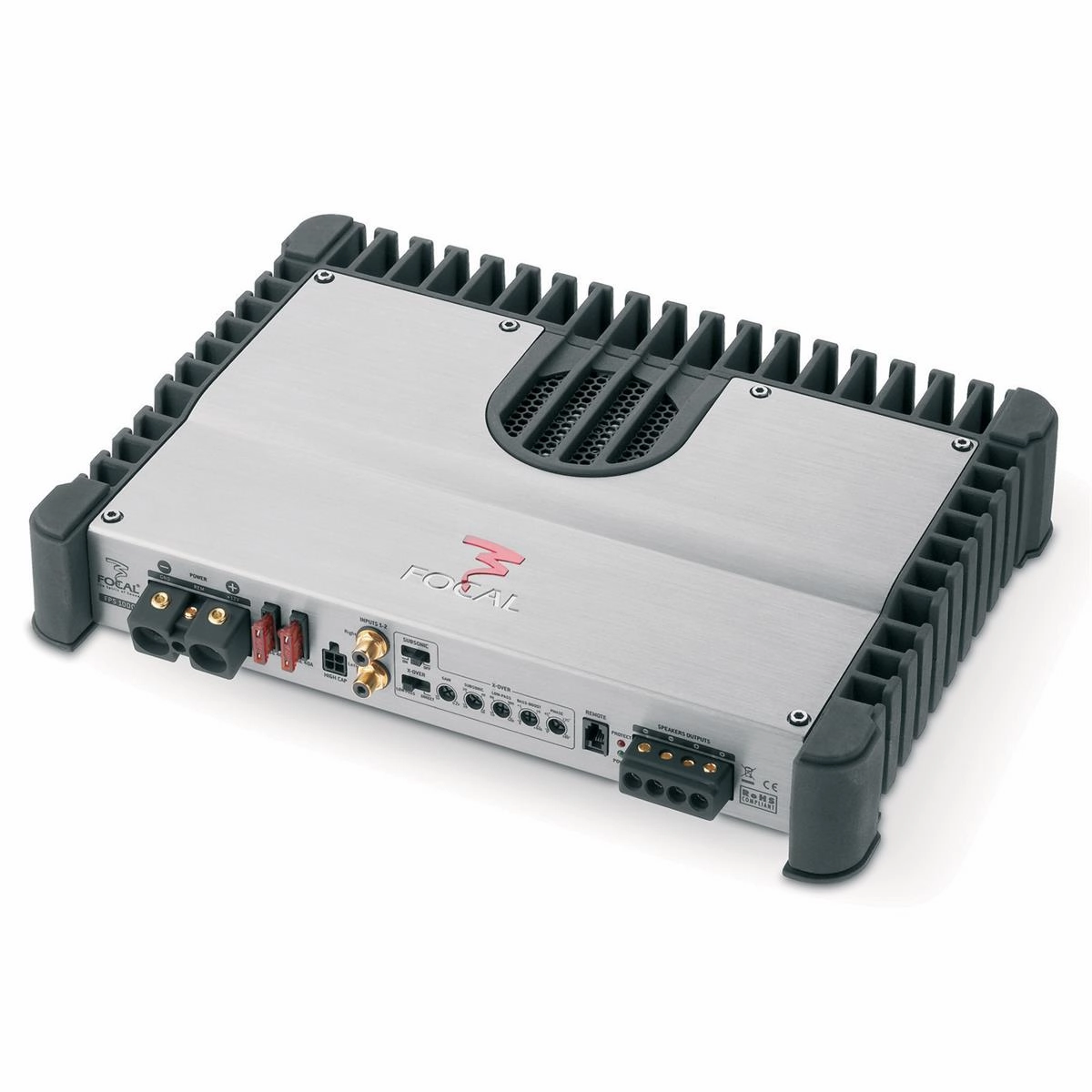

FocalFPS 1500 Class-D Amplifier

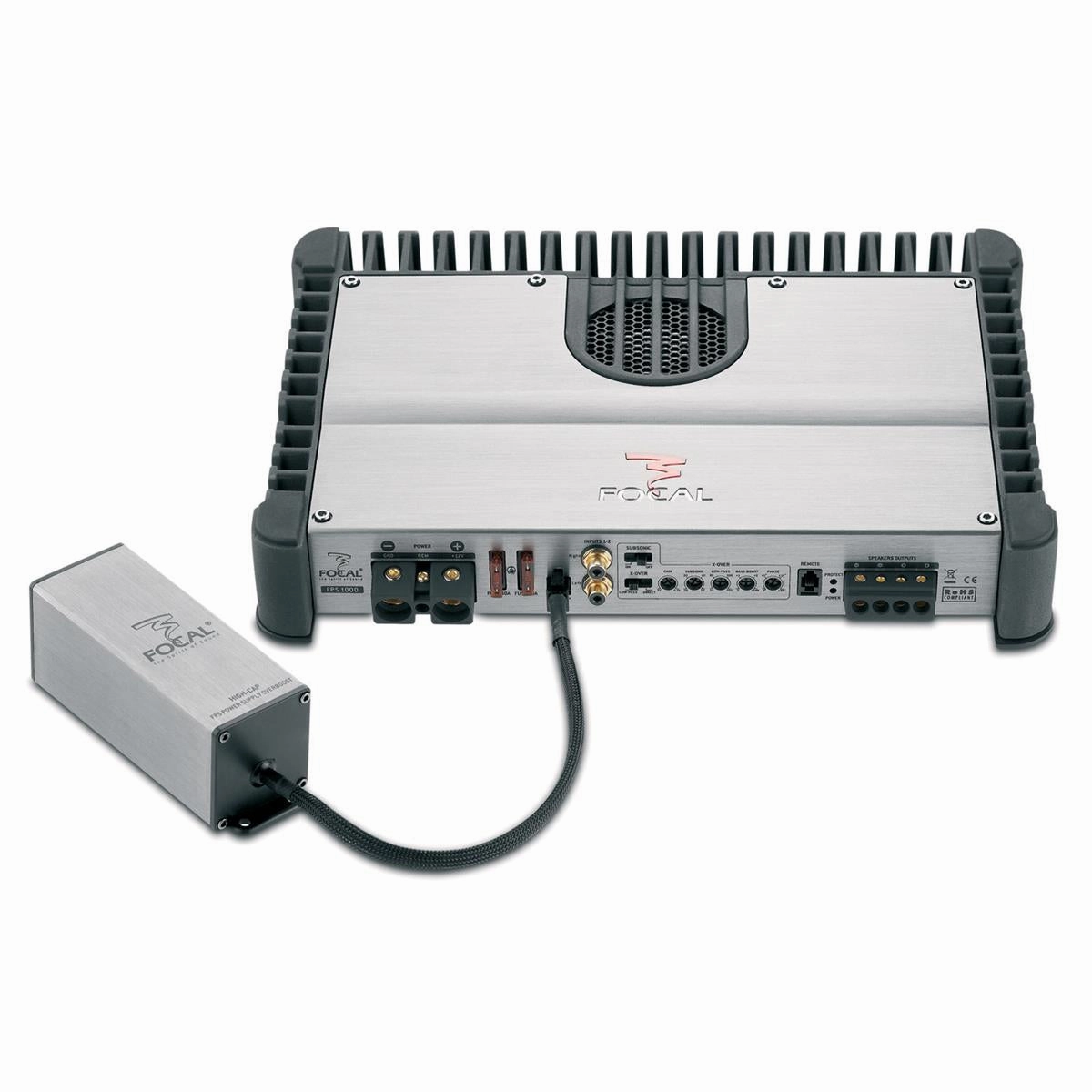

High-end Class D amplifier. Direct mode available for quality active amplification. Thermo-controlled ventilation. Compatible with High-Cap.
FocalFPS 1500 Class-D Amplifier Highlights:
- Class D amplifier
- Direct mode
- Low-pass crossover
- Controlled cooling system
FocalFPS 1500 Class-D Amplifier Specifications:
- RMS power - 14.4V, 4 - THD N < 1% (CEA 2006): 1 x 325W
- RMS power - 14.4V, 2 - THD N < 1%: 1 x 550W
- RMS power - 14.4V, 1 - THD N < 1%: 1 x 800W
- Frequency response (-1dB) in direct mode: 10Hz - 2.5kHz
- Signal/noise ratio (@CEA power): 87dBA
- Distortion into 4 Ohms @100Hz (with 22kHz low-pass): < 0.15% between 5 and 270W
- Damping factor into 4 at 100Hz: 220
- Input sensitivity: 0.2V - 5.2V
- Low-pass crossover: 50Hz - 500Hz
- Subsonic crossover: Variable from 20 to 50Hz (24dB/oct.) released
- Direct mode: Yes
- Bass boost level: 0/ 9dB linear
- Bass Boost center frequency: 45Hz
- Variable phase (SUB): 0-180-degrees linear
- Remote control: Yes
- Protections:
- Short-circuit
- Thermal overload (76C)
- Soft clipping
- High voltage
- Polarity reversal
- Dimensions (H x L x D): 59 x 353 x 254mm
