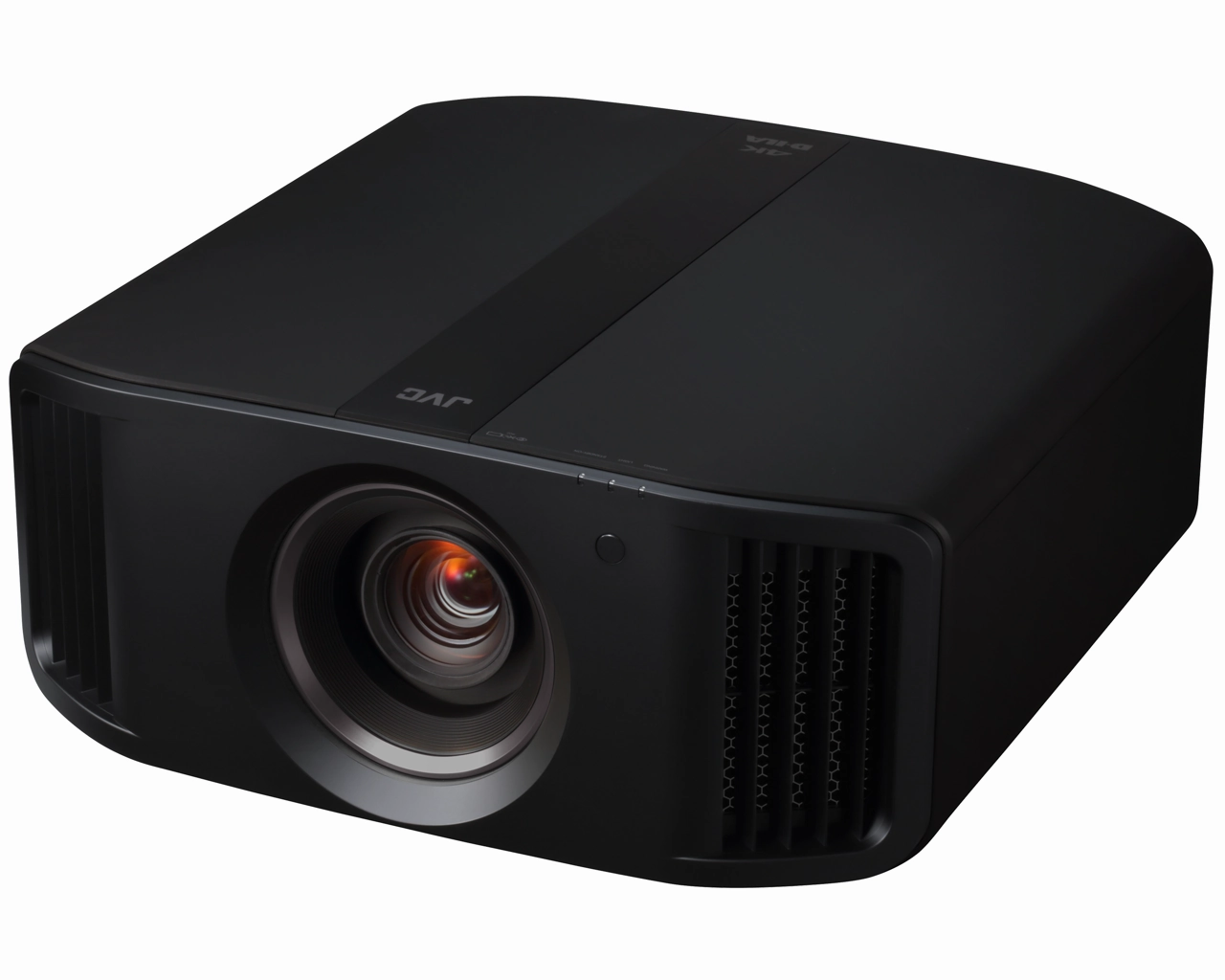

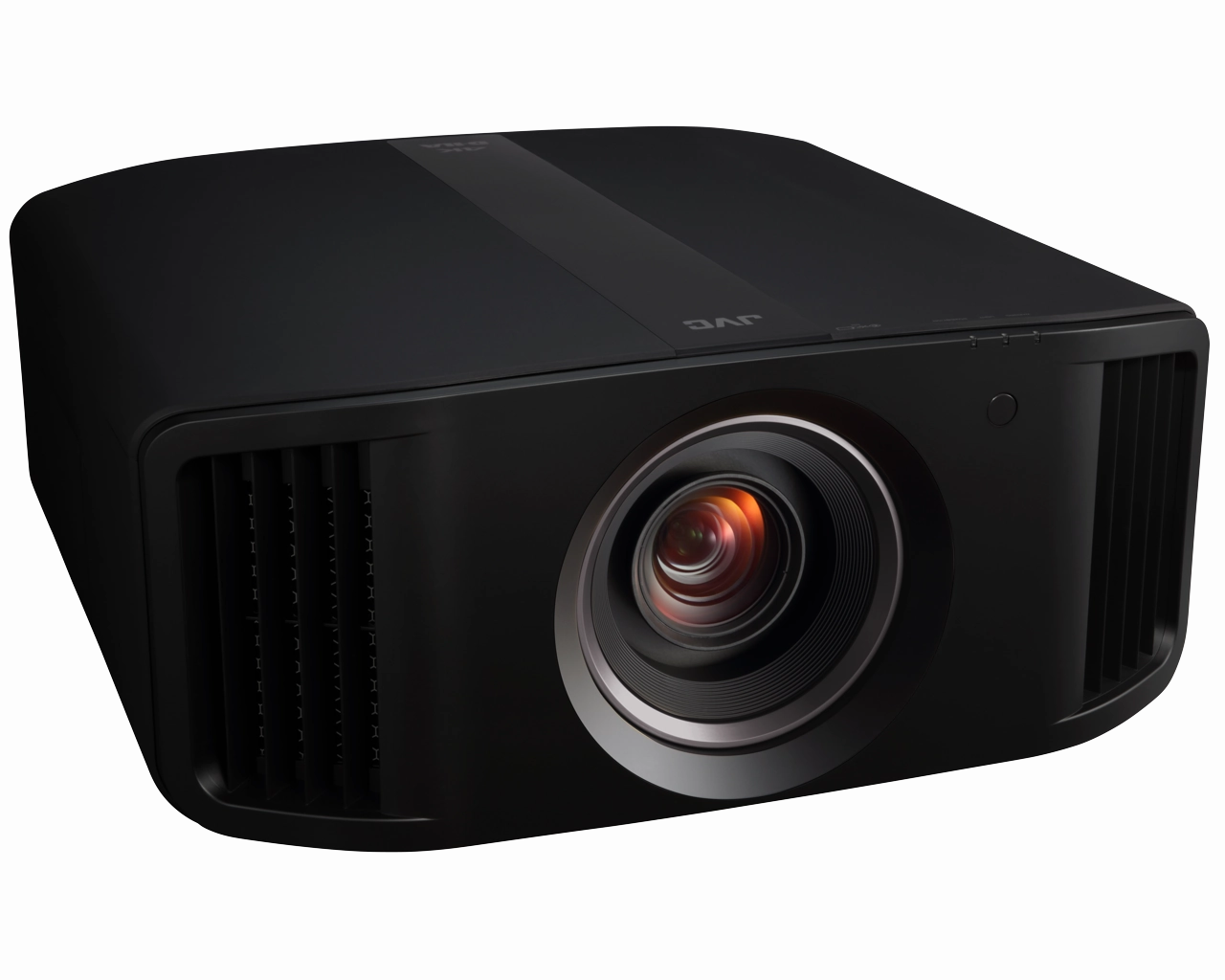

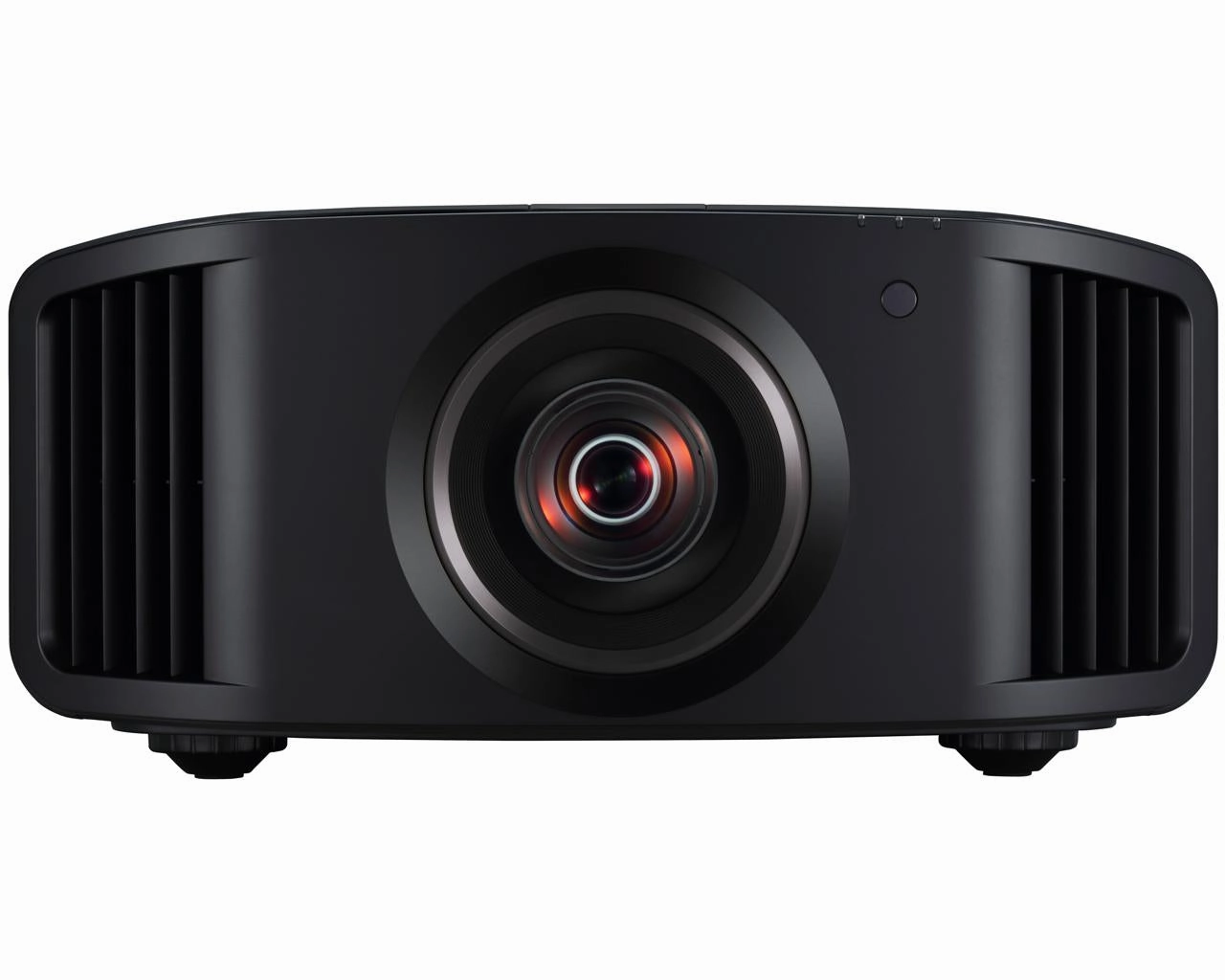

JVC DLA-NP5 Home Theatre Projector
4K Native Resolution Equipped with refined 0.69" native 4K D-ILA device and newly developed digital driver LSI for native 4K resolution. D-ILA projectors continue to evolve for the better. The latest three models feature an original native 0.69" 4K D-ILA devices, which were first adopted on model DLA-Z1; this device has been improved with process refinements on planarization and reflection efficiency to achieve higher contrast and brightness. Additionally, a dedicated driver LSI was also enhanced to simultaneously drive each of the three (R/G/B) native 4K D-ILA devices at high-speed 120fps. As a result, precise and smooth image projection unique to 4K native can be achieved with the combination of a new device and new driver LSI. | |
HDR10 Support allows a choice for two dynamic tone mappings When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10 signal format with dynamic metadata compatibility. | |
Frame Adapt HDR function The Frame Adapt HDR function*enables reproduction of any HDR10 content dynamically and in high-resolution! The colour grading of HDR content varies, some HDR content are adjusted to bright side and others to the dark side. Using JVCs original algorithm, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content frame-by-frameand in real timeadjusts the projector to the optimum dynamic range. Whats more, the gamma processing accuracy of gradation performance has been improved dramatically from, 12-bit to 18-bit. | |
4K120p input ideal for Low Latency Mode Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. Whats more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users rapid operations. |
Specifications
| Picture | |
| Device | 0.69-inch Native 4K DILA Device (4096x2160) x3 |
| Resolution | 4096 x 2160 |
| Lens shift function | /-80% vertical & /-34% horizontal, motorised in 16:9 aspect mode |
| Light source | lamp NSH 265 W |
| Lens | All-glass lens with 65 mm diameter |
| Zoom | 2X zoom & focus, motorised |
| Lamp life | Approx. 4500 hours in Low mode |
| Brightness | 1,900 lm |
| Contrast Ratio | Native: 40,000:1, Dynamic: 400,000:1 |
| Video format | Digital: 480p, 576p, 720p 60/50, 1080i 60/50, 1080p 120/100/60/50/30/25/24, 2048x1080 120/100/60/50/30/25/24, 3840 x 2160p 120/100/60/50/30/25/24, 4096 x 2160p 120/100/60/50/30/25/24 PC input signal |
| HDMI | VGA/ SVGA/ XGA/ WXGA/ WXGA / SXGA/ WSXGA / UXGA/ WUXGA/ WQHD (60)/ WQHD (120) |

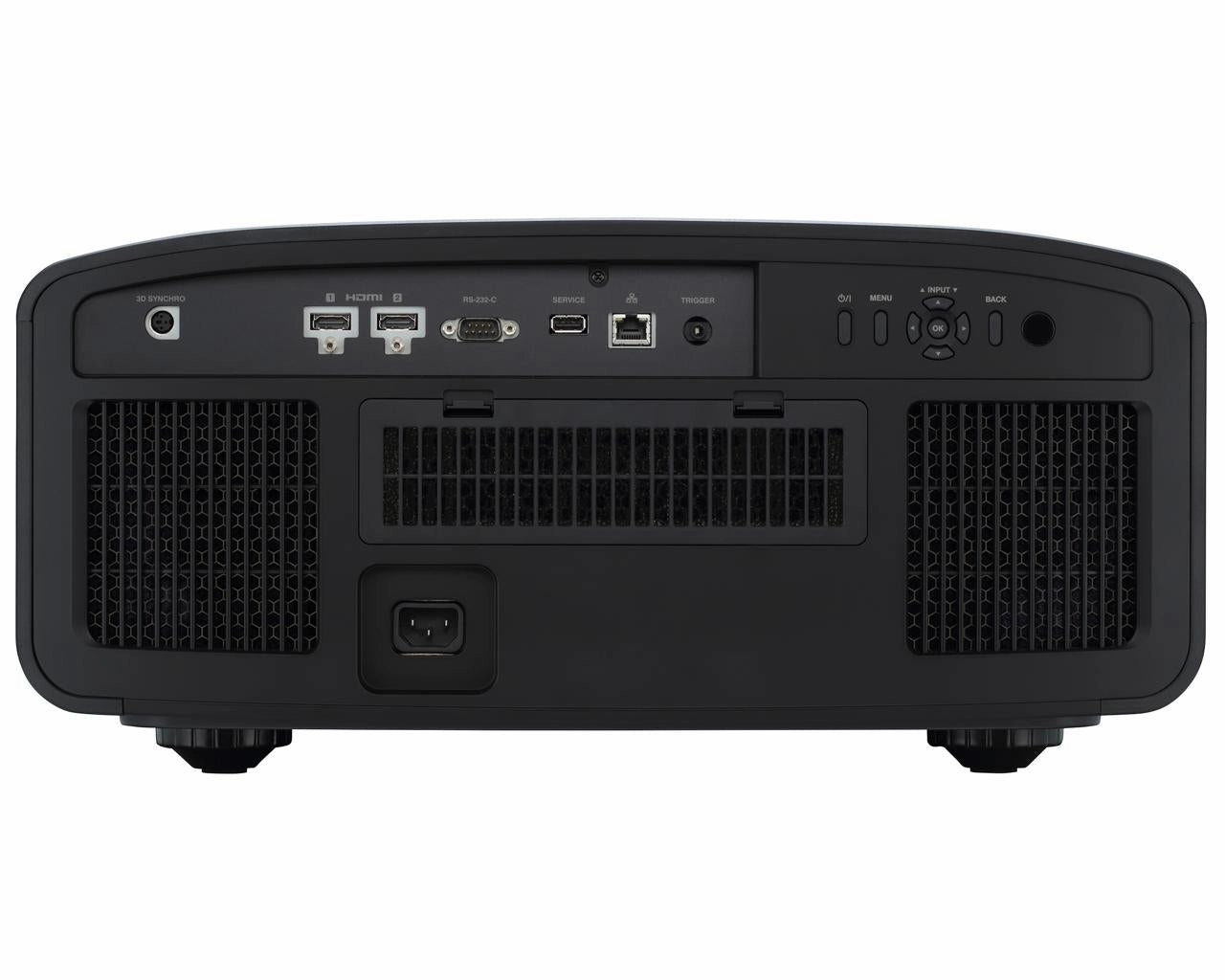

| Video input terminals (back panel) | |
| HDMI | 2 (48Gbps, HDCP2.3, no support for CEC) |
| Output terminals | (back panel) |
| 3D sync | 1 (Mini DIN 3-pin) |
| Trigger | 1 (mini jack, DC12V/100mA) |
| Control terminals | |
| RS232C | 1 (D-sub 9-pin) |
| LAN 1 | (RJ-45) |
| Service terminal | |
| Service 1 | (USB Type A) (for firmware update) |
| 3D | |
| 3D format | |
| Frame packing | 720p 60/50, 1080p 24 |
| Side-by-side | 720p 60/50, 1080p 60/50/24, 1080i 60/50 |
| Top & bottom | 720p 60/50, 1080p/24 |
| General | |
| Noise level | 24dB (in Low Mode) |
| Power requirement | AC100V-240V, 50/60Hz |
| Power consumption | |
| Projector in use | 420 W |
| Standby Normal: | 1.5W, Eco-mode: 0.3W |
| Networked standby | 1.3 W (LAN), 1.0 W (RS-232C), 1.3 W (LAN and RS-232C) |
| Switchover time | 20 min. (To standby or networked standby; default) |
| Dimensions: | W x H x D, mm 500 x 234 x 495 |
| Weight, kg | 19.2 |
