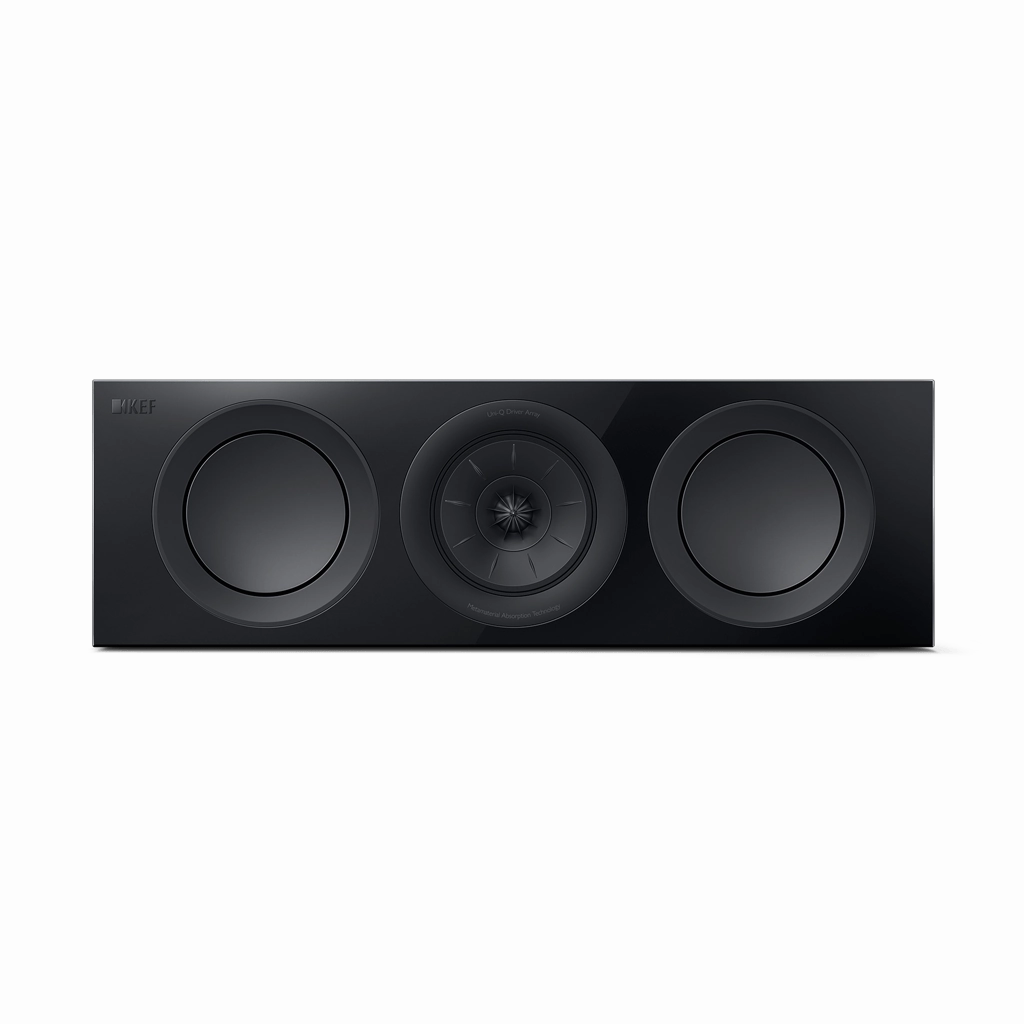

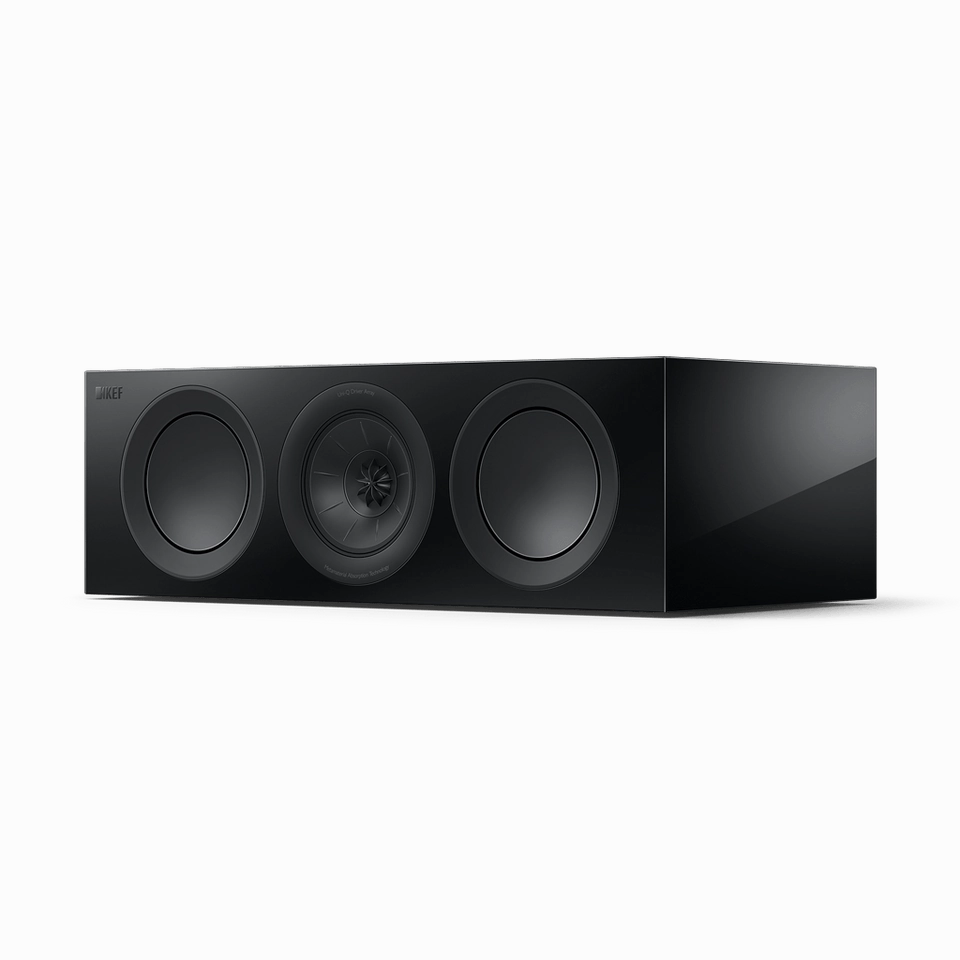

Compact three-way centre channel speaker
Designed to match any R Series floorstanding speakers, the R2 Meta boasts the 12th generation Uni-Q driver array with MAT and two 5.25 hybrid aluminium bass drivers. It is compact enough to use in smaller rooms while being capable of high-quality sound with even the most dynamic music and movies. This design is highly versatile and can be used in an LCR (Left-Centre-Right) configuration.
An icon born from The Reference
A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.
Metamaterial Absorption Technology
Absorbs 99% of unwanted sound for pure and natural sound.
True bass definition
Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.
12th generation Uni-Q
Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.

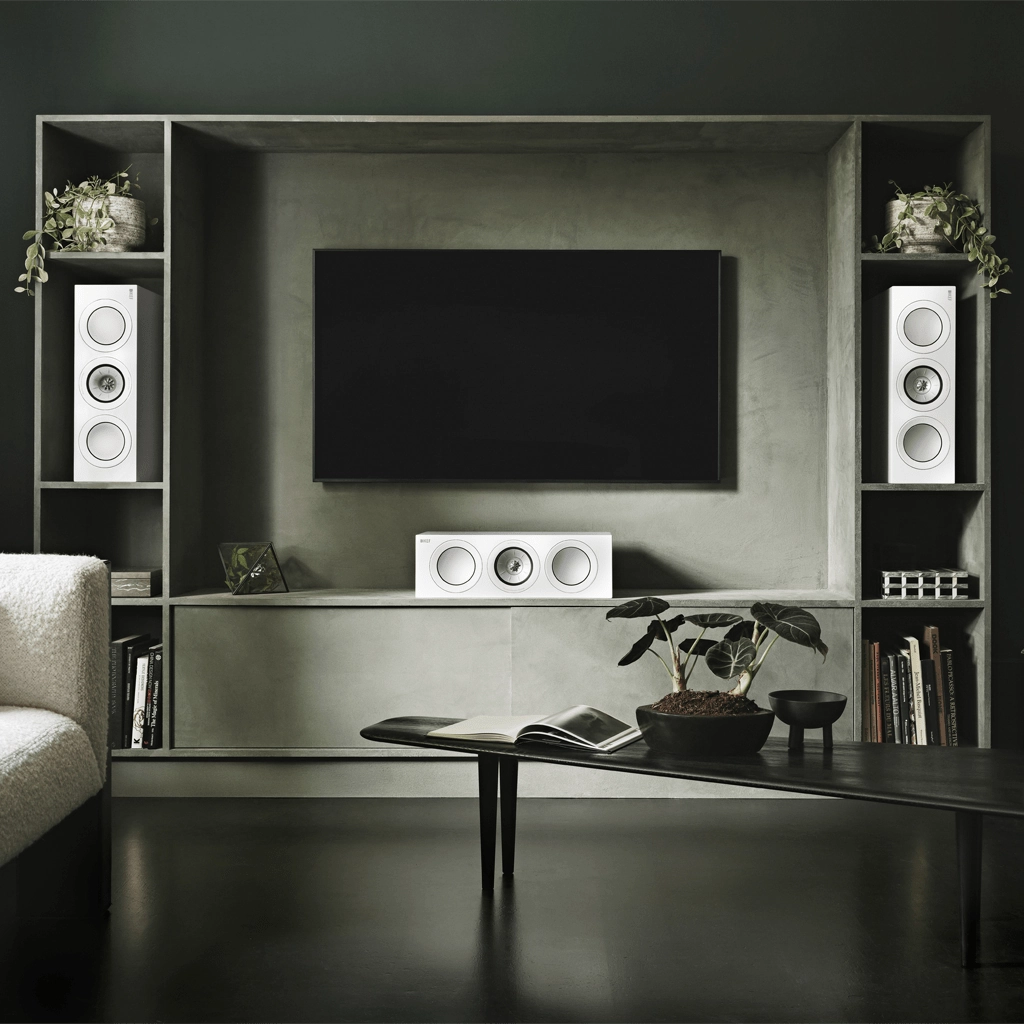

Home theatre made versatile
With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.

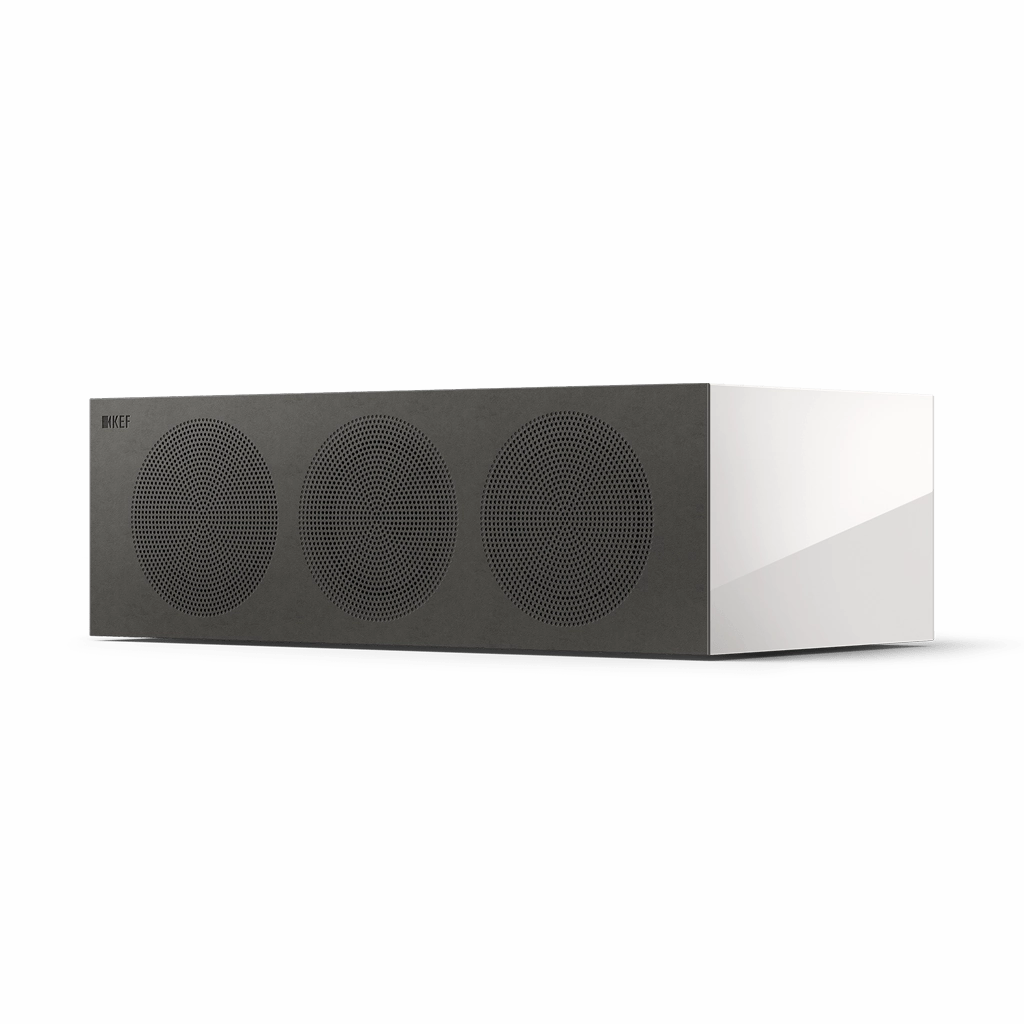

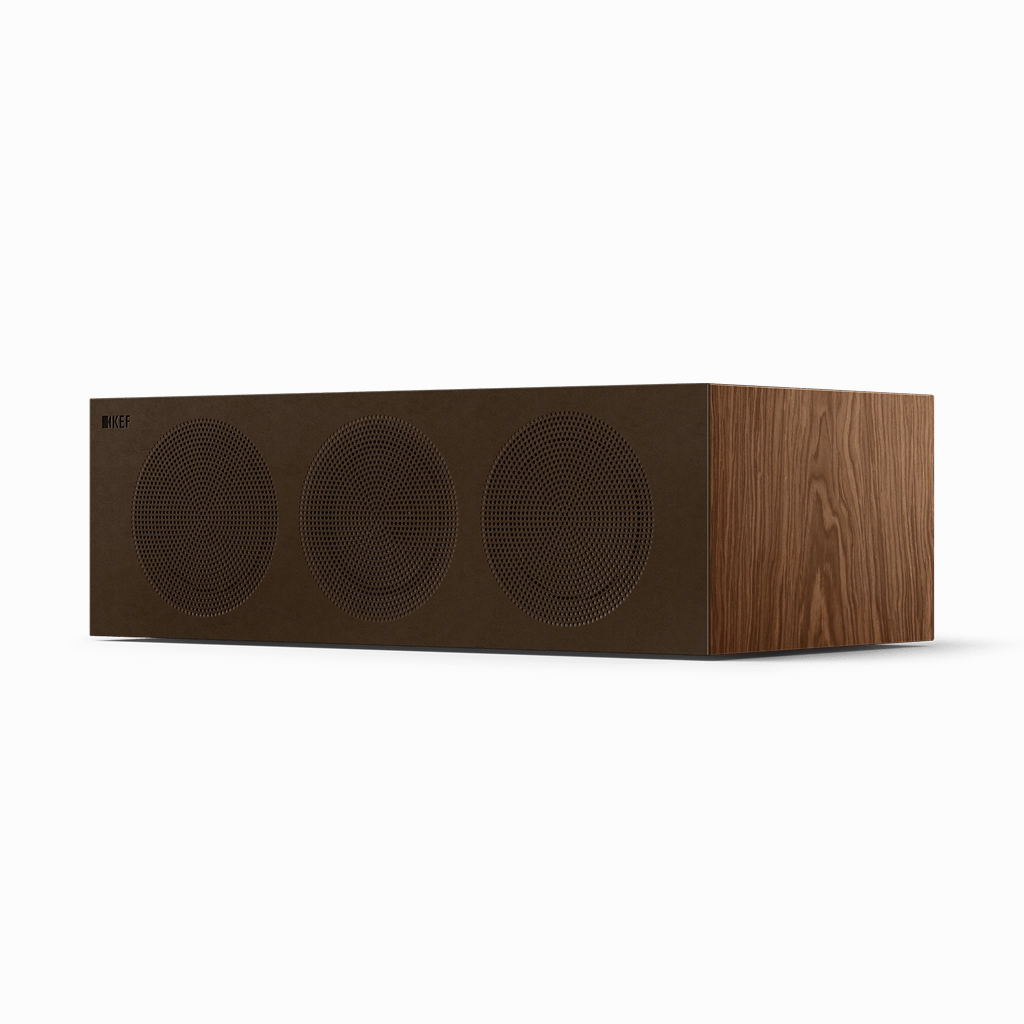

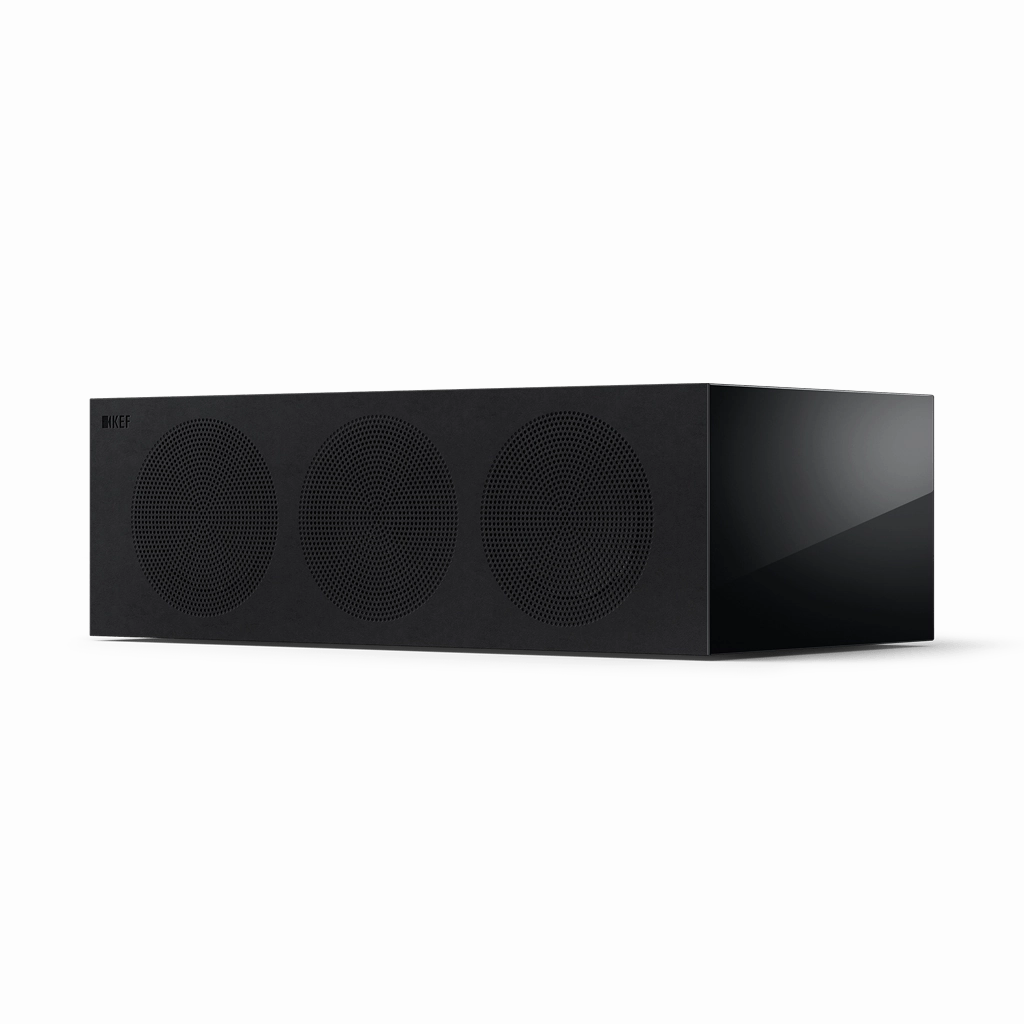

Microfibre grilles
With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.
What is in the box
- 1 unit of R2 Meta loudspeaker
- 1 piece of microfiber grille
- Rubber feet
- User manual and warranty information
-
Specifications:
| DESIGN | Three-way closed box |
| DRIVE UNITS | Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 2 x 130 mm (5.25 in.) hybrid aluminium cone |
| CROSSOVER FREQUENCY | 560 Hz, 2.5 kHz |
| FREQUENCY RANGE (-6dB) | 58 Hz - 50 kHz |
| TYPICAL IN-ROOM BASS RESPONSE (-6dB) | 43 Hz |
| FREQUENCY RESPONSE (3dB) | 67 Hz - 28 kHz |
| HARMONIC DISTORTION (90dB, 1m) | <1% 84 Hz and above <0.5% 95 Hz - 20 kHz |
| MAXIMUM OUTPUT | 110 dB |
| AMPLIFIER REQUIREMENTS | 15 - 200W |
| NOMINAL IMPEDANCE | 4 (min. 3.2 ) |
| SENSITIVITY (2.83V/1m) | 87 dB |
| WEIGHT * | 15.4 kg (34.0 lbs) |

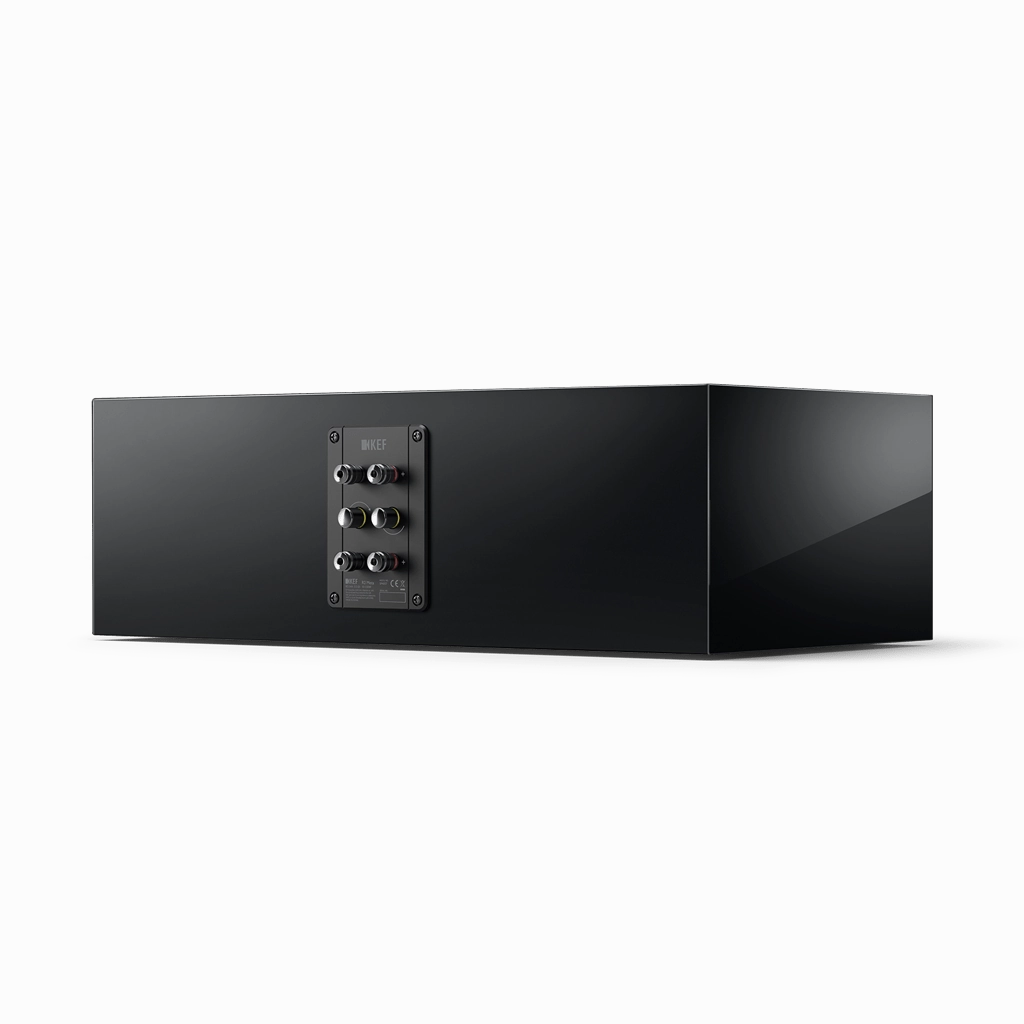

| DIMENSION (H x W x D) WITH TERMINAL * | 175 x 550 x 309 mm (6.9 x 21.7 x 12.2 in.) |

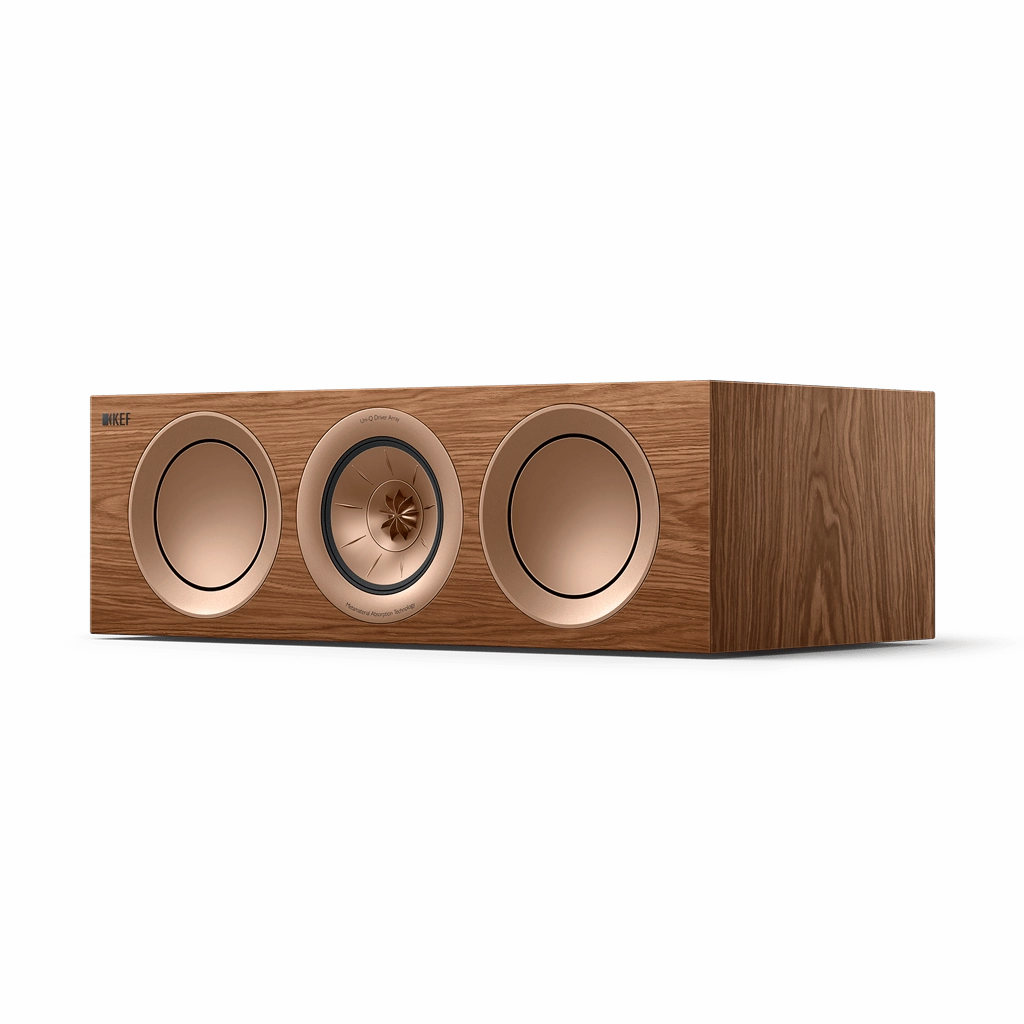

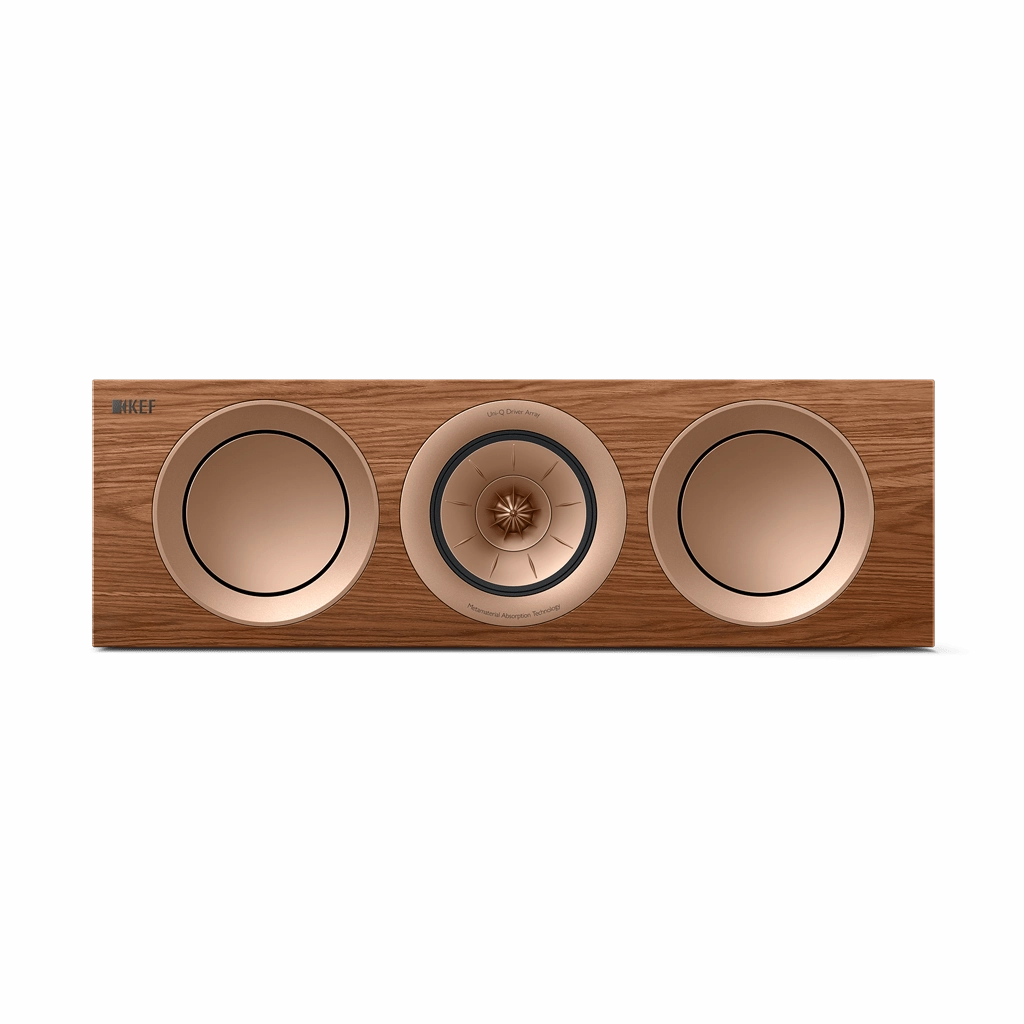

| FINISHES | Black Gloss / White Gloss / Walnut |
