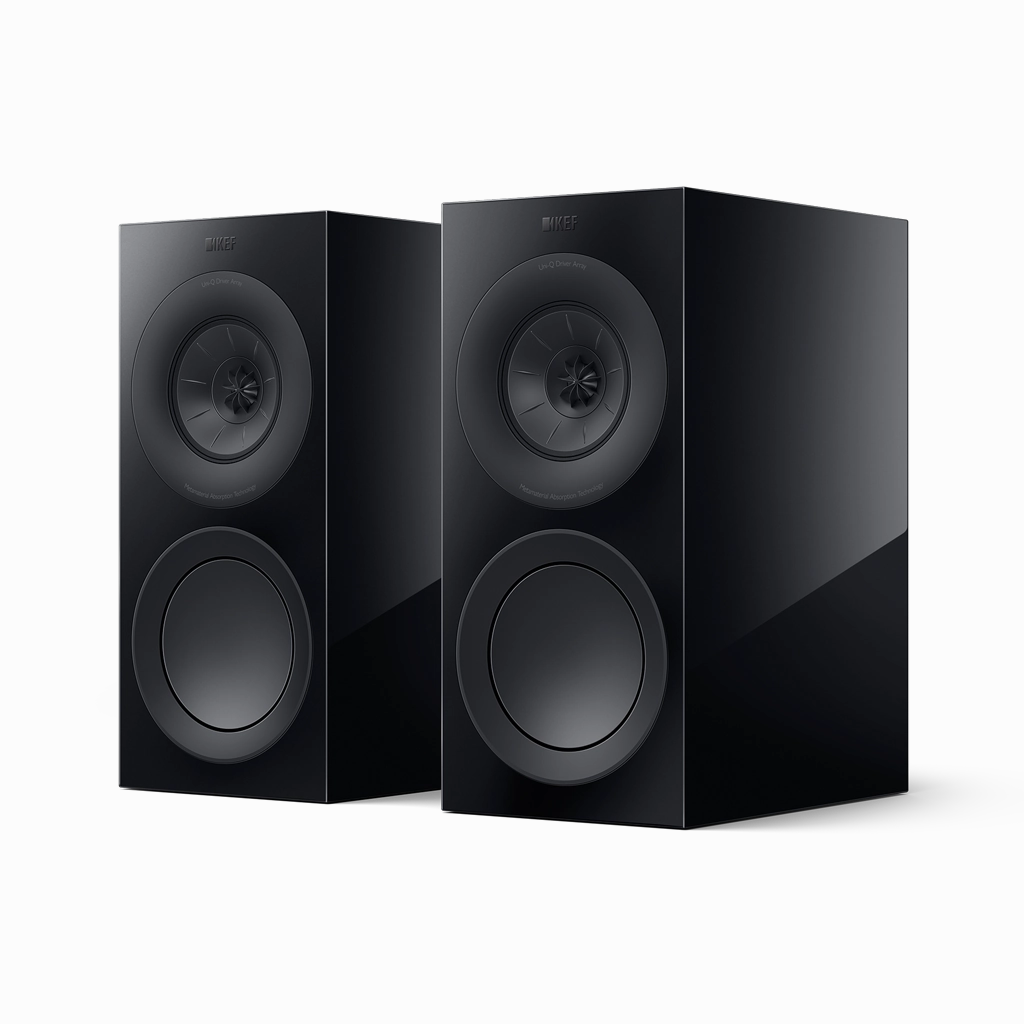

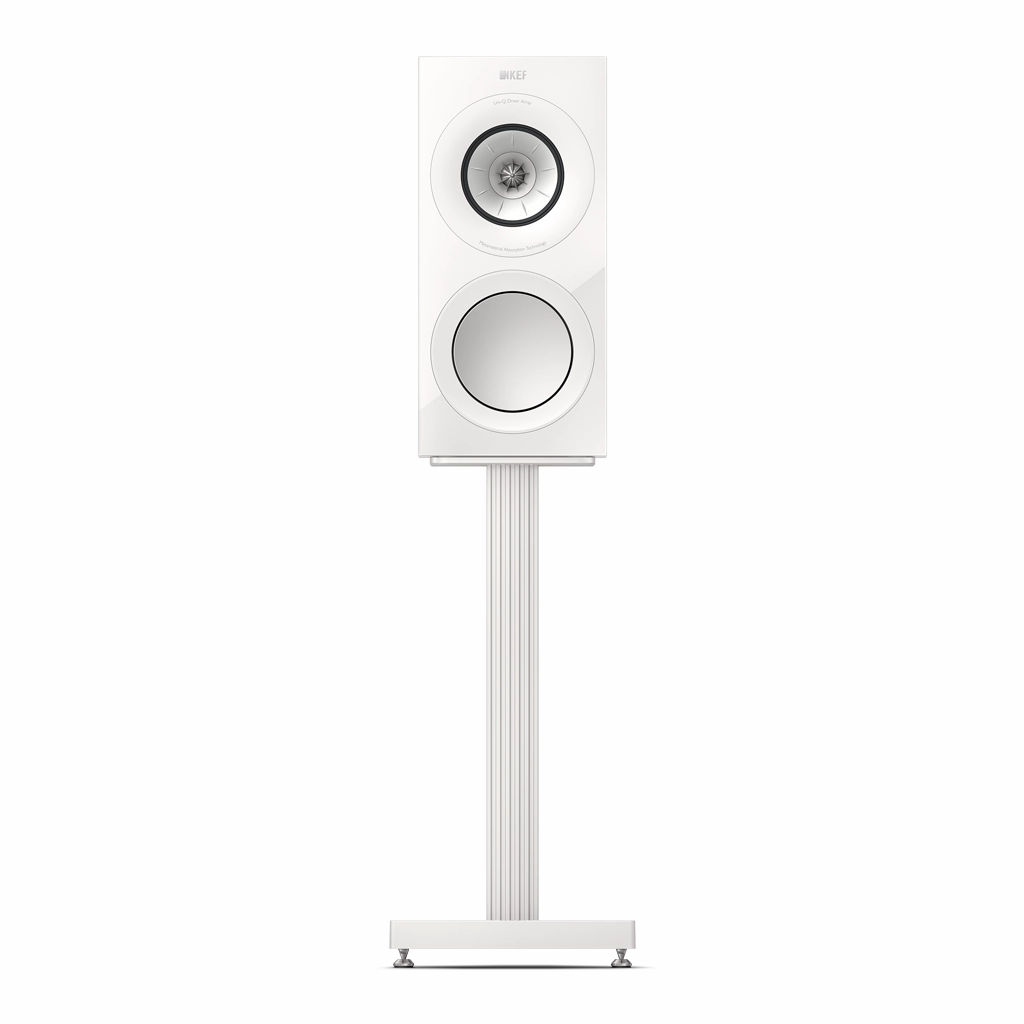

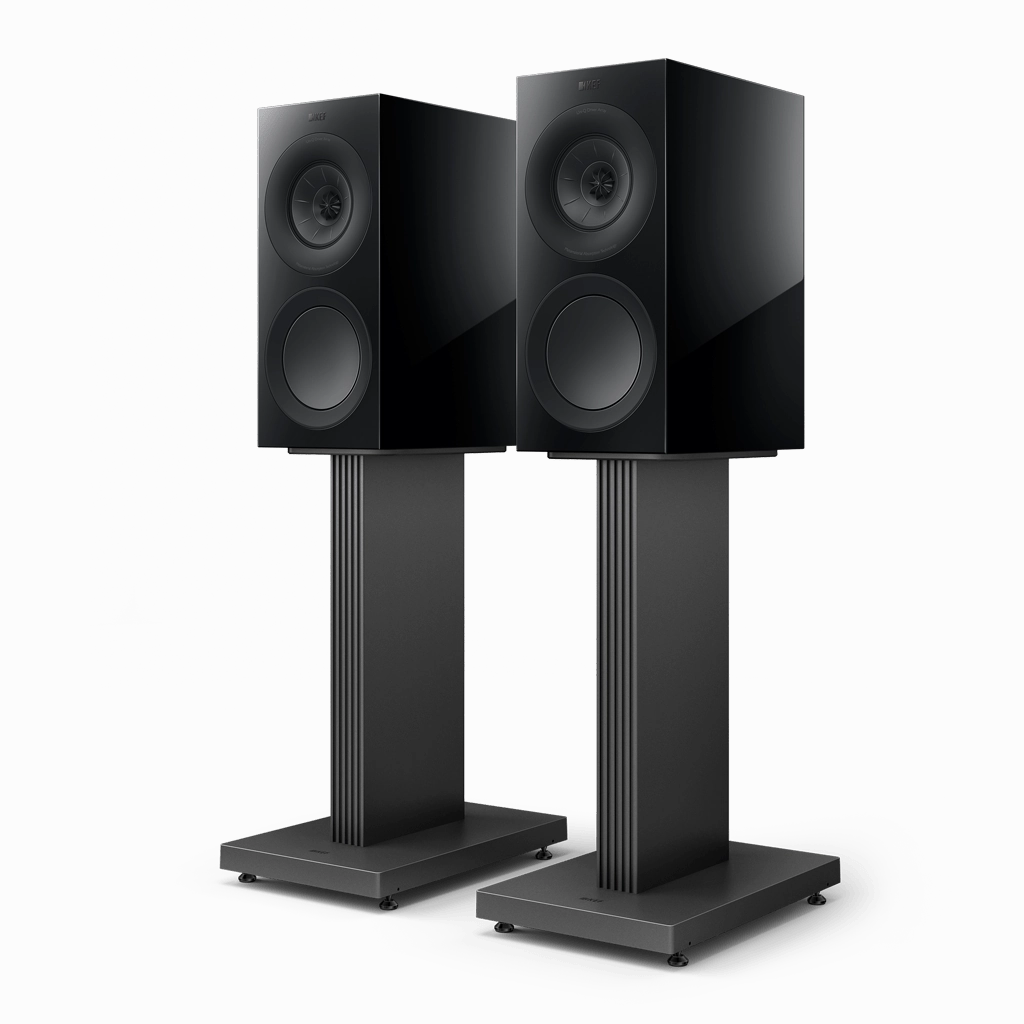

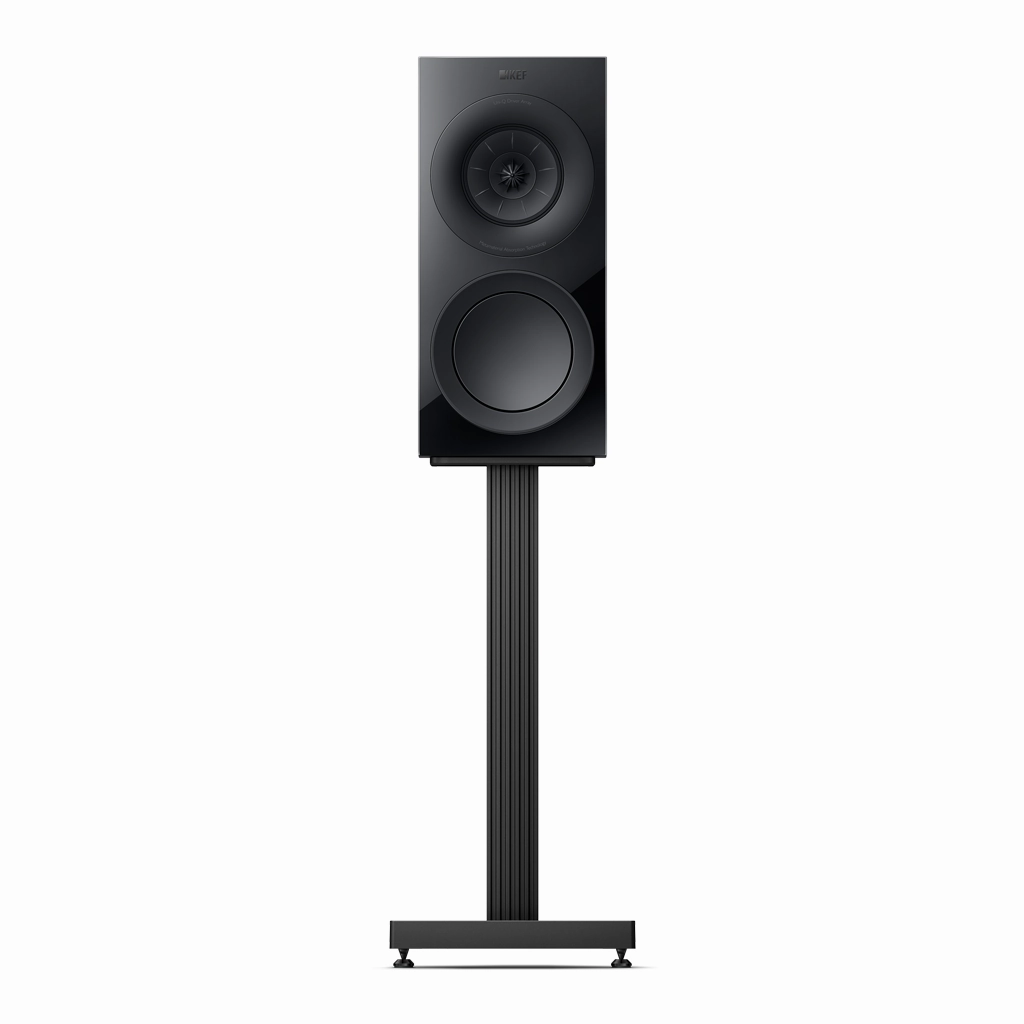

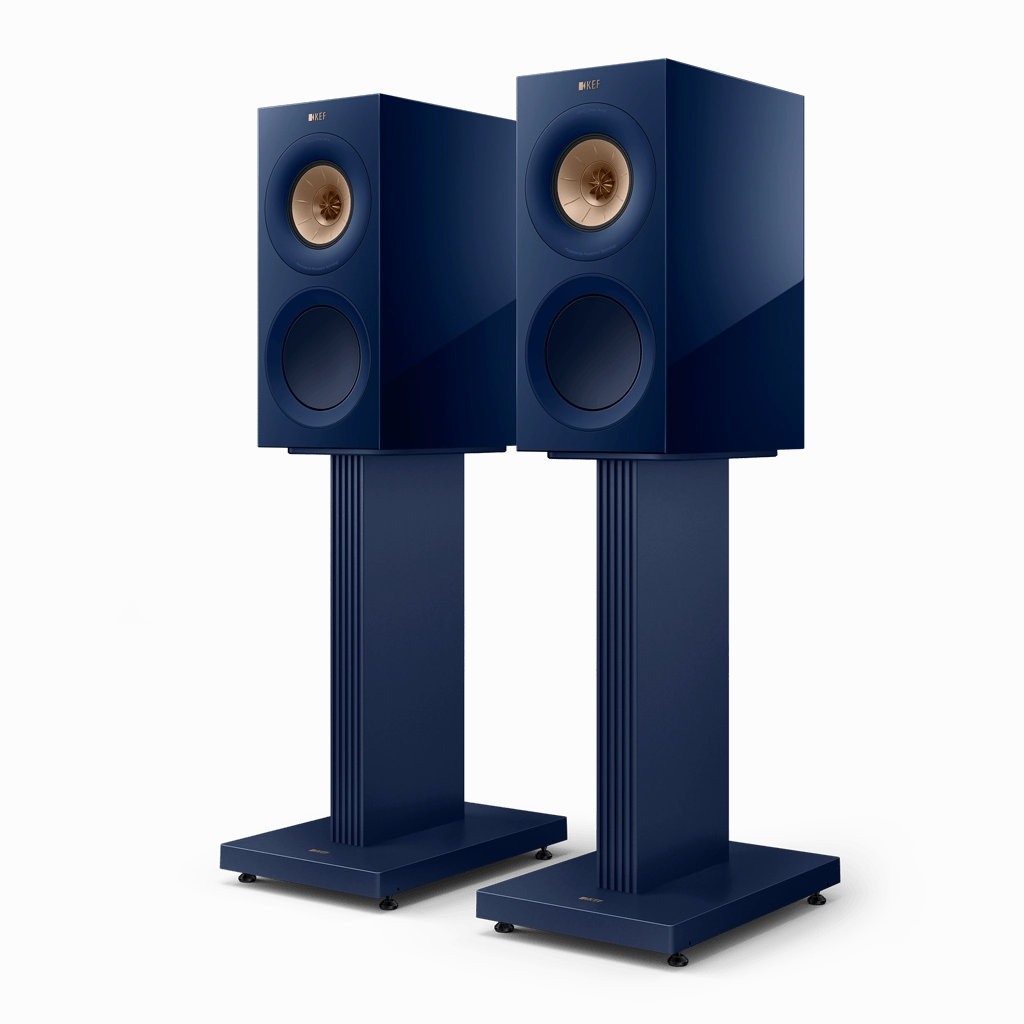

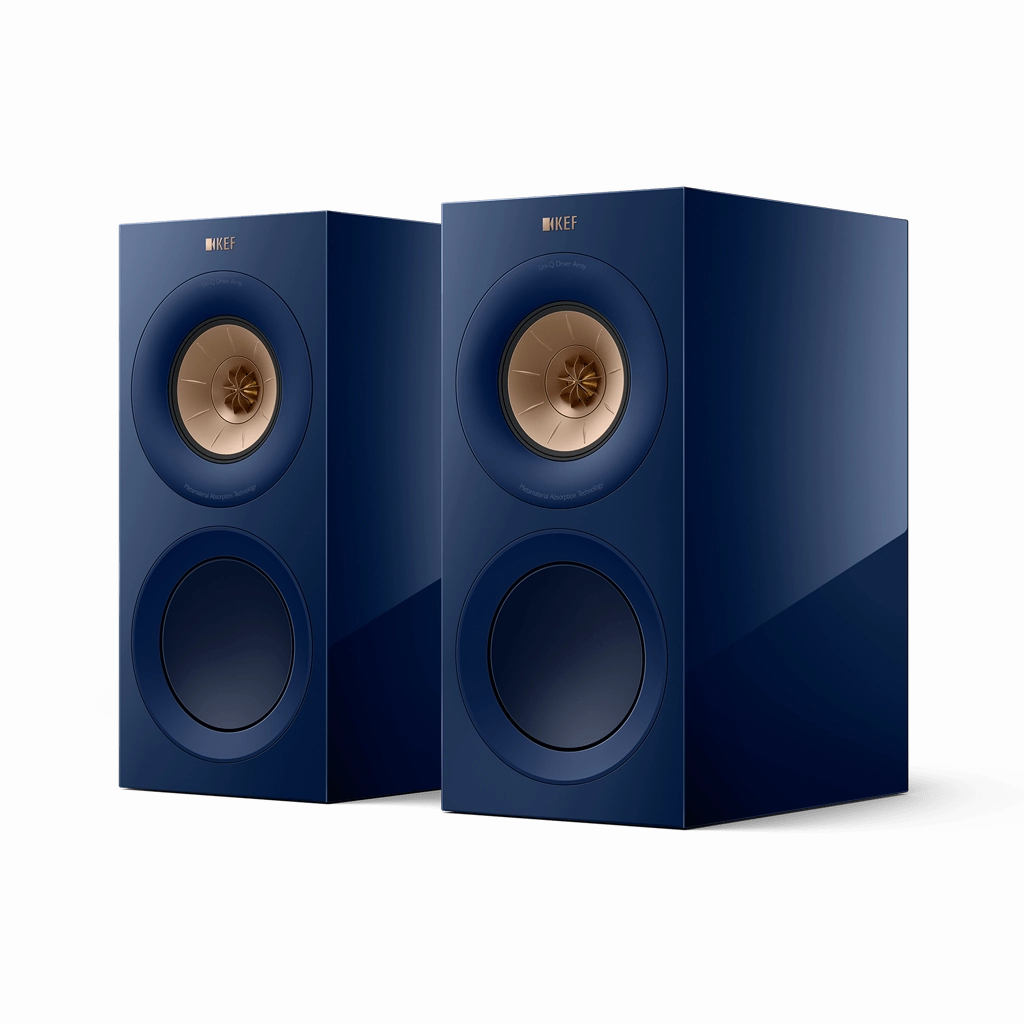

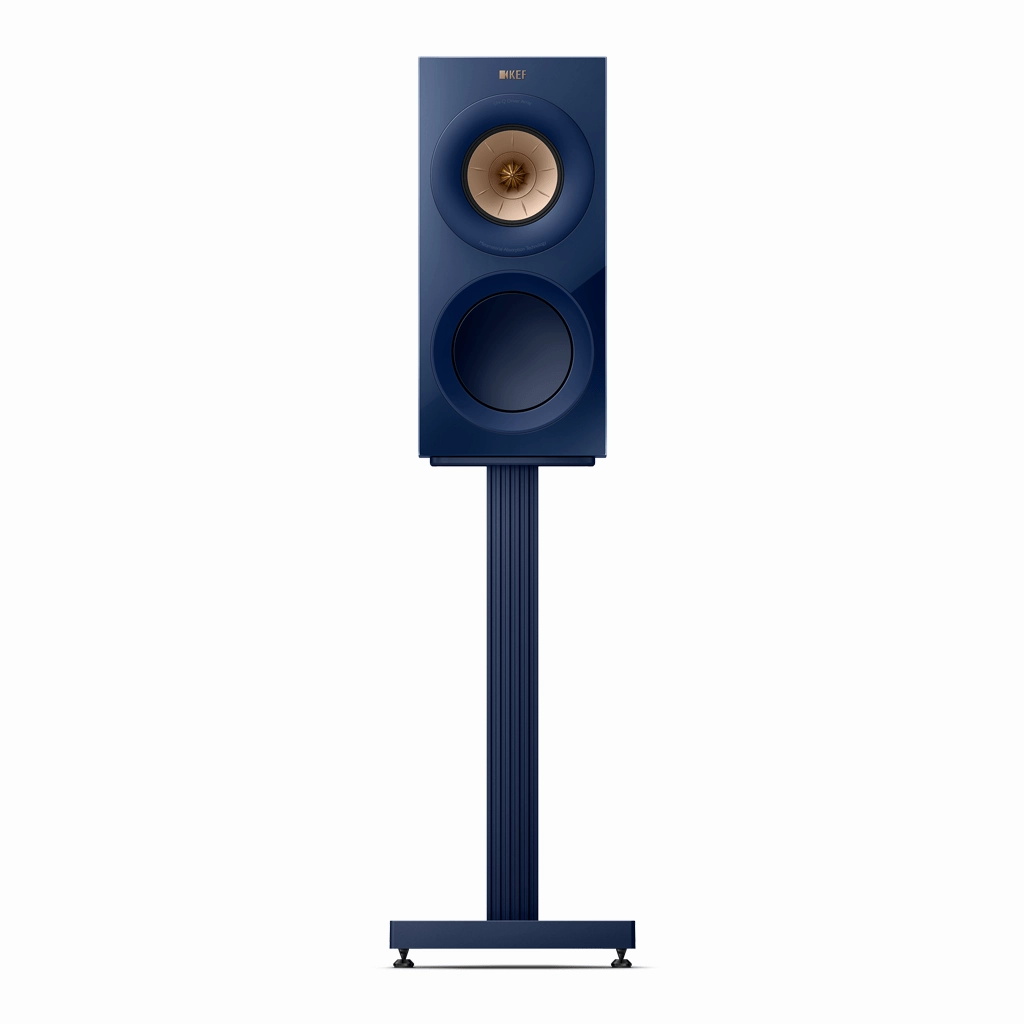

Three-way bookshelf speaker
R3 Meta redefines bookshelf speakers performance. Sharing the same drivers as the range-topping R11 Meta, the R3 Meta is a true three-way design. It has a 12th generation Uni-Q driver array with MAT and a powerful 6.5 hybrid aluminium bass driver that pushes performance to new extremes.
An icon born from The Reference
A suite of class-leading technological innovations drawn from The Reference for exceptional acoustic performance.
Metamaterial Absorption Technology
Absorbs 99% of unwanted sound for pure and natural sound.
True bass definition
Hybrid aluminium bass drivers with greater driver excursion for tight, deep, controlled bass.
12th generation Uni-Q
Acts as a single point source to enlarge the 'sweet spot' and disperse sound more evenly.
Home theatre made versatile
With a choice of matching home theatre models to pair with, the stage is set for an immersive movie experience.

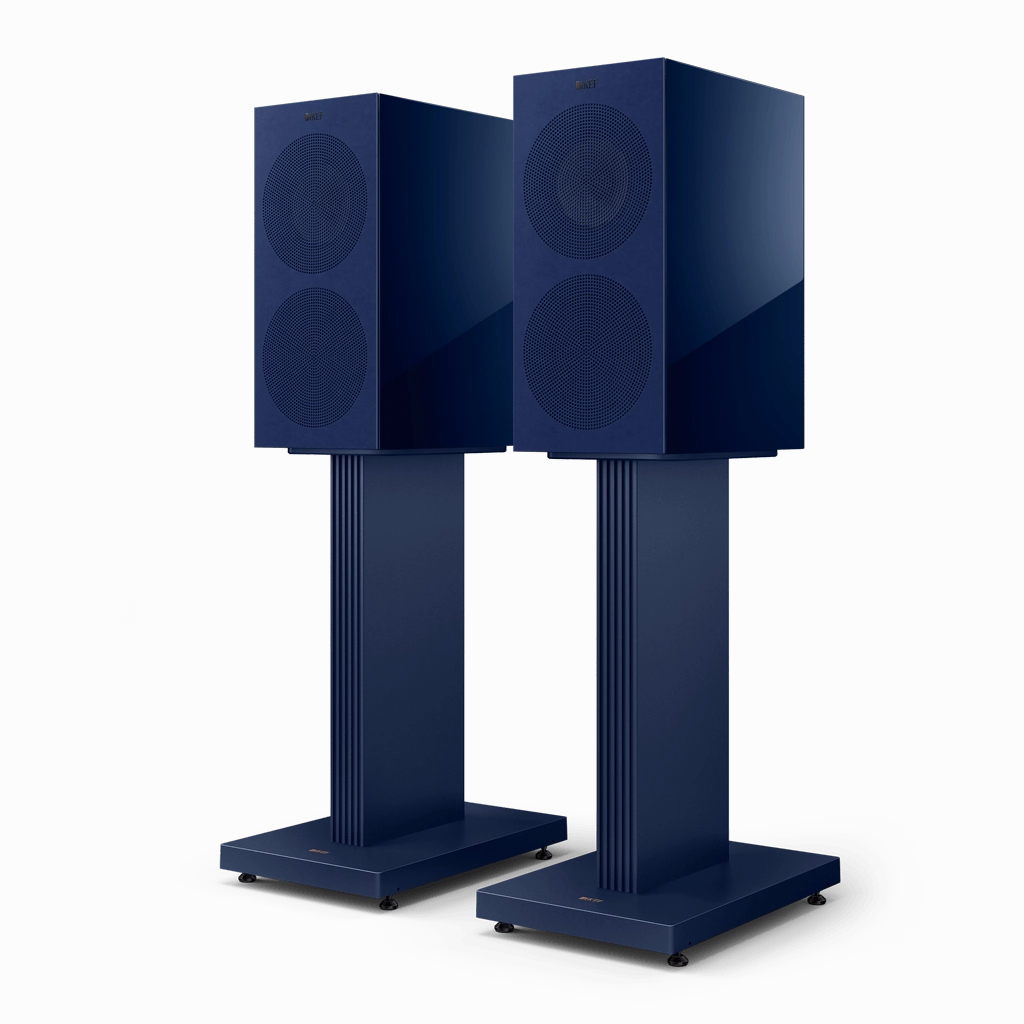

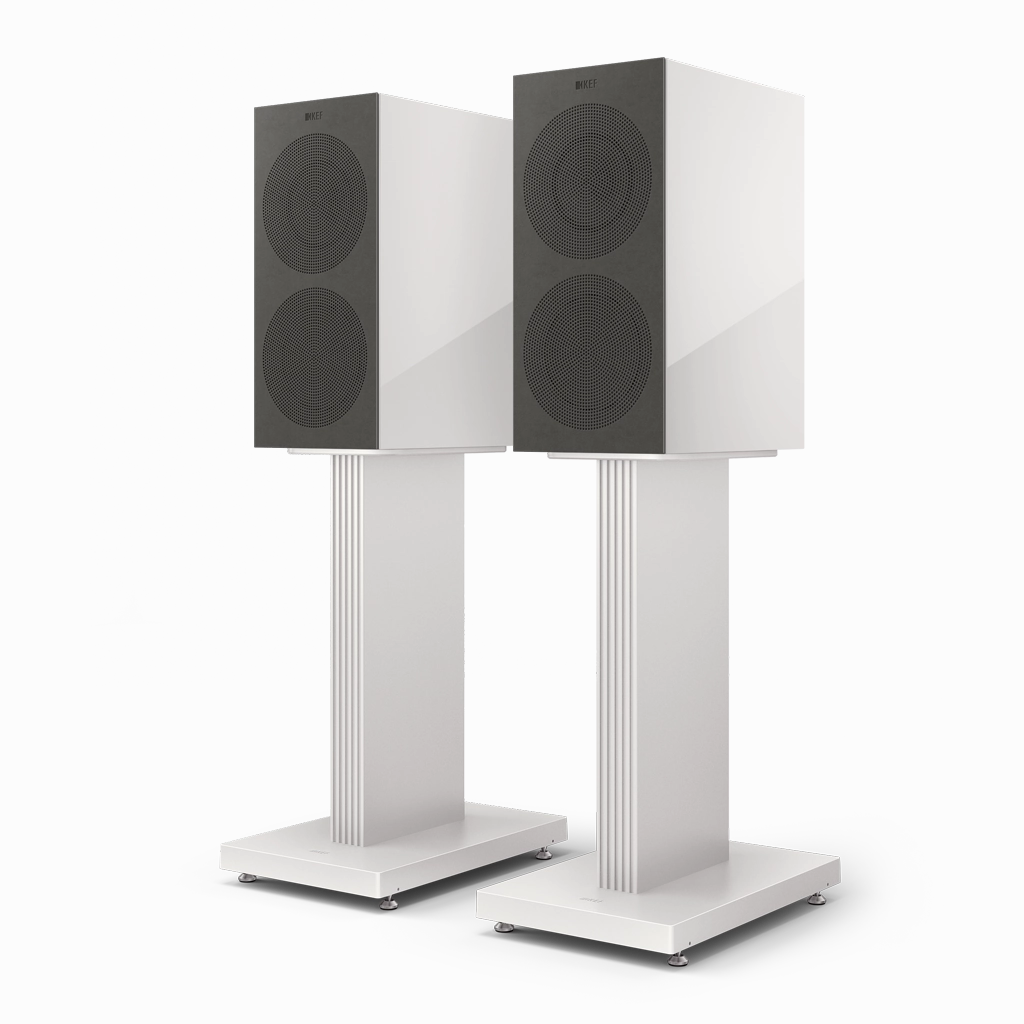

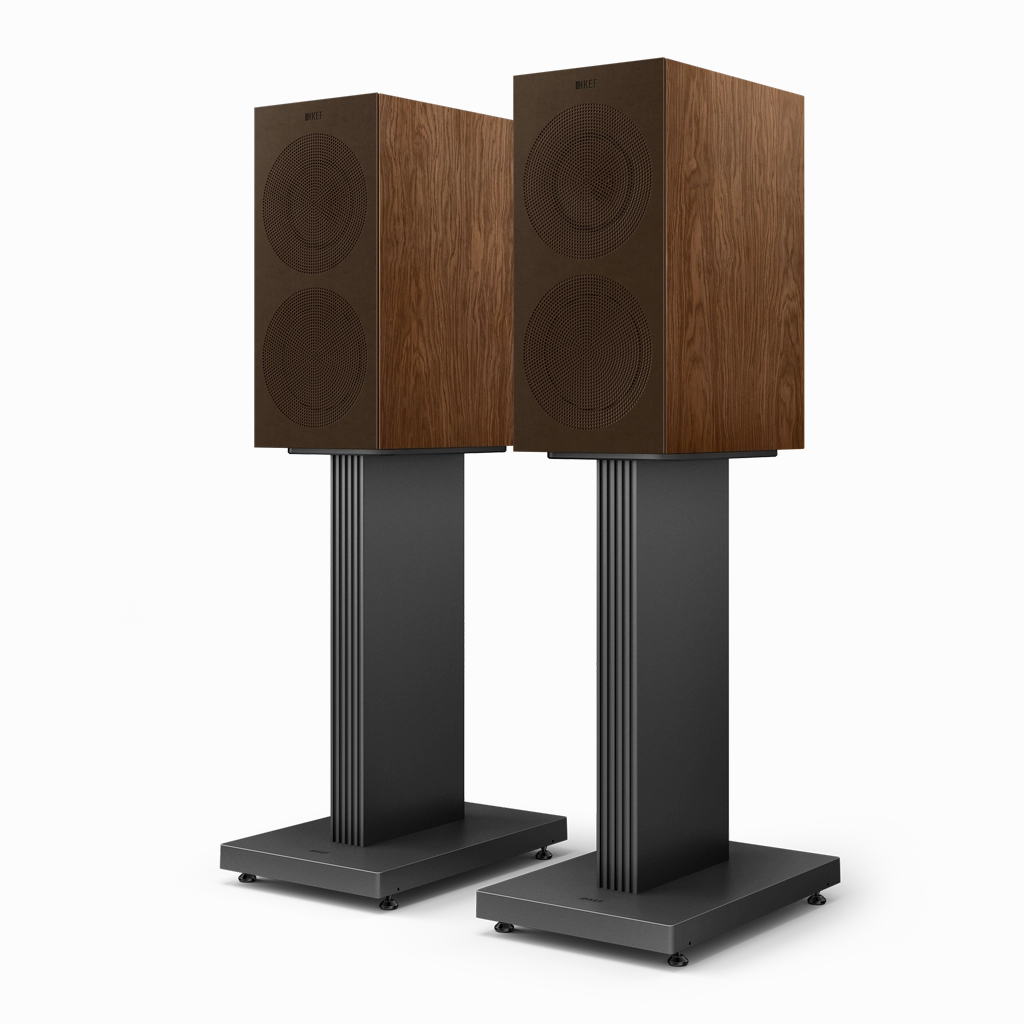

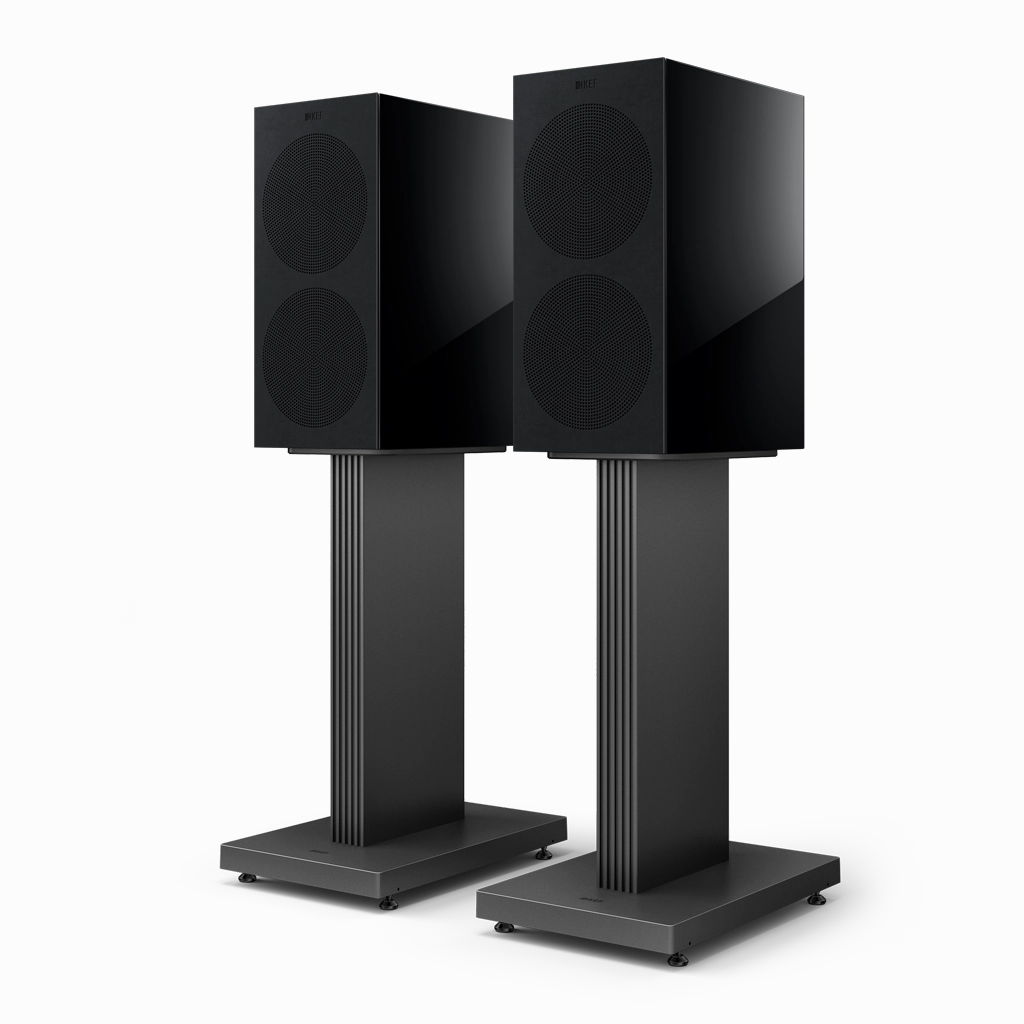

Microfibre grilles
With 1801 precision-cut holes for each driver, performance is ensured even when the drivers are covered.
What is in the box
- 1 pair of R3 Meta loudspeakers
- 1 pair of microfiber grilles
- Rubber feet
- Port bungs
- User manual and warranty information
Specifications:
| DESIGN | Three-way bass reflex |
| DRIVE UNITS | Uni-Q Driver Array: HF: 25 mm (1 in.) vented aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass Unit: LF: 165 mm (6.5 in.) hybrid aluminium cone |
| CROSSOVER FREQUENCY | 420 Hz, 2.3 kHz |
| FREQUENCY RANGE (-6dB) | 38 Hz - 50 kHz |
| TYPICAL IN-ROOM BASS RESPONSE (-6dB) | 30 Hz |
| FREQUENCY RESPONSE (3dB) | 58Hz - 28kHz |
| HARMONIC DISTORTION (90dB, 1m) | <1% 73 Hz and above <0.5% 90 Hz - 20 kHz |
| MAXIMUM OUTPUT | 110 dB |
| AMPLIFIER REQUIREMENTS | 15 - 180W |
| NOMINAL IMPEDANCE | 4 (min. 3.2 ) |
| SENSITIVITY (2.83V/1m) | 87 dB |
| WEIGHT * | 12.4 kg (27.3 lbs) |
| DIMENSION (H x W x D) WITH TERMINAL * | 422 x 200 x 336 mm (16.6 x 7.9 x 13.2 in) |

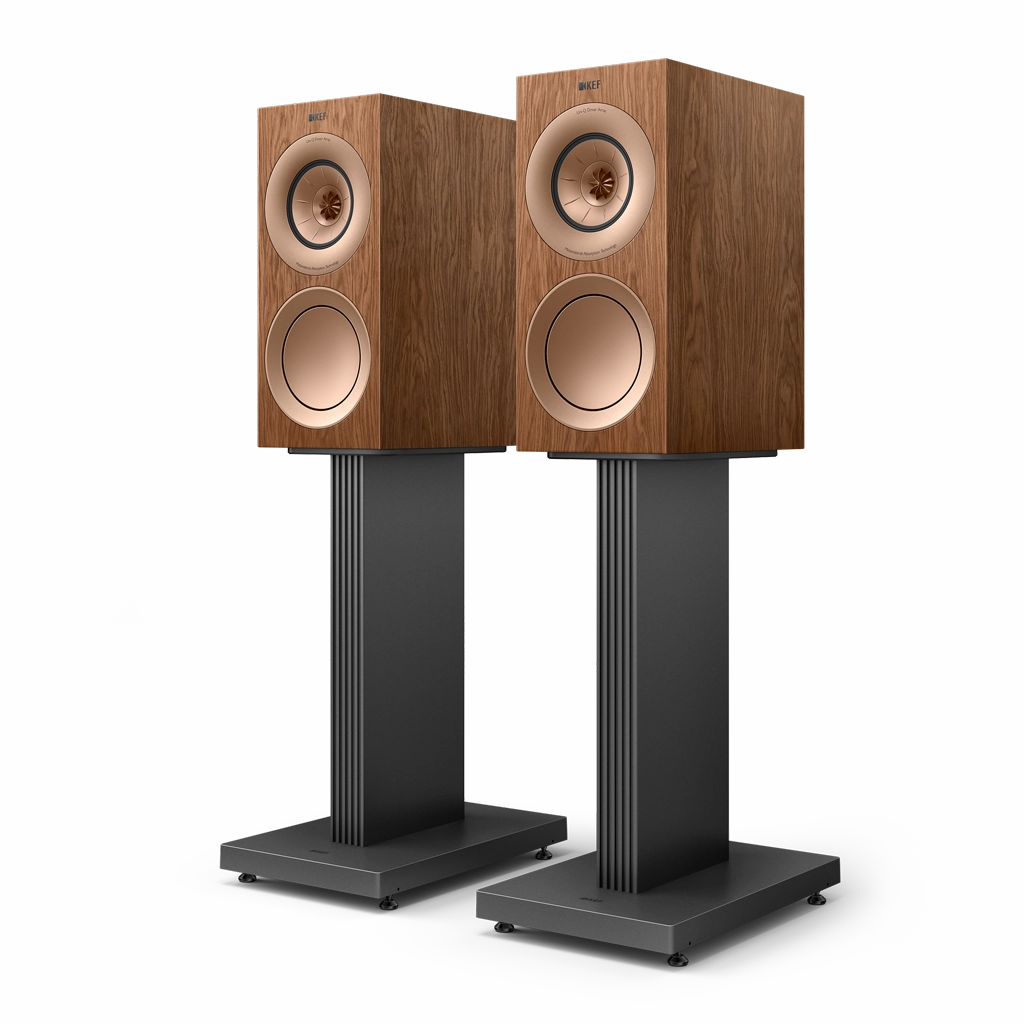

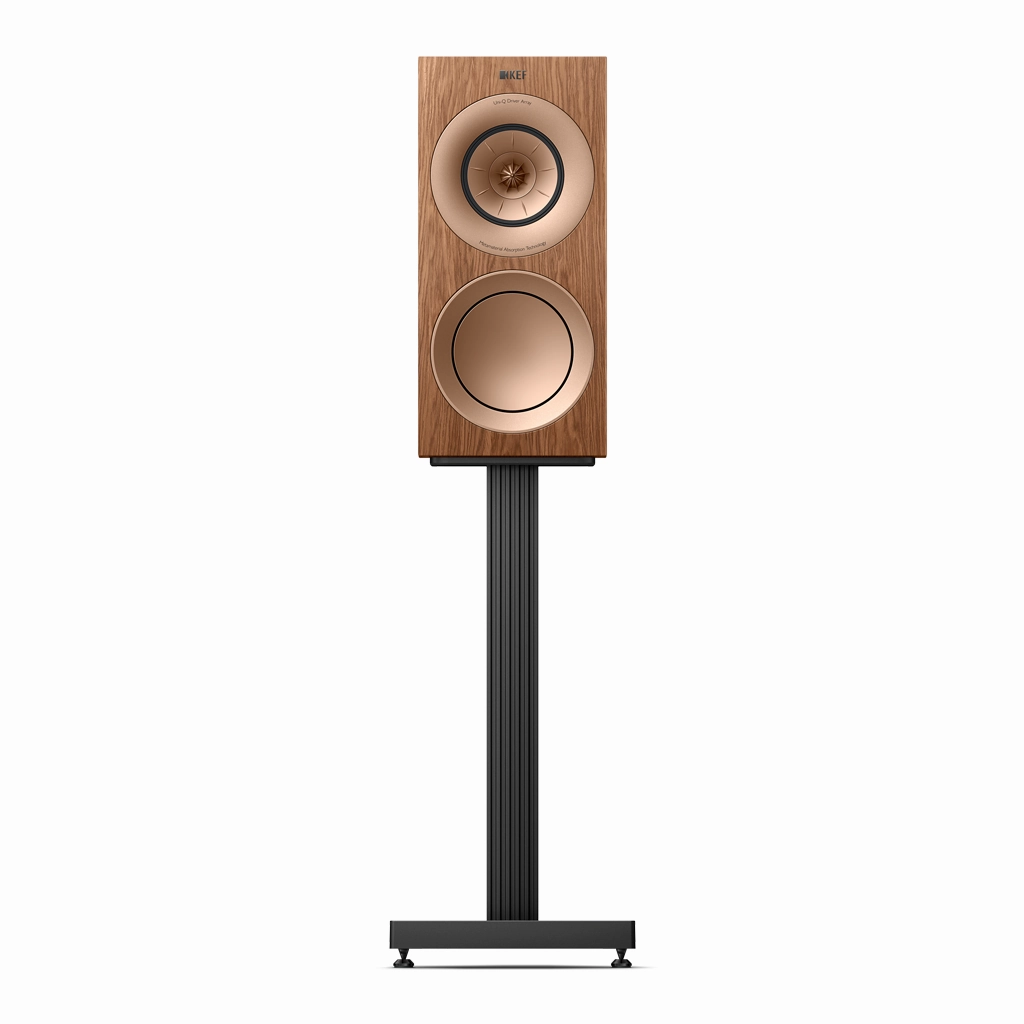

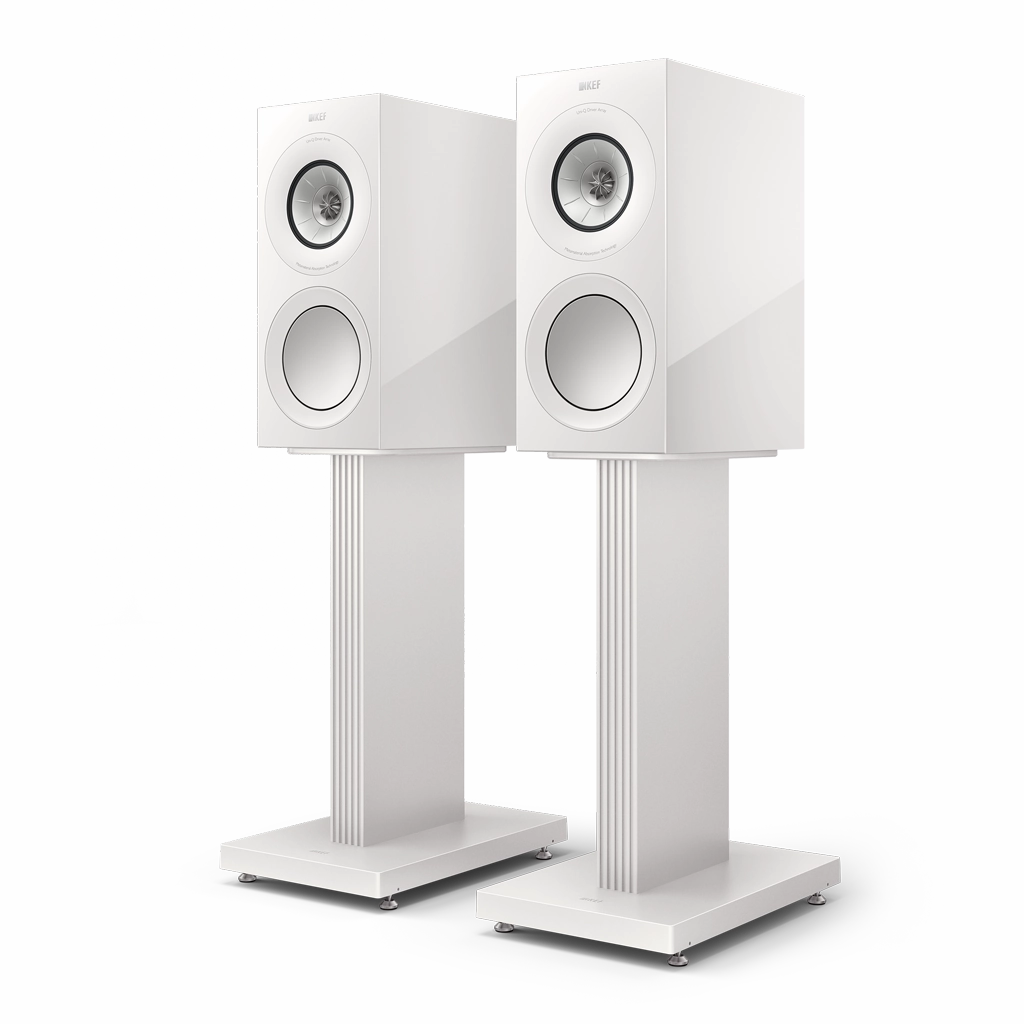

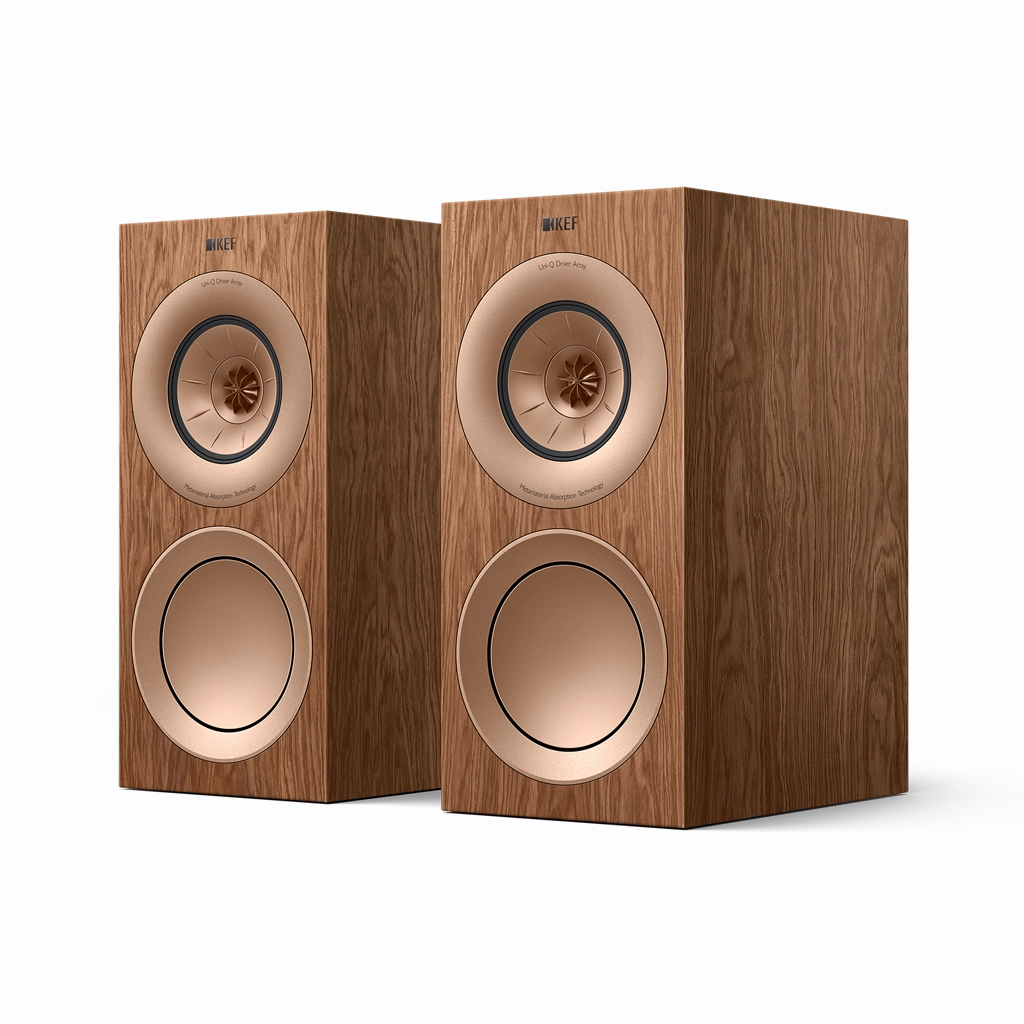

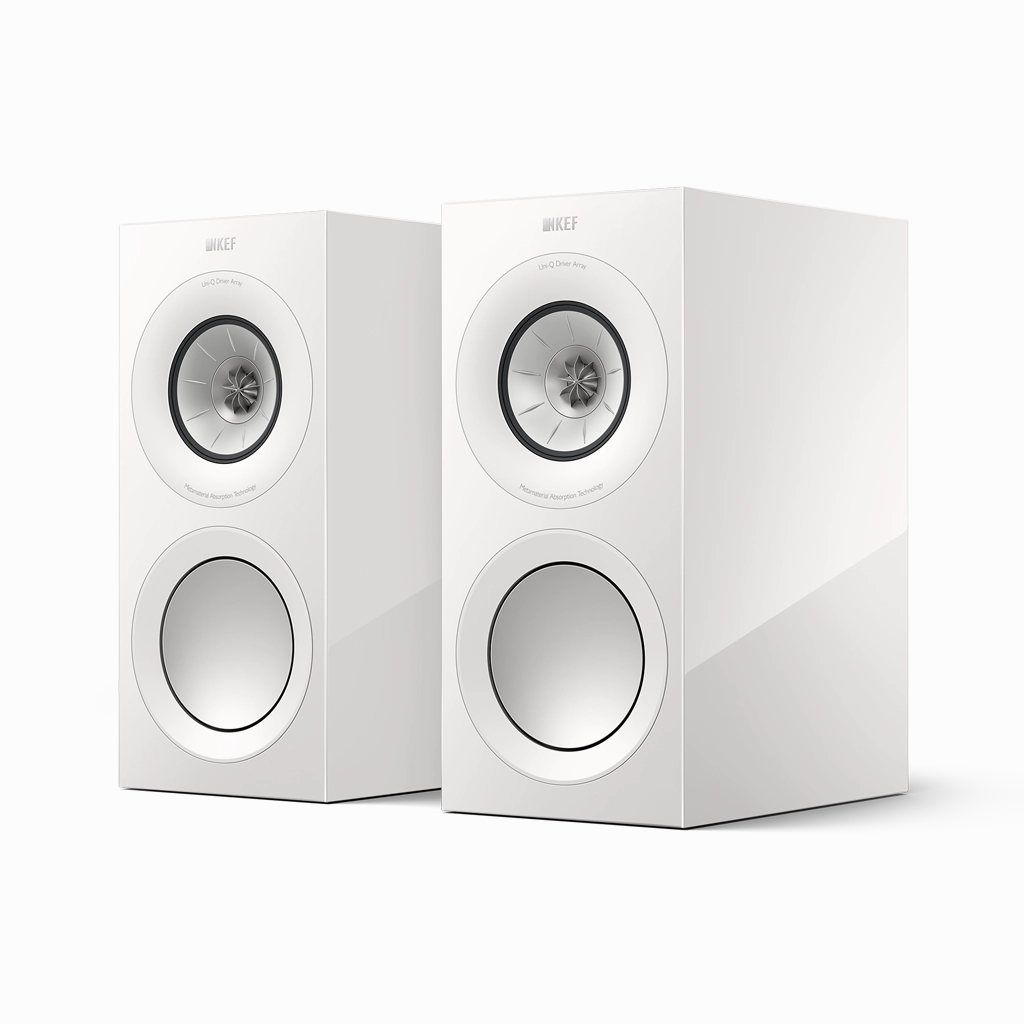

| FINISHES | Black Gloss / White Gloss / Walnut |
