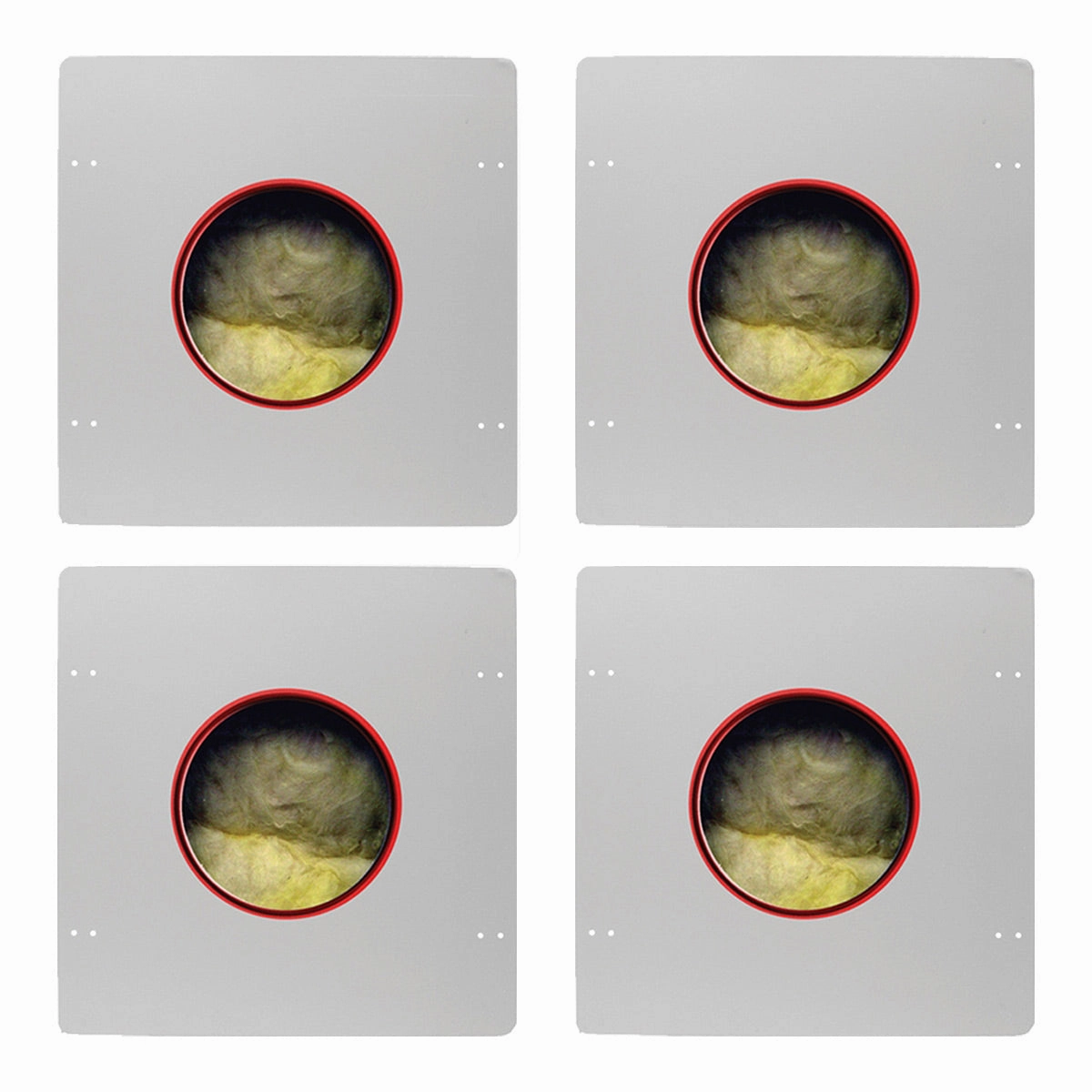

This Package Includes
- (4)
Designed to fit all Reference Series in-ceiling speakers with 6.5-inch woofers (except for the square models), the ME-650-C allows residential contractors to meet building codes as well as diminish the undesirable transfer of sound from one room to the other.
Features
- Designed for in-ceiling speakers with 6.5-inch woofers
- Manufactured from high-grade cold-rolled steel
- Exceeds the one-hour fire-rating requirements
- Fits 16- or 24-inch stud spans
Design

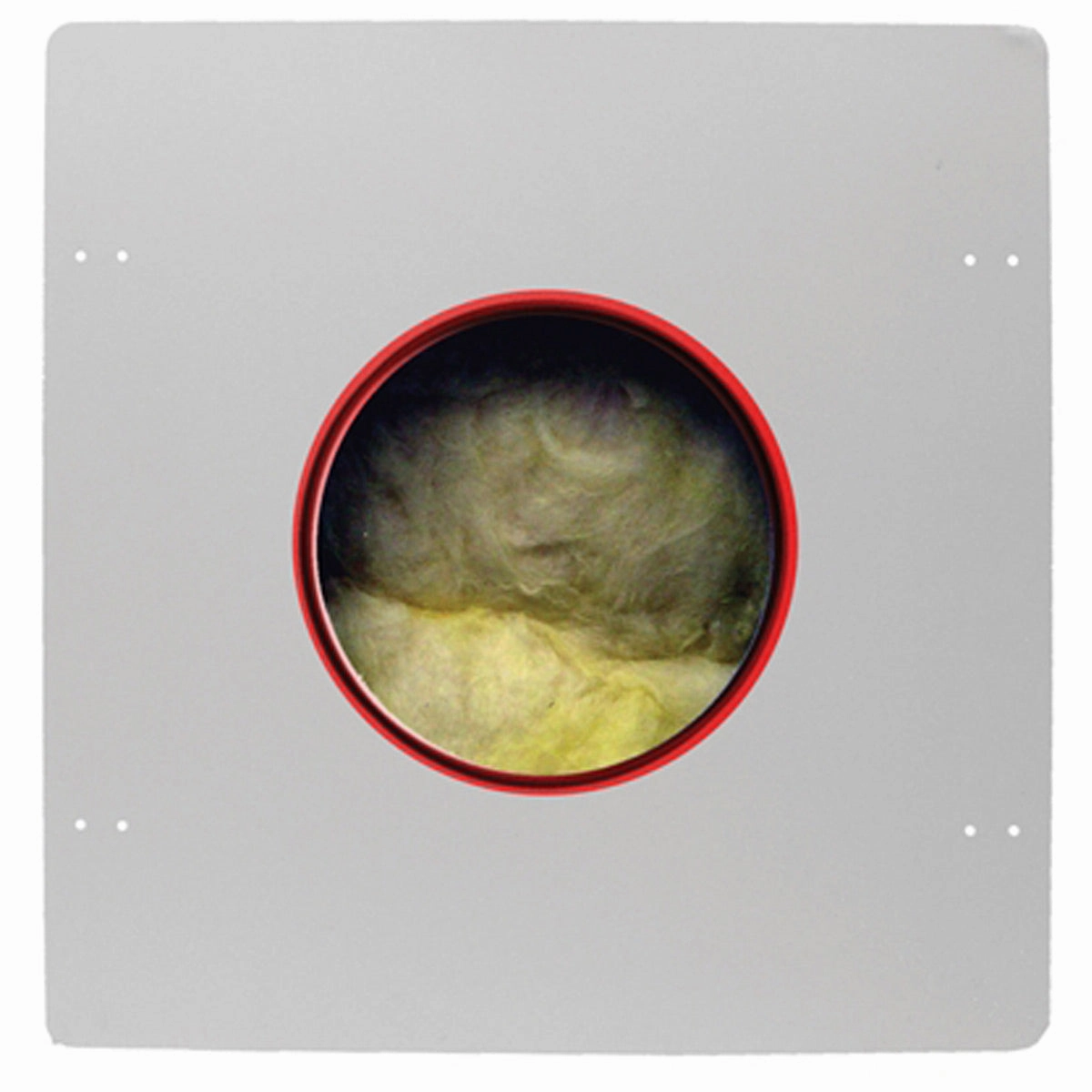

The ME-650-C is manufactured from high-grade cold-rolled steel and features a layer of insulation. It exceeds the one-hour fire-rating requirements and is designed to meet UL2043 requirements for installation in plenum spaces. This metal device has also been tested to meet UL 263, ASTM E119-98, NFPA 251, UBC 7-1 and ULC CAN/ULC-S101 - M89 standards.
Hardware and Fit
The ME-650-C fits 16- or 24-inch stud spans. It also comes with all of the hardware needed for most installation applications, and provisions for standard conduit connections. Pre-drilled holes simplify the installation process and ensure that all safety requirements are met. The optimized enclosure volume provides consistent acoustic performance regardless of construction variations.
Reduce Sound Transmission
While the insulation exceeds fire requirements, it also reduces the sound transmission into adjacent spaces by at least 10dB.
Color Coded
The inside edge of the ME-650-C's mounting ring is color coded to match up with the corresponding Klipsch installation kit size code.
