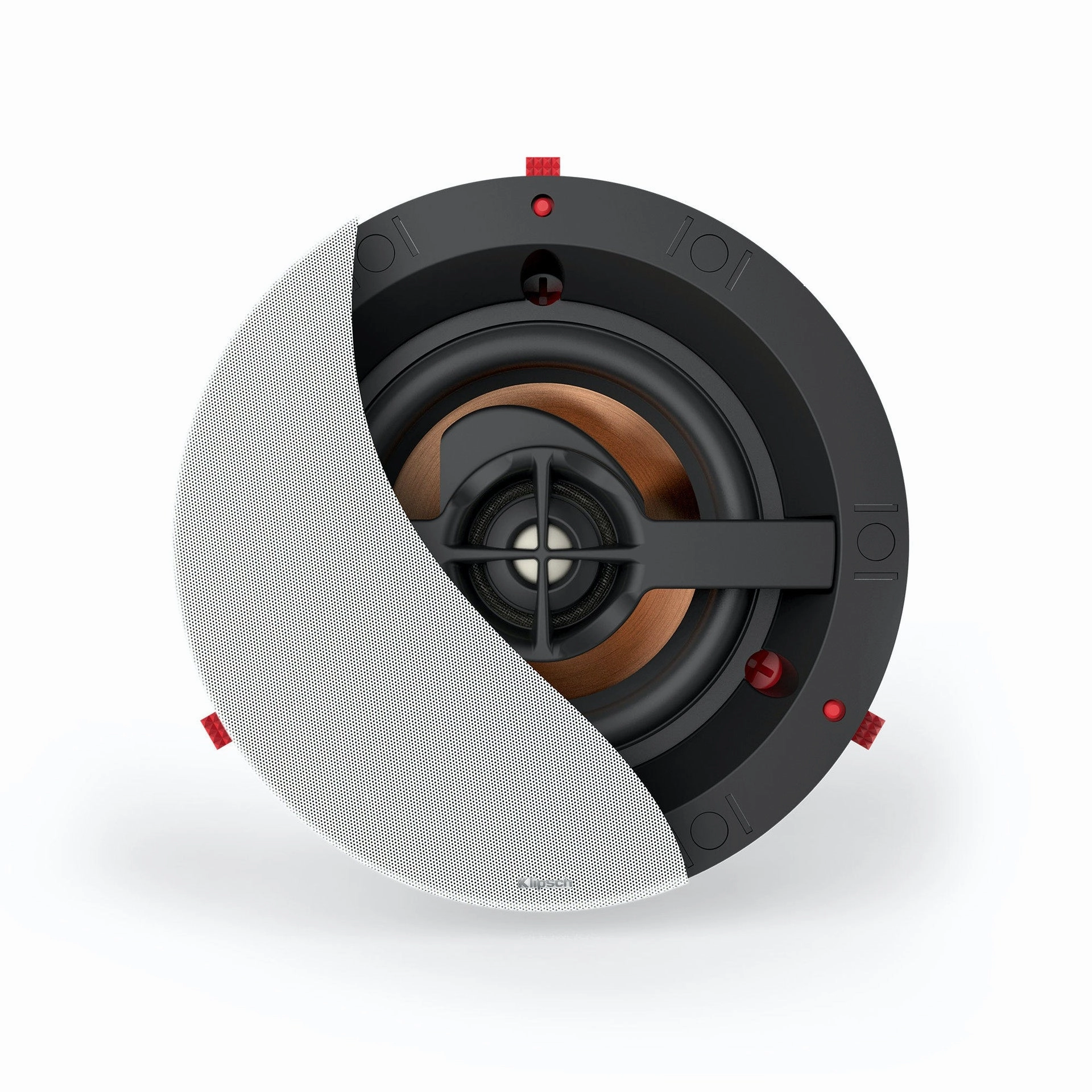

PRO-14RC

Utilizing a custom-designed tweeter bridge with shark fin and asymmetric dimples to diffuse standing waves, the PRO-14RC provides crisp and clear audio over a wider range from only a 4.9 overall grille footprint. The Sky HookpatentedCinch by Swarm Installation System provides incredibly fast and secure installations saving both time and money. With both round and square flat magnetic grilles included in the box, the new PRO-14RC minimal footprint in-ceiling speaker provides installers the ideal distributed audio solution that even interior designers will love.

Features:

3.5" Injection Molded Graphite (IMG) Woofer
1 Fixed Aluminum Dome FEA Optimized Tweeter
Exclusive, modular Patented Sky Hook Cinch by Swarm
Bezel-Free square and round paintable magnetic grilles
Magnetic paint shield
Minimal footprint

PATENTED SKY HOOK TOOL-FREE INSTALLATION SYSTEM

The exclusive,patentedSky Hook Cinch by Swarm technology combines great sound with lightning-fast installation. Automatically engaging the dog legs when the Klipsch speaker is inserted into the cutout hole, the preset clamping force eliminates the possibility of over-torquing during installation. This tool-free, fast, easy installation system reduces install time by up to 75% and provides solid, reliable installation with premium sound. Available for the Klipsch Professional Series Minimal Footprint, Designer and Custom series speakers. Watch the video below for more details.

THE DIFFERENCE IS CLEAR

Compared to a standard 8" in-ceiling speakers, the PRO-14RC minimal-footprint in-ceiling speakers allows for maximum installation flexibility while being able to deliver the incredible acoustic signature that only Klipsch can deliver.

MINIMAL FOOTPRINT SYSTEM

The PRO-14RC in-ceiling speakers pair perfectly with our PRO-800SW subwoofer - both requiring only a 4.9" overall grille footprint to deliver a non-invasive, incredibly minimal custom audio solution.

Specifications:

Frequency Range	92Hz - 23kHz /- 3dB
High Frequency Driver	1 Fixed Aluminum Dome FEA Optimize Tweeter
Low Frequency Driver	3.5" (8.89cm) IMG Woofer
Sensitivity	88 dB @ 2.83V / 1m
Coverage Angle	110
Power Handling	30W RMS / 120W Peak
Impedance	8 Ohm Compatible
Enclosure Type	ABS/Infinite Baffle
Finish	Black Baffle/Frame, White Paintable Grille
Product Dimensions	4.86 W x 4.86 H x 4.5 D (12.3cm H x 12.3cm W x 11.3cm D)
Mounting Depth	4.34 (11.03cm)
Cutout Dimensions	4.25 (10.8cm)
Product Weight	4 lbs (1.8kg)
Included	Round Grille, Square Grille, Paint Shield
Installation Kit	IK-400-C (Sold Separately)
Built From	2017

Features:

3.5" Injection Molded Graphite (IMG) Woofer
1 Fixed Aluminum Dome FEA Optimized Tweeter
Exclusive, modular Patented Sky Hook Cinch by Swarm
Bezel-Free square and round paintable magnetic grilles
Magnetic paint shield
Minimal footprint

PATENTED SKY HOOK TOOL-FREE INSTALLATION SYSTEM

Name: Klipsch PRO-14RC In Ceiling Speaker Each
SKU: 622919

THE DIFFERENCE IS CLEAR

MINIMAL FOOTPRINT SYSTEM

The PRO-14RC in-ceiling speakers pair perfectly with our PRO-800SW subwoofer - both requiring only a 4.9" overall grille footprint to deliver a non-invasive, incredibly minimal custom audio solution.

Frequency Range	92Hz - 23kHz /- 3dB
High Frequency Driver	1 Fixed Aluminum Dome FEA Optimize Tweeter
Low Frequency Driver	3.5" (8.89cm) IMG Woofer
Sensitivity	88 dB @ 2.83V / 1m
Coverage Angle	110
Power Handling	30W RMS / 120W Peak
Impedance	8 Ohm Compatible
Enclosure Type	ABS/Infinite Baffle
Finish	Black Baffle/Frame, White Paintable Grille
Product Dimensions	4.86 W x 4.86 H x 4.5 D (12.3cm H x 12.3cm W x 11.3cm D)
Mounting Depth	4.34 (11.03cm)
Cutout Dimensions	4.25 (10.8cm)
Product Weight	4 lbs (1.8kg)
Included	Round Grille, Square Grille, Paint Shield
Installation Kit	IK-400-C (Sold Separately)
Built From	2017
