Marantz Cinema 30 11.4 Channel AV Receiver
CINEMA 30 is the most refined AV Receiver Marantz has created and redefines premium home theater sound. Engineered with proprietary technology optimized from decades of rich heritage, its 11.4 channels deliver unrivaled performance and can power even large-scale home theaters with ease.
- Crafted in Shirakawa, Japan
- 11.4 Channels
- 140 Watts per Channel
- 7 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
- 5 Year Warranty

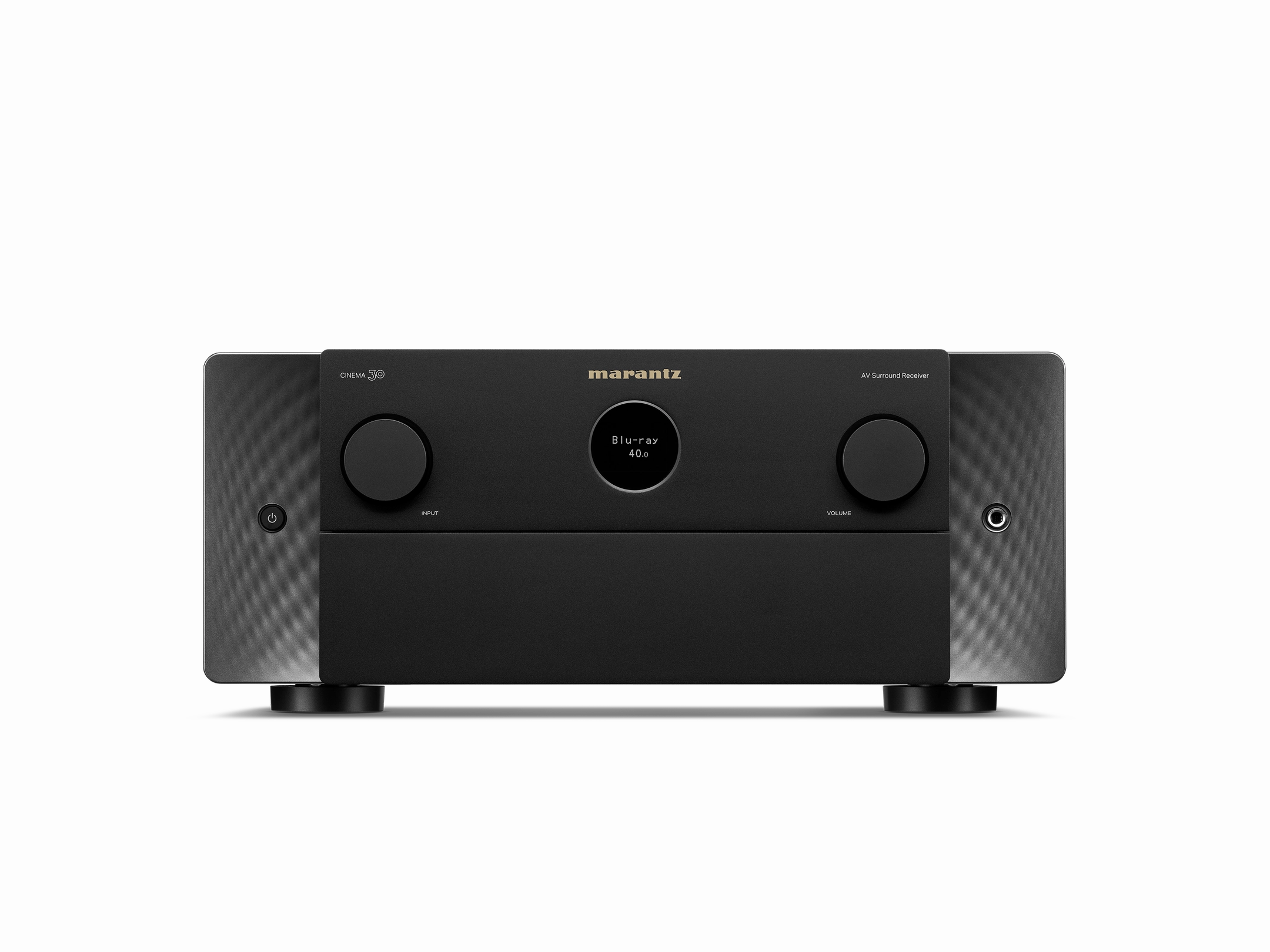

Timeless yet Modern StyleExcellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance. | |
No Compromise EngineeringHiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR. | |
| Powerful calibration and tuning tools are included, enabling you to get the best performance from your system. | |

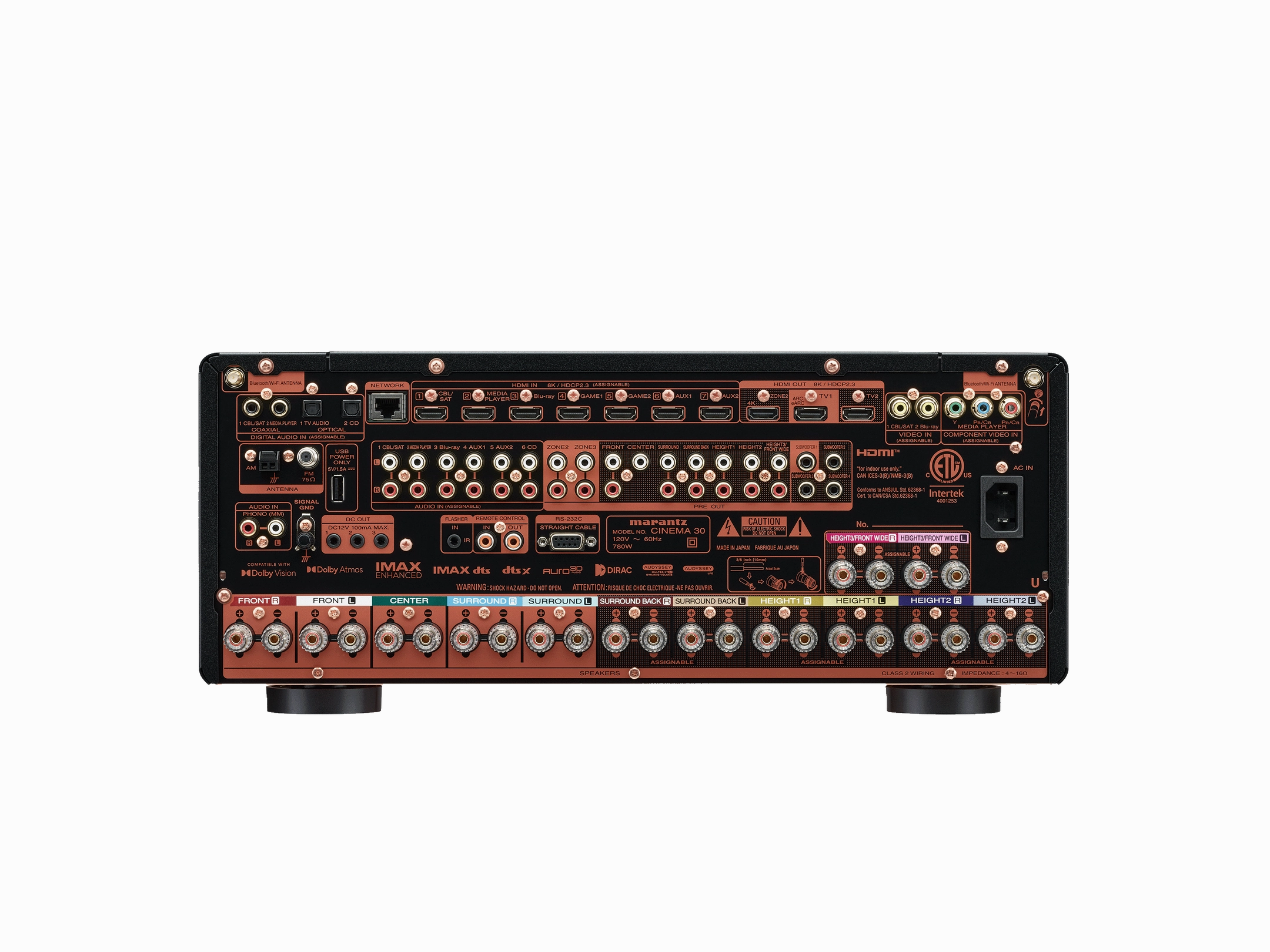

Technology LeaderSeven HDMI inputs, plus digital, analog, and phono inputs even analog video plus loudspeaker and pre-amp outputs ensure connectivity to virtually any components you have. |
Specifications
| Number of Poweramps | 11 | |
| Power Output | ||
| 8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive | N /A | |
| 8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive | 140 W | |
| 6 ohm, 1 kHz, 0.7% 2ch Drive | 175 W | |
| 6 ohm, 1 kHz, 10% 1ch Drive | 250 W | |
| 70% Guarantee | Yes | |
| Multichannel Surround | ||
| DTS HD Master / DTS:X / DTS:X Pro / DTS Neo:6 / DTS Neural:X/ DTS Virtual:X | Yes / Yes / Yes / No / Yes / Yes | |
| IMAX Enhanced | Yes | |
| Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music / Dolby ProLogic Il / Dolby Surround | Yes / Yes / Yes Yes / No / Yes | |
| Auro 3D | Yes | |
| 360 Reality Audio / MPEG H | Yes / Yes | |
| Audyssey DSX | No | |
| Multichannel Stereo | Yes | |
| Max. Number of Processing (Preamp) Channels | 13.4 | |
| Sound Enhancements | ||
| Discrete Power Amplifier | Yes | |
| Copper Plated Chassis | Yes | |
| Power Transformer: Toroidal / EI | Toroidal | |
| Current Feedback Topology | Yes | |
| Hyper Dynamic Amplifier Modules (HDAM) | Yes | |
| Pure Direct | Yes | |
| Gold Plated RCA Terminals | Yes | |
| Clock Jitter Reducer | Yes | |
| Audyssey | MultEQ XT32 | |
| Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC | Yes / Yes / Yes | |
| Dirac Live upgradability | Yes | |
| Compressed Audio Enhancer: MDAX2 | Yes | |
| HDMI | ||
| HDMI Inputs: Back / Front | Yes | |
| HDCP 2.3 Support | Yes | |
| HDMI Outputs: Main / Zone | Yes | |
| Video Conversion Analog HDMI | Yes | |
| Analog to HDMI Scaling | Yes | |
| HDMI to HDMI Scaling | Yes | |
| GUI Overlay on HDMI | Yes | |
| HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB | Yes | |
| 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out | Yes | |
| HDMI 2.0: 3D / 4K / CEC / ARC | Yes | |
| HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR | Yes | |
| Multiroom / CI | ||
| HEOS Multi-Room Integrated | Yes | |
| HEOS Link Compatibility: IR / IP | Yes / Yes | |
| Multi-Room zones | 3 | |
| Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog | Yes (2ch) / Yes (2ch) / Yes / Yes | |
| Zone Audio Output: Speaker / Preout | Yes / Yes | |
| Zone HDMI Output from HDMI Source | Yes | |
| IP Control / RS232 Control / Web Control / App Control | Yes / Yes / Yes / Yes | |
| IR Flasher In | Yes | |
| Marantz Remote Bus | Yes | |
| DC Trigger Output | 3 | |
| HDMI Diagnostics | Yes | |
| Inputs/Outputs | ||
| Video Composite In / Out | 2 / 0 | |
| Component In / Out | 1 / 0 | |
| HDMI In / Out | 7 / 3 | |
| Multi-Room Video Out: Video / HDMI | No / Yes | |
| Audio Analog In / Out | 6 / 0 | |
| Phono (MM) In | Yes | |
| Digital In: Optical / Coaxial | 2 / 2 | |
| Multi-Room Out: Analog / Digital | 2 / 0 | |
| Multichannel Pre Out | Yes (13.4) | |
| Subwoofer Out | 4 (independent) | |
| 7.1 Multichannel Input | No | |
| Other Speaker Terminal: Gold Plated Screw / Regular Screw | Yes / No | |
| Number of Speaker Terminals | 13 | |
| Speaker A / B | Assignable | |
| Bi-Amp Drive | Assignable | |
| Multi-Room Speaker Terminal | Assignable | |
| Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB | No / No / No / No / Yes | |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No | |
| USB Power supply on rear panel | Yes | |
| AM/FM Tuner | Yes | |
