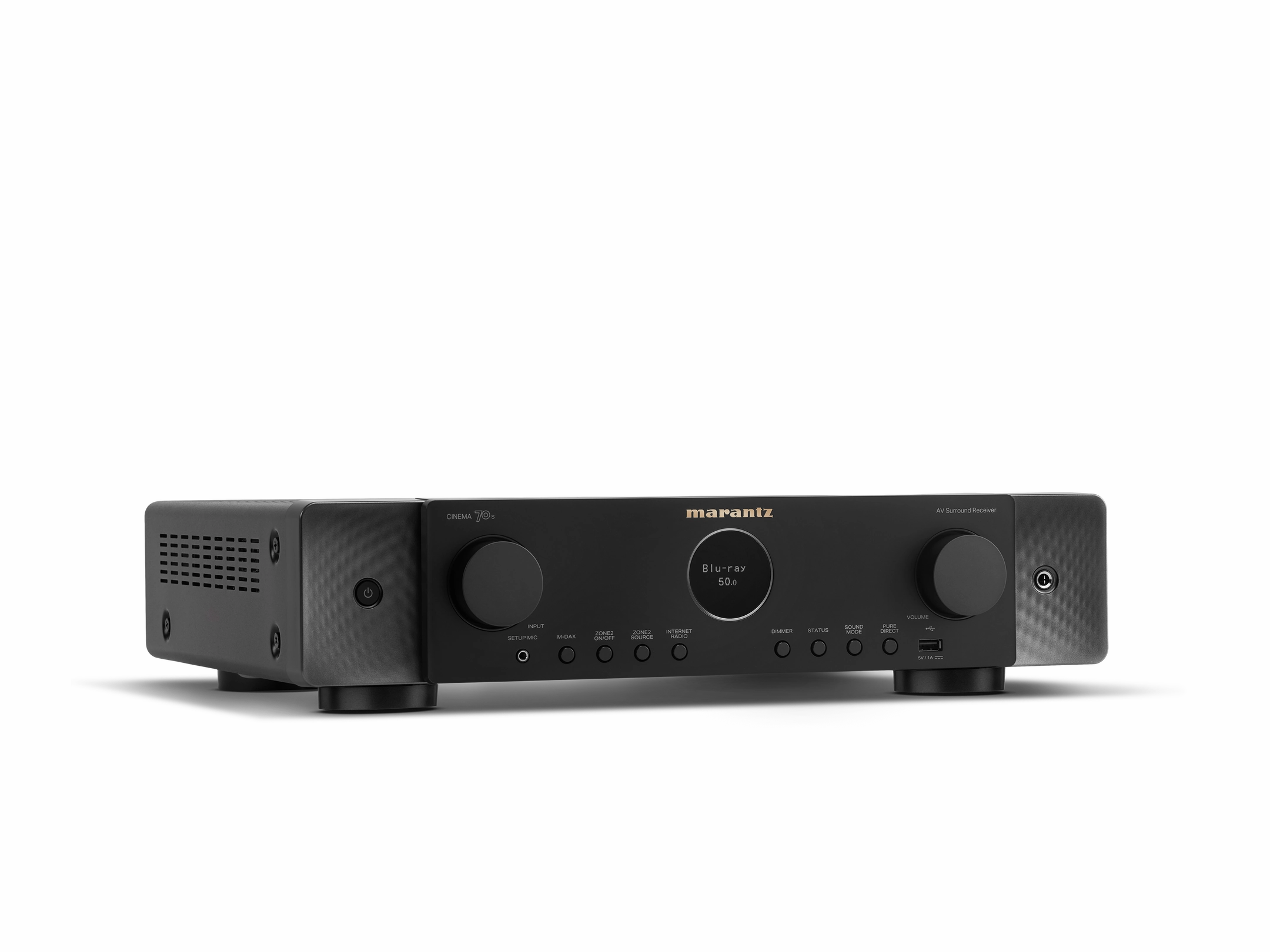

Marantz CINEMA70 AV Receiver
CINEMA 70s features a highly compact slimline design, making theaters possible in spaces where equipment cannot occupy large amounts of space. CINEMA 70s comes replete with the latest immersive audio formats and an all-new HD graphical user interface makes setup from your sofa intuitive.
- Slimline Design
- 7.2 Channels
- 50 Watts per Channel
- 6 HDMI Inputs plus eARC
- 8K & Dolby Atmos
- HEOS Built-in
- 5 Year Warranty
Specifications:
| Power Amplifier | |
| Number of Powered Channels | 7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 50 W |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | - |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 70 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 100 W |
| 70% Guarantee | Yes |
| Discrete Power Amplifier | Yes |
| Amplifier Topology | Class A/B |
| Current Feedback Topology | No |
| Bi-Amp Drive | assignable |
| Multichannel Surround Technologies | |
| DTS | DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X |
| Dolby | Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround |
| Max Number of Processing (Preamp) Channels | 7.1 |

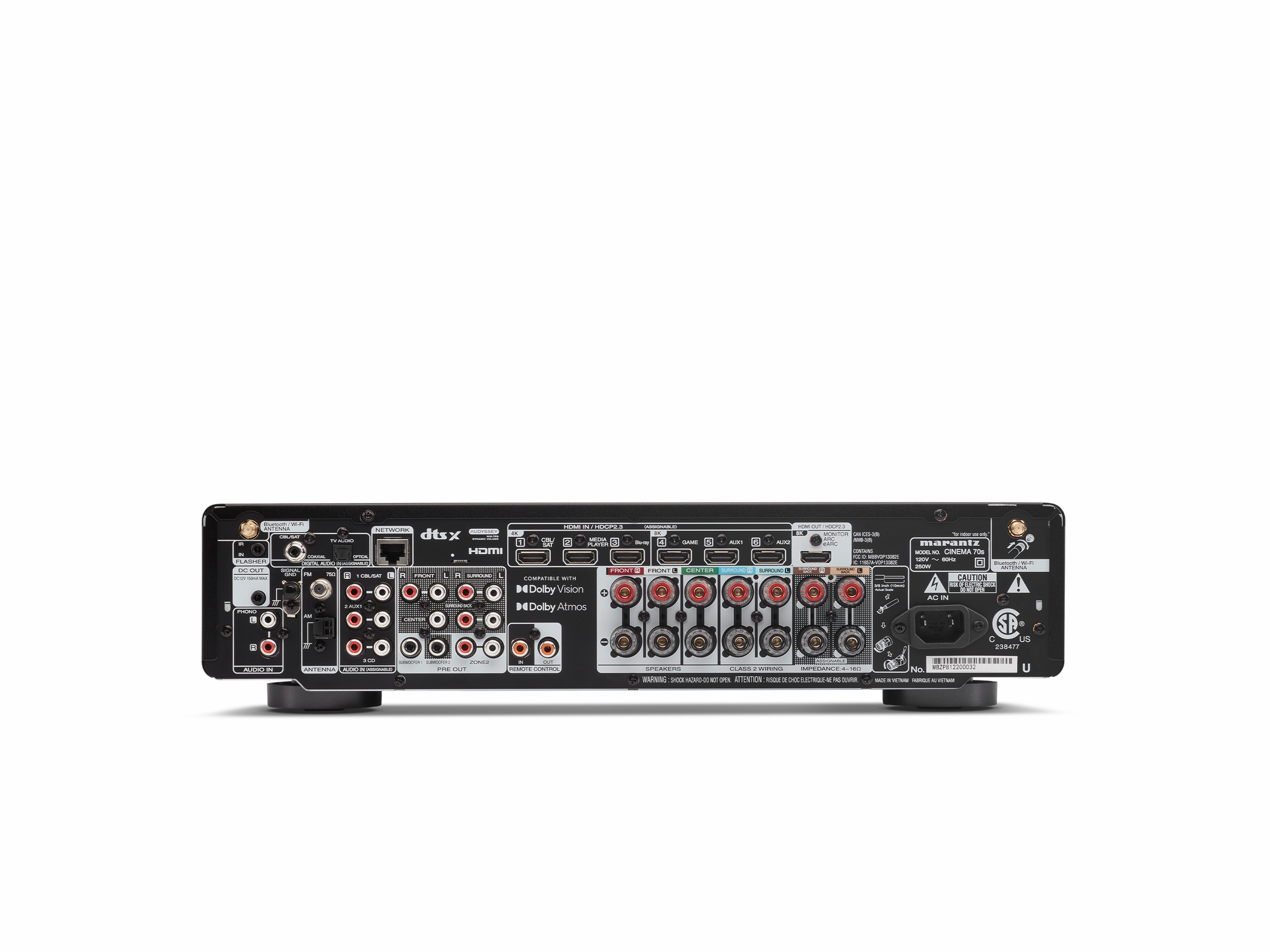

| Inputs Outputs | |
| Composite In / Out | 0 / 0 |
| Component In / Out | 0 / 0 |
| HDMI In / Out | 6 / 1 |
| Multi-Room Video Out via HDMI | No |
| Analog In / Fixed Level Out | 3 in / 0 out |
| Phono (MM) In | Yes |
| Digital In: Optical / Coaxial | 1 / 1 |
| Multi-Room Out: analog / digital | 1 / 0 |
| Multichannel Preamp Out | 7.2 |
| Subwoofer Out | 2 |
| 7.1 multichannel input | No |
| Number of Speaker Terminals | 7 |
| Speaker A / B | assignable |
| Multi-Room Speaker Terminal | assignable |
| Front Inputs | USB-A |
| USB Audio / Made for iPod / Made for iPhone | Yes / No / No |
| AM/FM Tuner | Yes |
| General | |
| Available Colors | Black |
| Metal Front Panel | No |
| System Remote Control | RC050SR |
| Power Consumption in W | 250 |
| Power Consumption No-Sound (ECO on/off) in W | 30 / 40 |
| Standby Consumption in W | 0.2 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions | |
| Antenna:Horizontal:(W x D x H) in inches Antenna:Vertical :(W x D x H) in inches W/o Antenna:(W x D x H) in inches | 17.4 x 15.1 x 4.3 17.4 x 15.1 x 7.0 17.4 x 14.7 x 4.3 |
| Weight in lbs. | 19.2 |
| What's in the box | Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord |
