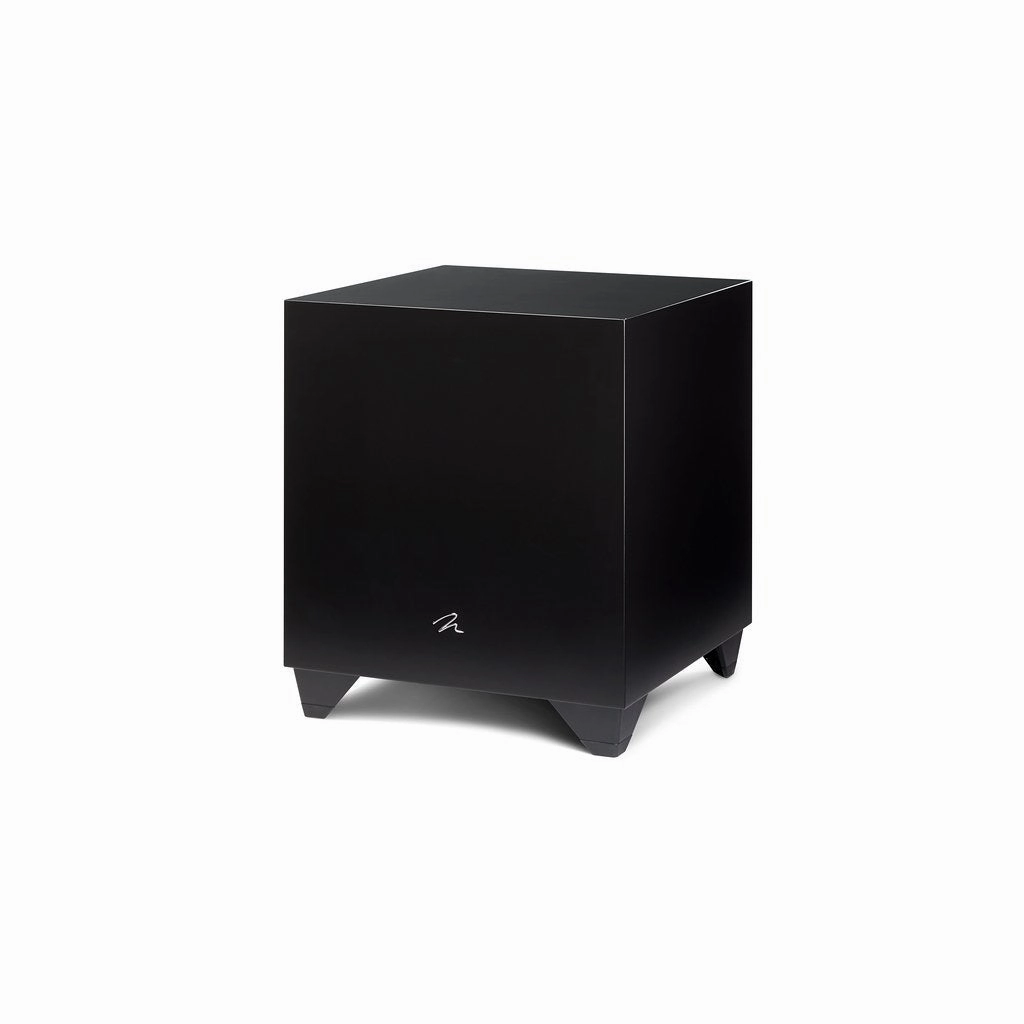

Dynamo 1100X
Product Highlights

• 12-inch inverted surround poly cone woofer
• 1,300 Watts (peak)amplifier
• Sealed non-resonant cabinet
• Digital control system via smartphone app
• Anthem Room Correction (ARC) via smartphone app or PC
• Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
• Configurable front or down-firing design

MARTINLOGAN SUB CONTROL APP
(AVAILABLE FOR iOS AND ANDROID)

MartinLogans Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 2030Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.

UNIQUE FRONT-FIRING OR DOWN-FIRING DESIGN

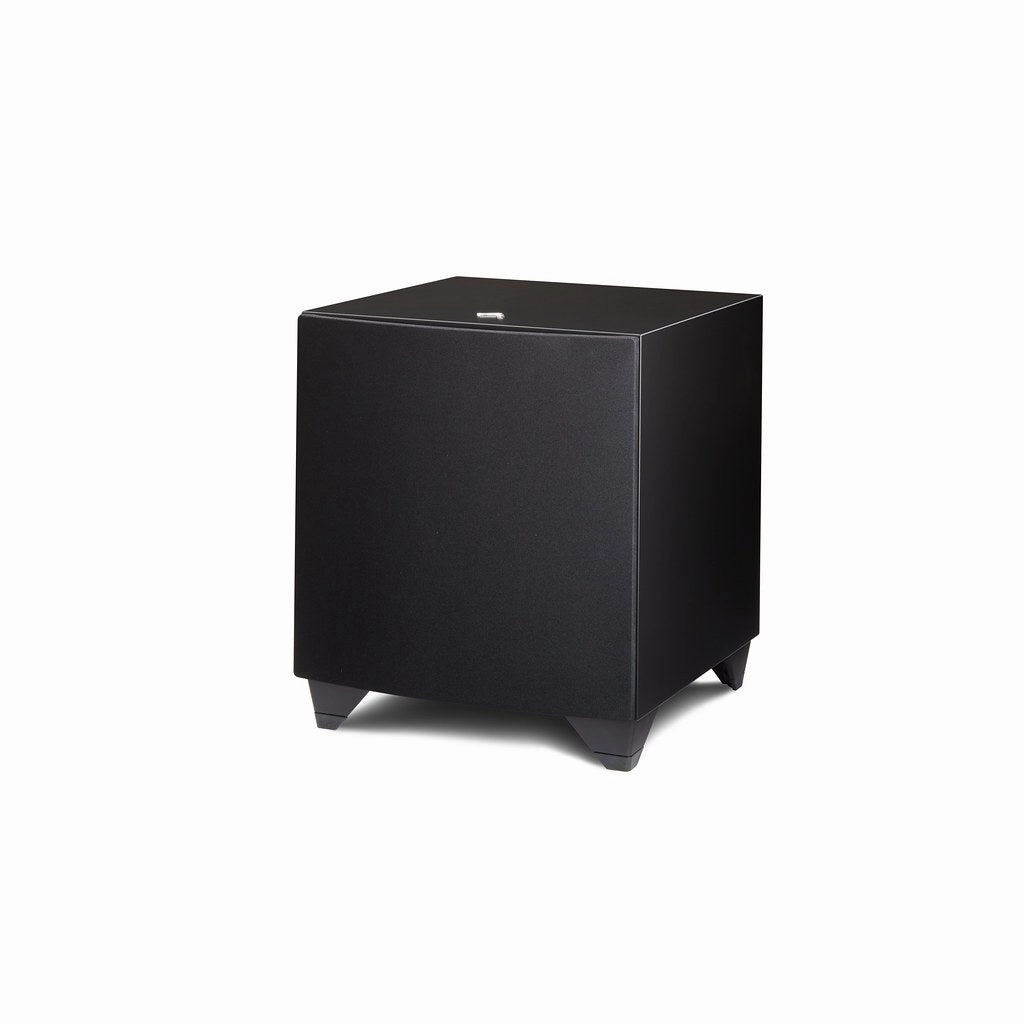

When placed in a cabinet or other discreet location, Dynamo 800X, 1100X, and 1600X subwoofers can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grille is provided for use in front-firing applications.

Frequency Response

22200 Hz 3 dB. Anechoic in LFE mode.

Impedance

RCA: 8,300 Ohms
Speaker Level: 2,000 Ohms (red to black)
XLR: 28,000 Ohms (pin 2 to 3)

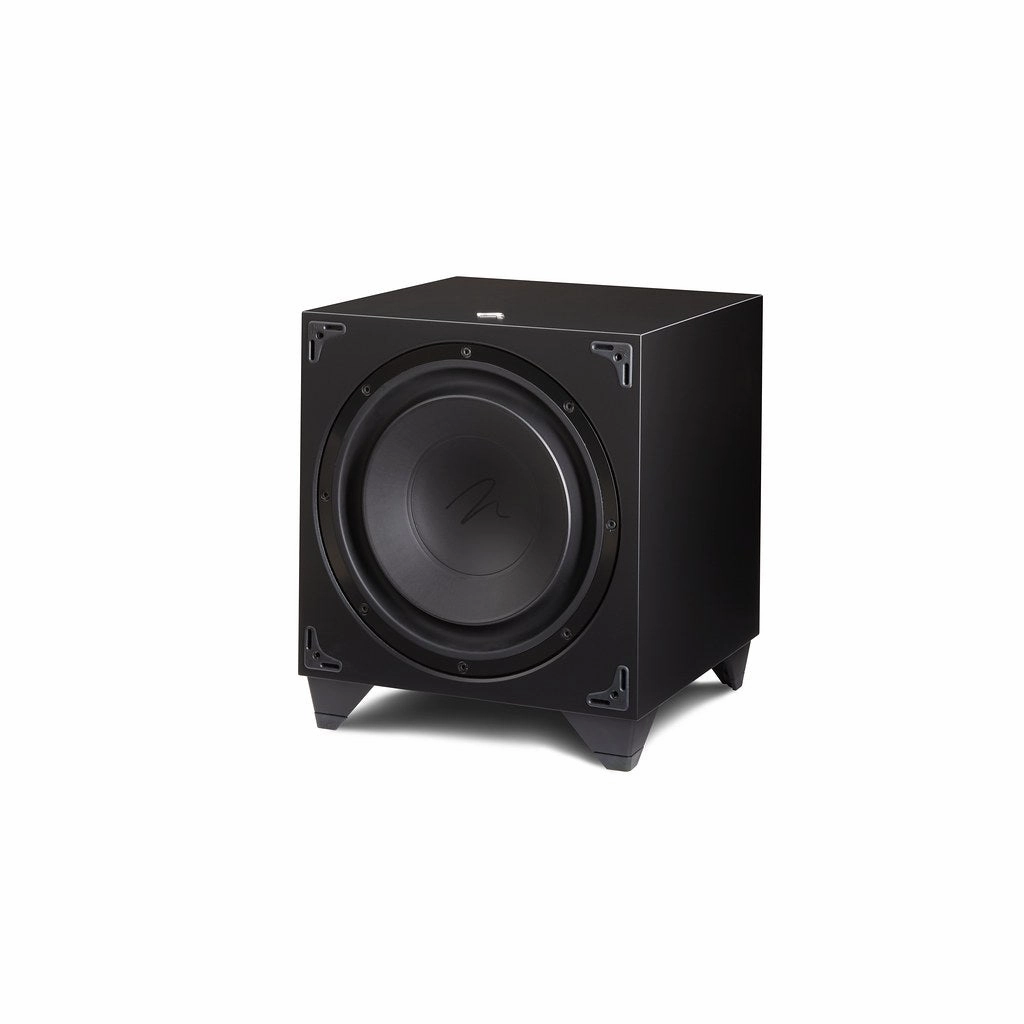

Low Frequency Transducer

12 (30.5cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.

Amplifier

650 Watts (1,300 peak)

Software

Sub Control App: iOS and Android
Anthem Room Correction: iOS, Android, and PC

Room Correction

Anthem Room Correction (ARC)

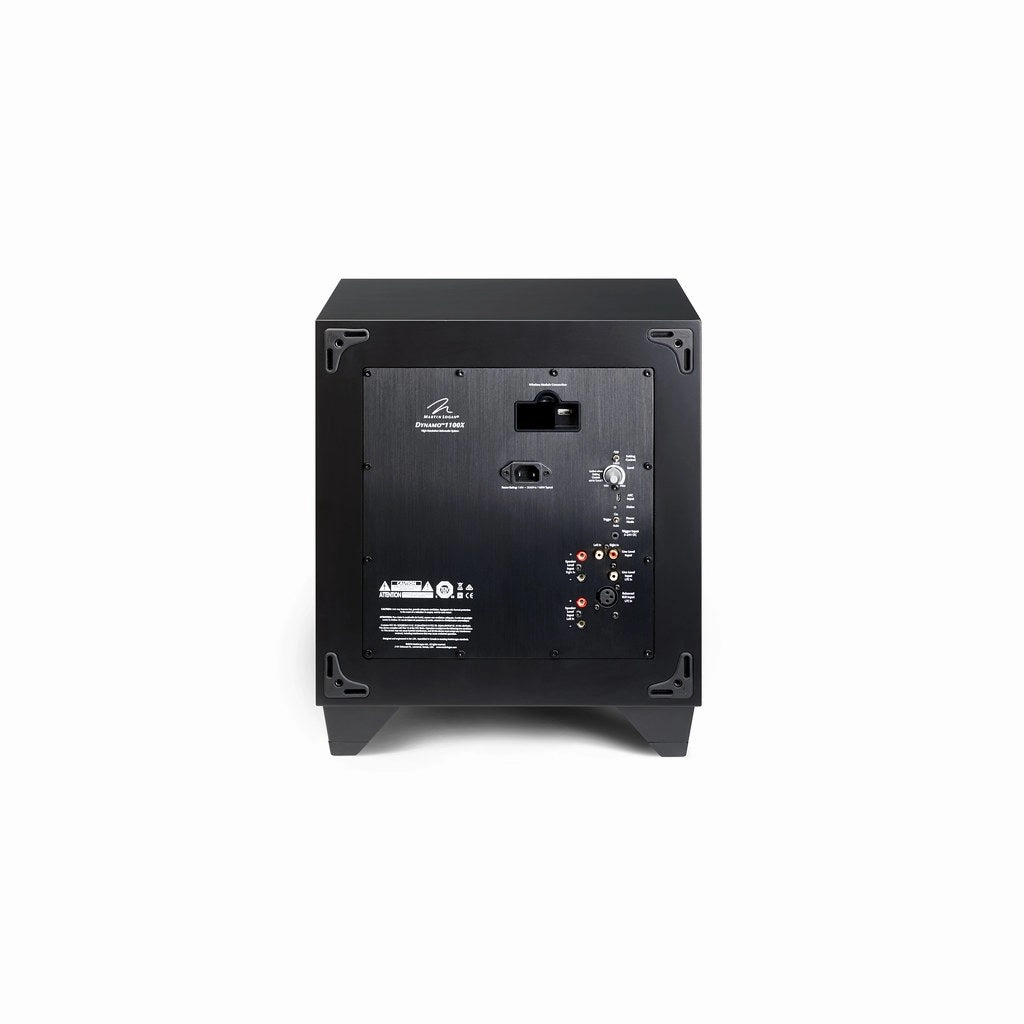

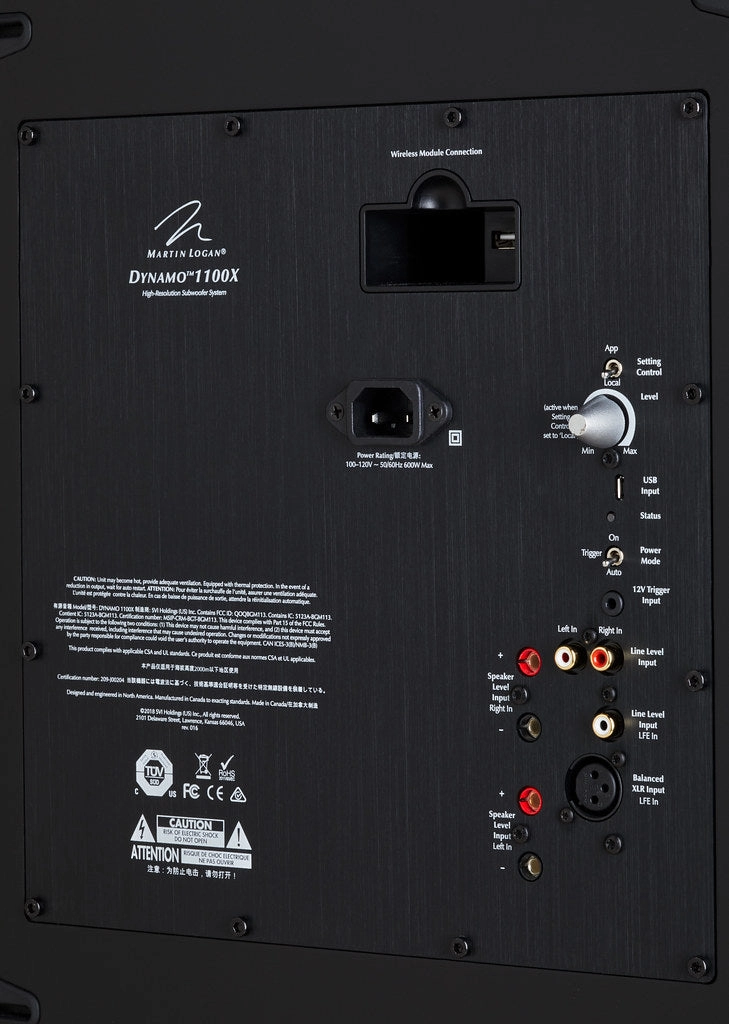

Controls (Backplate)

Level: MinMax
Setting Control: Local, App
Power Mode: On, Trigger, Auto

Controls (via Bluetooth)

Level: -40 to 12dB
Low-Pass Filter (Frequency): 35120Hz
Low-Pass Filter (Order): Bypass, Third, Fourth
Phase: 0180 (1 Increments)
Phase (Polarity): Normal, Inverted
Preset Listening Modes: Music, Night, Movie
2030Hz Level: 10dB
Anthem Room Correction (ARC): On, Off
Tone Sweep (20120Hz): On, Off, Pause (Frequency)

Inputs (Audio)

Line Level: Left, Right, and LFE
Speaker Level: Left and Right via banana jacks XLR: LFE

Inputs (Audio, Wireless)

SWT-X Receiver & Transmitter (sold separately)

Inputs (Other)

USB: Micro USB (for ARC/Firmware Update)
Trigger: 3.5mm, 524 DC

Power Draw

Typical: 100W, Max: 600W, Idle: 15W, Standby: 0.5W

Feet

Rubber, ETC (Energy Transfer Coupler) Spikes

Weight

46 lbs. (20.9 kg)

Dimensions (HxWxD), Front-Firing

17.2" x 15" x 16.2"
(43.6 cm x 38cm x 41.1cm)

Dimensions (HxWxD), Down-Firing

17.1" x 15 " x 15.6 "
(43.5 cm x 38cm x 39.6 cm)

Finish

Satin Black
