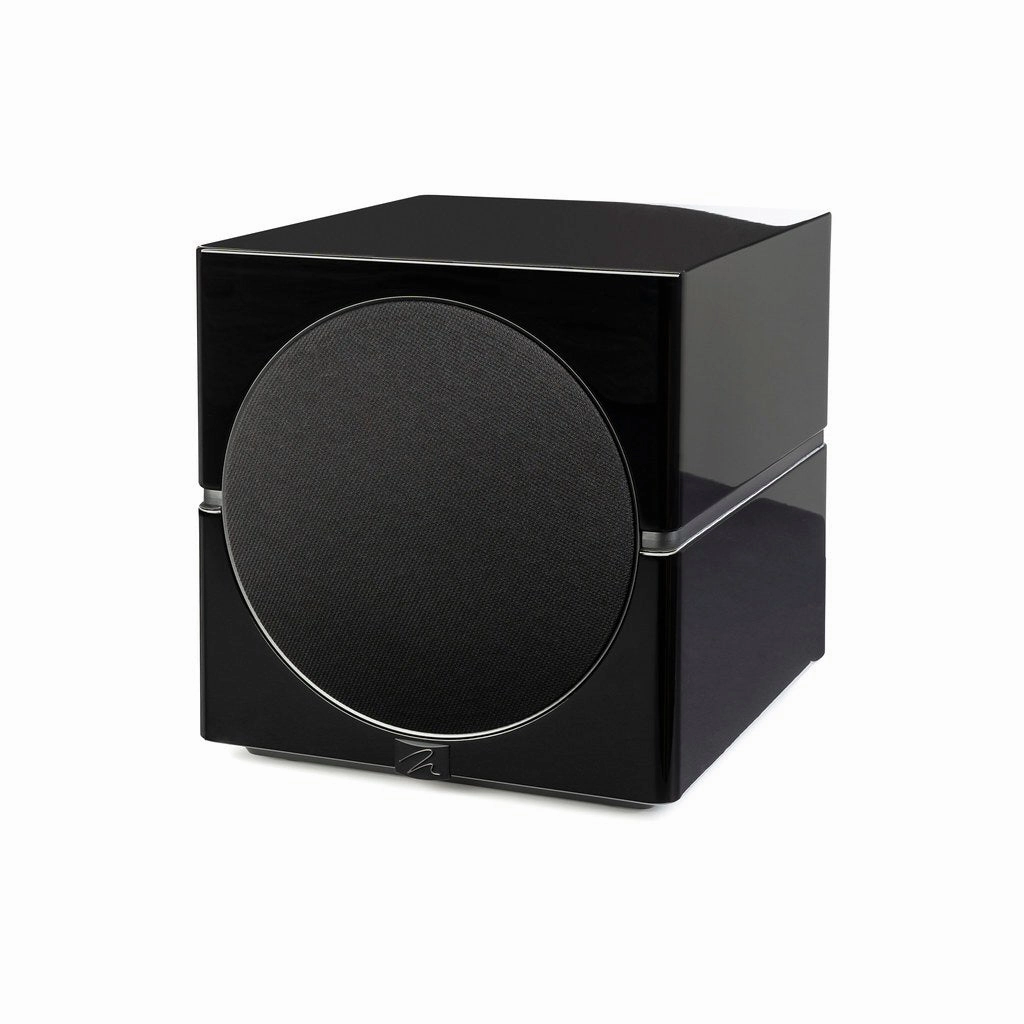

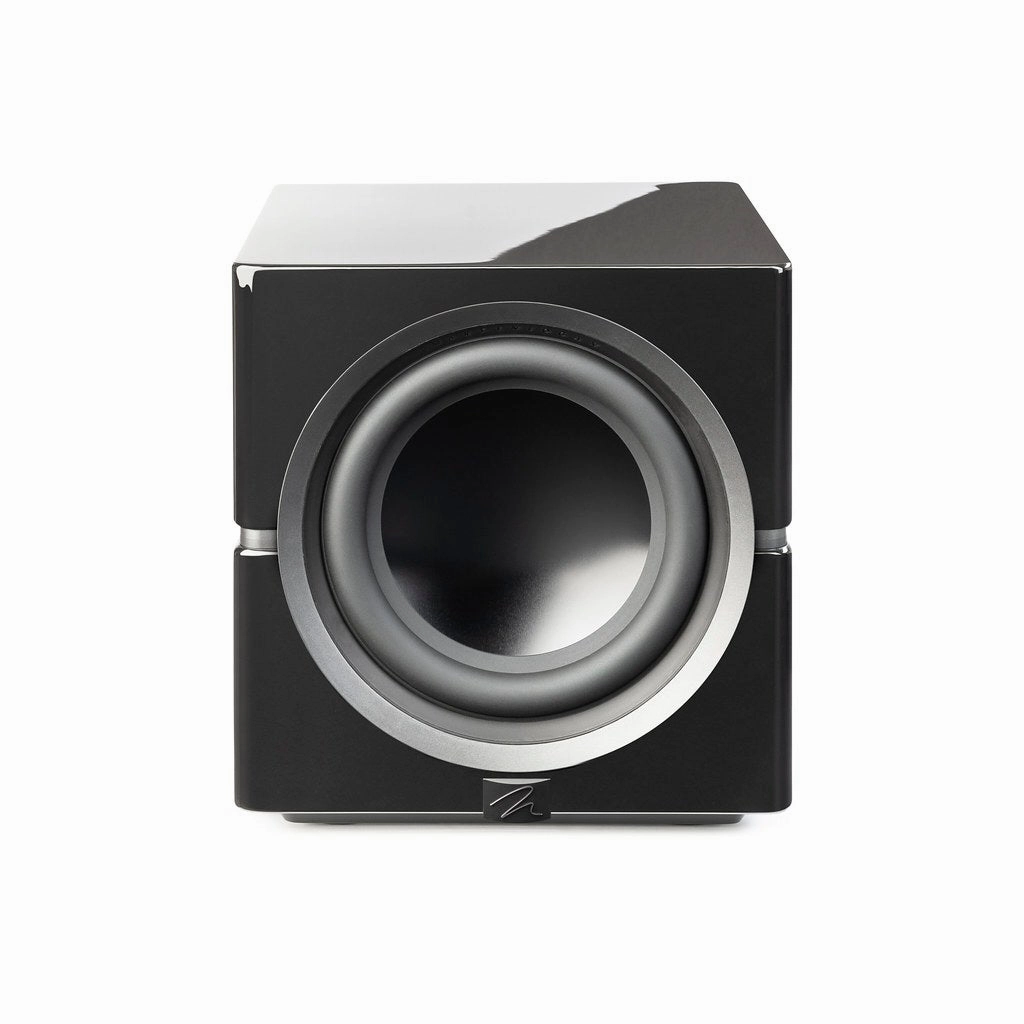

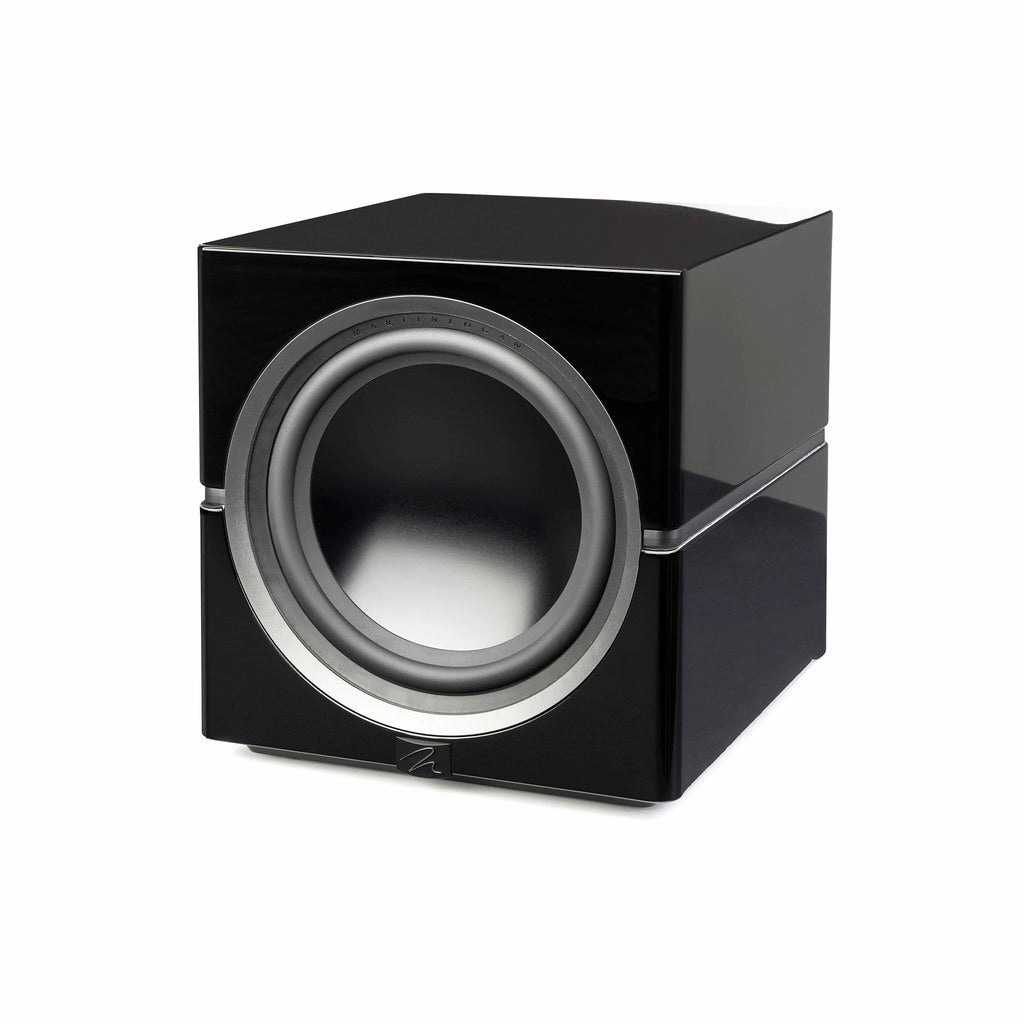

MartinLogan Dynamo 12 Subwoofer

With premium looks and the high performance to back it up, Dynamo 10 is a compact, powerful and musical subwoofer ideal for any system but engineered to compliment the speed and detail of MartinLogan loudspeakers. Dynamo 10 packs an extensive feature list including a custom 10 aluminum woofer, a 1000W peak power amplifier, and a best-in-class 500MHz DSP Engine with 64-bit processing all encased in a beautifully finished 1 thick cabinet. With plenty of power and precision on tap, Dynamo 10 also features an array of connectivity options ranging from XLR to the built-in wireless option. If that werent enough, Dynamo 10 also features MartinLogans powerful and intuitive control app for convenient setup and adjustment, as well as being compatible with the award-winning Anthem Room Correction (ARC) system.

	Seamlessly Integrating High-Performance Audio with Elegant Design Emphasizing high performance and decor-friendly aesthetics, MartinLogan subwoofers expertly blend audiophile musicality and theatricality with dynamic output and accuracy in a compact design. As with all MartinLogan subwoofers, the Dynamo Series is designed to work with any speaker system while being uniquely engineered to keep pace with the exotic thin-film technologies utilized in MartinLogan loudspeakers.
MagnitudeMT-1.6kW Amplifier Keeping Dynamo 12s woofer fed with as much power as it can take advantage of is no easy task. Stepping up to the plate is MartinLogans Magnitude MT-1.6kW amplifier. Delivering up to 1600W peak (800W RMS) of clean power, ensures remarkable impact and seamless musicality at all volume levels. MartinLogans Magnitude amplifiers are designed to deliver their power reserves with ultra-low distortion to ensure maximum fidelity along with high output capability. MT-1.6kW maintains exceptional control over Dynamo 12s woofer, guaranteeing precise, and powerful bass exactly when you want it.
	Advanced Vojtko DSP Engine: Elevating Subwoofer Performance Dynamo subwoofers utilize the cutting-edge, ultra-high-resolution Vojtko DSP engine, named after MartinLogans Chief Audio Technologist. Featuring a best-in-class 500MHz DSP with 64-bit processing, the Vojtko DSP engine is the maestro that commands all aspects of subwoofer performance in real-time. This level of computing power allows MartinLogan engineers to fine-tune performance for maximum output and fidelity with complete audible transparency as well as enabling advanced features like wireless app control, integrated wireless signal connection, and other advanced DSP functions. Thanks to the computational power of this sophisticated DSP engine, Dynamo subwoofers are also compatible with the award-winning Anthem Room Correction (ARC) system.

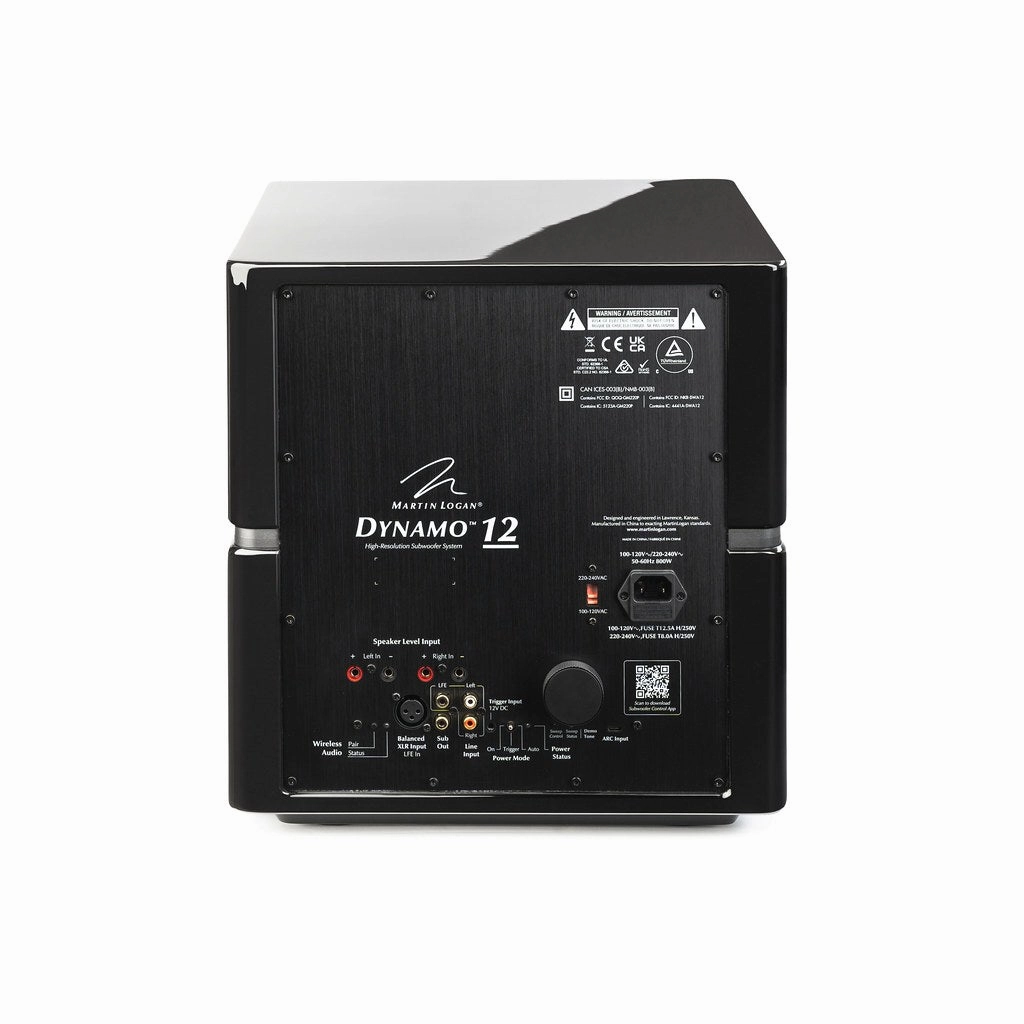

Robust Connectivity In addition to the built-in wireless connection option, Dynamo 10 offers incredible wired installation flexibility. With both RCA and XLR LFE inputs, Stereo RCA inputs, Speaker Level inputs, and Sub Out connections, Dynamo 10 can be easily integrated into even the most complex systems. Simultaneous connections are also supported.
	Fine-Tune Your Subwoofer Settings with MartinLogan's Intuitive App By far the most convenient way to adjust a subwoofer, MartinLogans Subwoofer Control app for iOS and Android devices allows you to easily adjust settings such as Volume, DSP Mode, Phase, and many others right from the comfort of your seat for ultimate control and ease of tuning.

Specifications

Specifications are subject to change without notice

Digital Signal Processing	Ultra High-Resolution 500MHz Vojtko DSP Engine with 64bit processing
Frequency Response	22120 Hz 3 dB (Anechoic via LFE input)
Low Frequency Transducer	12 (25.4cm) high-excursion, anodized-aluminum cone in a stamped steel basket
Cabinet	Precision-crafted, sealed MDF enclosure featuring a robust 1-inch thick MDF woofer baffle
Amplifier	Magnitude MT-1.6kW Amplifier with 1,600W peak (800W continuous)
Controls (Backplate)	Level: Interactive LED Backlit Knob Tone Sweep: Sweep Start and Pause (with status light) Power Mode: On, 12v Trigger, Auto Wireless Audio Pairing Button (for included MartinLogan wireless transmitter)
Controls (via Bluetooth)	Level: -40 to 12dB (Min-Max) Low-Pass Filter (Frequency): 35120Hz (1 Increments) Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0180 (1 Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Movie, Music, Night 2030Hz Level: 10dB Anthem Room Correction (ARC Genesis): On, Off Tone Sweep (120-20Hz): On, Off, Pause (Frequency)
Wireless Inputs	Integrated Wireless Receiver, Wireless Transmitter Included
Inputs	Line Level: Left, Right, and LFE XLR: LFE Speaker Level: Left and Right (requires banana plugs)
Power Draw	Max: 800W Standby (Wireless Disabled): 0.5W Standby (Wireless Enabled): <2W *Transmitter and Subwoofer combined
Feet	Integrated Anti-Vibration Feet (carpet spikes included)
Weight	61.5 lbs (27.9 kg)
Dimensions (H x W x D)	16-3/4" x 15-3/4" x 15-3/4" (42.4cm x 39.9cm x 39.9cm)
Finish	Gloss Black
