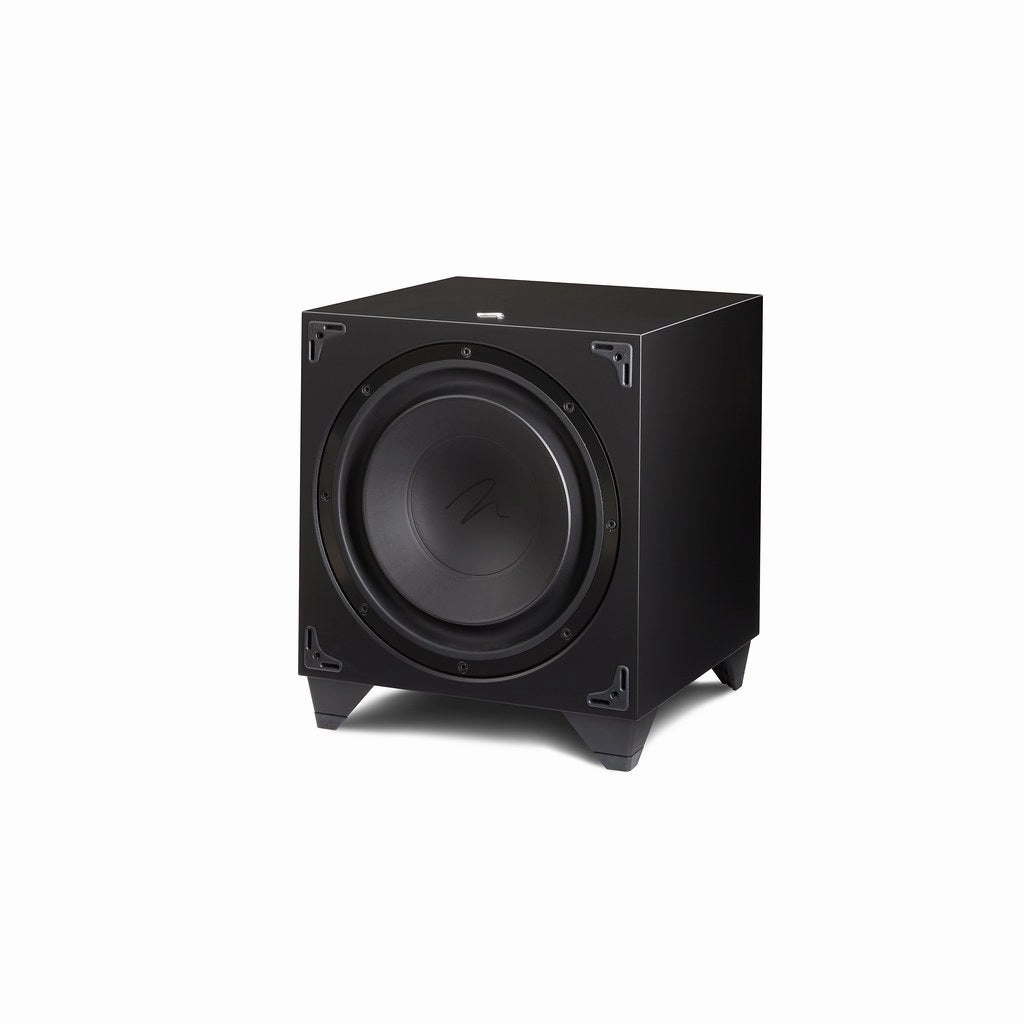

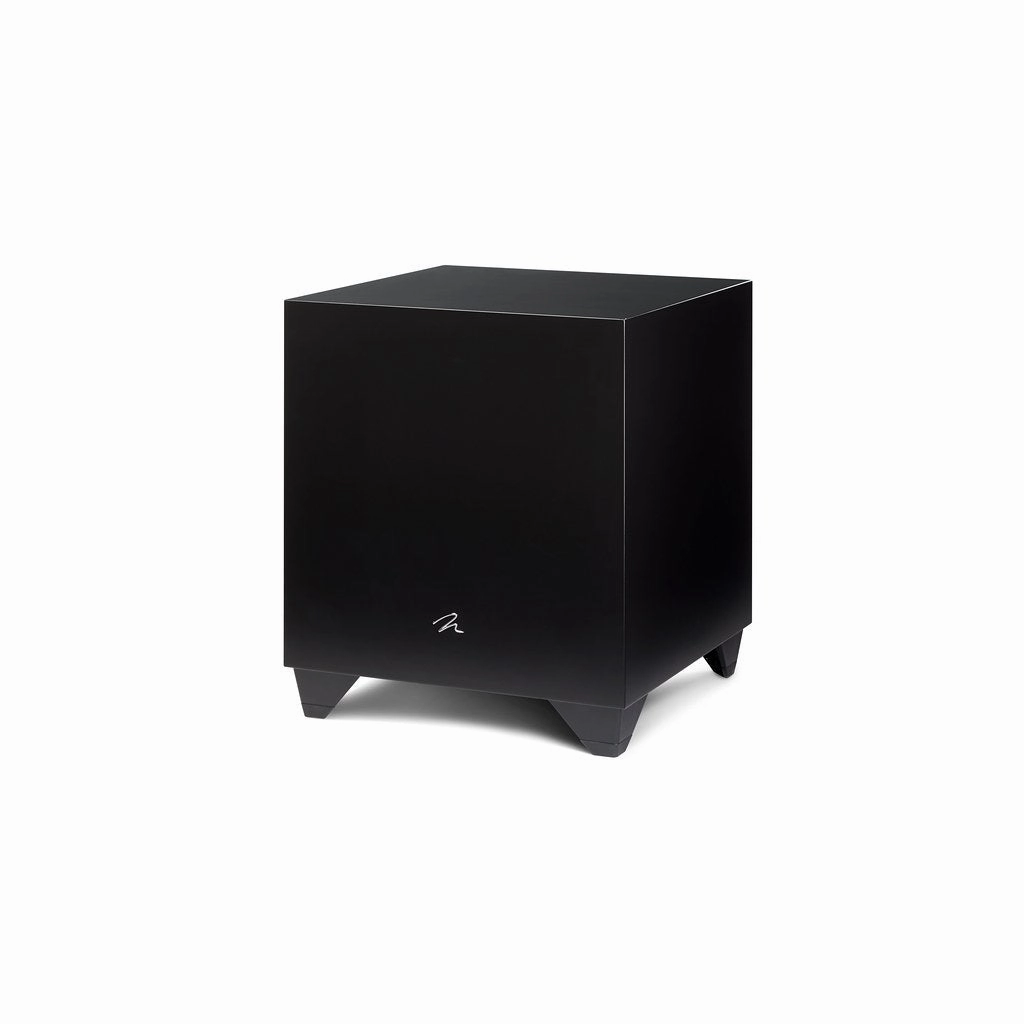

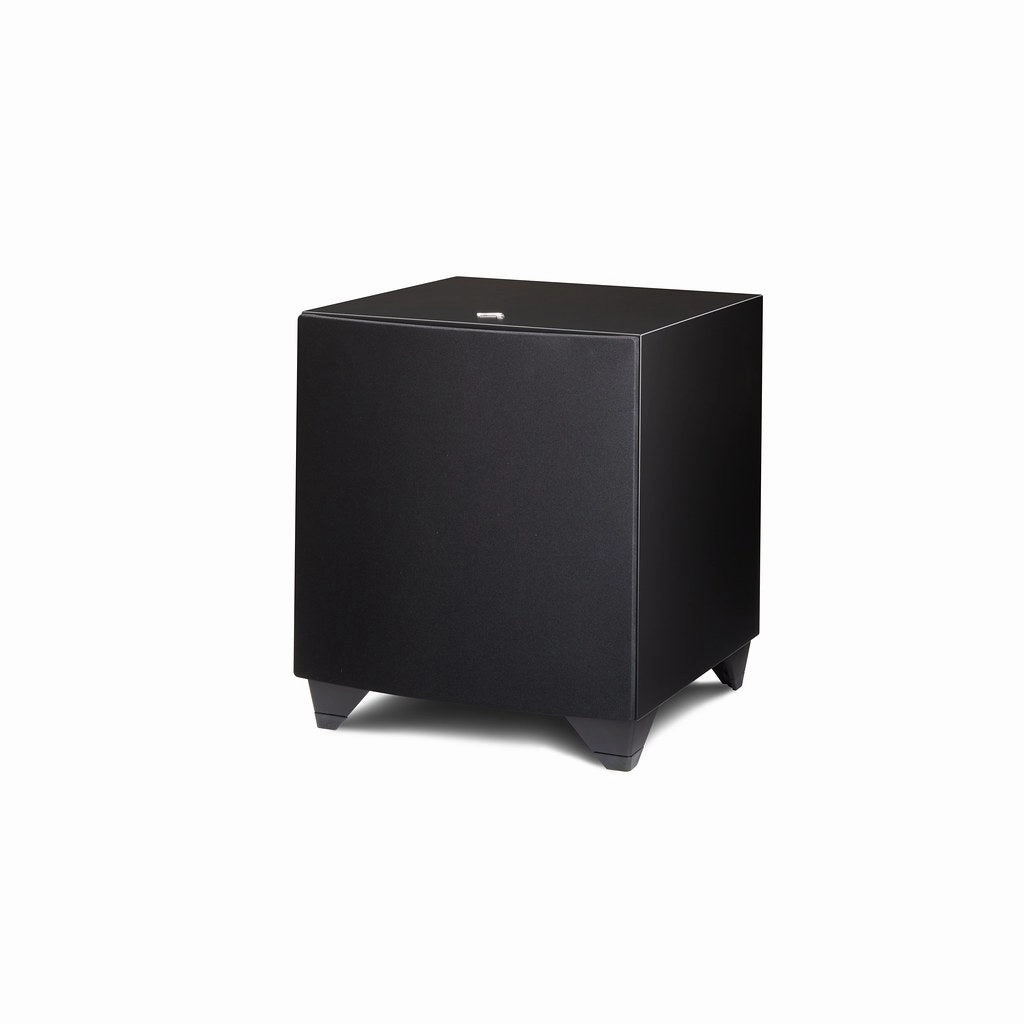

MartinLogan Dynamo 1600X Subwoofer

Name: MartinLogan Dynamo 1600X Subwoofer
SKU: 620571

Wireless Control, Wireless Room Correction, and Wireless Signal Connection: Ultra-Powerful 15-inch Subwoofer

Dynamo 1600X features an 1,800 Watt (peak) amplifier, 15-inch audiophile grade woofer, extensive input options, optional wireless connectivity, control via a Bluetooth app, Anthem Room Correction (ARC), and user-configurable front- or down-firing design. Dramatic bass detail and attack, superb extension, and room-shaking output ensure a compelling music and home theater experience.

Dynamo 1600X
Product Highlights

15-inch inverted surround poly cone woofer
1,800 Watts (peak)amplifier
Sealed non-resonant cabinet
Digital control system via smartphone app
Anthem Room Correction (ARC) via smartphone app or PC
Robust connection options, including XLR, RCA, and speaker level inputs; 12V Trigger
Configurable front or down-firing design

MARTINLOGAN SUB CONTROL APP
(AVAILABLE FOR iOS AND ANDROID)

MartinLogans Subwoofer Control app uses a Bluetooth connection to simplify setup and configuration of Dynamo 600X, 800X, 1100X, and 1600X. App based controls include volume level, low-pass filter (frequency and order), phase, 2030Hz level, three preset listening modes, and control of Anthem Room Correction. A unique tone sweep feature assists users in locating areas in listening rooms where troublesome rattles or resonances may occur. A single press of a button allows listeners to initiate a tone sweep from 20120Hz. If a rattle or resonance occurs in the room any frequency can be held, allowing the listener to investigate and identify the source of the unwanted noise.

UNIQUE FRONT-FIRING OR DOWN-FIRING DESIGN

When placed in a cabinet or other discreet location, Dynamo 800X, 1100X, and 1600X subwoofers can easily convert from standard down-firing to front-firing orientation, with no tools or special skills required. A grille is provided for use in front-firing applications.

Specifications

Specifications are subject to change without notice

Frequency Response	20200 Hz 3 dB. Anechoic in LFE mode.
Impedance	RCA: 8,300 Ohms Speaker Level: 2,000 Ohms (red to black) XLR: 28,000 Ohms (pin 2 to 3)
Low Frequency Transducer	15 (38.1cm) high-excursion, inverted surround, polypropylene cone in a cast aluminum basket with extended throw driver assembly; sealed non- resonant cabinet design.
Amplifier	900 Watts (1,800 peak)
Software	Sub Control App: iOS and Android Anthem Room Correction: iOS, Android, and PC
Room Correction	Anthem Room Correction (ARC)

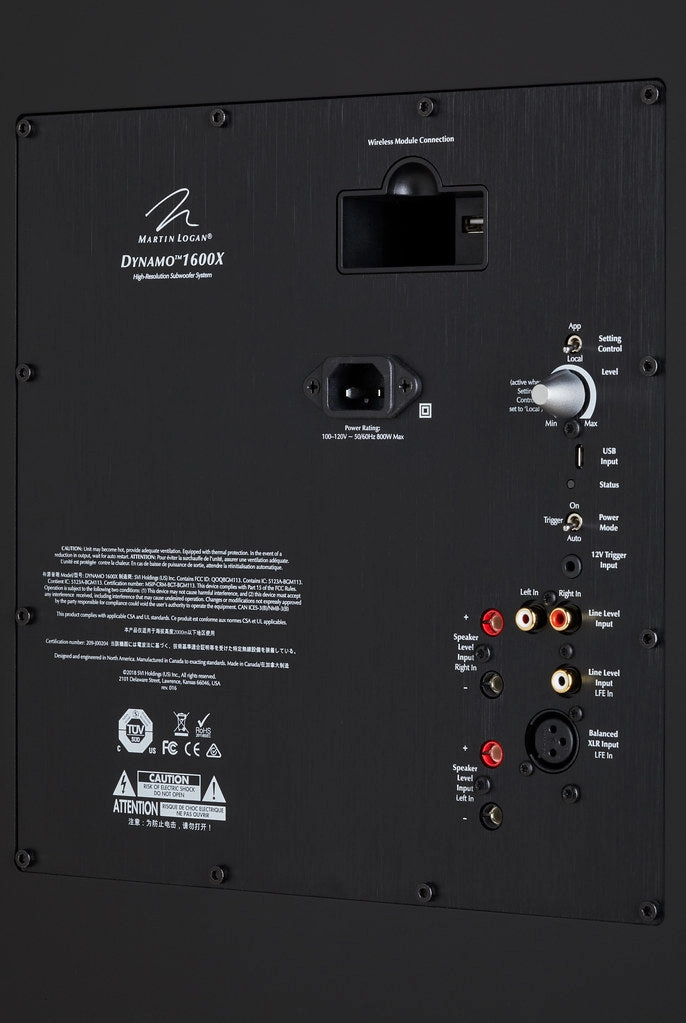

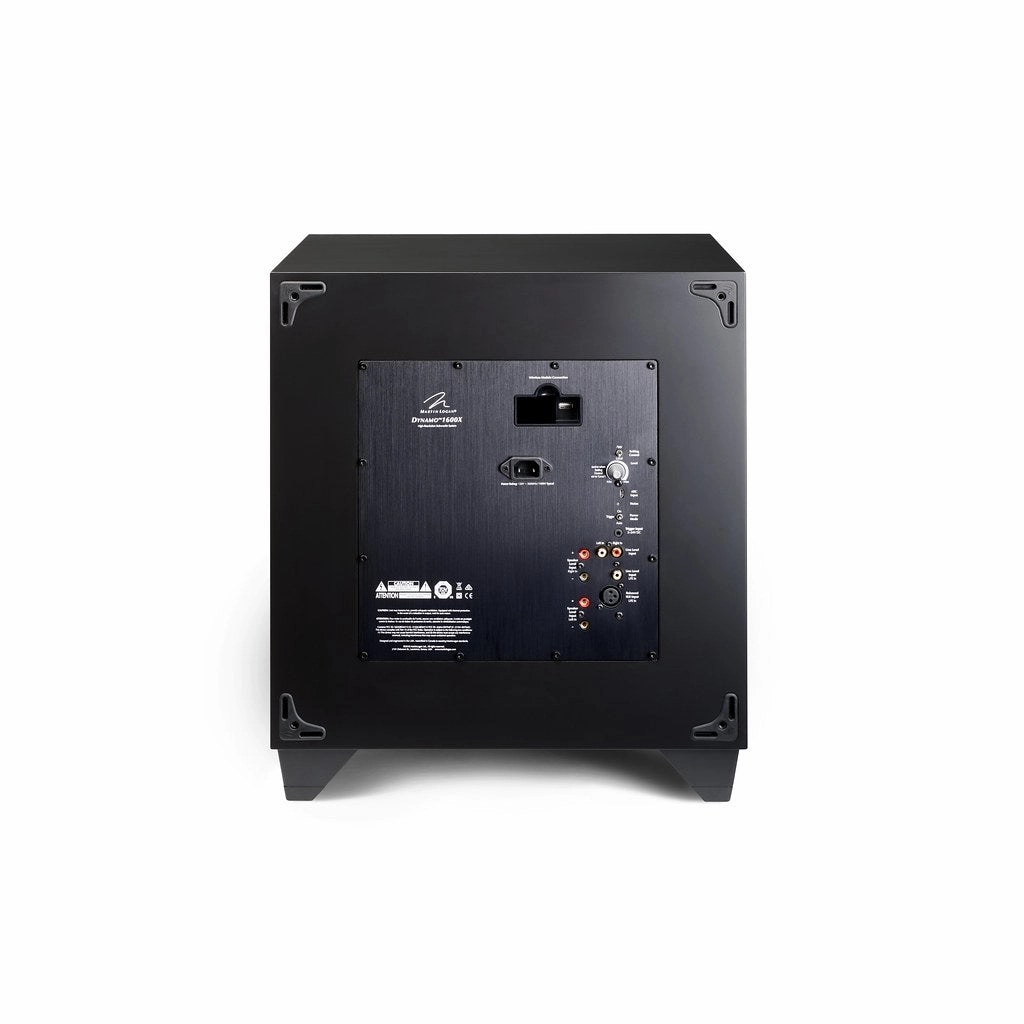

Controls (Backplate)	Level: MinMax Setting Control: Local, App Power Mode: On, Trigger, Auto
Controls (via Bluetooth)	Level: -40 to 12dB Low-Pass Filter (Frequency): 35120Hz Low-Pass Filter (Order): Bypass, Third, Fourth Phase: 0180 (1 Increments) Phase (Polarity): Normal, Inverted Preset Listening Modes: Music, Night, Movie 2030Hz Level: 10dB Anthem Room Correction (ARC): On, Off Tone Sweep (20120Hz): On, Off, Pause (Frequency)
Inputs (Audio)	Line Level: Left, Right, and LFE Speaker Level: Left and Right via banana jacks XLR: LFE
Inputs (Audio, Wireless)	SWT-X Receiver & Transmitter (sold separately)
Inputs (Other)	USB: Micro USB (for ARC/Firmware Update) Trigger: 3.5mm, 524 DC
Power Draw	Typical: 125W, Max: 800W, Idle: 15W, Standby: 0.5W
Feet	Rubber, ETC (Energy Transfer Coupler) Spikes
Weight	57 lbs. (25.9 kg)
Dimensions (HxWxD), Front-Firing	20.1" x 17.9" x 19.1" (51 cm x 45.4cm x 48.6cm)
Dimensions (HxWxD), Down-Firing	20" x 17.9 " x 18.5 " (50.9 cm x 45.4cm x 47 cm)
Finish	Satin Black
