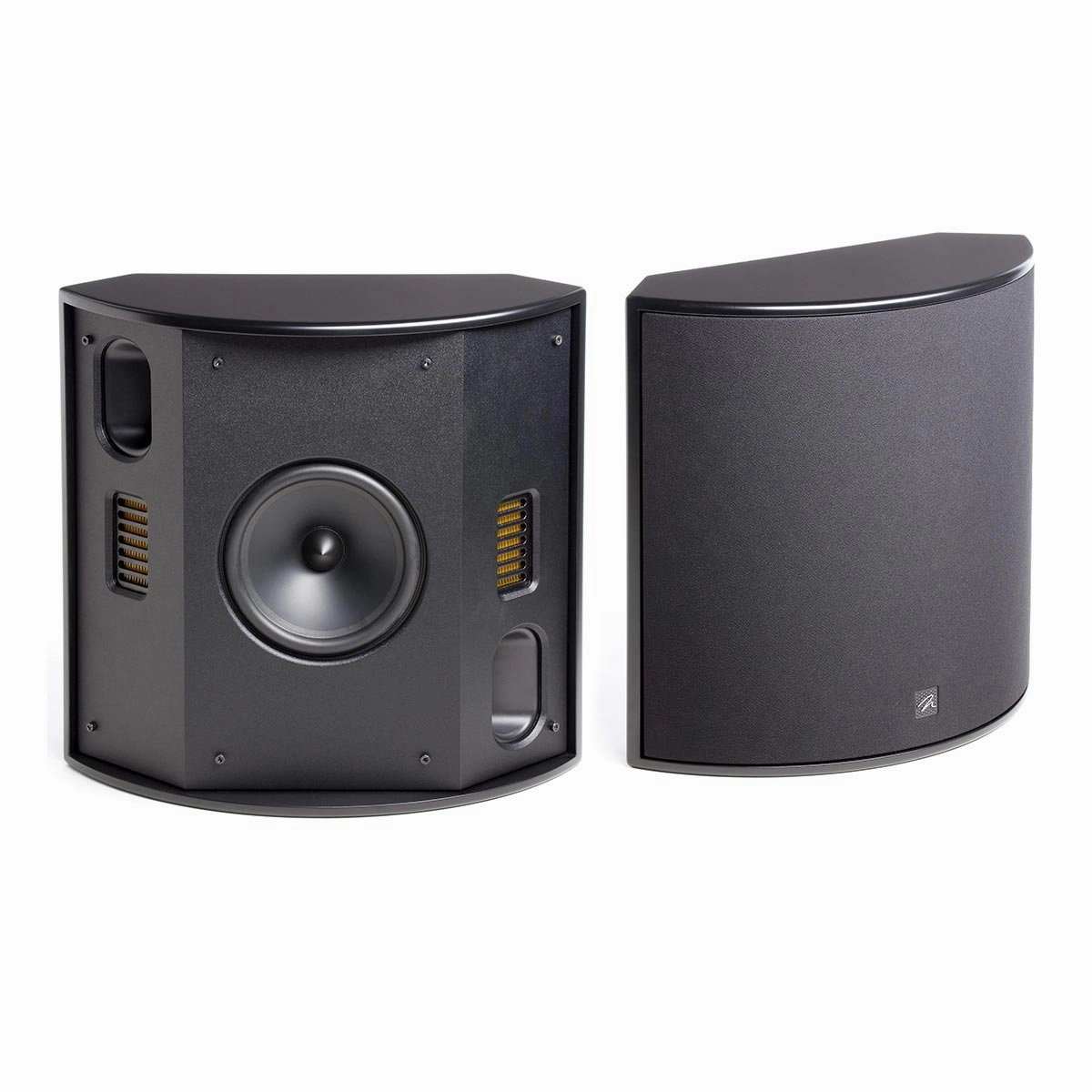

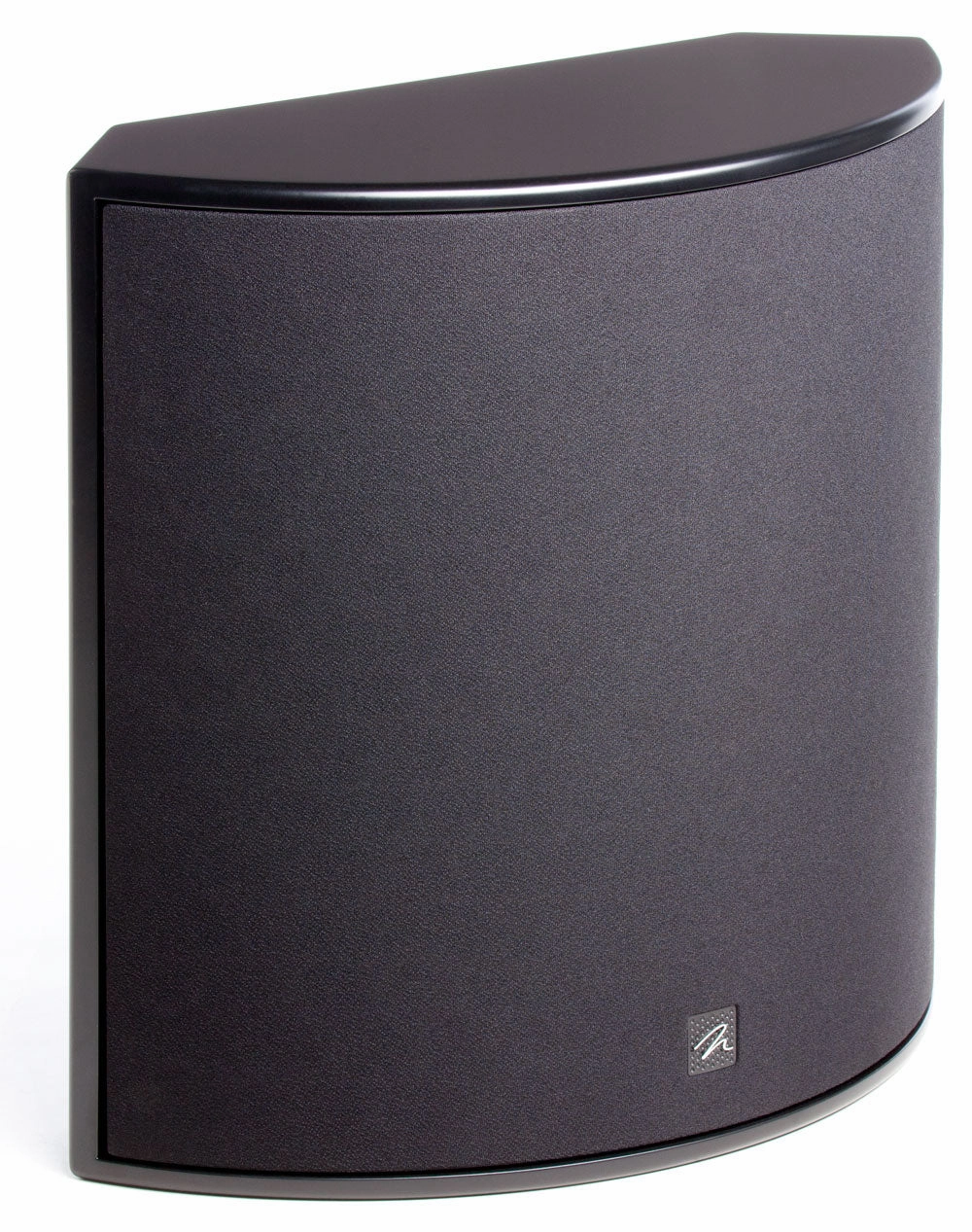

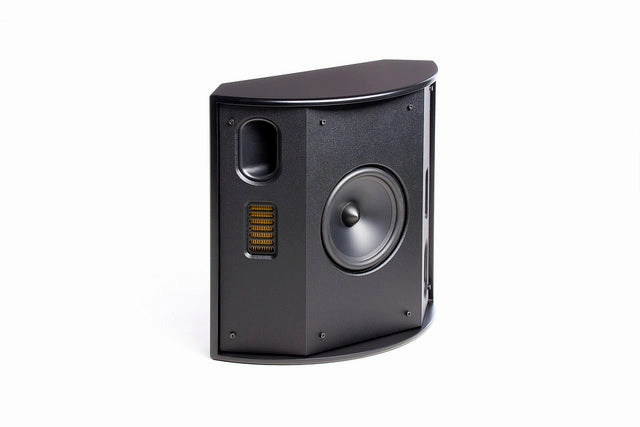

MartinLogan Electromotion FX2 Surround Speaker - each
Dual Folded Motion XT tweeters in a wide- dispersion array ideally suited for surround channel applications.
| The EM-FX2features dual Folded MotionXTtweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room. |
Folded MotionXTTweeterMartinLogan's larger, low distortion Folded MotionXTtweeter boasts a radiating surface 40% larger than those found in the award-winning Motion Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless performance. | |
Slender ProfileWhen mounted on a flat wall, the EM-FX2protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction. |
Specifications
Specifications are subject to change without notice
Frequency Response | 5525,000 Hz 3dB |
Recommended Amplifier Power | 20200 watts per channel |
Horizontal Dispersion | 160 |
Vertical Dispersion | 30 |
Sensitivity | 93 dB @ 2.83 volts/ meter |
Impedance | 5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Crossover Frequency | 2,300Hz |
High Frequency Transducer | Two 1.25" 2.4" (3.2cm 6.1cm) Folded Motion XT Transducers with 4.5" 2.75" (11.4cm 7cm) diaphragm |
Low Frequency Transducer | 6.5" (16.5cm) paper cone with cast aluminum basket. Ported. |
Components | Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection. |
Inputs | Push style with banana jacks |
Weight | 16 lbs. (7.3 kg) |
Dimensions | 14.9" x 14" x 6.8 " (37.9cm x 35.5cm x 17.2cm) |
