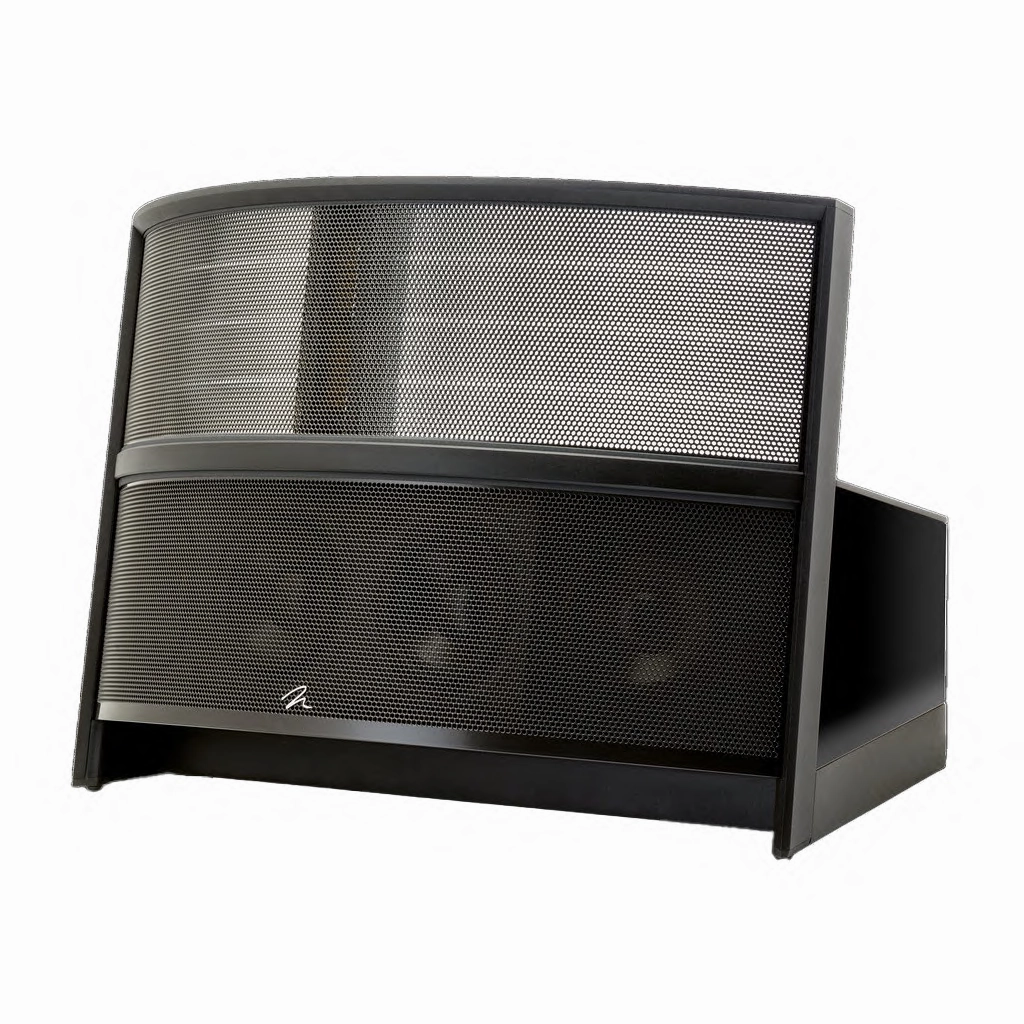

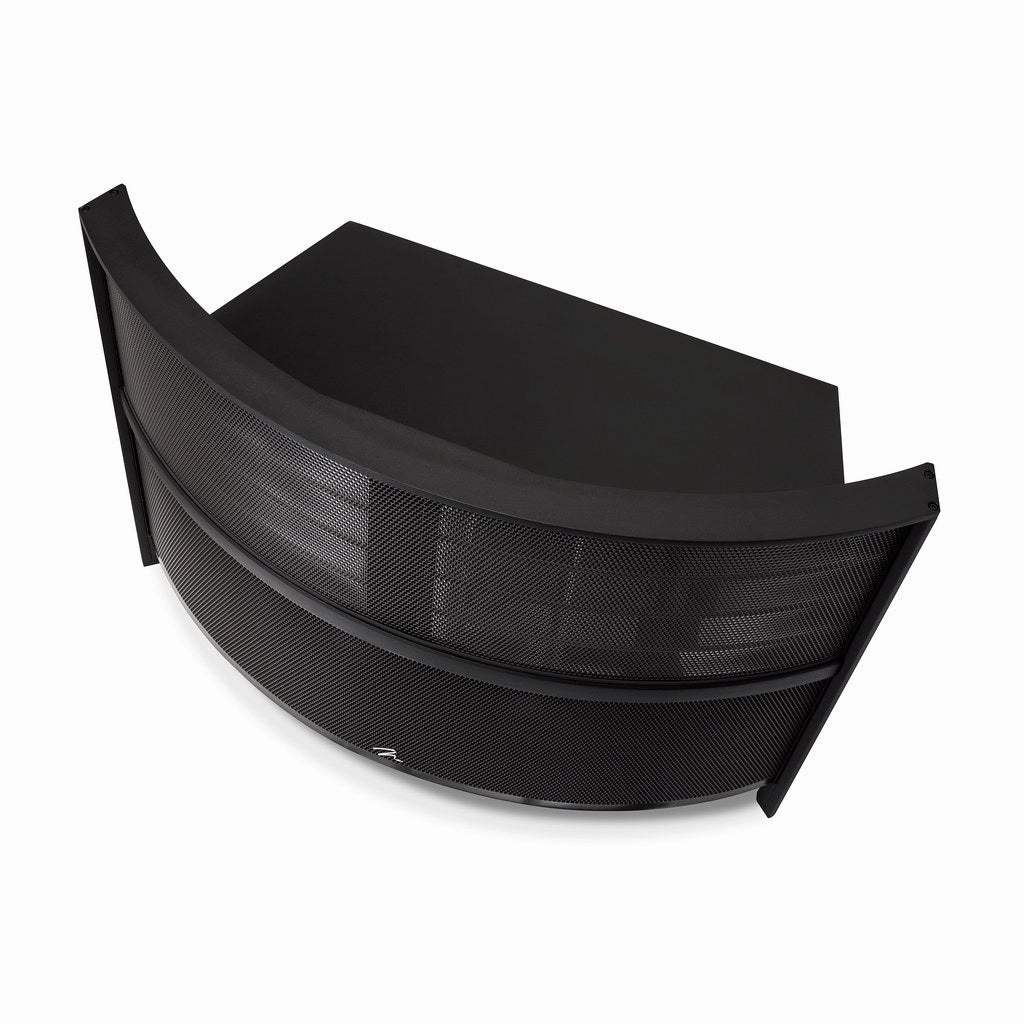

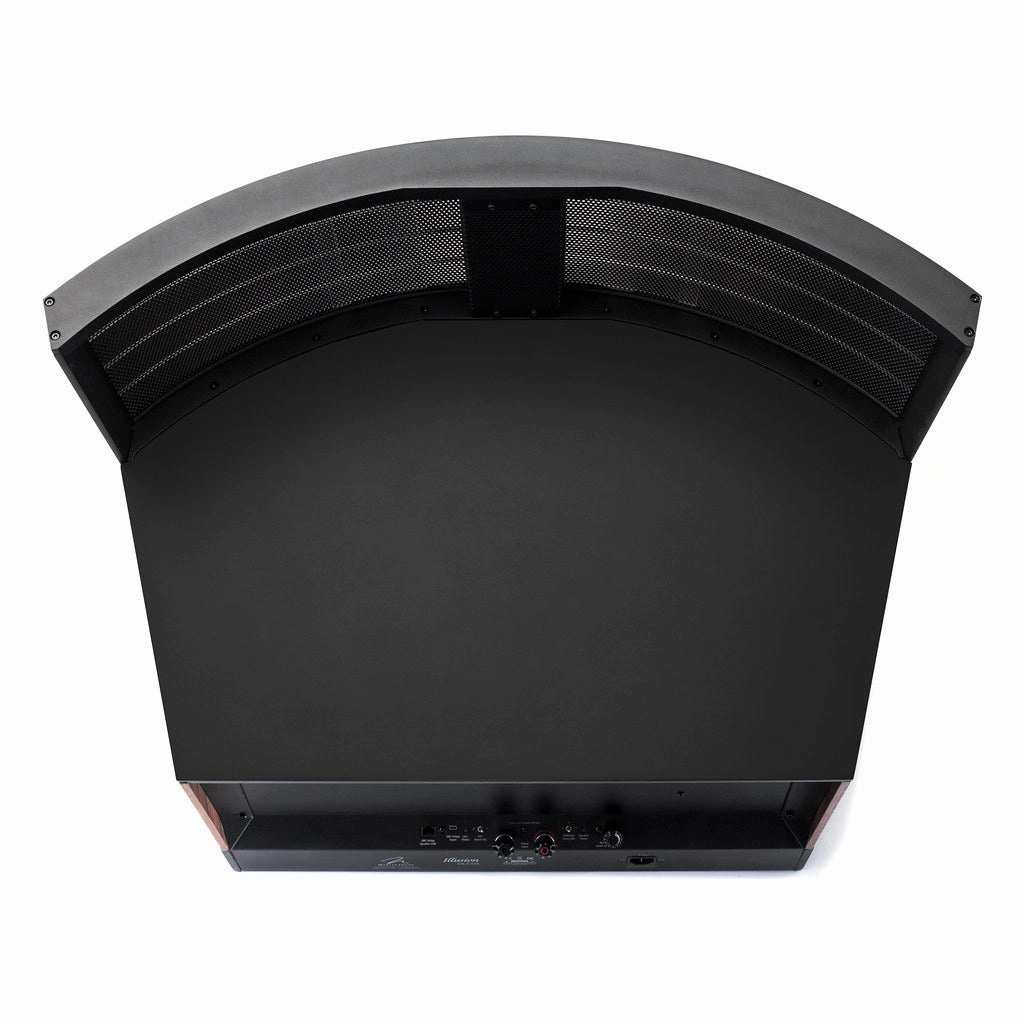

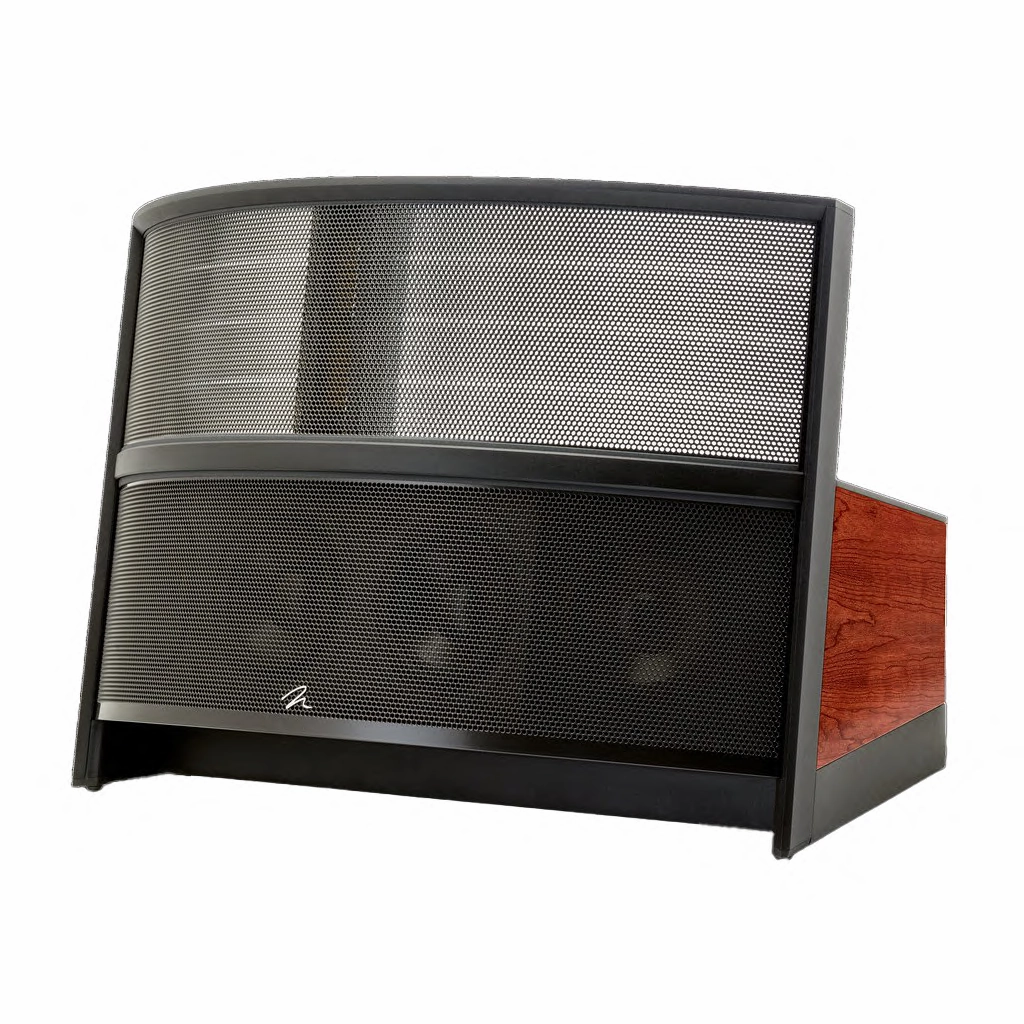

MartinLogan Illusion ESL C34A Centre Speaker - each
Illusion ESL C34A is the ultimate performance floorstanding center channel loudspeaker that blurs the lines between performance and reality by combining the dynamics of a 34-inch wide XStat CLS electrostatic transducer with the detailed imaging capability of Folded Motion XT tweeters, four 6.5-inch PoweredForce Forward woofers powered by a 250-watt Class-D amplifier, and controlled by a 24-Bit Vojtko DSP Engine and ARC (Anthem Room Correction).
ILLUSIONESL C34AMasters of the Illusionist school of art perfectedtrompe-loeil, employing painting techniques that mimicked actual objects so vividly that Illusionism blurred the boundaries between art and reality. This kind of illusion is the goal of any loudspeaker, especially a center channel speakerthe most important speaker in a multi-channel audio system. It is tasked with reproducing the most important audio information for imaging and realism: cinematic dialogue, anchoring effects, and a large portion of the front sound stage. It is fitting, then, that we introduce our new Masterpiece Series center channel loudspeaker, theIllusion ESL C34A. | |
The Ultimate Center Channel LoudspeakerThis ambitious new center channel blurs the line between performance and reality by combining the unflinching accuracy of a 34-inch wide XStat CLS electrostatic transducer with the detailed imaging capability of dual Folded MotionXTtweeters. Additionally, four laser-engineered 6.5-inch aluminum cone woofers, driven by 250 watts of clean amplification with on-board Anthem Room Correction (ARC) technology, anchor the image to your screen and deliver massive cinematic impact. The Illusion ESL C34A is timbre-matched to our flagship Masterpiece Series speakers to create a white-knuckle home theater experience of skidding car chases, blitzing battle scenes, or even intimately whispered dialogue within a seamlessly coherent surround-sound environment, making the Illusion ESL C34A the perfect center of your Masterpiece home theater. | |
PoweredForceBass TechnologyInspired by the breakthrough innovations of the Masterpiece Series, the Illusion ESL C34A features a redesigned woofer section. The four 6.5-inch laser-engineered low-distortion aluminum cone drivers use exclusive PoweredForce bass technology to deliver astonishingly articulate, well-blended bass, as low as 45Hz, from its compact enclosure. The new 250-watt Class-D amplifier is controlled by a 24-Bit Vojtko DSP Engine and includes ARC (Anthem Room Correction). ARC instantly optimizes the performance to suit your rooms unique characteristics, further improving the most important elements of full range center channel performance: consistent bass reproduction and precise imaging. | |

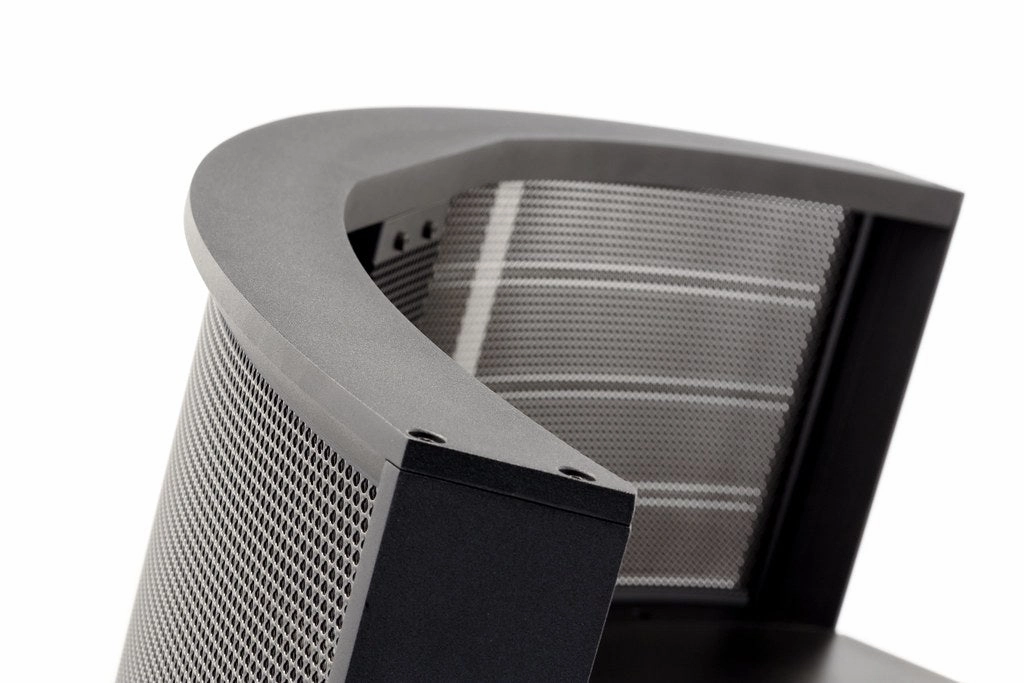

Ultra-Rigid AirFrame Blade DesignIllusion XStat panels are joined to their speaker cabinets using MartinLogans redesigned AirFrame Blade technology, precision manufactured from an aerospace-grade extruded aluminum alloy. This material, and this exclusive manufacturing process, makes the panels extremely rigid. Premium WBT Binding PostsConnect your electronics safely and securely using 5-Way audiophile WBT Binding Posts. Their pure copper connection plate is highly conductive and free from eddy current effects. These posts are insulated for shock protection, and fully damped against vibrations. They give you plenty of room for large-gauge professional speaker connections. | |
Specifications
Specifications are subject to change without notice
Frequency Response | 4523,000 Hz 3dB |
Recommended Amplifier Power | 20600 watts per channel |
Horizontal Dispersion | 30 |
Sensitivity | 90 dB/2.83 volts/meter |
Impedance | 6 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Crossover Frequency | 500, 2000 Hz |

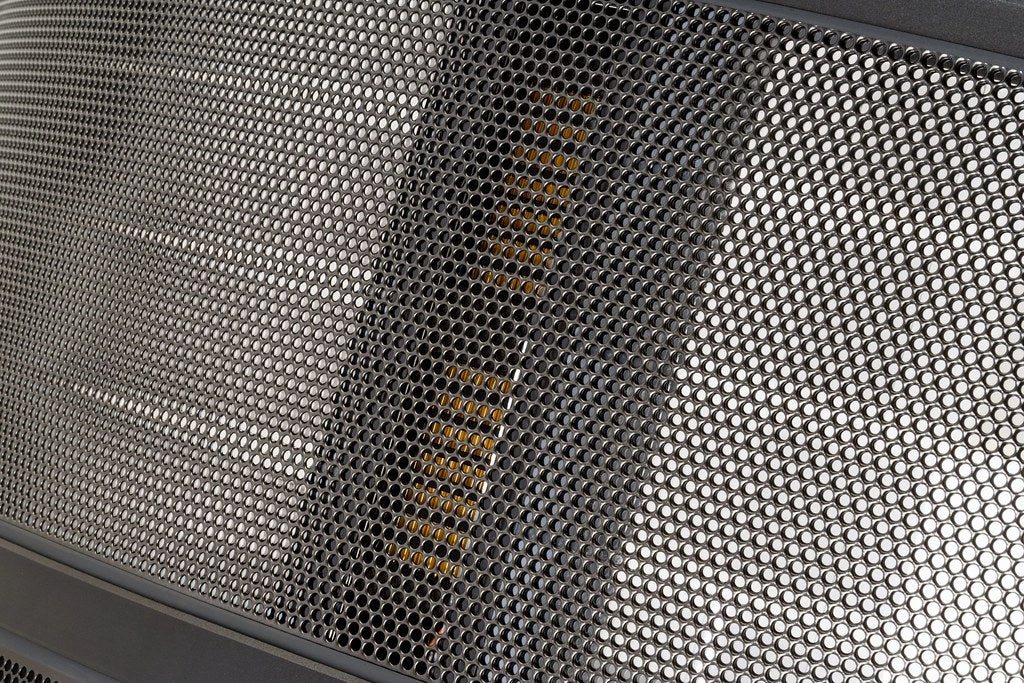

High Frequency Transducer | Two 1.25" x 2.4" (3.2cm x 6.1cm) Folded Motion XT Transducers with 4.5" x 2.75" (11.4cm x 7cm) diaphragm. |
Mid Frequency Transducer | Patented CLS XStat electrostatic transducer. Panel Dimensions: 8" x 34.5" (20.3 x 87.6cm) Radiating Area: 276 in (1,778 cm) |
Low Frequency Transducer | Four 6.5" (16.5cm) cast basket, high excursion, rigid aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format. |
Amplifier | 1x 250 watts/channel (4 ohms), 500 watts peak |
Room Correction (Bass Section) | Anthem Room Correction (ARC) Ready (Sold Separately) |
Components | Custom-wound audio transformer, air core coils, polypro- pylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier). |

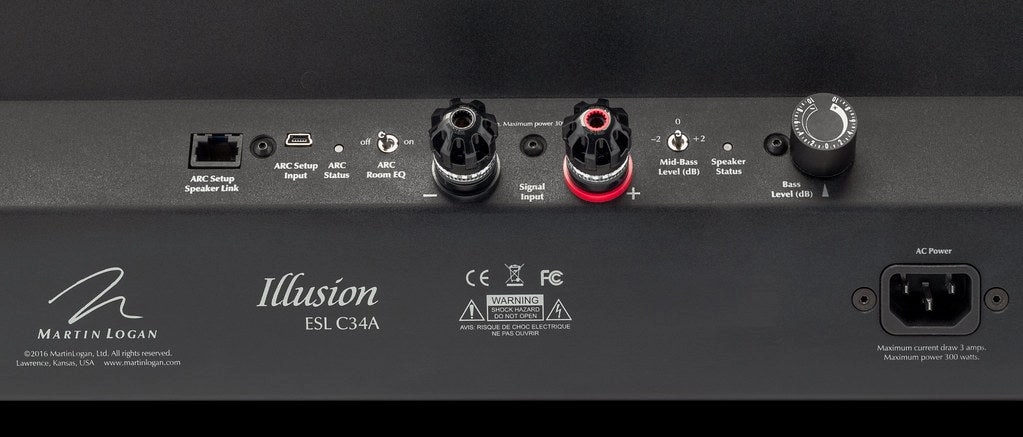

Audio Controls | Bass: 10dB under 75Hz Mid-Bass: 2dB, 0dB, 2dB ARC Room EQ: On, Off |

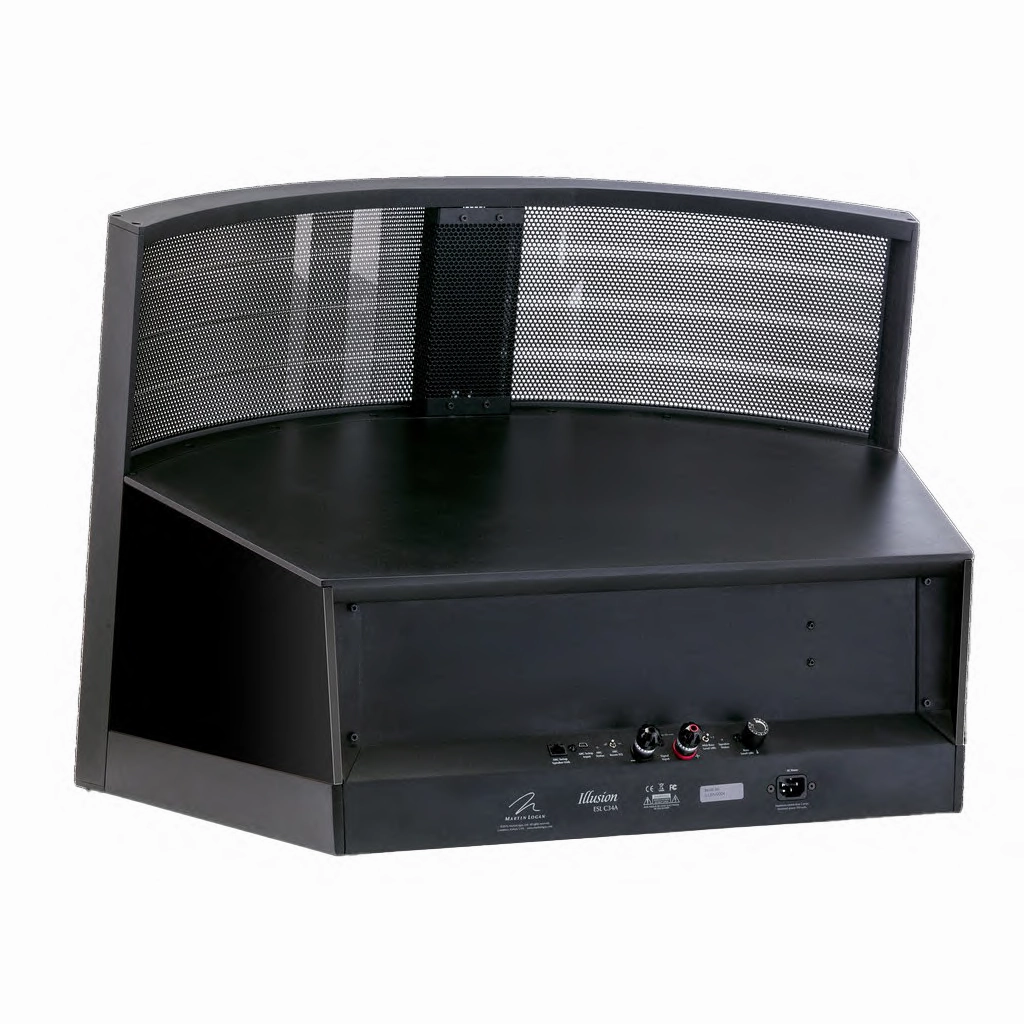

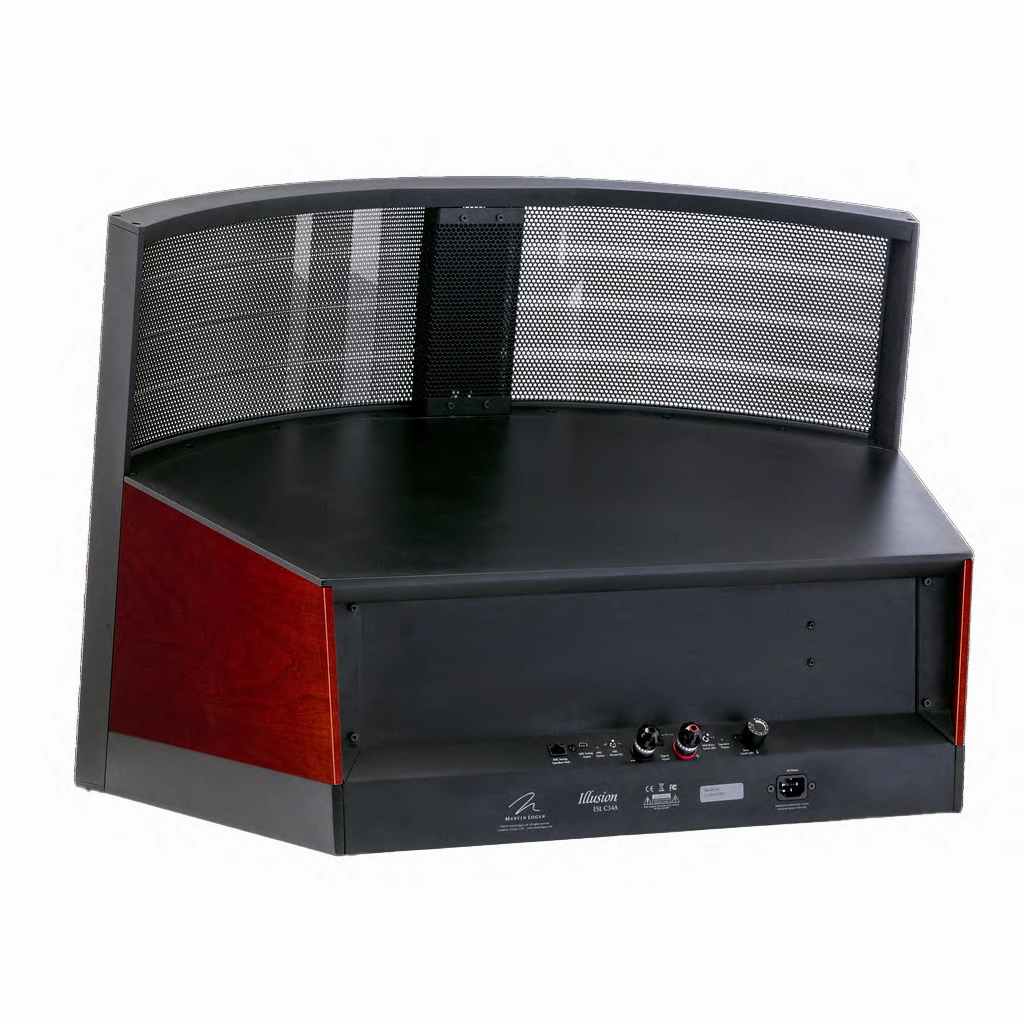

Signal Inputs | WBT-0703Cu nextgen 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects. |

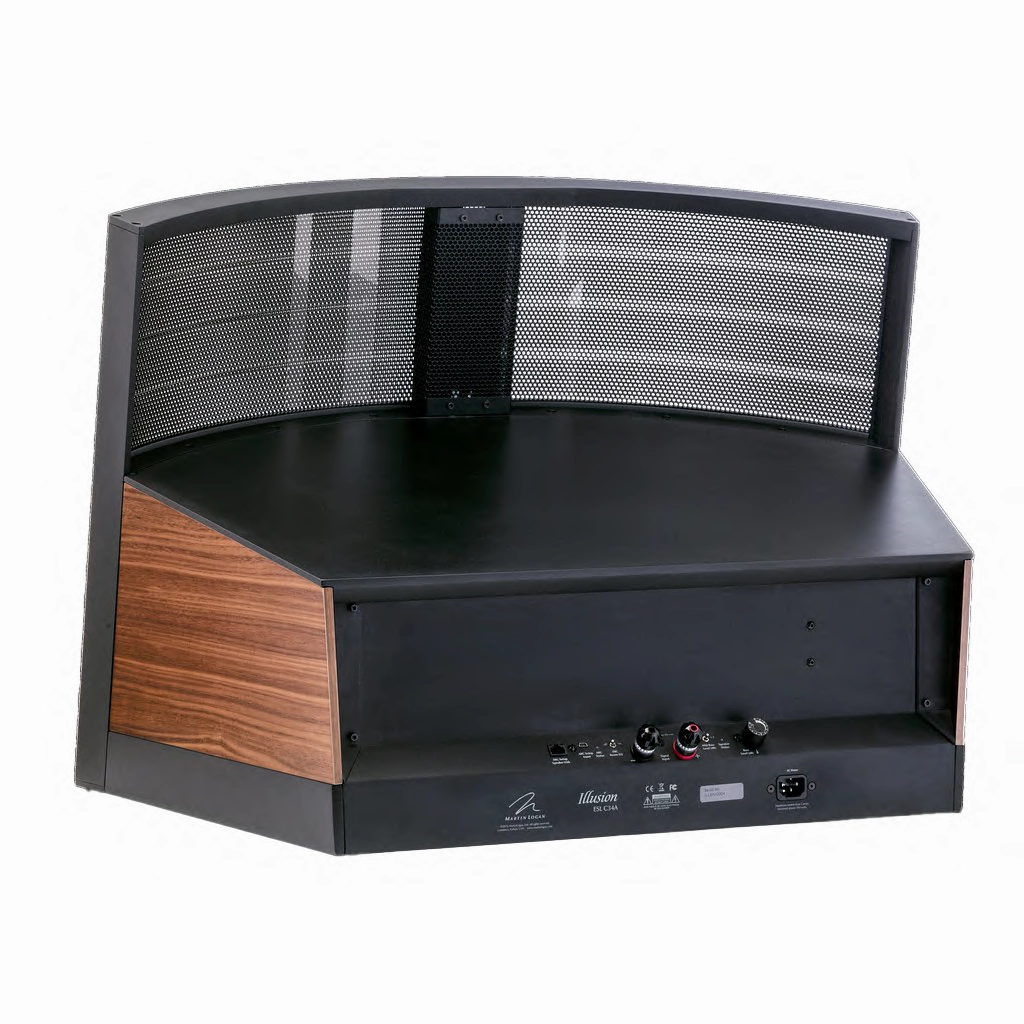

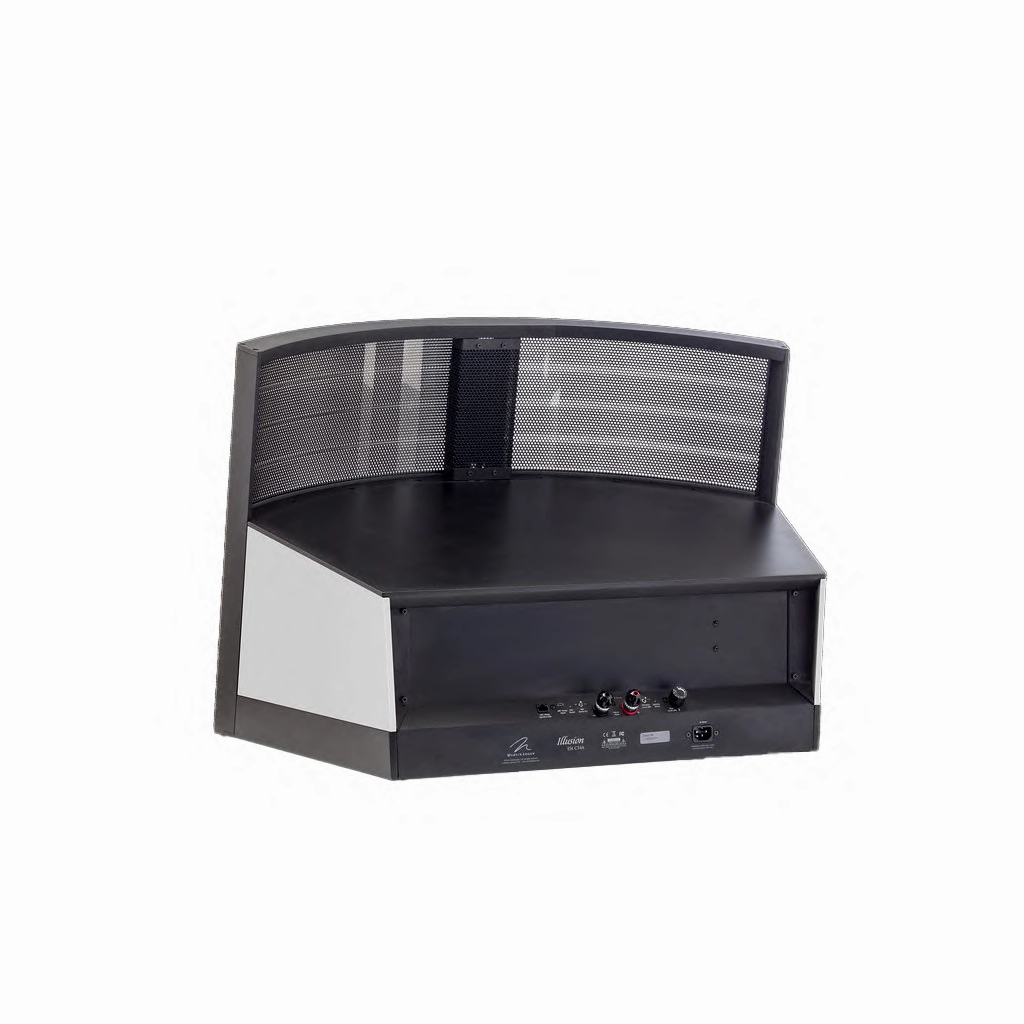

Inputs | AC Power, RJ45 (for ARC), mini USB (for ARC) |
Power Draw | Max: 300W per channel Standby: <1W per channel |
Weight | 90 lbs. (40.9 kg) |
Dimensions | 23.75" x 32.35" x 23.1 " (60.3cm x 82.2cm x 58.6cm) |
