The goal of the loudspeaker is to disappear into its audio performance. Remove the loudspeakers effect and you reveal the pure emotional impact of the performance, with nothing between your audio and your ears.

The Impressionist masterpieces removed the barrier between art and emotion, enhancing the potent feelings their art inspired placing emphasis on immediacy and movement. TheImpression ESL 11Aachieves this effect with an unprecedented level of audio transparency and realism.

The Immediacy of Exceptional Audio

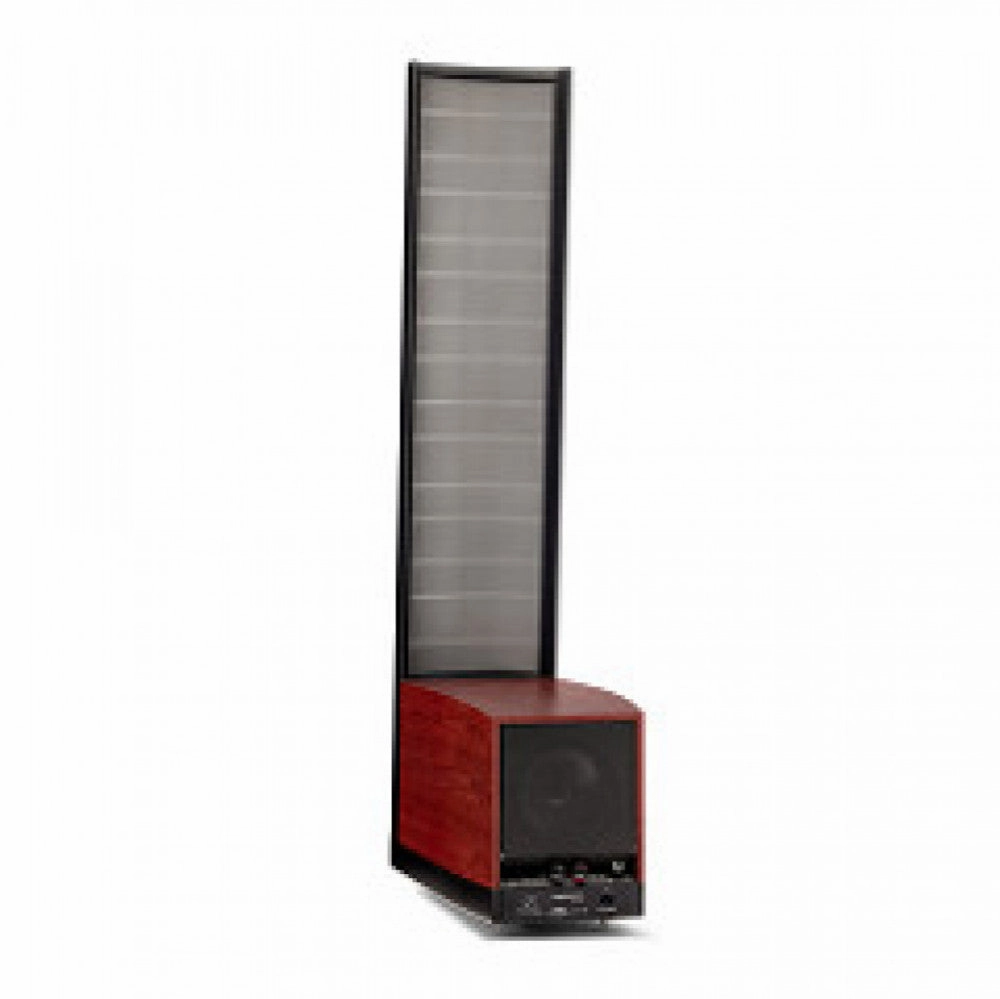

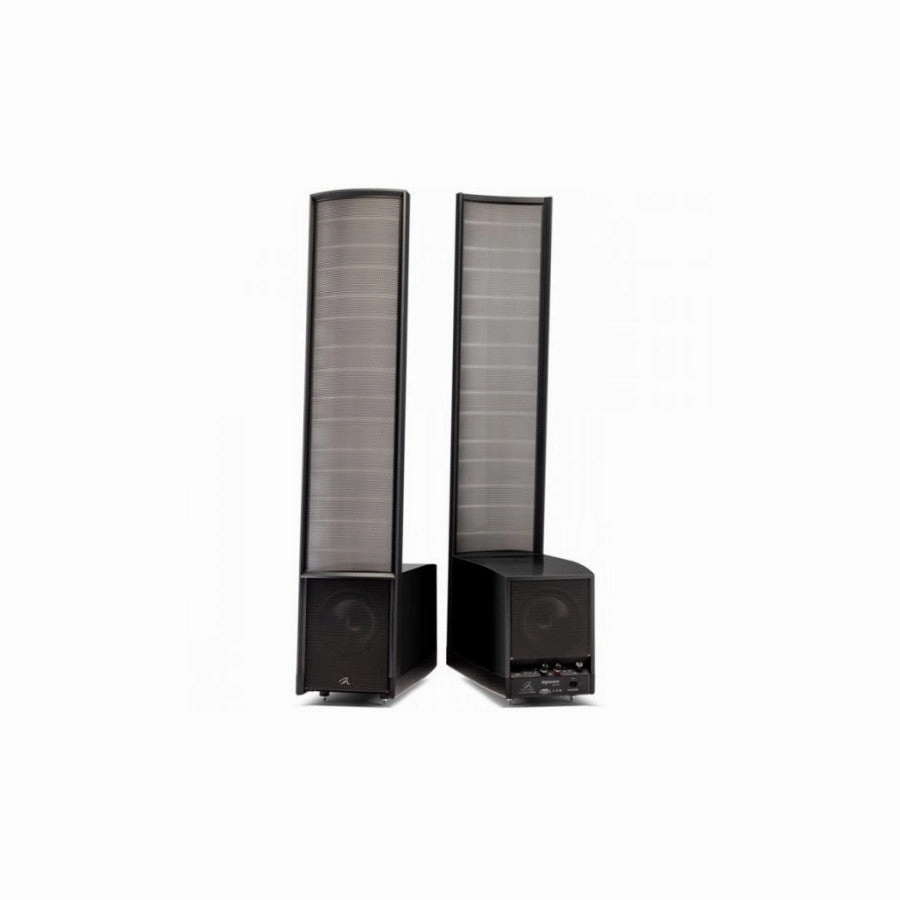

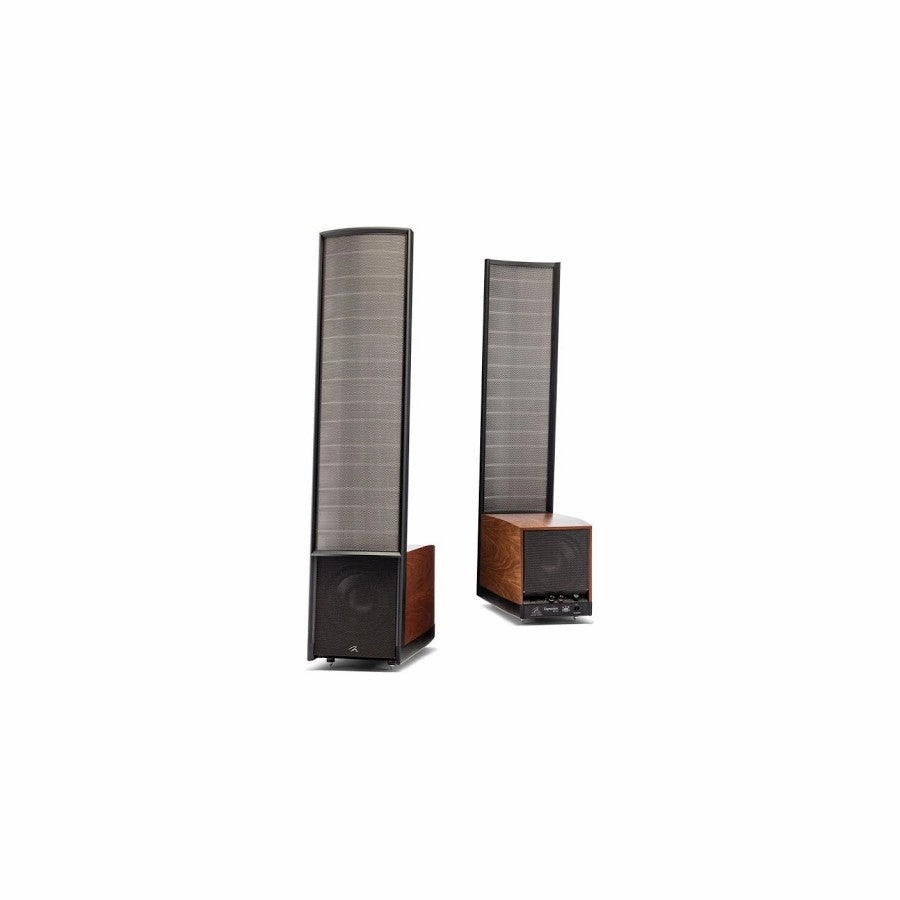

The Impression ESL 11A is part of the Masterpiece Series. It features a dual 8-inch woofer system, with ARC-honed performance, for a perfectly blended low-frequency response. The groundbreaking integration of this woofer array and MartinLogans signature 11-inch wide XStat CLS transducer, coupled with a powerful dual amplifier section, delivers an expressive and dynamic audio experience. It's an experience of pure audio pleasure.

Look at the familiar elements of the classic MartinLogan electrostatic loudspeaker:Advanced MicroPerf stator technology, which allows for almost twice the exposed electrostatic diaphragm surface as a traditional electrostatic panel of the same size. A reinforced electrostatic panel with rigid ClearSpar spacers, keeping an exact level of tension on the vacuum-bonded diaphragm without obscuring the beautiful see-through design. Add to these the slender, pointed-arrow design of the new AirFrameBladeconstruction and the result is a powerfully evocative composition creating a harmonious connection between the panel and its woofer cabinet.

Now notice some radical refinements:Inspired by our own breakthrough design, we have reinvented the Impression ESL 11A woofer section, powered by new dual 275-watt Class-D amplifiers, and controlled by a 24-Bit Vojtko DSP Engine and ARC (Anthem Room Correction).

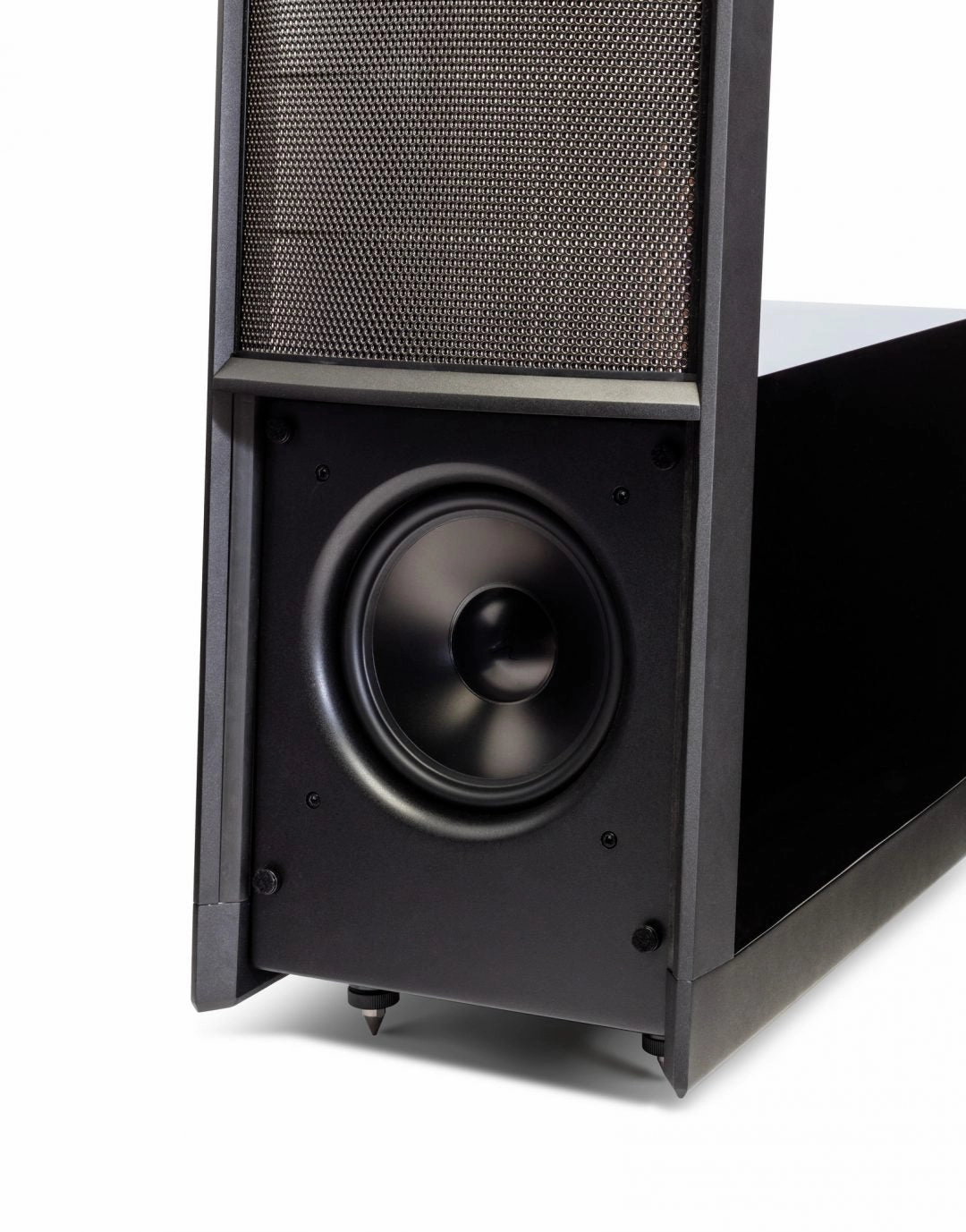

Using two 8-inch laser-engineered low-distortion aluminum cone woofers in independently enclosed compact chambers, exclusive PoweredForce Forward bass alignment technology controls the interaction between the rear-firing woofer and the wall behind that woofer. With a smart phase-shifting design, we minimize the effect that wall has on bass information that might bounce back into the listening room. This uniform frequency response results in realistic bass effects you can feel. Its one more way MartinLogan innovation improves your listening experience in any room.

Ultra-Rigid AirFrame Blade Design

Impression ESL 11A XStat panels are joined to their speaker cabinets using MartinLogans redesigned AirFrameBladeconstruction, precision manufactured from an aerospace-grade extruded aluminum alloy. This material, and this exclusive manufacturing process, makes the panels extremely rigid.

The bold, forward-moving styling of this AirFrameBladerail system, narrow and strong in front, broad and forceful from the side, is a modern design statement. It never obstructs playable surface area or interferes with the panels dipole sound radiation pattern. It also provides electrical and acoustical isolation, minimizing intermodulation distortion caused by vibration and resonance. The flowing lines emphasize the groundbreaking integration of the panel itself with the compact woofer and amplifier section. The breathtaking AirFrameBladedesign enhances imaging, low-level sonic detail, accuracy, and speaker efficiency.

Frequency Response

2923,000 Hz 3dB

Recommended Amplifier Power

20550 watts per channel

Horizontal Dispersion

30

Vertical Dispersion

44" (112cm) line source

Sensitivity

91 dB/2.83 volts/meter

Impedance

4 Ohms, 0.6 at 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.

Crossover Frequency

300Hz

High Frequency Transducer

XStat CLS electrostatic transducer Panel Dimensions: 44" x 11" (112 x 28cm) Radiating Area: 484 in (3,136 cm )

Low Frequency Transducer

Two 8 (20.3 cm) cast basket, high excursion, rigid aluminium cone and extended throw drive assembly, non-resonance asymmetrical chamber format.

Amplifier

Woofer: 2 x 275 watts/channel (4 ohms), 2 x 550 watts peak

Room Correction (Bass Section)

Anthem Room Correction (ARC) ready (Sold Separately)

Components

Custom-wound audio transformer, air core coils, polypropylene capacitors. 24-bit DSP based preamplifier (used with woofer amplifier).

Audio Controls

Bass: 10 dB under 75 Hz Mid-Bass: 2 dB, 0 db, 2 db ARC Room EQ: On, Off

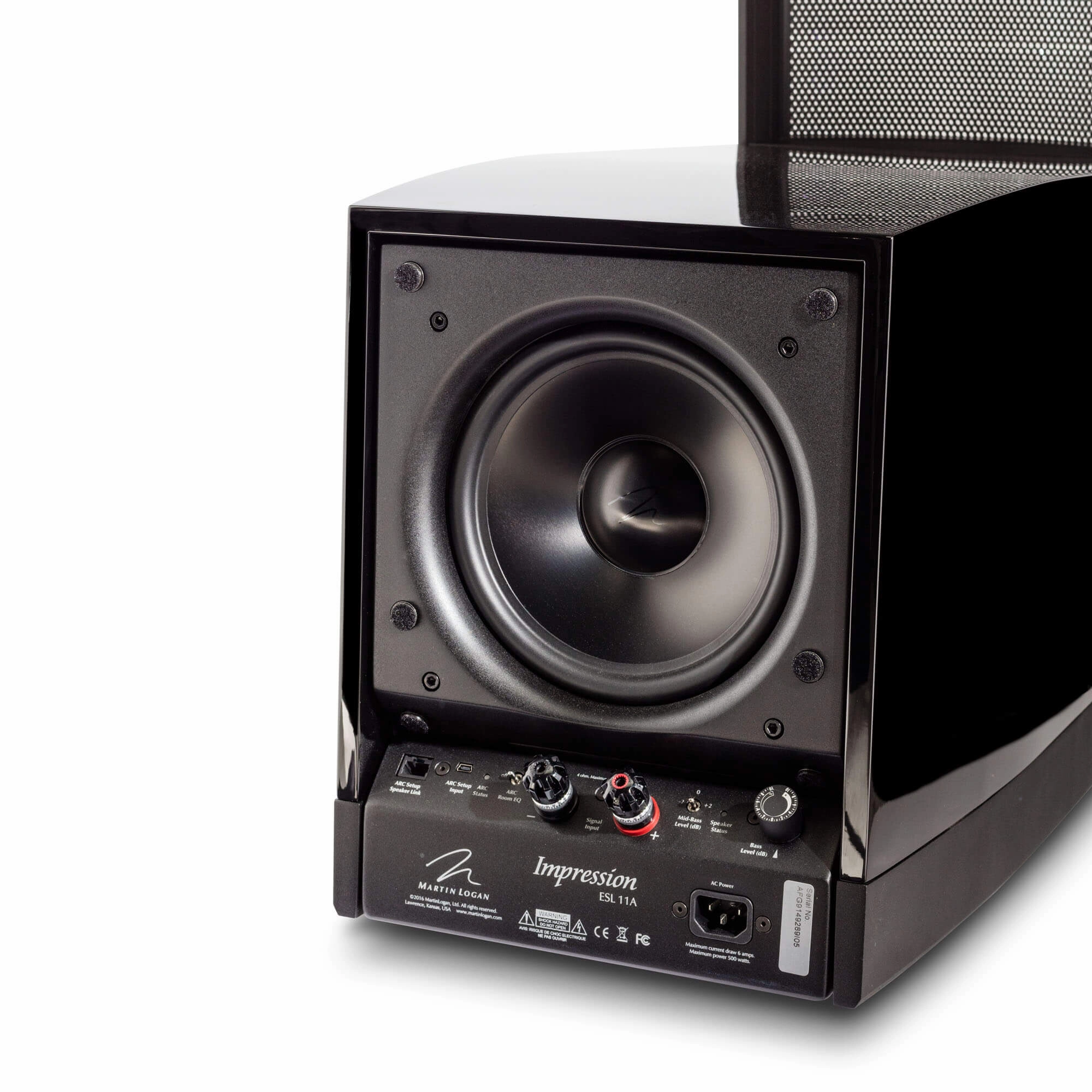

Signal Inputs

WBT-0703Cu nextgen 5-way binding posts feature a filigree signal conductor made from gold plated, nickel free, non- ferromagnetic, pure copper for high conductivity and fully insulated. Free from eddy current effects.

Inputs

AC Power, RJ45 (for ARC), mini USB (for ARC)

Power Draw

Idle: < 1W/channel Max: 500W/channel

Weight

90 lbs. (40.9 kg)

Dimensions

60.75" x 11.9" x 27.4 " (154.3cm x 30.2cm x 69.6cm)
