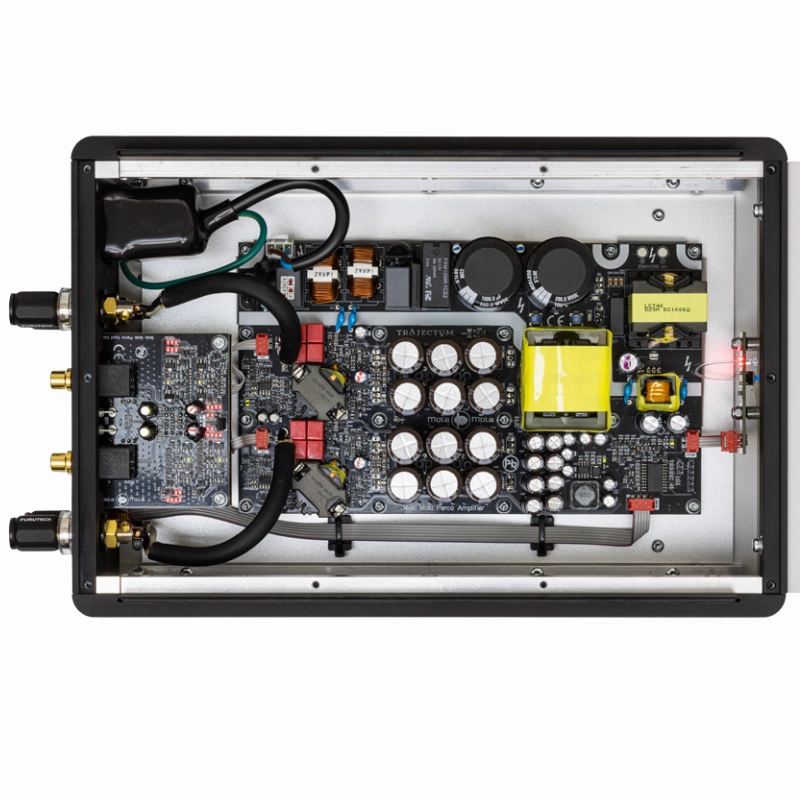

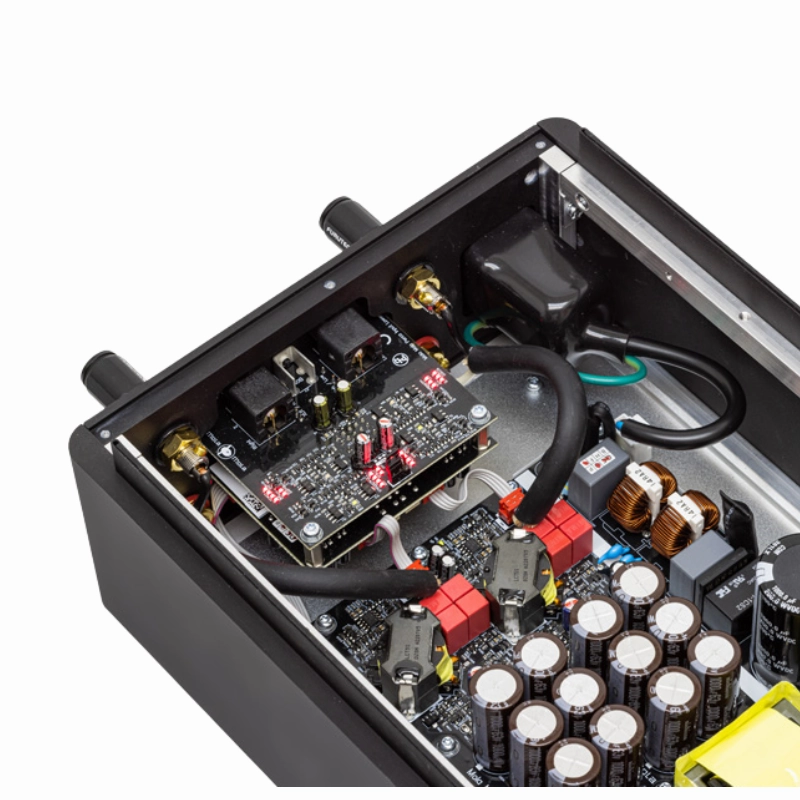

The ultra-low distortion class A input stages are implemented on a separate board, together with their own high performance voltage regulation.
Taking the NCORE technology from our mother company Hypex Electronics as a reference point we set out to refine our Class D, self-oscillating principle and feedback concept, resulting in our proprietary Mola Mola Trajectum platform which is also applied in the Mola Mola Kula integrated amplifier.
To cater to a wider range of applications a new gain selection feature is added which enables switching between 22dB and 28dB. The Mola Mola Perca features selectable balanced and single ended inputs, Furutech binding posts, and an on/off trigger connector.
Specifications
Power Output:
- 8 : 2 x 150 W
- 4 : 2 x 300 W
Gain:
- Options: 22 dB or 28 dB
Signal-to-Noise Ratio:
- S/N Ratio: 128 dB
Distortion:
- THD and IMD: <0.0003%
Impedance:
- Input Impedance: 100 k
- Output Impedance: 2 m (Damping Factor >4000)
Bandwidth:
- Frequency Range: 100 kHz
