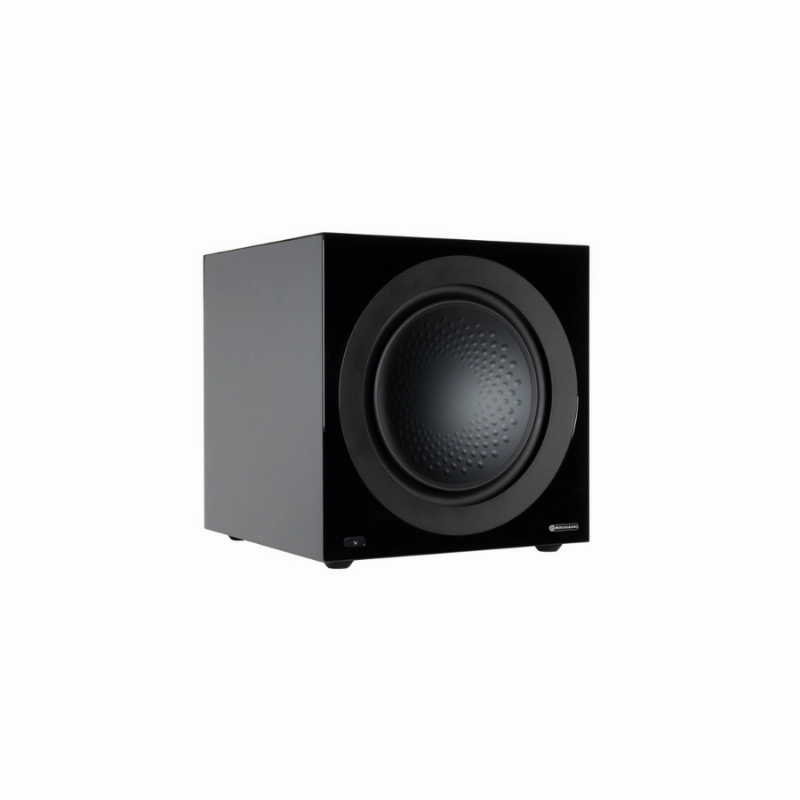

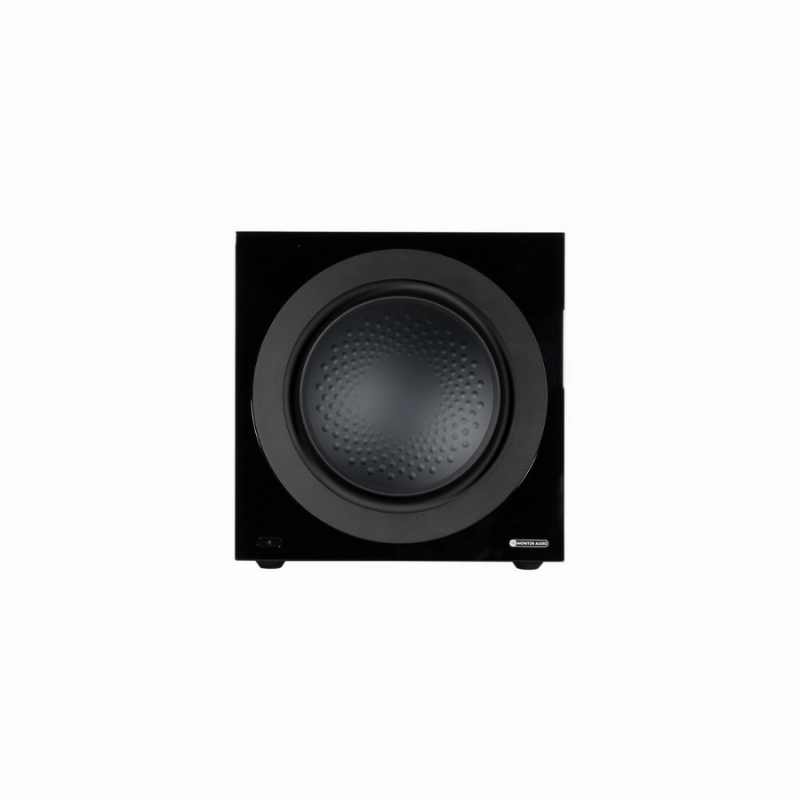

The W12 is the mid-sized model within the Anthra subwoofer series. It features a 12 (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 1,000 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.

Engineered to deliver impressive bass in medium and large spaces, the Anthra W12 subwoofer features a formidable 1,000 Watt Class-D amplifier driving a 12 (30 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W12 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.

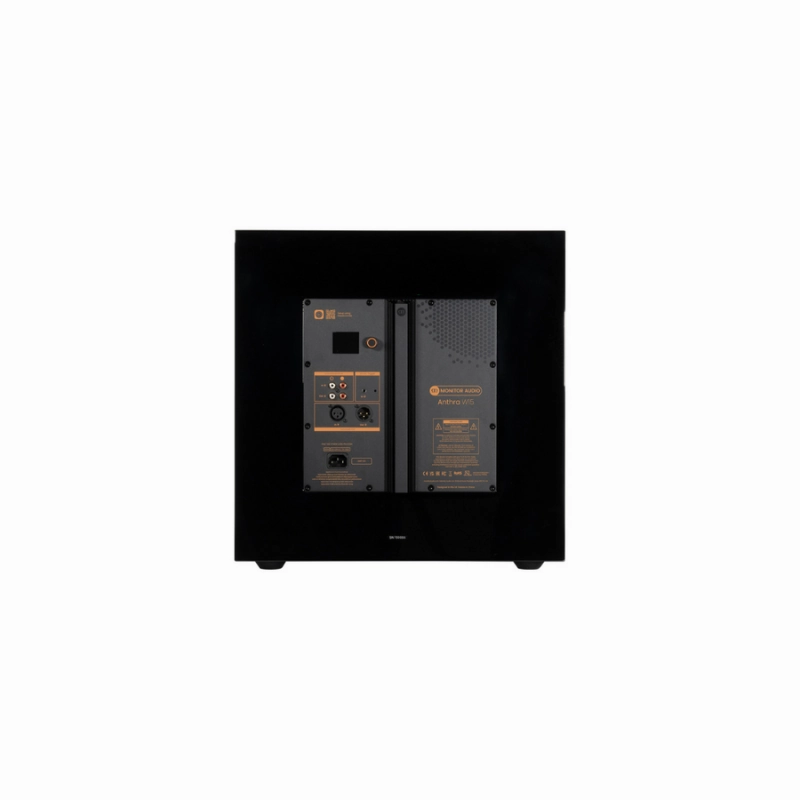

A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.

System Format
Active - Sealed Cabinet

Drive Unit Complement
1x 12" (305 mm) High Linear-Excusion Triple Suspension Driver

Amplifier Classification
High-Efficiency Class-D

Lower Frequency Limit
-6dB @16Hz

Upper Frequency Limit
(LPF Off) -6dB @400Hz

Driver Excursion (pk-pk)
50 mm

DSP
28 Bit 50 MIPS Configuratable through MaestroUnite

Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals

Amplifier Output Power, 240Vac
Instantaneous: 1700 W*
Continuous short-term: 900 W**

Amplifier Output Power, 120Vac
Instantaneous: 1325 W
Continuous short-term: 700 W

LED UI Control
Brightness, On-Off

Phase Control
0-360 Degrees measured at LPF Crossover

Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct

Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass)

Volume Level
Wide adjustable input gain to allow maximum output from a wide range of input signals

Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR

Outputs
Stereo unbalanced outputs with unbuffered throughput from RCA Inputs
Mono/LFE Balanced XLR outputs with unbuffered throughput from XLR Input

Mains Input Voltage
Universal Mains, 85-265VAC

External Dimensions (without feet) (HxWxD)
374 x 374 x 374 mm

Power Consumption
200 W

Cabinet Construction
Braced 25 mm thick MDF with 36mm front baffle

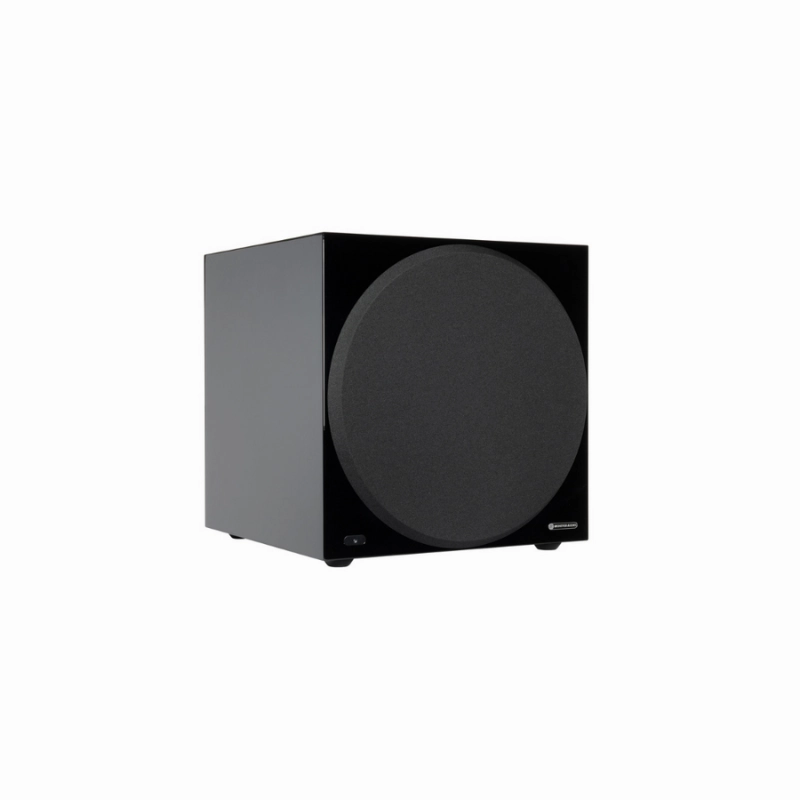

Grille
Cloth covered magnetically attached Grilles

Weight
32.4 kg

* Maximum RMS output for an instantaneous signal
