3-way design provides deeper bass, higher system output and greater power handling.
Optional can be used with this model.
SPECIFICATIONS
Frequency Response
45 Hz 30 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Power Handling (RMS)
150 W
Recommended Amplifier Requirements
40 150 W
Drive Unit Complement

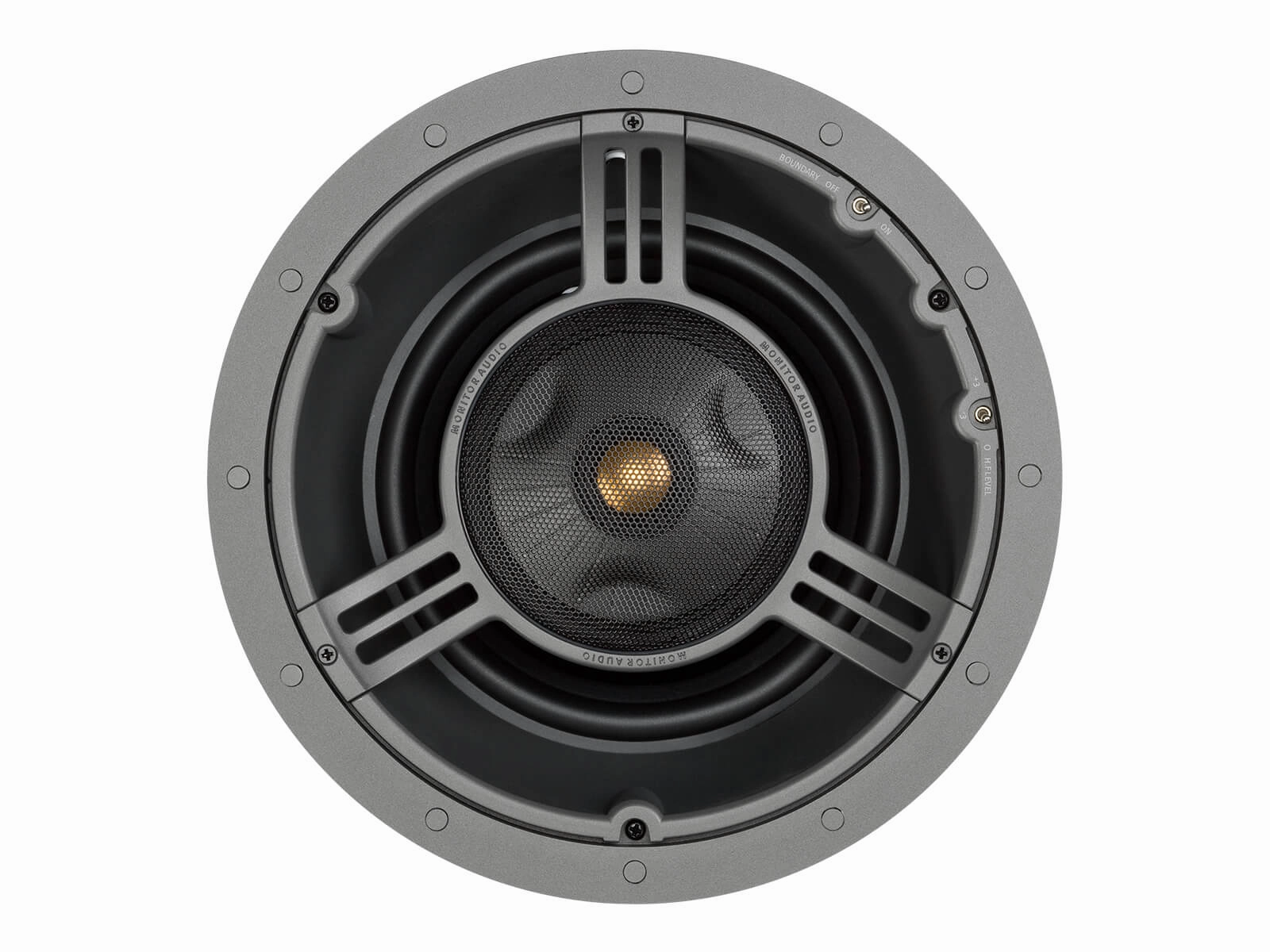

8 C-CAM cone bass driver featuring RST pivoting IDC module housing:
4 C-CAM RST inverted mid range driver
1 C-CAM
Adjustment Controls
HF Level Switch ( 3 dB / 0 dB / -3 dB)
Boundary Compensation Switch
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
161 mm (65/16")
Mounting Depth
157 mm (63/16")
Cut-Out Hole Diameter
247 mm (93/4")
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Fixing Type
3 position dog fixings
Construction Material
Mineral filled ABS, RoHS compliant
Weight
3.64 kg (8 lb)
Pre-Construction Bracket
Back Box
Sold As
Single Unit
