Better yet, you can combine it with other Cinergy Sub15 and Cinergy 300 units to create a hidden sound wall, delivering the kind of audio rarely experienced in the home. In order to achieve the full THX-certified experience, Cinergy Sub15 needs be to paired with Monitor Audios IA750-2 / IA750-4 installation amplifier. As such, the Cinergy Sub15 is only sold along with the IA750-2 / IA750-4, ensuring you enjoy great sound without compromise.

Key Features
Can be mounted in-wall, stacked or used as a floorstander
Sized to match the Cinergy 300 speakers, making the products easy to combine
Isolation feet to eliminate unwanted vibrations
Bracing/securing brackets for use in hidden sound wall

THX Certification
THX Certified Ultra (with 2 x Cinergy Sub15s)

System Format
N/A

Sensitivity (2.83 Vrms @ 1 M)
86 dB @ 100 Hz

Maximum Linear SPL**** (@1m, free space)
Continuous 109 dB, Peak 120 dB

Power Handling (RMS)
Continuous 600 W, Peak* 1500 W (Band limited***)

Nominal Impedance
4 Ohms

Minimum Impedance (20 Hz - 20 kHz)
4 Ohms

Recommended Low Frequency Crossover Frequency
40 - 100 Hz (Low Pass)

Recommended Amp Requirements (RMS)
Must be used with IA750-2 / IA750-4 running C Sub Profile

Bass Alignment
Sealed

Port Tuning Frequency
N/A

LF Extension, In Wall, With Port Bungs (- 6dB)
N/A

LF Extension, In Free Space, No Port Bungs (- 6dB)
17 Hz (IA750-2 / IA750-4)

HF Extension (-6dB)
N/A

Drive Unit Complement

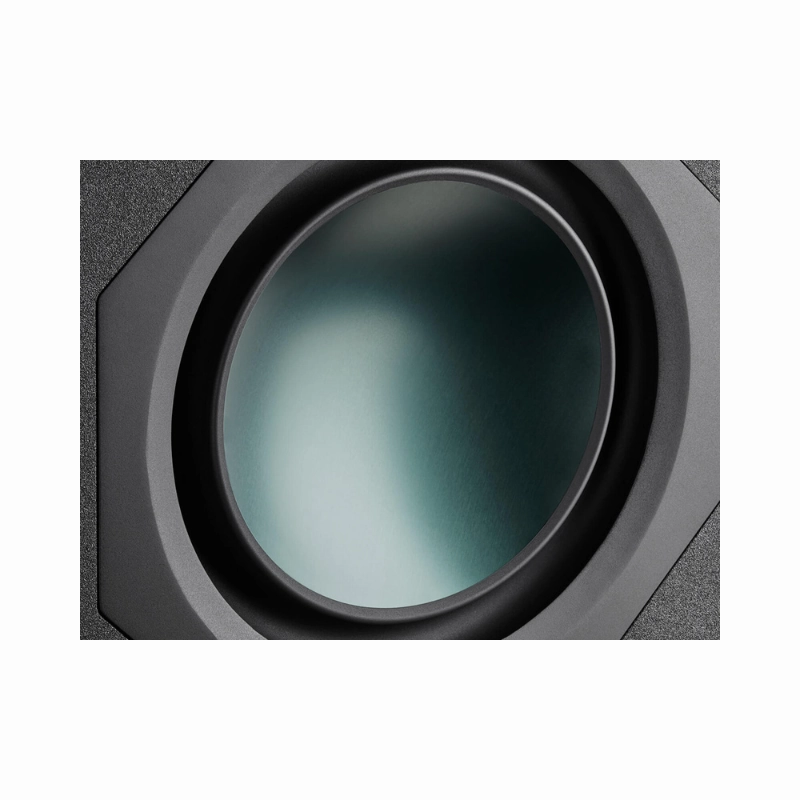

1x 15" Ultra high Excursion C-CAM Driver

External Dimensions (Cabinet Only (H x W x D))
540 x 540 x 280 mm (211/4 x 211/4 x 11")

External Dimensions (Inc Grille) (H x W x D)
N/A

Max External Dimensions (Inc all Fittings) (H x W x D)
567 x 540 x 280 mm (225/16 x 211/4 x 11")

Weight
38.5 kg (84 lb 12 oz)

Conditions
* Calculated from a peak voltage, this is not a true power figure but useful for comparisons.

** When used in an In-Wall or On-Wall configuration it is recommended to use the fitted port bungs to control bass output. This will effectively make the product a sealed box.

*** Band limited with Low pass at 200 Hz, should only be used with IA800-2C and the correct speaker profile.

**** Tested with a music like noise signal with distortion and power compression remaining below audible limits.

THX
THX Certified Loudspeakers.

THX and the THX Logo are the property of THX Ltd., registered in the U.S. and other countries.
