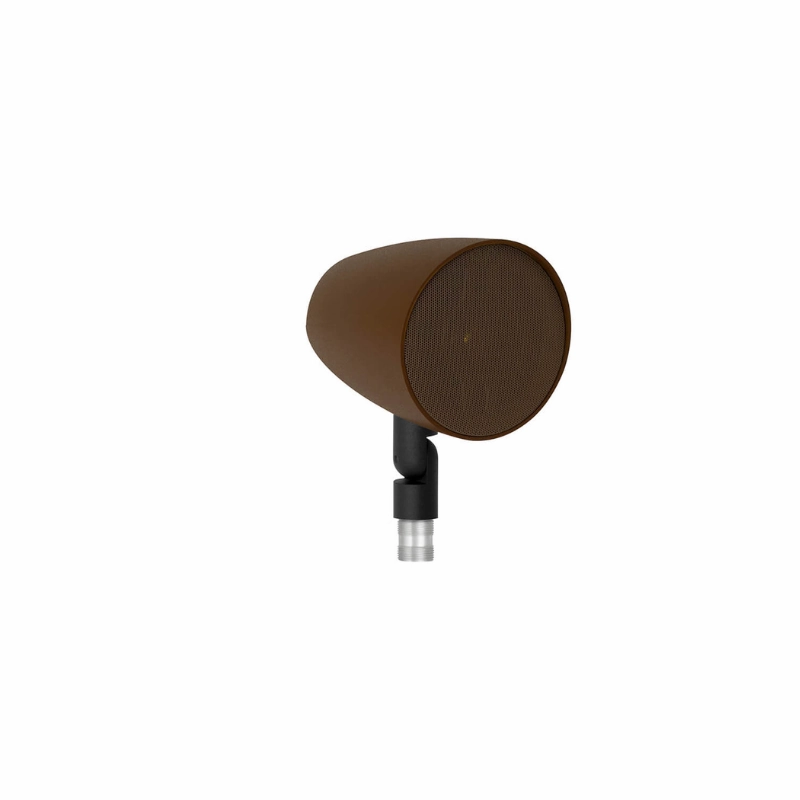

Engineered to withstand the most extreme temperatures and weather conditions, its rigid conical polymer enclosure houses the companys signature 1 (25 mm) C-CAM Gold Dome tweeter co-axially aligned with a 4" MMP bass-mid driver. The horn-shaped housing provides excellent audio directivity in free air conditions when positioned close to the garden surface on a bracket/spike assembly, which neatly encapsulates and channels the connecting cable into the ground for a discreetly installed result. Alternatively its possible to mount the CLG140 on a tree, pole, wall or fence.
Supplied in a durable dark brown finish for excellent coordination with garden colours, the CLG140s casing can be painted to blend with any environment.
Technology
4" MMP II bass-midrange driver
Coaxially aligned 25 mm C-CAM Gold Dome tweeter
Optimised for high sensitivity and wide dispersion
Internal matching transformer for 70/100 V line level operation
Designed to operate under extreme climatic conditions from -20 to 70 C
Rigid, high impact polymer cabinet for long life and durability
Bracket mounting made from die-cast aluminium alloy
Garden spike (CLG-SPIKE R) and mount (CLG-MOUNT) available separately
Certified to IP55 rating
Encapsulated cable runs inside bracket and spike for discreet appearance
Dark Brown finish blends with garden colours, but enclosure is paintable to blend with alternative settings
Applications include garden and deck areas: system expands with garden size
PTC protection against power overload
Frequency Response (-6 dB)
100 Hz 30 KHz
Sensitivity (1W@1M)
88 dB
Line Level Voltage
70/100
Maximum SPL
104 dBA
Power Handling (RMS)
40 W (crossover set to minimum 100 Hz@12 dB/Octave)
Recommended Amplifier Requirements
10 40 W per speaker
Drive Unit Complement
1 x 4" MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter Coaxially oriented
Crossover Recommendation
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

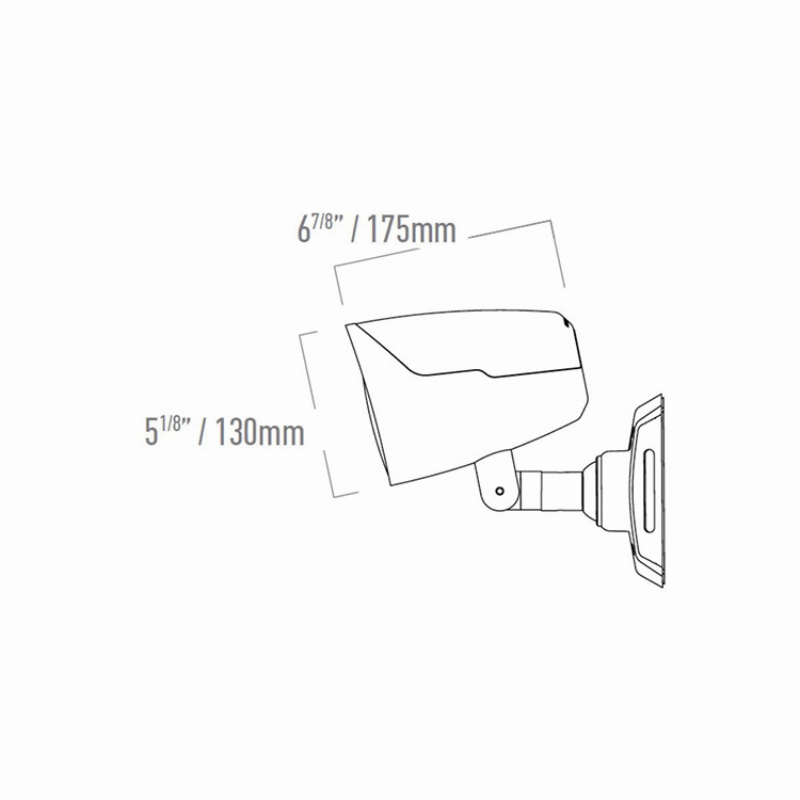

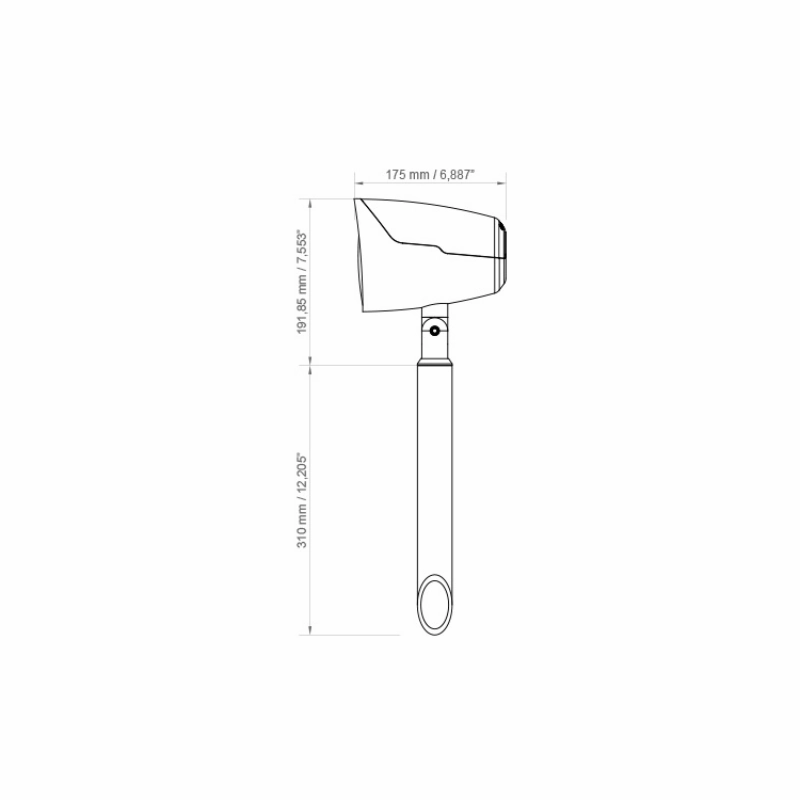

External Dimensions (Excluding Spike and Mount (H x W x D))
130 x 175 mm (51/8 x 67/8")

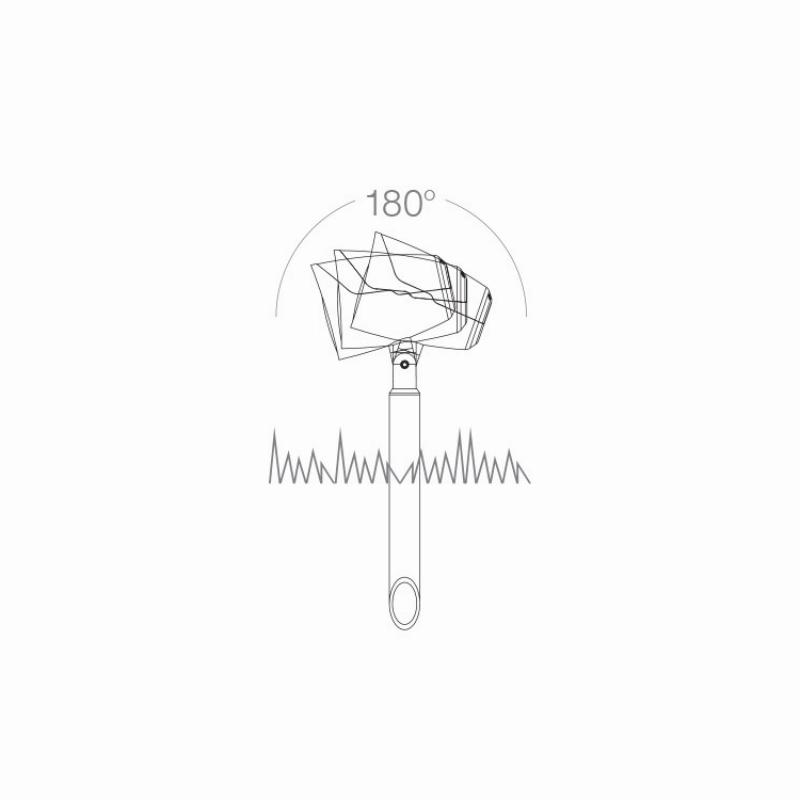

Total Bracket Pivot Angle
32 in all directions
Connection
Encapsulated cable connection
Environmental Protection Rating
IP55
Colour / Finish
Brown
Dispersion
60
Weight
2.08 kg (4 lb 10 oz)
Sold As
Single Unit
