C2L

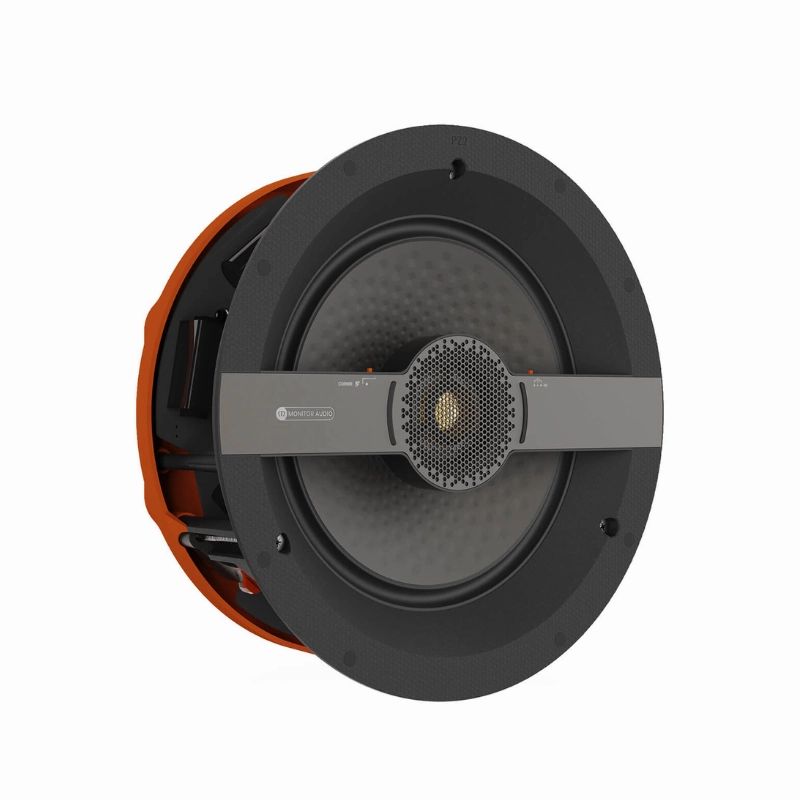

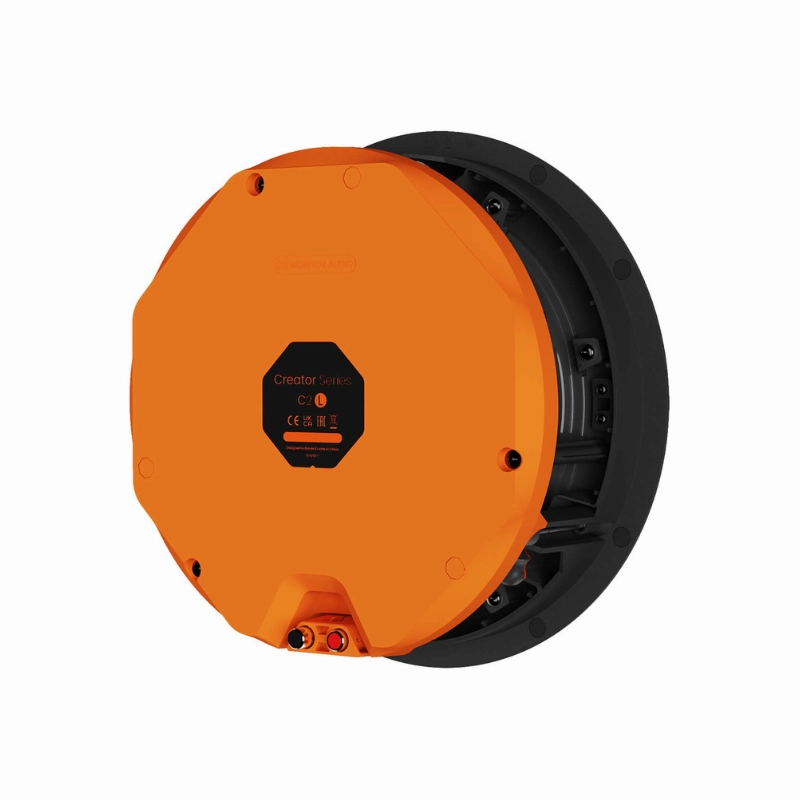

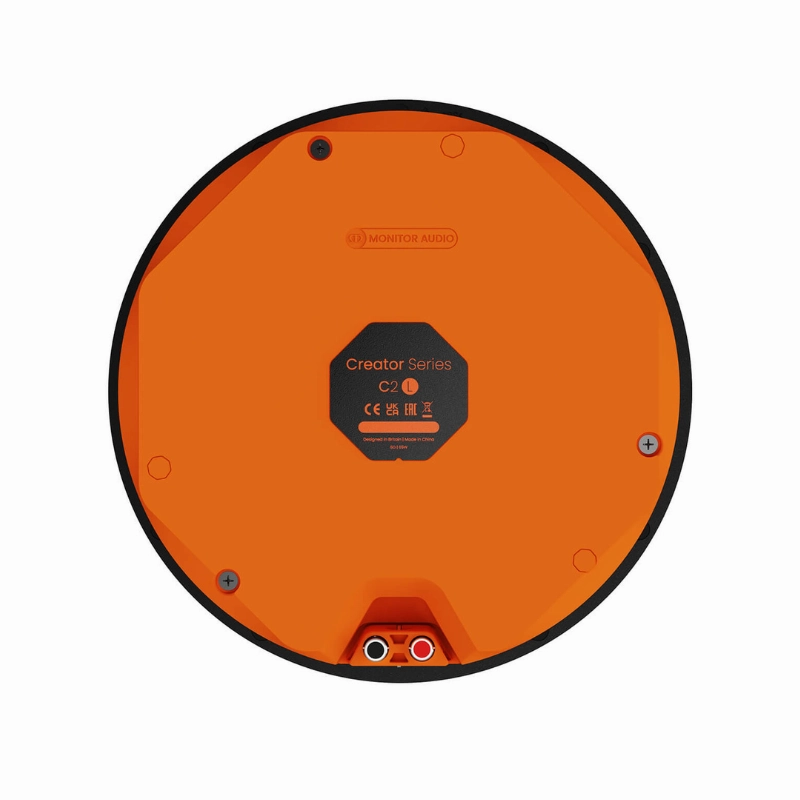

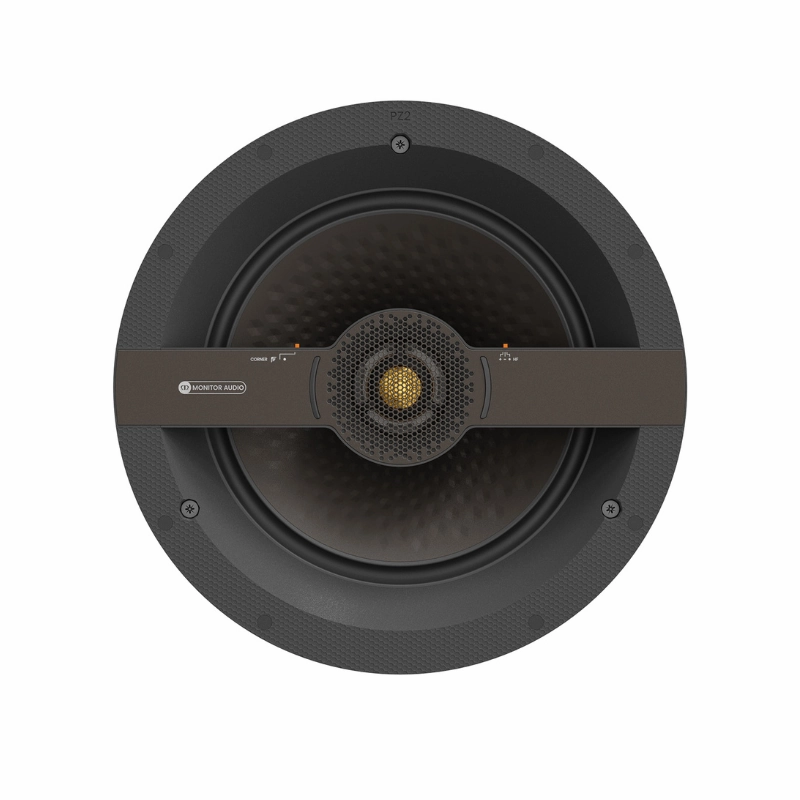

This large Tier 2 in-ceiling loudspeaker features an RST II mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where pristine acoustic performance is required
- Two-way design
- 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 9"(229 mm) RST II mid-bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Channels: 1
Frequency Response (Installed -6dB): 30 Hz 25 kHz
Nominal Impedance: 8 ohm
Minimum Impedance (20Hz to 20kHz): 6.4 Ohm @ 15 kHz
Sensitivity (2.83Vrms@1m, Installed): 88 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 117 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 120 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 240 W
Drive Unit Complement:
- 1 x 9" (229 mm) RST II bass driver
- 1 x 1.25" (32 mm) C-CAM tweeter
Crossover Frequency: LF/HF: 2 kHz
Mounting Depth: 99 mm (37/8")
Cut-Out Hole Diameter: 248 mm (93/4")
External Dimensions (Including Grille - H x W x D): 278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")
Weight (each): 2.5 kg (5 lb 8 oz)
Pre-Construction Bracket: CL-B
Cabinet Finish: Matt black & Orange & Bronze
Sold As: Single Unit
Corner Switch: On/Off
HF Switch: - /0/
