Product Details

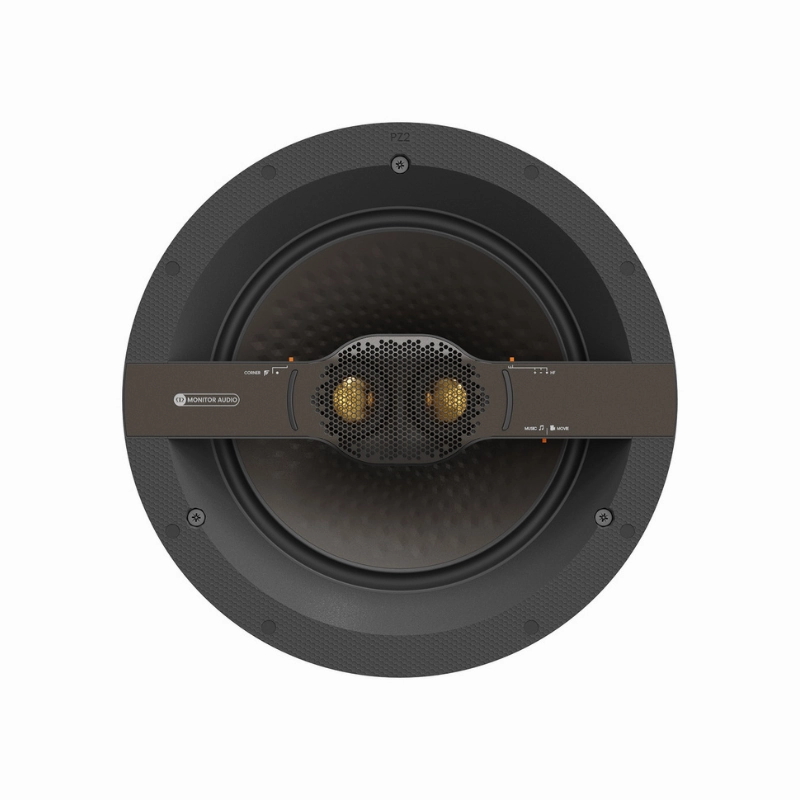

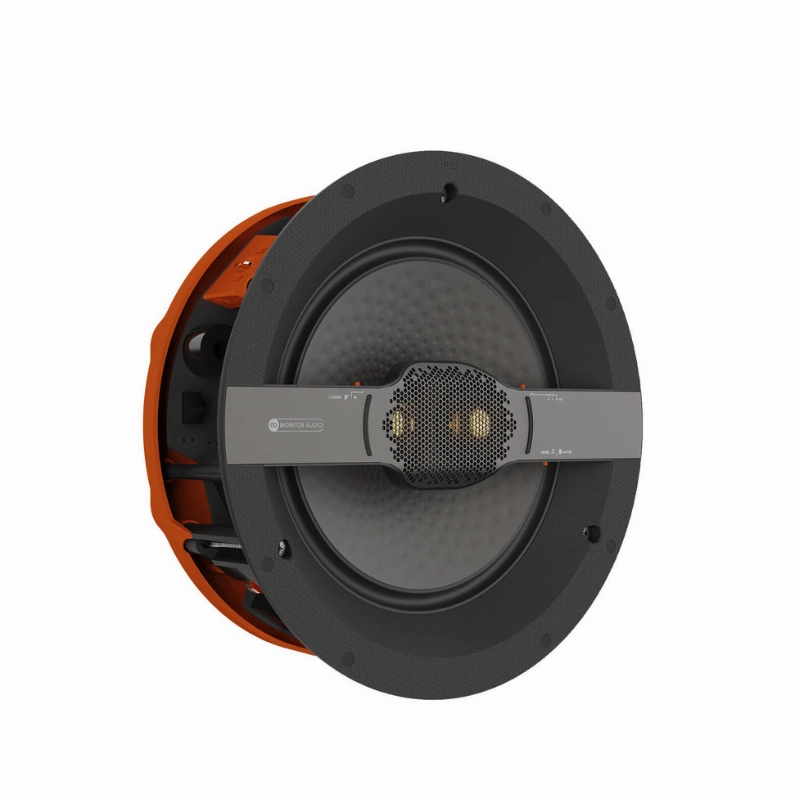

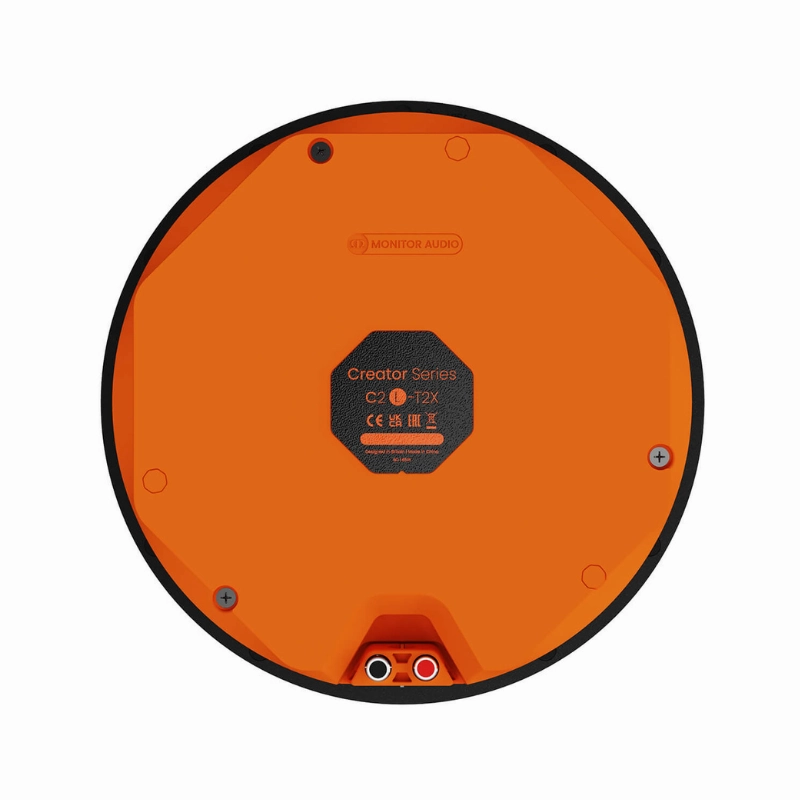

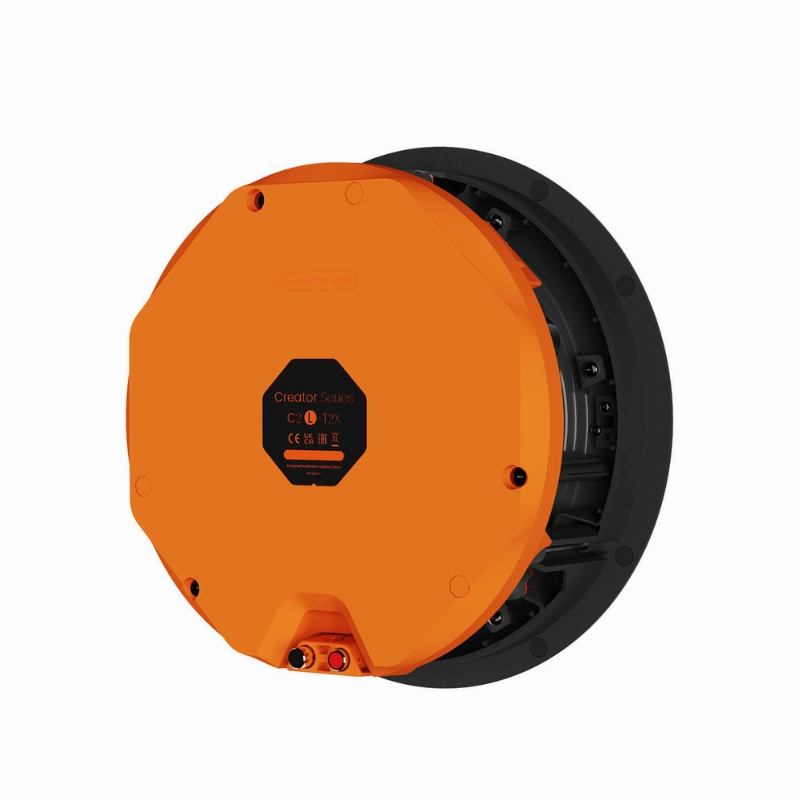

C2L-T2X


This large Tier 2 in-ceiling loudspeaker can be utilised as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Key Features

  • Ideal for installations where pristine acoustic performance is required
  • Switchable design for three modes
  • Two-way design
  • 2 x 1.25"(32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 9" (229 mm) RST II dual-coil bass driver for pristine mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

Specifications

Channels:

  • 1 (Mono)
  • 2 (Stereo)

Frequency Response, Installed (-6dB): 30 Hz 30 kHz

Nominal Impedance:

  • 4 Ohm (Mono)
  • 8 Ohm (Stereo)

Minimum Impedance (20Hz to 20kHz):

  • 3.2 Ohm @ 15 kHz (Mono)
  • 6.4 Ohm @ 15 kHz (Stereo)

Sensitivity (2.83Vrms@1m, Installed): 88 dB

Maximum Peak SPL (single speaker @ 1m Z-Weighted):

  • Mono: 117dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor):

  • 240 W (Mono)
  • 2 x 30 120 W (Stereo)

Recommended Amplifier Power (RMS into 8 OHM, Music Signal):

  • 60 240 W (Mono)
  • 2 x 60 240 W (Stereo)

Drive Unit Complement:

  • 1 x 9" (229 mm) RST II dual-coil bass driver
  • 2 x 1.25" (32 mm) C-CAM tweeter

Crossover Frequency: LF/HF: 2 kHz

Mounting Depth: 99 mm (37/8")

Cut-Out Hole Diameter: 248 mm (93/4")

External Dimensions (Including Grille - H x W x D): 278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")

Weight (each): 2.7 kg (6 lb)

Pre-Construction Bracket: CL-B

Cabinet Finish: Matt black & Orange & Bronze

Sold As: Single Unit

Switches:

  • Corner Switch: On/Off
  • HF Switch: - /0/
  • Music/Movie Switch: Music/Movie
  • Mono/Stereo Switch: Mono/Stereo
