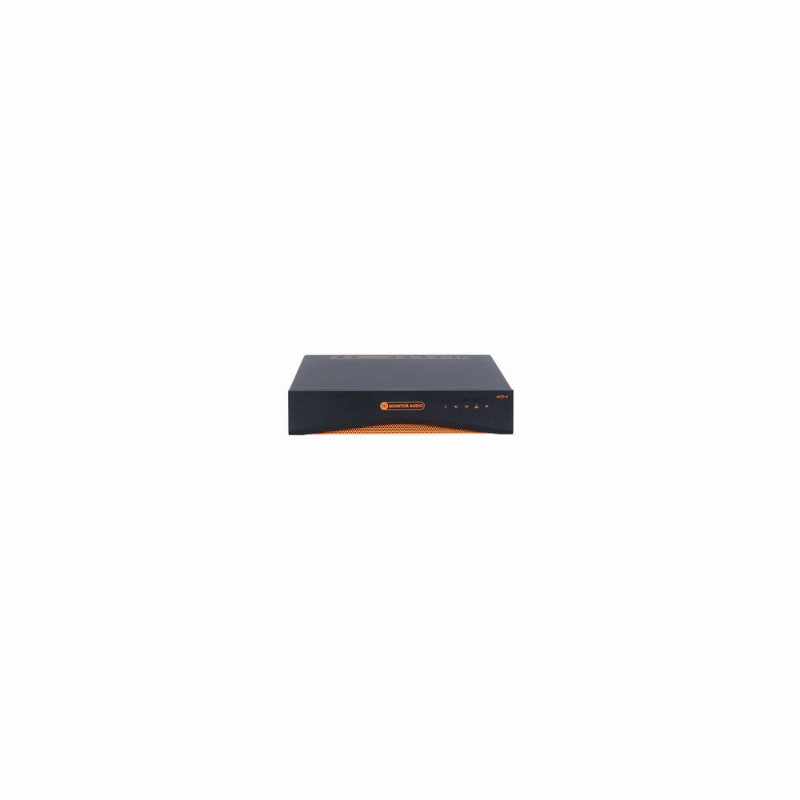

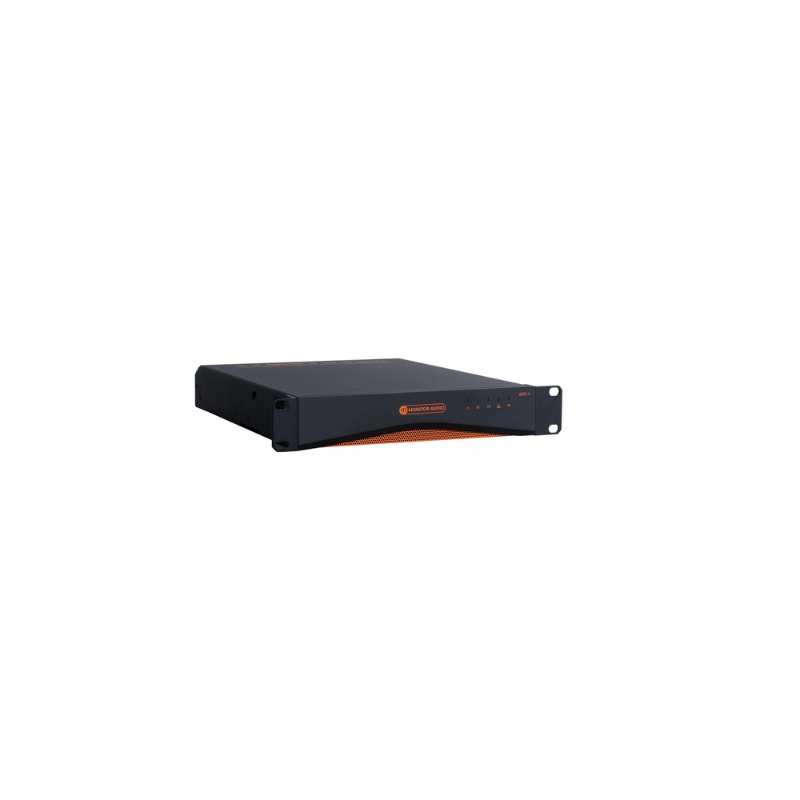

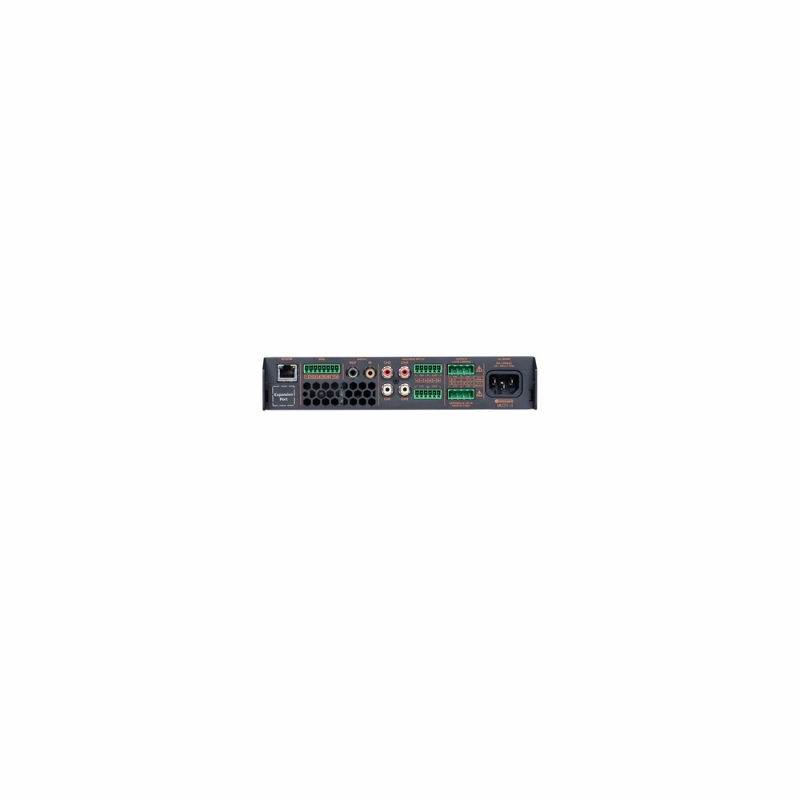

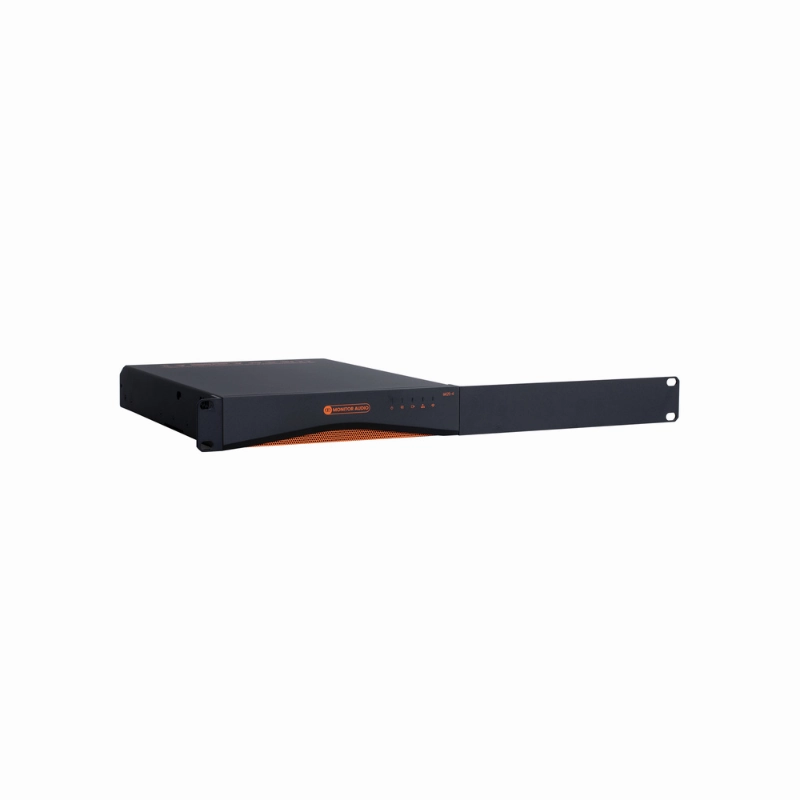

The IA125-4 is a deceptively powerful amplifier that packs ultra-high-density amplification into its compact 1U half-rack form. It delivers 4-channels of 125 W or 2-channels of 250 W. Plus, it can be used in power sharing mode to support Monitor Audios THX Ultra certified, Cinergy 100 speakers within a home theatre system or medium sized garden. Its the ideal amplifier for two zone stereo applications and height channels within home theatre systems.
Note: Rack and wall/desk installation kits sold separately.
Key Features
4 x 125 W/2 x 250 W
Fully customisable DSP amplifier with web configurator
Half width 1U rack format allows unique installation opportunities or high power density depending on how the product is mounted
High performance Class D amplifiers ensure excellent power and sound delivery
Power Sharing technology
Supports 70/100V line level speakers
Compatible with our Installation Amplifier Rack Kit and Wall/Desk Kit.
Channels
4
Output Power @ 4 Ohms/8 Ohms
4 x 125W SE
Output Power @ 70/100V
2 x 250 BTL
Poweshare (up to)
2 x 250 W
Power Consumption
150 W
Thermal Output
512 BTU
Polarity (Default)
Non-inverting
Dimensions
44 x 220 x 325 mm (13/4 x 811/16 x 115/8")
Output Voltage
70Vp / 140Vpp (SE unloaded), 140Vp / 280 Vpp (BTL unloaded)
Signal to Noise Ratio
>106dB (A-weighted, 20 Hz 20 kHz, 8 Ohm load)
THD N (typical)
<0.05% (20 Hz 20 kHz, 8 Ohm load, 3db below rated power)
Frequency Response
0/-0.25dB 20Hz - 20kHz (8 Ohm load, 3dB below rated power)
Protection Circuits
Short circuit -, DC, Undervoltage -, Temperature and Overload protection
Power Supply
Switch mode power supply with Power Factor Correction (PFC) and standby converter
Operating Voltage/Frequency
Universal Mains, 100 V 240 V, 50 Hz 60 Hz
Standby Consumption
<0.5 W
Accessories
Rack Mount Kit, Wall/desktop mount kit (sold seperatley)
Power Ratings
1% THD @ 120Vac and 230Vac
Cabinet Finish
Black Anodised
* SE - Single Ended
** BTL - Bridge Tied Load
*** BTU - British Thermal Unit
