The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.

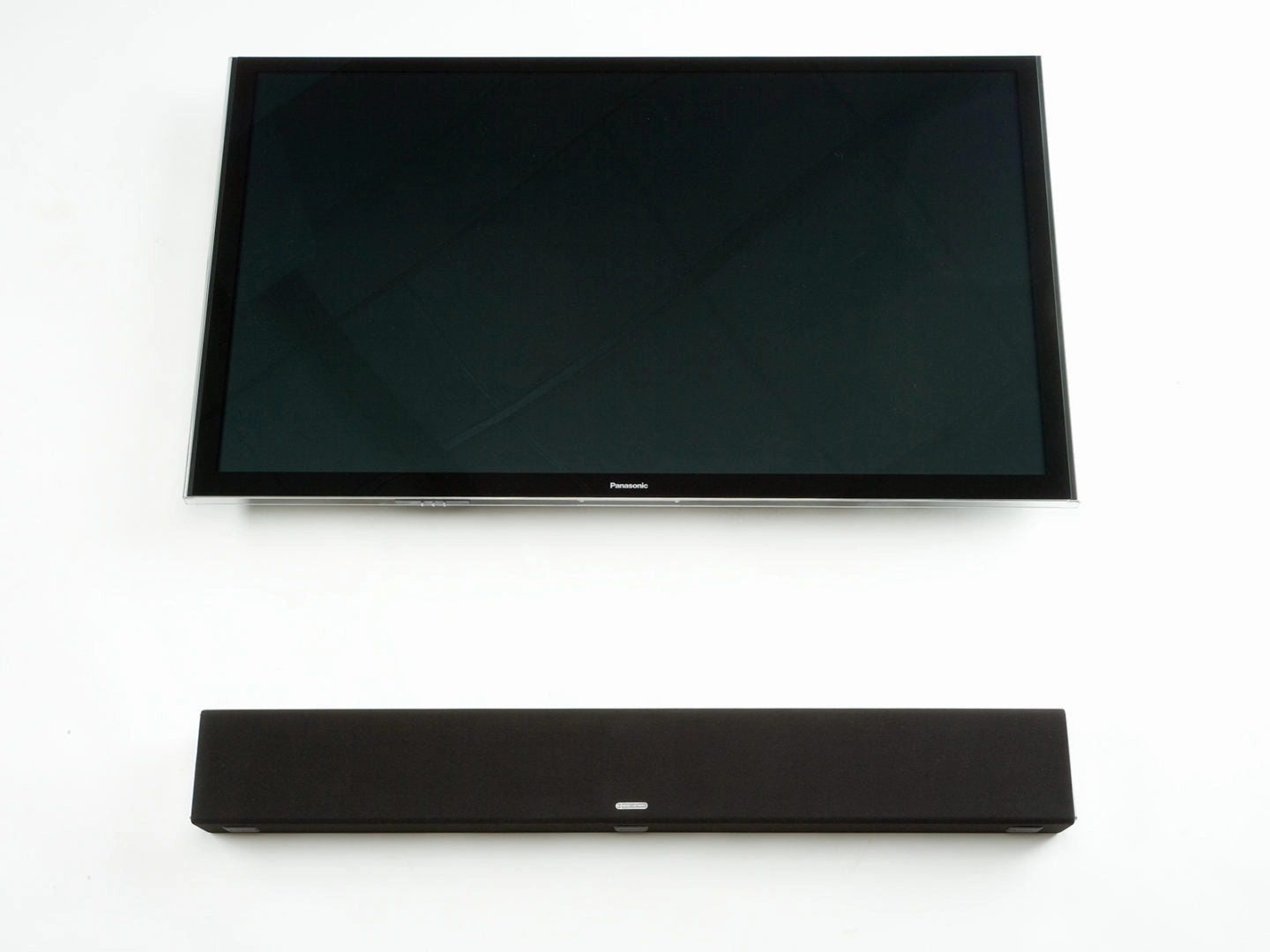

In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Technology
- C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver per channel
- C-CAM gold dome tweeters per channel
- Auxiliary Bass Reflex (ABR) per channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
SPECIFICATIONS
Frequency Response (-3 dB)
90 Hz C 30 kHz
Sensitivity (1W@1M)
84 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
40 W
System Power Handling (RMS)
100 (High pass filter set to 100 Hz)
Recommended Enclosure
30 100 W
Crossover Frequency
80 120 Hz
Maximum SPL
104 (108.8 all channels driven)
Bass Alignment
3 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
3 x 4" (100 mm) C-CAM cone bass/mid driver
3 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1107 x 93 mm (513/16 x 439/16 x311/16")
External Dimensions (Including Bracket (H x W x D))
145 x 1107 x 100 mm (511/16 x 439/16 x 315/16")
Bracket
BSB
Weight
7.64 kg (16 lb 12 oz)
Sold As
Single Unit
