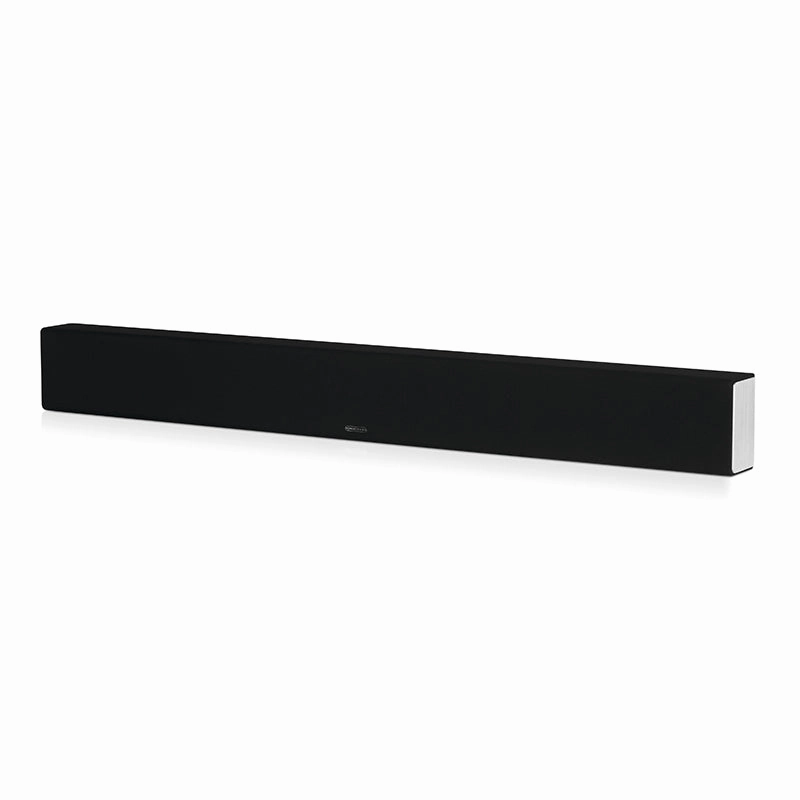

Twin C-CAM bass drivers, twin ABRs (Auxiliary Bass Radiators) and a single C-CAM tweeter in the centre section to provide the SB-3 with higher acoustic output and power handling for critical centre channel reproduction. This is combined with individual mid-bass, tweeter and sealed ABR drivers for both left and right channels.

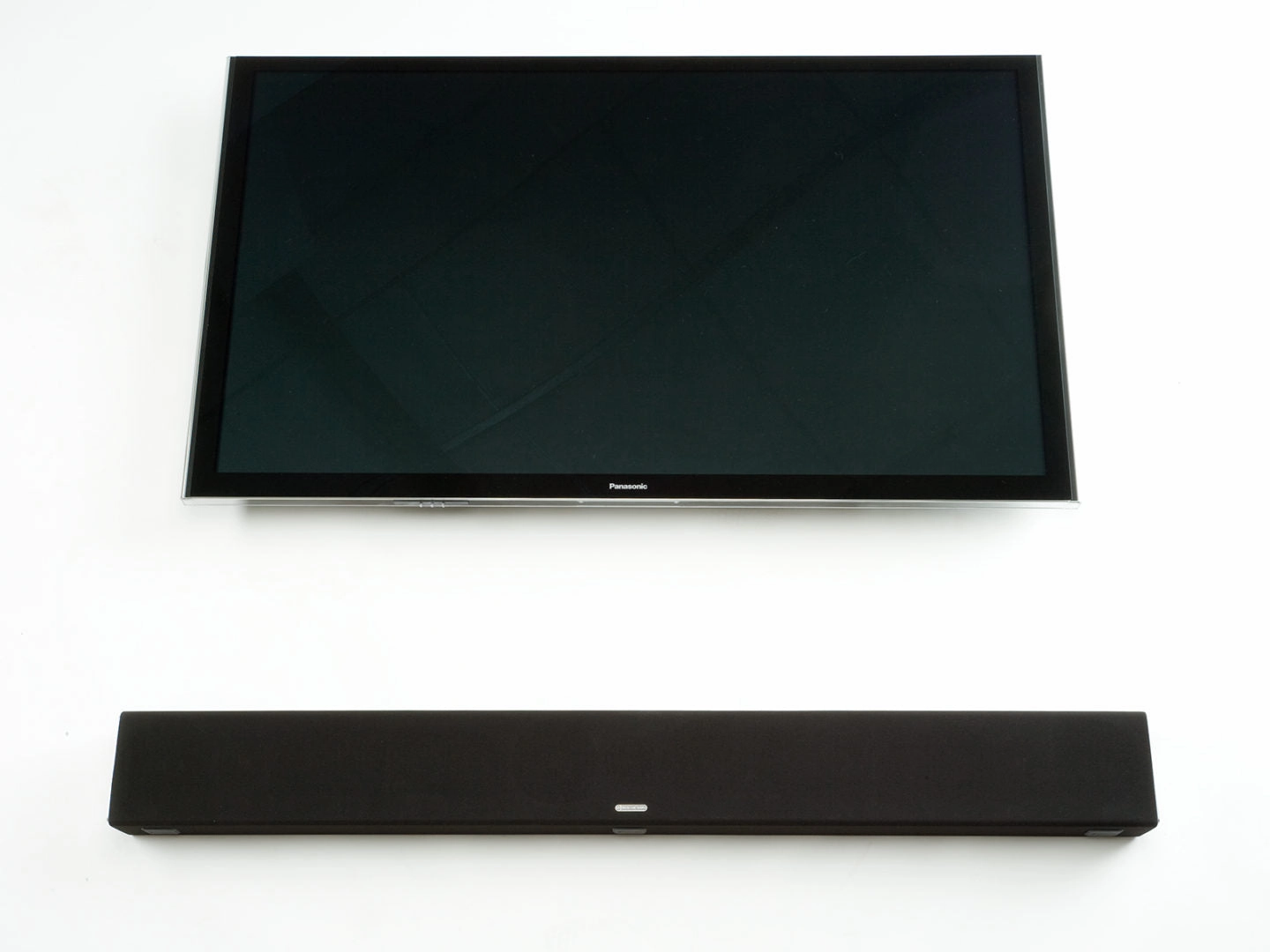

In larger rooms the SB-3 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
Technology
- Individual C-CAM (Ceramic-Coated Aluminium/Magnesium) bass/mid driver for left and right channels, twin drivers for the centre channel
- C-CAM gold dome tweeters per channel
- Individual Auxiliary Bass Reflex (ABR) for left and right channels, twin ABRs for the centre channel
- Three separate driver arrays for left, centre, right channels in a single cabinet
- Optional dedicated wall bracket
- Integrated Silicon feet provide a secure cabinet-top mounting alternative.
SPECIFICATIONS
Frequency Response (-3 dB)
All Channels: 80 Hz 30 kHz
Sensitivity (1W@1M)
Left and Right Channels: 84 dB
Centre Channel: 87 dB
Nominal Impedance
8 ohms
Power Handling (RMS)
Left and Right Channels: 40 W
Centre Channel: 80 W
System Power Handling (RMS)
All Channels: 100 (High pass filter set to 100 Hz)
Recommended Amplifier Requirements
All Channels: 30 100 W
Crossover Frequency
All Channels: 80 120 Hz
Maximum SPL
104 (108.8 all channels driven) dBa
Bass Alignment
Left and Right Channels: 2 x Auxiliary Bass Reflex (ABR) Loading
Centre Channel: 2 x Auxiliary Bass Reflex (ABR) Loading
Drive Unit Complement
Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 2 x 1" (25 mm) C-CAM Gold Dome tweeter
Centre Channel: Left and Right Channels: 2 x 4" (100 mm) C-CAM cone bass/mid driver, 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions: (H x W x D) (Including Feet)
147 x 1307 x 93 mm (513/16 x 517/16 x 311/16")
External Dimensions (Including Bracket (H x W x D))
145 x 1307 x 100 mm (511/16 x 517/16 x 315/16")
Bracket
BSB
Weight
9.1 kg (20 lb)
Sold As
Single Unit
