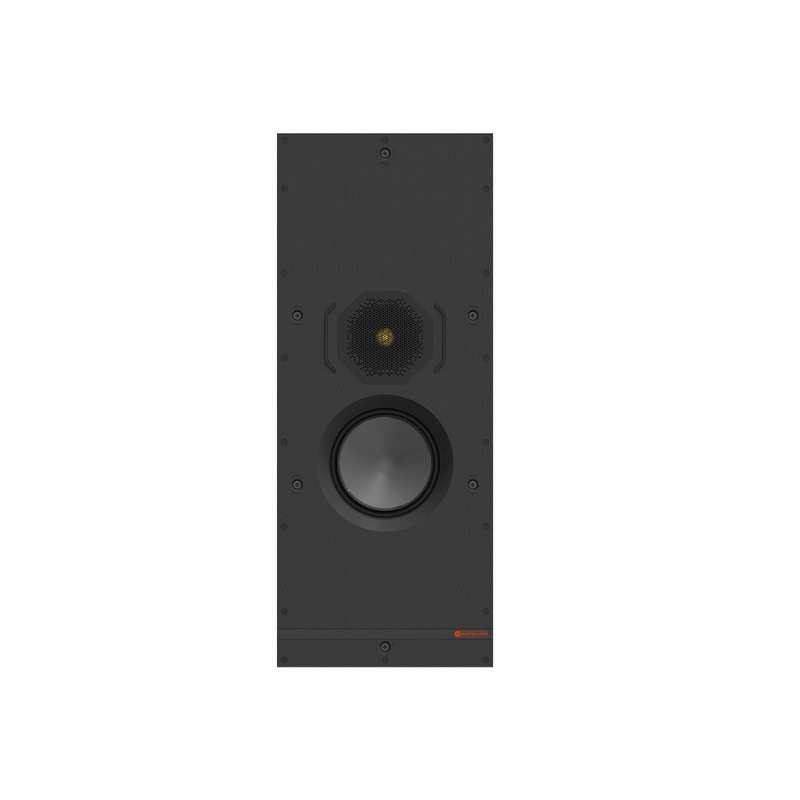

W1M-E
This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass

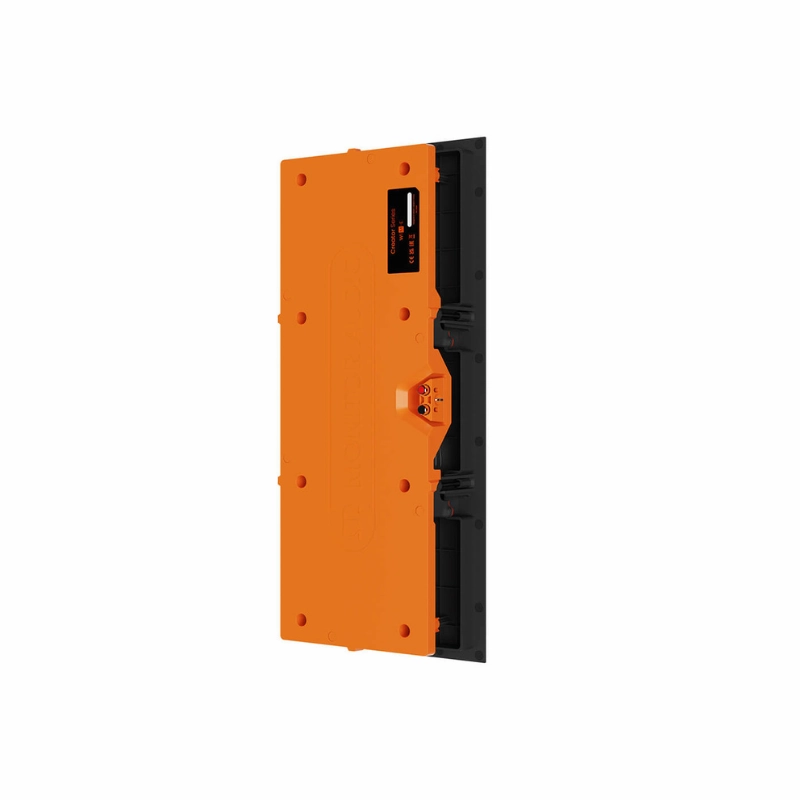

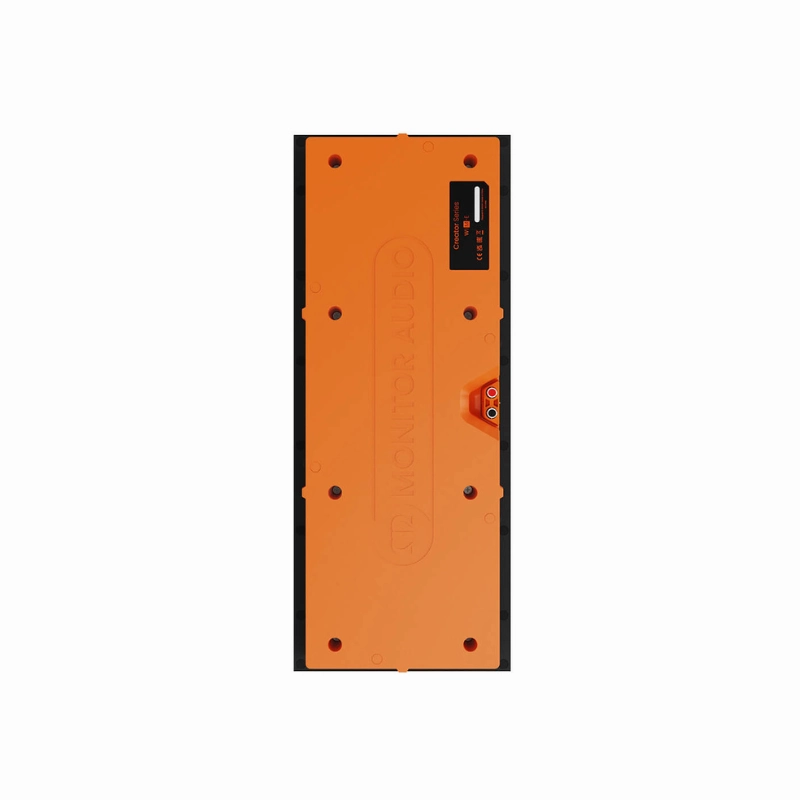

- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)

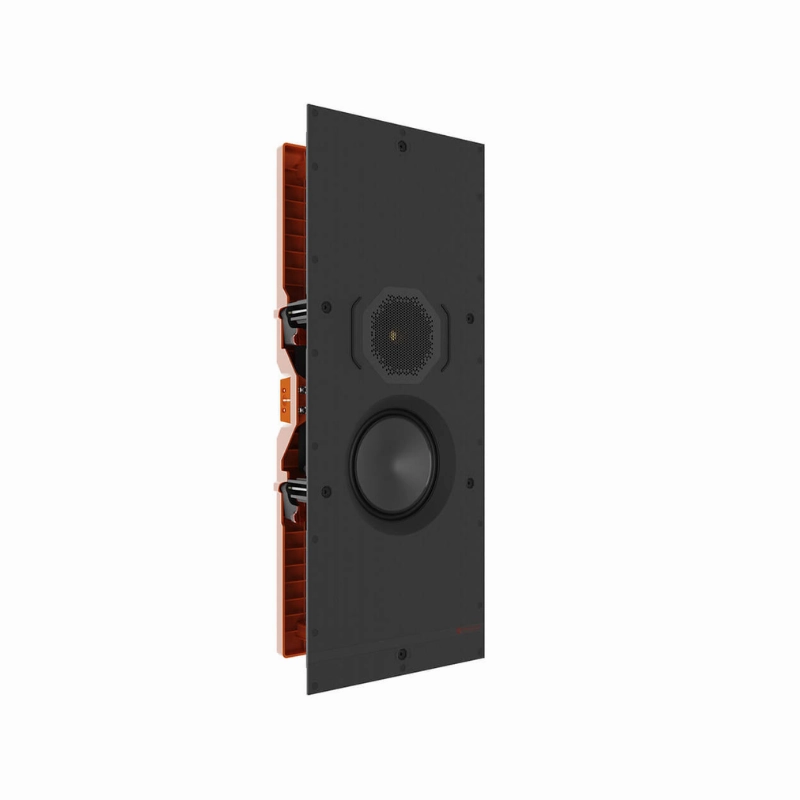

- Tri-Grip II for easy and secure fitment
Specifications
System Format: 2Way
Channels: 1
Frequency Response, Installed (-6dB): 40 Hz 30 kHz
Nominal Impedance: 8 ohm
Minimum Impedance (20Hz to 20kHz):
- 6.5 Ohm @ 200 Hz
- 6.2 Ohm @ 20 kHz
Sensitivity (2.83Vrms@1m, Installed): 84 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 110 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 50 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 25 100 W
Drive Unit Complement:
- 1 x 5" (127 mm) C-CAM mid-bass driver
- 1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency: LF/HF: 2.5 kHz
Mounting Depth: 85 mm (33/8")
Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each): 2.6 kg (5 lb 11 oz)
Pre-Construction Bracket: WM-B
Cabinet Finish: Matt black & Orange
Sold As: Single Unit
