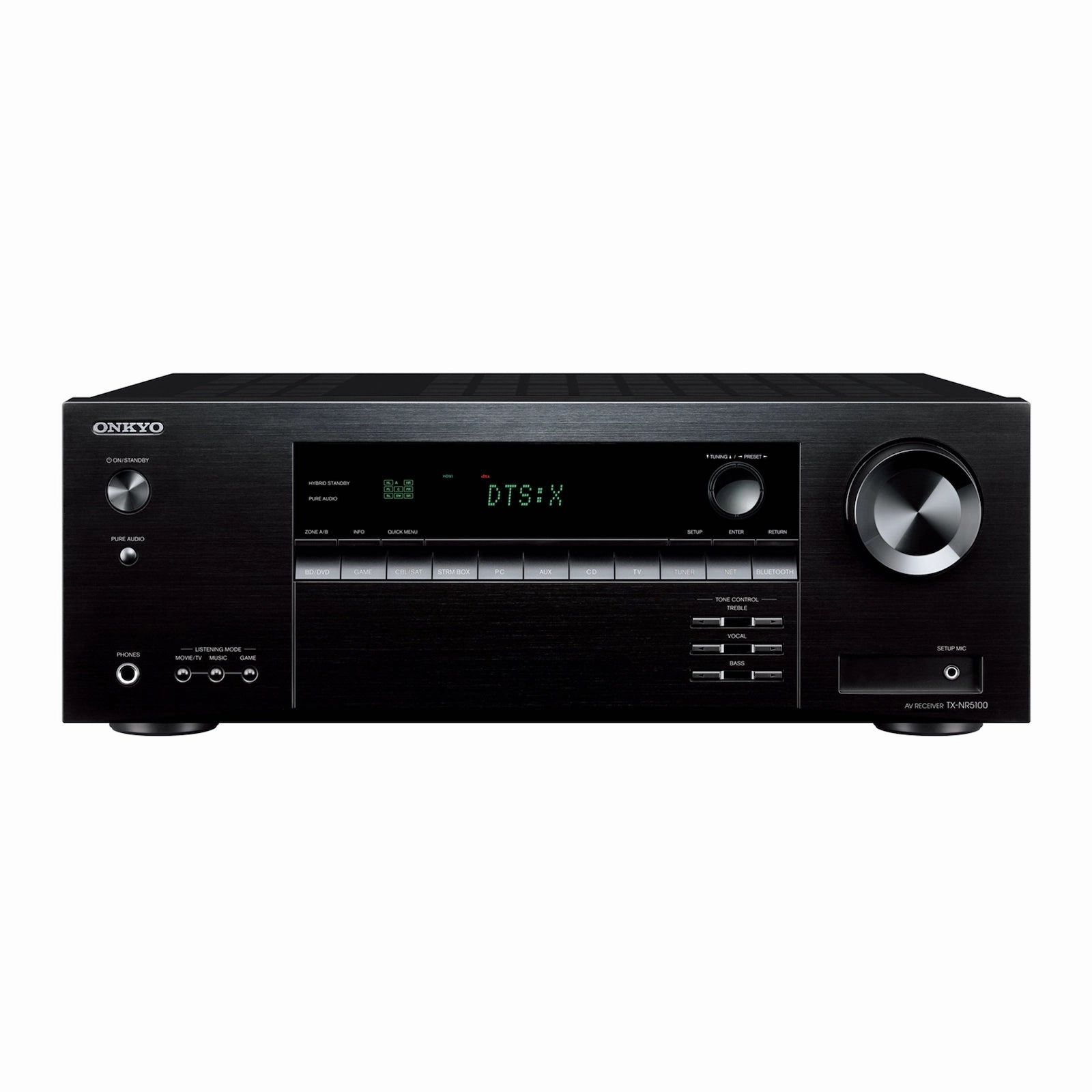

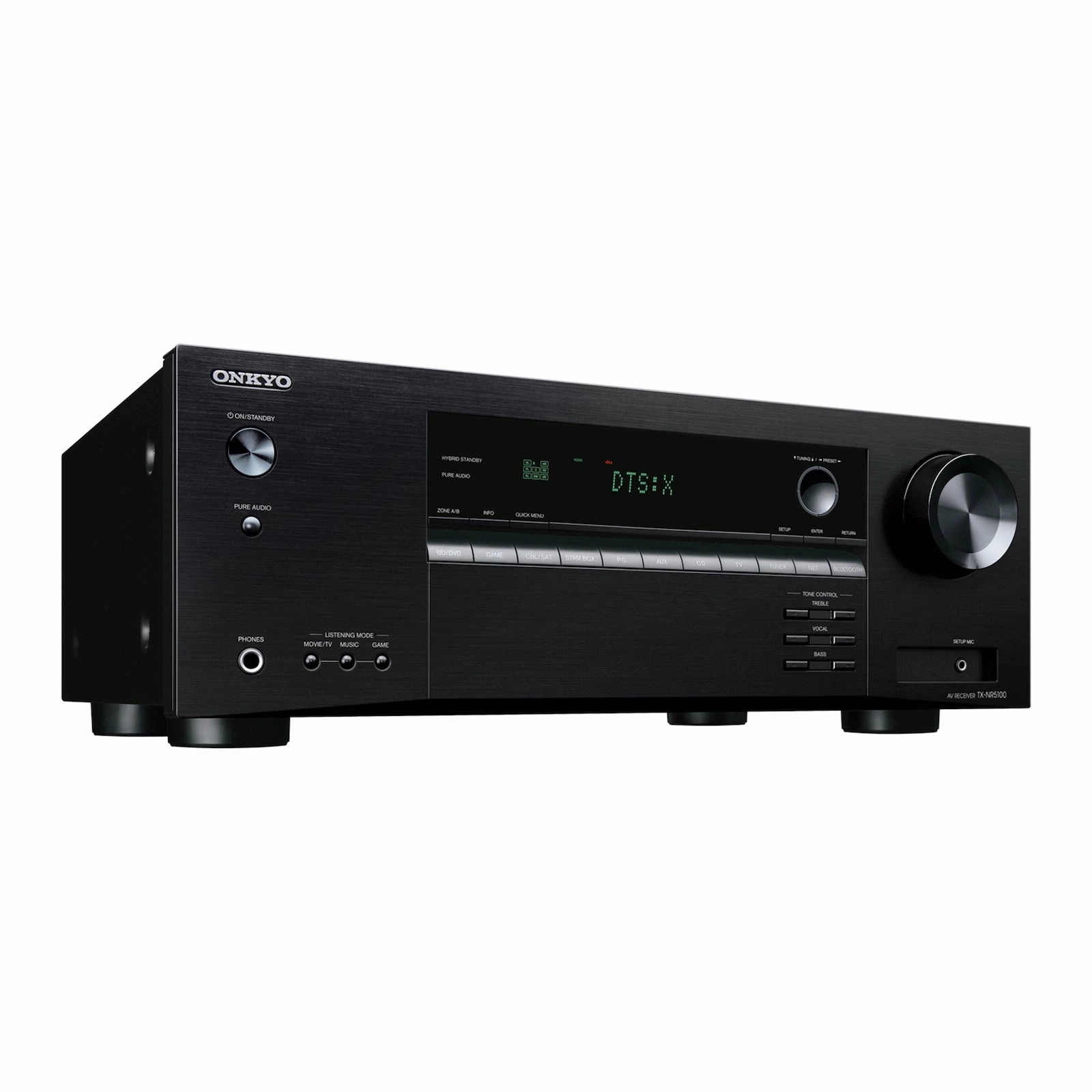

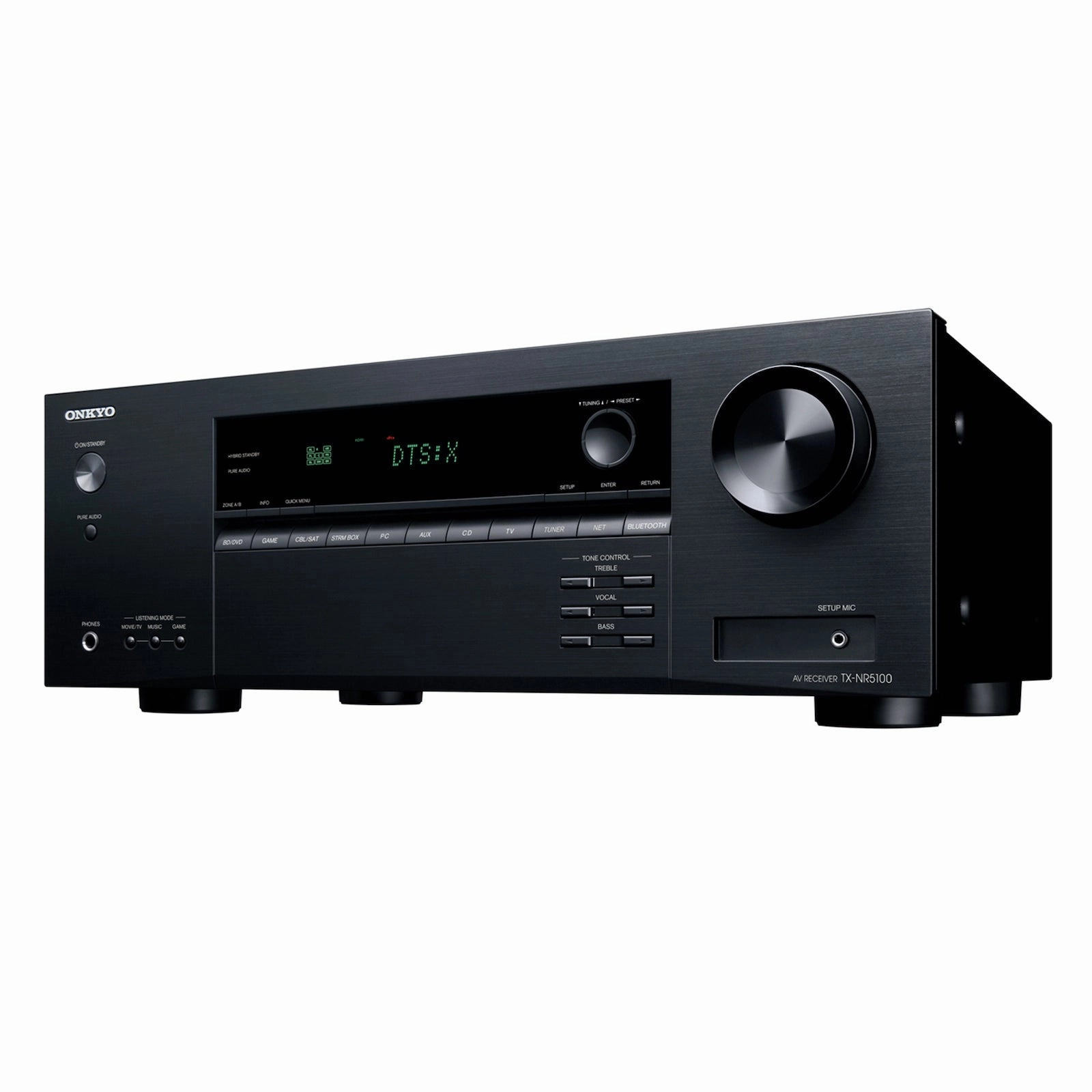

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver

$ 23.68

$ 94.72

Unavailable
Onkyo TX-NR5100 7.2-Channel 8K AV Receiver

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver

$ 23.68

$ 94.72

Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

Onkyo TX-NR5100 7.2-Channel 8K AV Receiver

  • 165 watts x 7 channels
  • 5.2.2-ch Dolby Atmos and DTS:X playback
  • Dolby Atmos Height Virtualizer and DTS Virtual:X 3D sound virtualization technologies
  • SMART AV Receiver Works with Sonos*1, Chromecast built-in, AirPlay 2, and DTS Play-Fi; includes Spotify, Amazon Music HD*2, Pandora, TIDAL, Deezer, and TuneIn streaming services*3
  • Works with Hey Google or Alexa*4
  • Stream over 5 GHz/2.4 GHz dual-band Wi-Fi supporting the 802.11ac standard*5
  • HDMI supports 8K/30p(4:2:0/12-bit), 4K/120p(4:2:0/12- bit), HDR10 , Dolby Vision and BT.2020 color; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport); eARC (Main Out), and HDCP 2.3
  • HDMI Sub Out for media transmission to a projector, gaming monitor, or TV
  • Send or receive audio via Bluetooth wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm aptX/ aptX HD)
  • Zone B pre-/line-out plays MAIN Zone audio to a compatible headphone dock
  • Vocal Enhancer, media info and playback status display, and one-touch volume memory-preset functions
  • AccuEQ with AccuReflex and subwoofer EQ

Smart Home Compatible with Voice Control

The Onkyo TX-NR5100 7.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple Airplay, Alexa, Google apps, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem.*

*Requires third-party AI compatible smart home device with microphone


HDMI 2.1 with 8K

HDMI2.1 is the most recent update of the HDMIspec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.

Ultimate 4K Gaming Experience

4K/120 enables ultra-fast motion UHD images to be crisp and razor-sharp; and sports, action movies, and high-performance gaming benefit significantly.

Specifications
Amplifier Section
Power output (All channels)165 W/Ch
(6 ohms, 1 kHz, 10% THD, 1-ch driven)
80 W/Ch (8 ohms, 20 Hz20 kHz,
0.08% THD, 2-ch driven, FTC)
Dynamic power160 W (3 ohms, Front)
125 W (4 ohms, Front)
85 W (8 ohms, Front)
THD N (Total Harmonic Distortion Noise)0.08% (20 Hz20 kHz,)
Input sensitivity and impedance200 mV rms/32 k-ohms (Line)
Rated RCA output level and impedance200 mV rms/2.2 k-ohms (Zone B line-out)
Frequency response10 Hz100 kHz/ 1 dB, -3 dB (Direct/Pure Audio)
Tone control10 dB, 20 Hz (Bass)
10 dB, 20 kHz (Treble)
Signal-to-noise ratio106 dB (Line, IHF-A)
Speaker impedance416 ohms
Tuner Section
Tuning frequency rangeFM 87.5 MHz107.9 MHz
AM 530 kHz1,710 kHz
FM/AM preset memory40 stations
General
Power supplyAC 120 V~, 60 Hz
Power consumption (operating)490 W
Power consumption (idle)45 W
Power consumption (standby)0.1 W
Dimensions (W x H x D)17 1/8 x 6 5/16 x 12 15/16 (435 x 160 x 328 mm)
Weight18.5 lbs. (8.4 kg)
Shipping Dimensions (W x H x D)20 11/16 x 9 7/16 x 15 15/16 (525 x 240 x 405 mm)
Shipping Weight23.1lbs. (10.5 kg)
Supplied Accessories Indoor FM antenna AM loop antenna Speaker setup microphone Quick Start Guide Remote controller AAA (R03) batteries x 2
