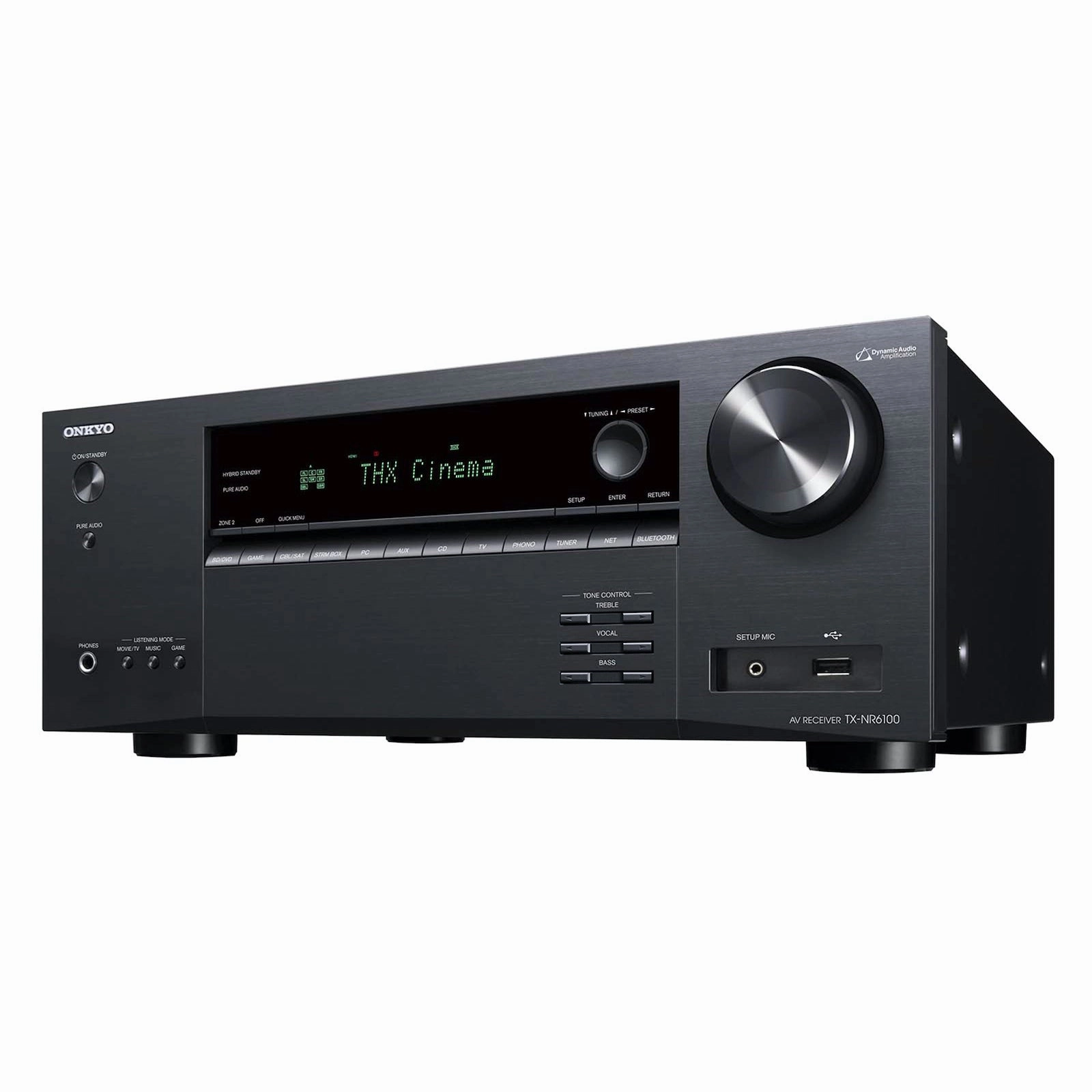

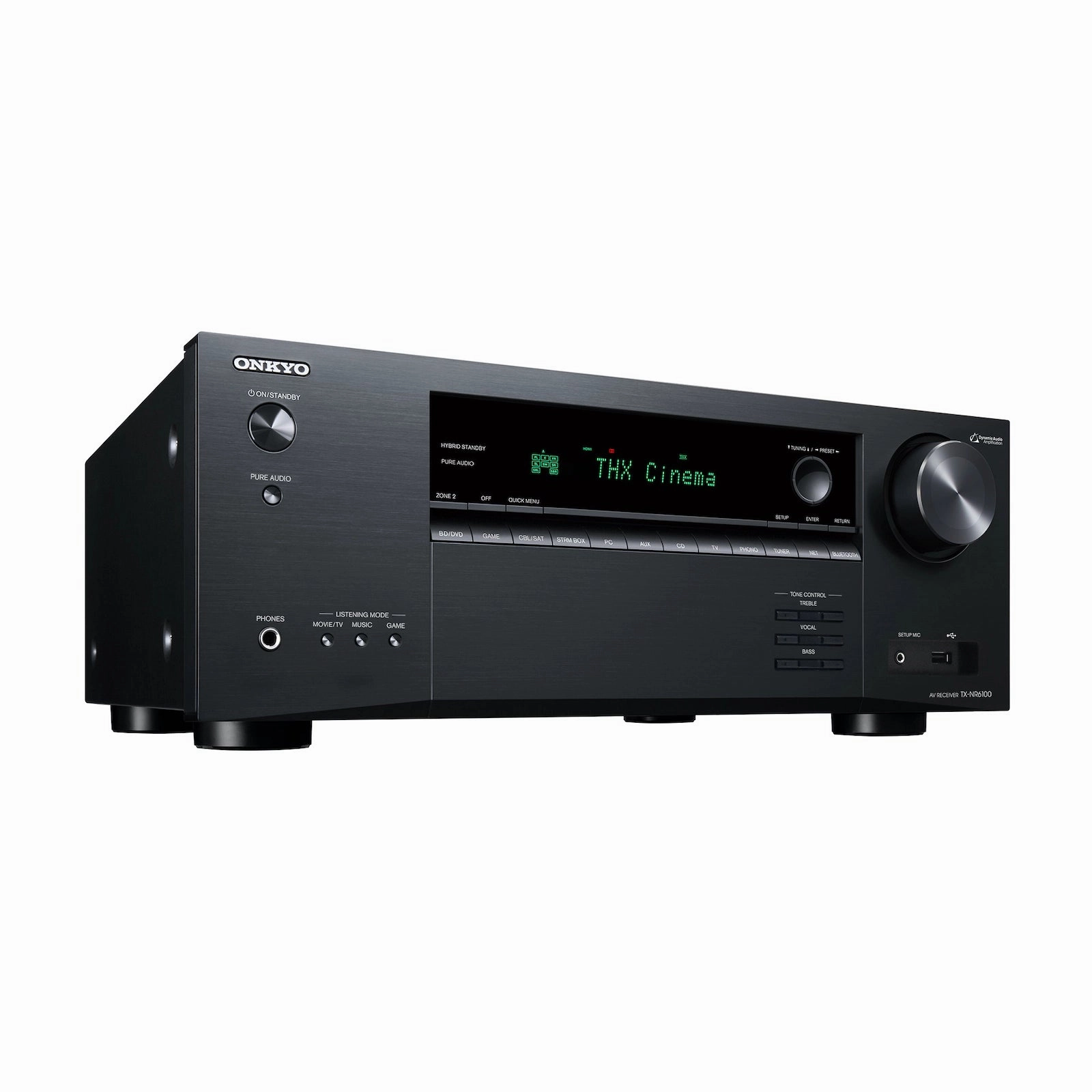

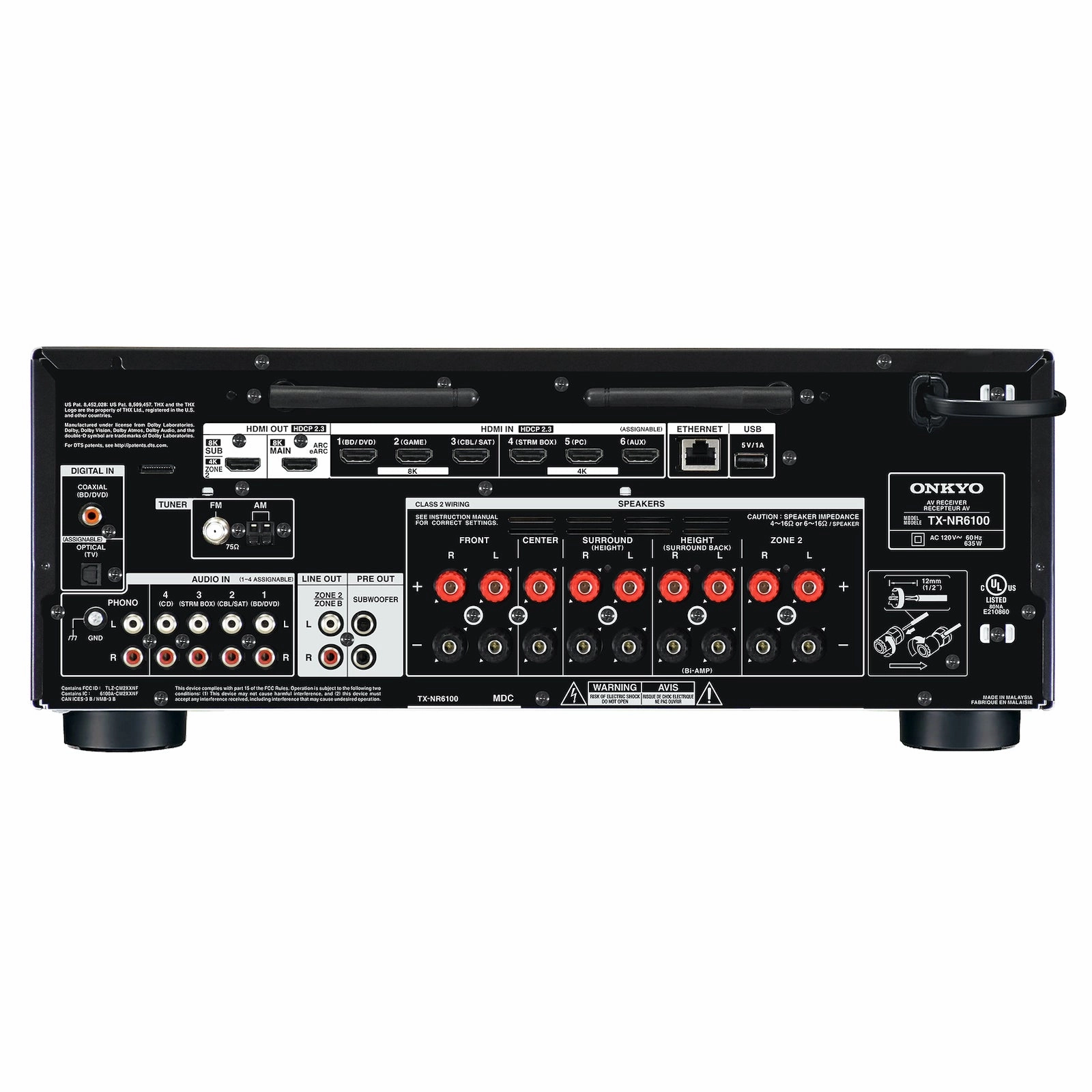

TX-NR6100 7.2-Channel THX Certified AV Receiver
The Onkyo TX-6100 7.2-Channel AV Receiver delivers precision sound and images with an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers.
THX CertifiedIn 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR7100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX. | |
Discrete Zone 2 HDMI SwitchingSet up different Ultra High-Definition entertainment options with up to 8K60 resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.* *8K60 only valid for Zone 1/Zone 2 will only produce 4K120 resolution when two separate HDMI sources are used. | |
Ultimate 4K Gaming ExperienceOwn your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience. | |
Specifications
| Amplifier Section | |
| Power output (All channels) | 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 100 W/Ch (8 ohms, 20 Hz20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Dynamic power | 240 W (3 ohms, Front) 210 W (4 ohms, Front) 120 W (8 ohms, Front) |
| THD N (Total Harmonic Distortion Noise) | 0.08% (20 Hz20 kHz, half power) |
| Input sensitivity and impedance | 200 mV rms/47 k-ohms (Line) 3.5 mV rms/47 k-ohms (Phono MM) |
| Rated RCA output level and impedance | 1 V rms/470 ohms (Subwoofer pre-out) 200 mV rms/2.2 k-ohms (Zone 2/Zone B line-out) |
| Frequency response | 10 Hz100 kHz/ 1 dB, -3 dB (Direct/Pure Audio) |
| Tone control | 10 dB, 20 Hz (Bass) 10 dB, 20 kHz (Treble) |
| Signal-to-noise ratio 106 dB (Line, IHF-A) | 80 dB (Phono, IHF-A) |
| Speaker impedance | 416 ohms |
| Tuner Section | |
| Tuning frequency range | FM 87.5 MHz107.9 MHz AM 530 kHz1,710 kHz |
| FM/AM preset memory | 40 stations |
| General | |
| Power supply | AC 120 V~, 60 Hz |
| Power consumption (operating) | 635 W |
| Power consumption (idle) | 65 W |
| Power consumption (standby) | 0.1 W |
| Dimensions (W x H x D) | 17 1/8 x 6 13/16 x 14 15/16 (435 x 173.5 x 379.5 mm) |
| Weight | 21.6 lbs. (9.8 kg) |
| CARTON | |
| Dimensions (W x H x D) | 21 x 10 7/16 x 18 7/16 (534 x 265 x 468 mm) |
| Weight | 27.6 lbs. (12.5 kg) |

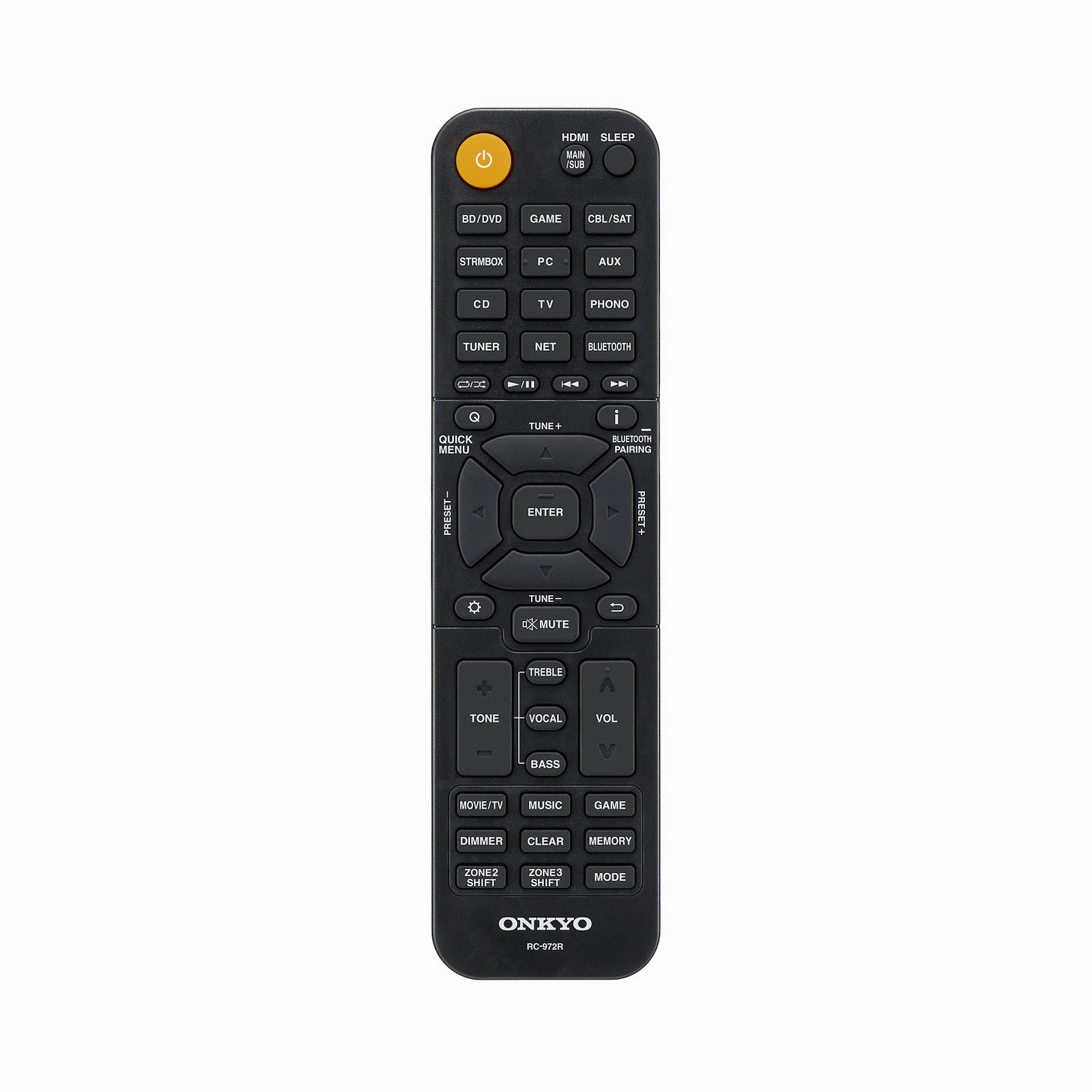

| Supplied Accessories | Indoor FM antenna AM loop antenna Speaker setup microphone Quick Start Guide Remote controller AAA (R03) batteries x 2 |
