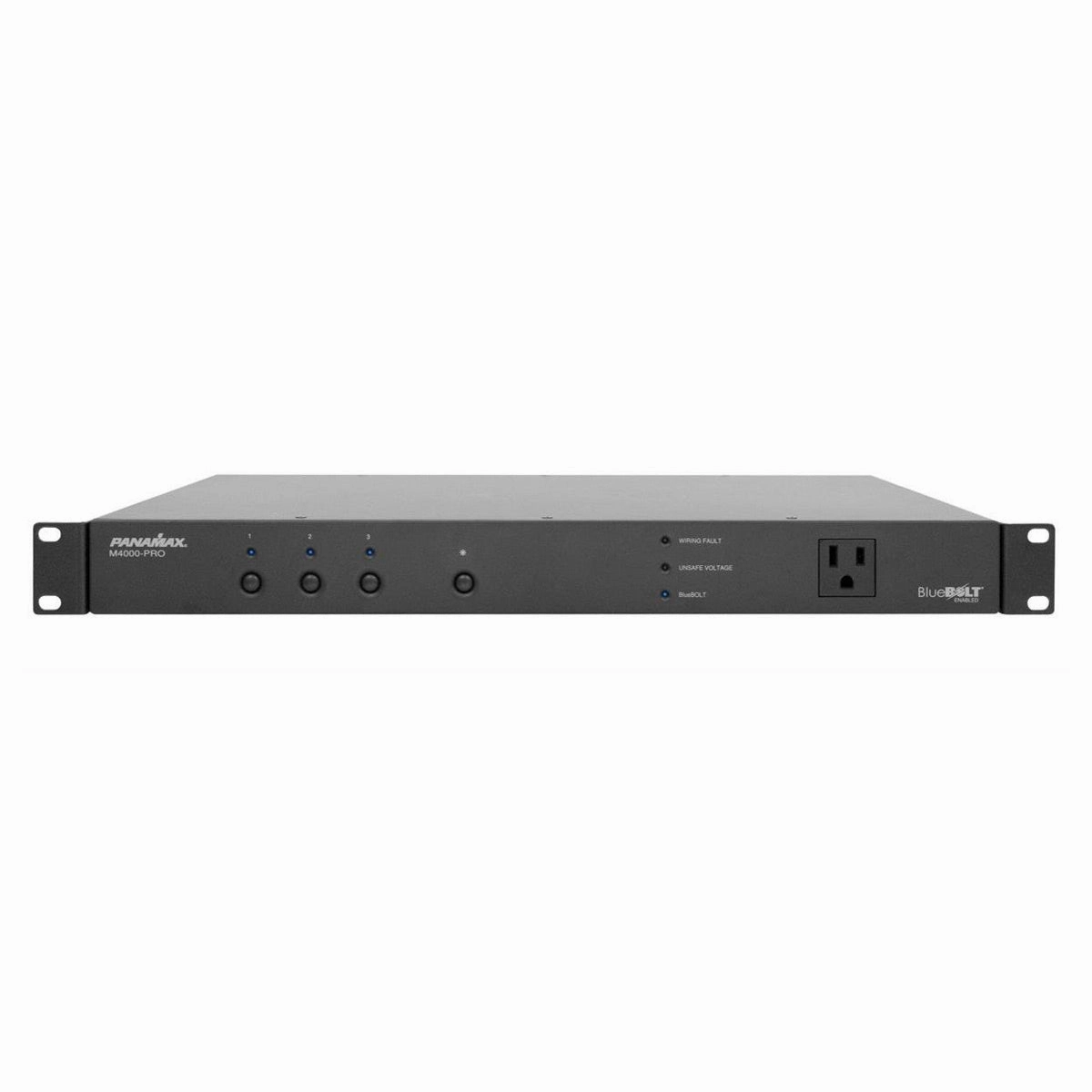

M4000-PRO BlueBOLT Power Conditioner
M4000-PRO Highlights:

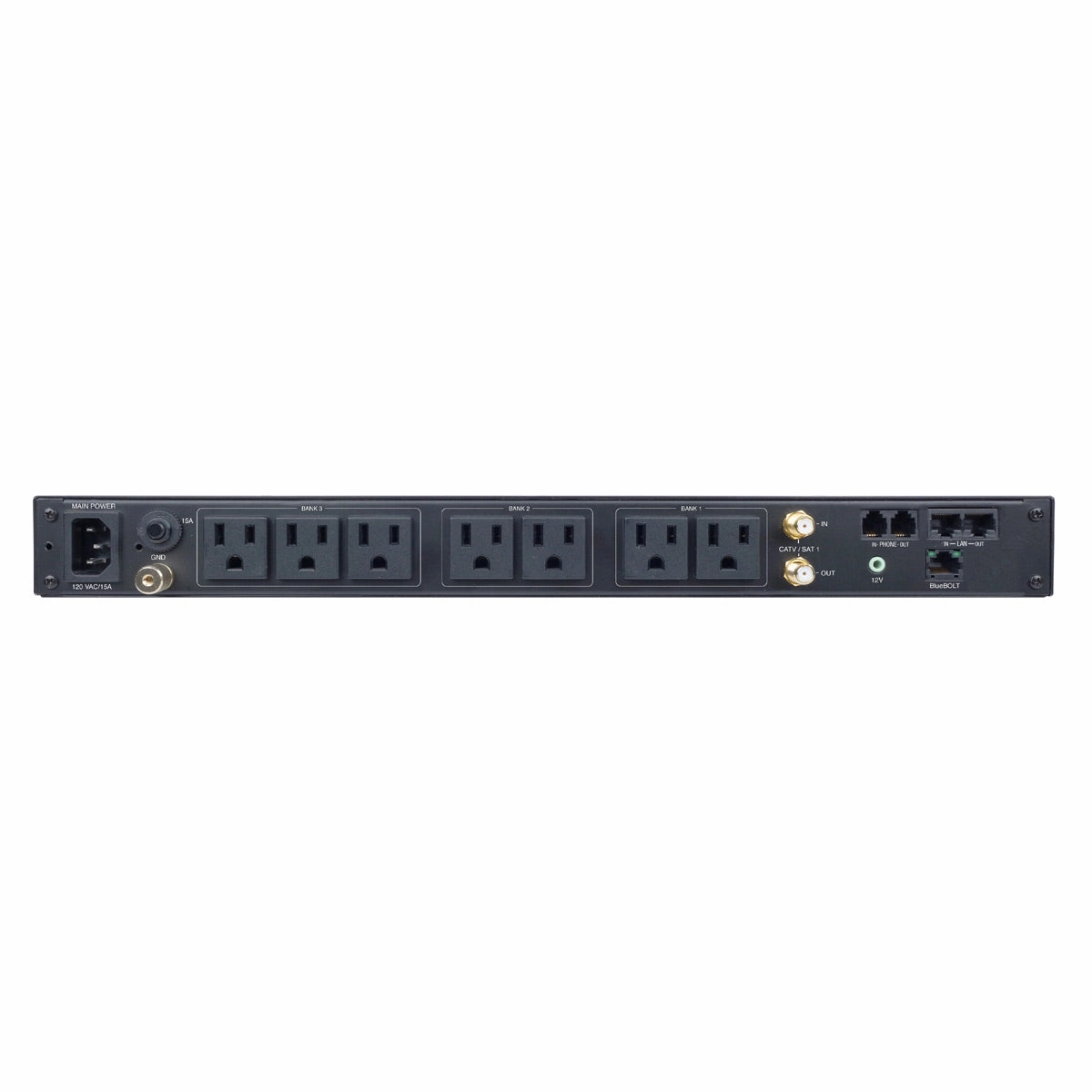

- 8 protected and filtered power outlets (7 rear panel, 1 front panel convenience outlet)
- Exclusive automatic voltage monitoring (AVM)
- Protect or Disconnect Technology
- "Entry level" BlueBOLT component
- Linear level 3 noise filtration
- Antenna, cable, or satellite and LAN signal protection
- 12v trigger
- Rack ears included
M4000-PRO Features:
- Ideal for moderate (DIY) to high end (installed) home entertainment systems
- Protects connected equipment from power surges and dangerous voltage conditions (7 outlets)
- Filters AC for best electronics performance
- Provides remote power, energy and network management from any web enabled device at www.mybluebolt.com
- Reduces equipment issues/services calls
- Provides visibility on energy usage with cloud-based monitoring and tracking
- Safeguards equipment from catastrophic surges with Protect-or-Disconnect protection
- AVM Protects against brownouts and dangerous overvoltage conditions
- Reduces excess energy consumption with scheduled on/off commands
- Automatically reboots network equipment when connectivity is lost
M4000-PRO Specifications:
AC Protection
- Undervoltage shutoff: 95 Vac 2 Vac
- UL 1449 Voltage Protection Rating: 330V L-N, 400V L-G, 400V N-G
- UL 1449 Nominal Discharge Current: 3,000A
- Overvoltage shutoff: 134 Vac 2 Vac
- Operating Voltage: 120 Vac / 60Hz
- Initial Clamping Level: 200V
- Energy Dissipation: 1,575 Joules (20s)
- EMI/RFI Noise Filtration: -18/7 dB @ 10kHz-50.5dB @ 100kHz-43.9dB @ 1MHz
- Current Capacity: 15A
Telephone Protection
- Suppression Modes: Metallic & Longitudinal
- Fuseless/Auto-resetting: Yes
- Connectory: RJ-11
- Clamping Level: 260V
General
- Weight: 10.63 lbs
- Dimensions: 17W (19W with rack ears) x 1.75H x 13D
LAN Protection
- Wires Protected: 8-Wires
- Jacks: RJ-45 CAT 5e
- Compatibility: 10/100BASE-T
- Clamping Level: 52V
Universal Coax Protection
- Insertion Loss: < 0.5 dB
- HD 1080 i/p Ready: Yes
- Frequency Range: 0 MHz 2.2 GHz
- Connections: Female F, Gold Plated
- Clamping Level: 75V
