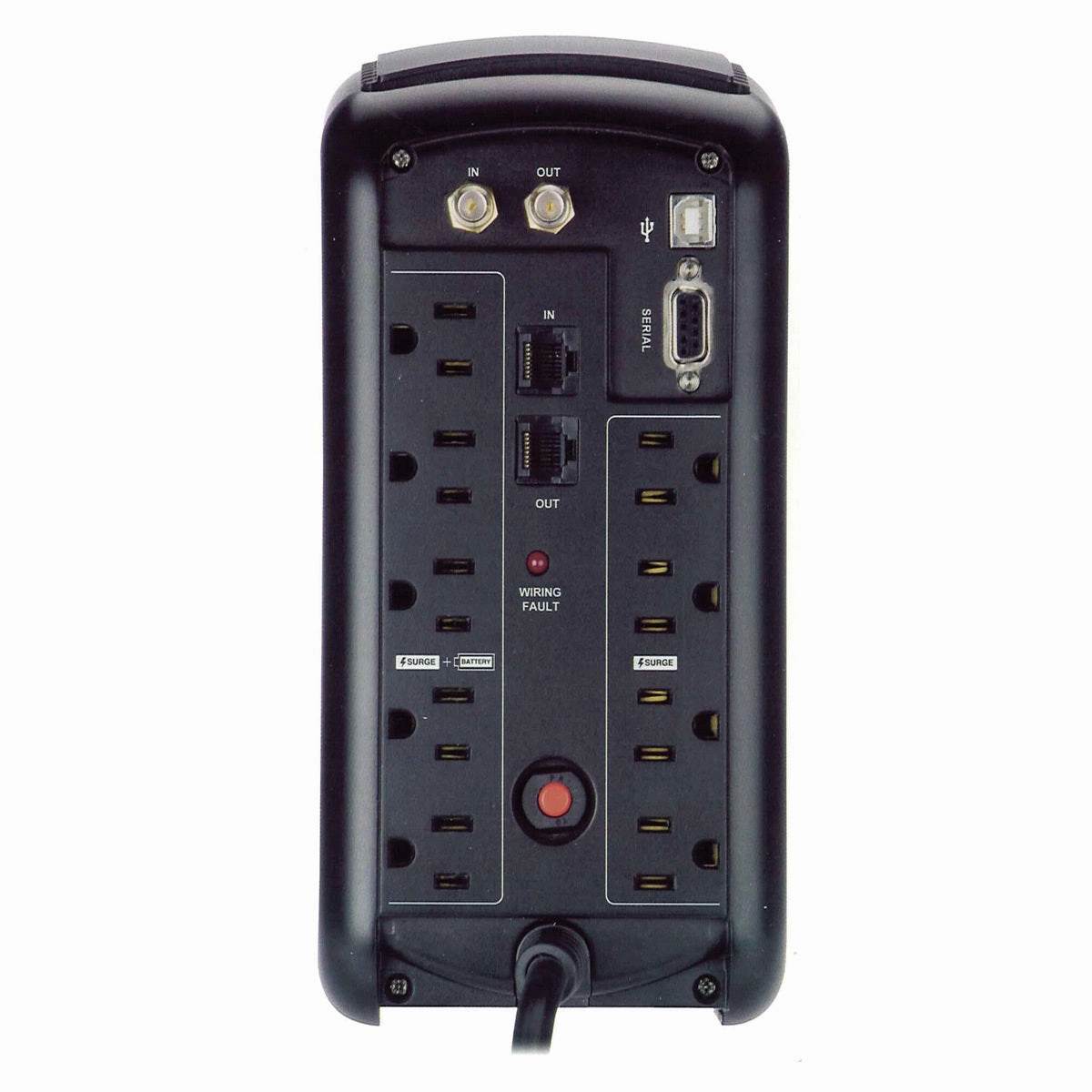

5 Battery Powered and Surge Protected OutletsProvides continuous battery backup when power is interrupted.
4 Fulltime Surge Protected OutletsProvides complete surge protection for equipment not requiring battery backup.
USB/Serial Port To PCAllows home theater PC to communicate with UPS through USB or serial port.
1 Pair, In/Out Coax / Cable Sat Surge Protection
Wiring Fault Indicator LightLED illuminates when wiring problems exist.
Ethernet Protection PortsPhone / Modem / DSL / Ethernet protection (Combination Ethernet or phone line protection).
Resettable Circuit BreakerProvides overload protection.
Auto-Shutdown SoftwarePanamax offers surge protection plus battery backup. The MB850 will safely shut down your home theater PC.

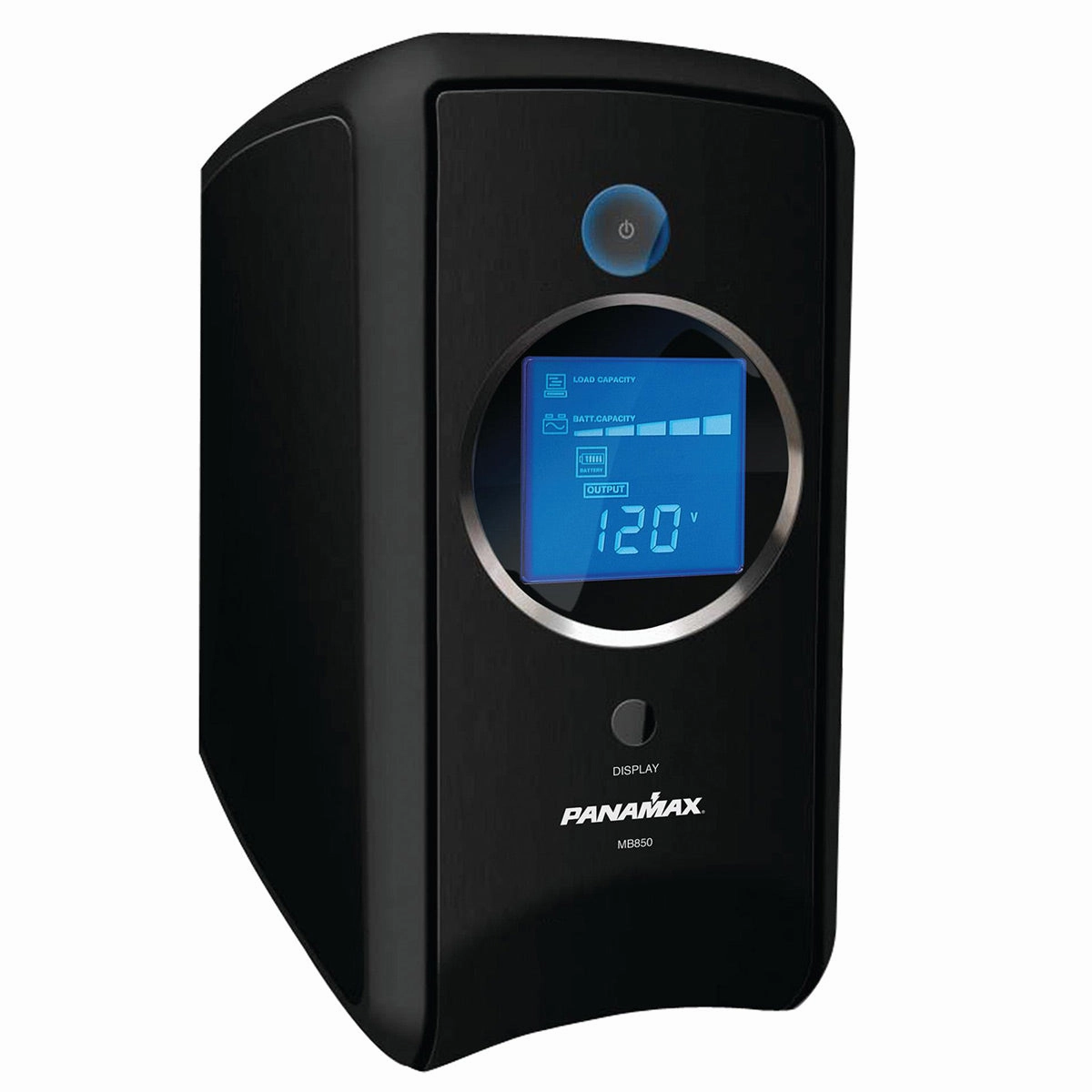

LCD Display Provides: Input Voltage Level Output Voltage Level AVR Status Meter Battery Capacity Estimated Runtime Load Level Output Power Frequencyinterrupted
Icon Indicators Includes: On Battery Mode Overload Condition Fault Condition
AVRAutomatic Voltage Regulation stabilizes input voltage to an appropriate level for optimal equipment performance by completely eliminating brownouts and overvoltages.
General
| Weight | 16 lbs. |
| Dimensions | 4.375W x 10.25D x 8.875H |
Output Power
| MB850 | 850VA / 510 Watts with AVR |
Output Voltage on Utility
| Voltage | 90V - 140V |
| Frequency | 57 - 63 Hz |
| AVS Smart Boost | Boost 10% of input voltage for output |
Surge Protection
| Surge Energy Capacity | 890 Joules |
| Maximum Surge Current | 36,000 Amps |
| Design Specification | NSI/IEE C62.41 CAT A |
Battery
| Runtime | Up to 120 minutes |
| Recharge | 8 hours from total discharge |
| Normal Life | 3 to 6 years |
| Battery Type | Sealed maintenance free lead acid |
Output Voltage on Battery
| Voltage | 120V 5V |
| Frequency | 60Hz |
Safety Approvals
| UL | UL 1778 (UPS) |
| FCC | DoC Class B |
| cUL (Canada) | cUL 107.1 |
