Name: Paradigm CI Pro P3 LCR v2 In-Wall Speaker (Each)
SKU: 623402

Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens

AL-MAC is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesnt just sound good on paper but truly sounds incredible in the real world.

CARBON-X Cones

Paradigms exclusive CARBON-X Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced
Shock-Mount System

(baffle/basket isolation) Like the CI Elite Series, weve added the same great Advanced Shock-Mount System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented Active Ridge Technology (ART) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. US patents: D654,479S and 8,340,340B2.

Reduced Edge Diffraction (RED) Technology

significantly reduces the adverse effects of diffraction while improving frequency response.

Advanced Features for a Solid and Secure Installation

FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Integrated Acoustic Back-box Enclosuresafeguards internal parts from debris while preventing added sound spillage to adjacent rooms. It also ensures consistent and reliable performance from application to application. (CI Elite LCR models only)

FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Screen Compensation Modeensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)

Pocketed screw holeshelp to hold the drill steady, making installation a snap.

FEA-Optimized Ultra Rigid Cast-Aluminum Basketsfeature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

Screen Compensation Modeensures true acoustic transparency when placed behind micro-perforated projection screens. (CI Elite LCR models only)

Pocketed screw holeshelp to hold the drill steady, making installation a snap.

Premium-grade componentsinclude high-power rated resistors, capacitors and heavy gauge wire inductors.

Nickel-plated, spring loaded binding postsfeature a larger wire hole to accept higher-gauge wire or banana plugs.

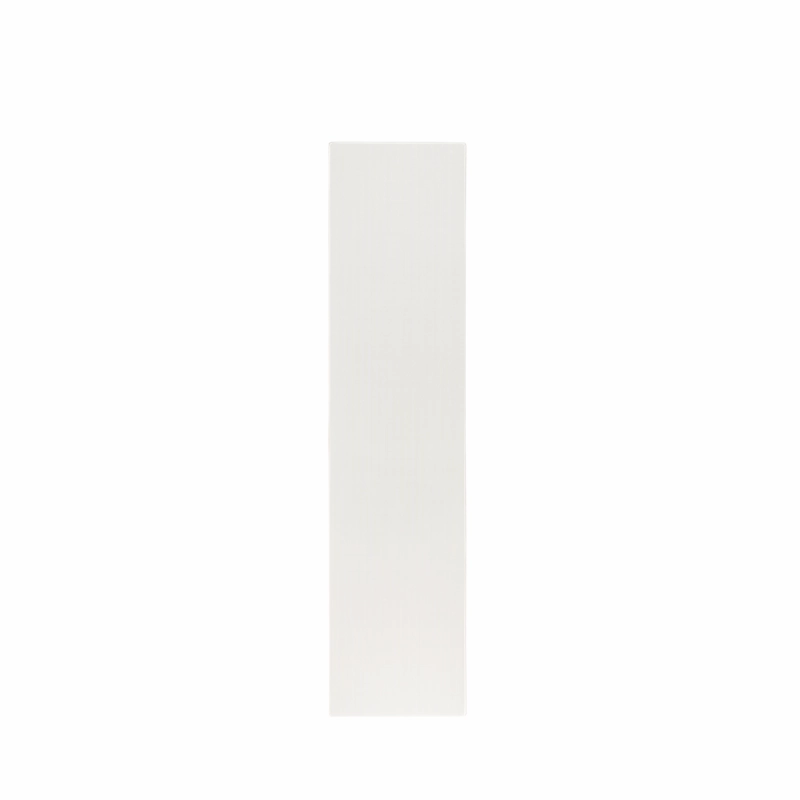

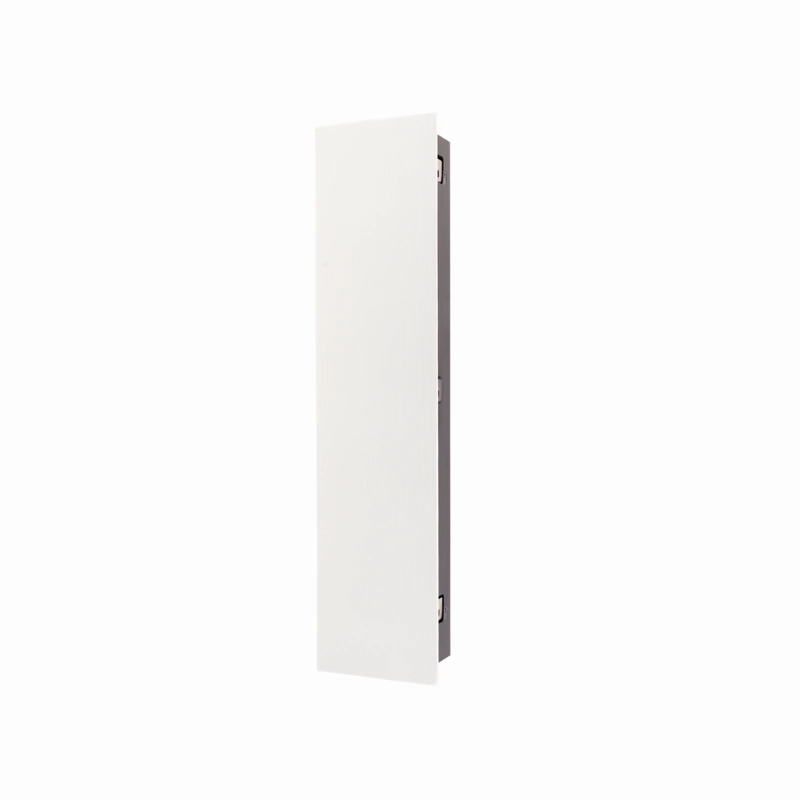

Bezel-Free Micro-Perf Grillesoffer a clean aestetic from room-to-room.

Magnetically attached grilles:neodymium magnets hold grilles firmly in place.

Specifications

Design:

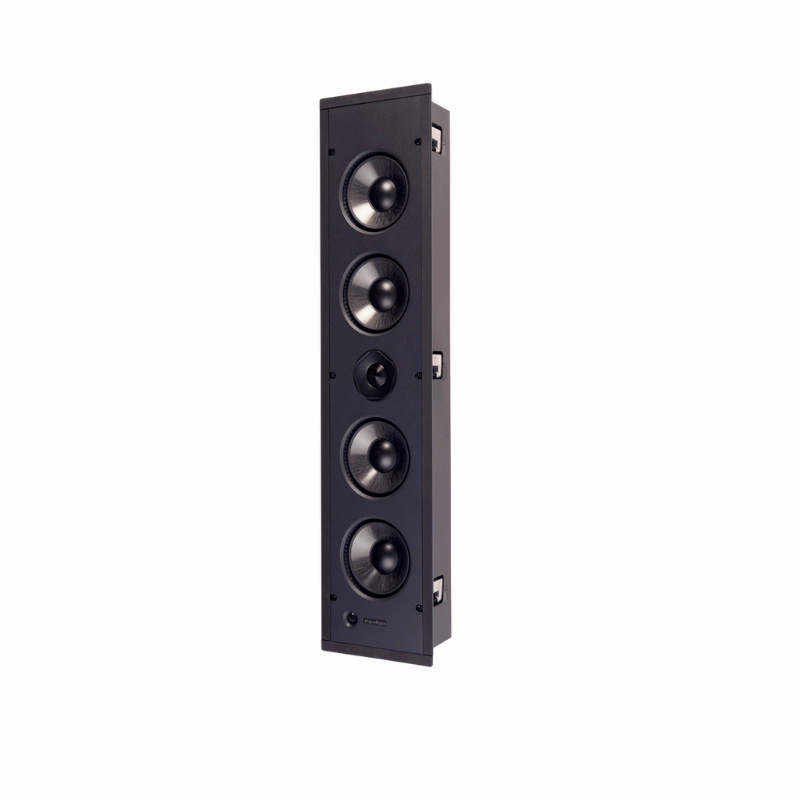

- 3-driver, dual passive radiators, 2-way shallow enclosure in-wall design, Advanced SHOCK-MOUNT System
Crossover:
- 2nd-order electro-acoustic at 2.2 kHz
High Frequency Driver:
- 1 (2.5cm) Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens and Reduced Edge Diffraction (RED) Technology
Frequency Response On-Axis:
- 3 dB from 86 Hz - 22 kHz
Frequency Response 30 Off-Axis:
- 3 dB from 86 Hz - 19 kHz
Mid/Bass Frequency Driver:
- Two 5.5 (13.9cm) CARBON-X Cone with overmolded Active Ridge Technology (ART) surround, Advanced SHOCK-MOUNT System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
Passive Radiators:
- Two 5.5 (13.9cm) CARBON-X Cone with overmolded Active Ridge Technology (ART) surround, Advanced SHOCK-MOUNT System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
Sensitivity Room / Anechoic:
- 93 dB / 90 dB
Low Frequency Extension:
- 66 Hz
Suitable Amplifier Power Range:
- 15-120 W
Maximum Input Power:
- 90 W
Impedance:
- Compatible with 8 ohms
Finishes:
- White, paintable grille, black speaker
Cut-Out Dimensions:
- 31 x 6-5/8 (78.7cm x 16.8cm)
Minimum Mounting Depth (Depth Required is the Distance Between 1/2" Drywall, or Similar Material):
- 3-7/8 (9.8cm)
Dimensions HxWxD (Includes Grille):
- 32 x 7-5/8 x 4-1/8 (81.3cm x 19.4cm x 10.5cm)
Weight:
- 19.0 lbs (6.8 kg)
