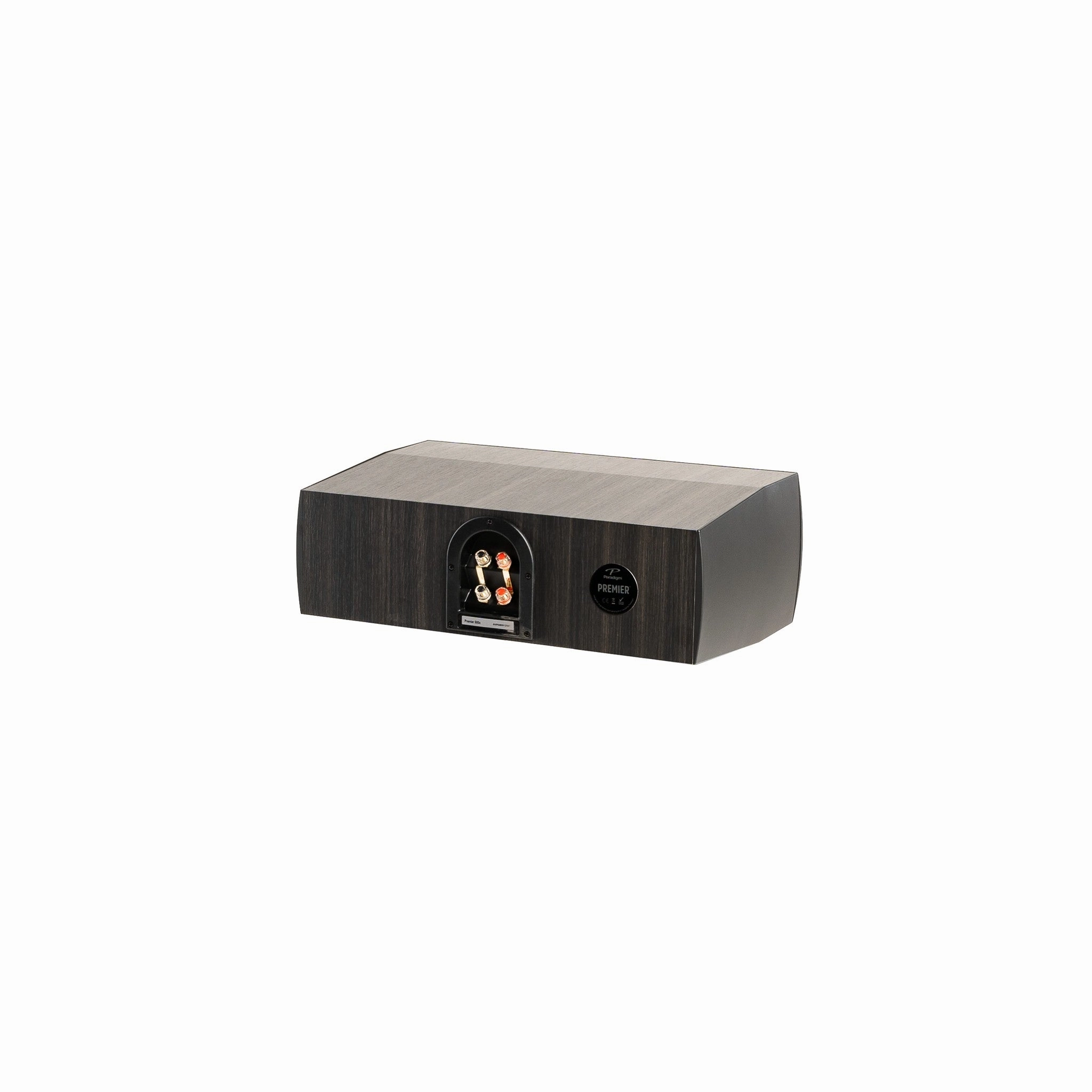

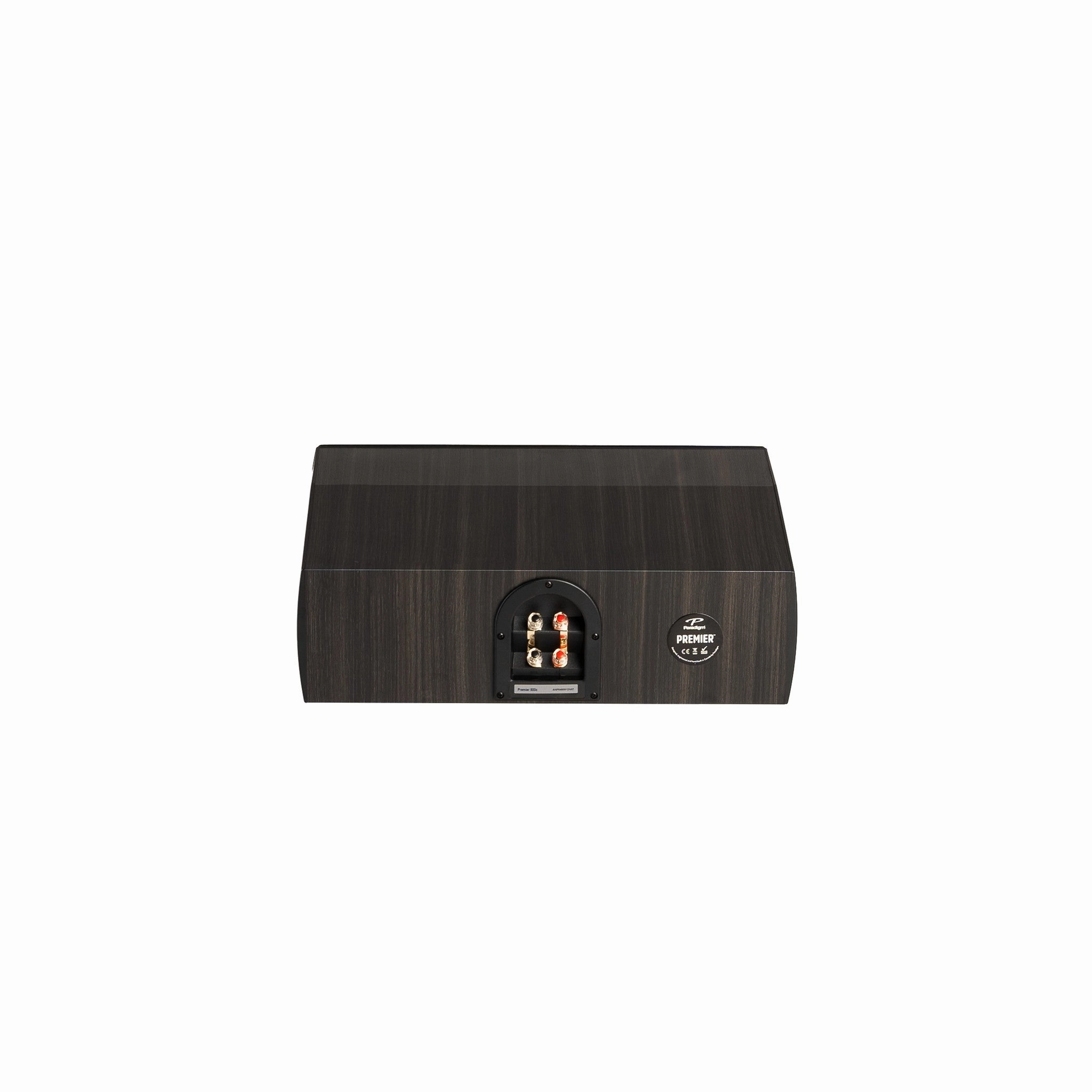

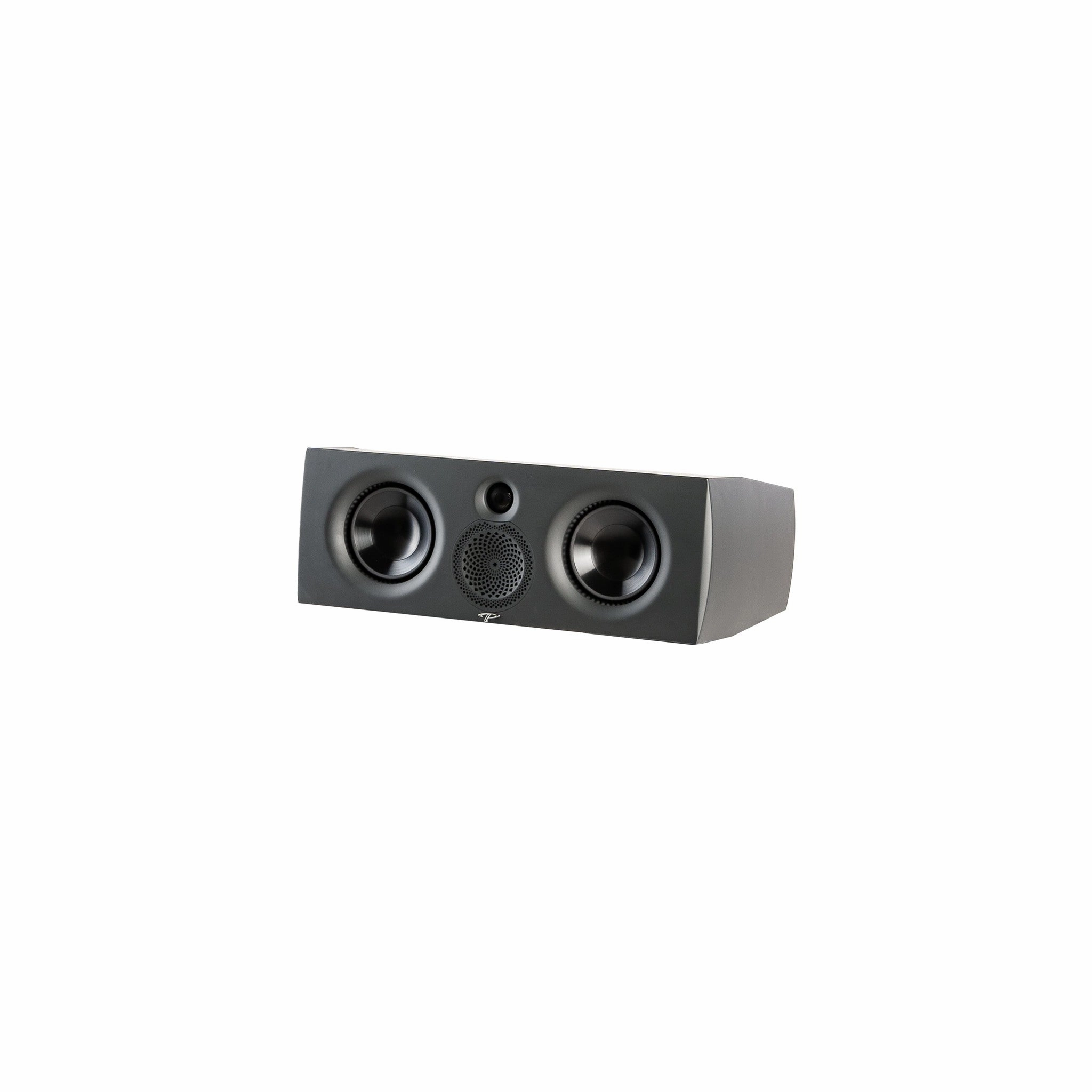

Paradigm Premier 500C Centre Speaker

Name: Paradigm Premier 500C Centre Speaker
SKU: 620612

4-driver, 3-way acoustic suspension center channel

Performance & Value

To produce a loudspeaker that meets our standards for performance and value, we took complete control of the manufacturing process, an unprecedented move at this price point. In our state-of-the-art North American facility, we have produced a loudspeaker that defies convention; a homegrown loudspeaker that benefits from innovations found throughout the Paradigm family of loudspeakers.

Patented Perforated Phase-Aligning (PPA) Tweeter and Midrange Lens Technology

Distinctive perforated lens in front of the tweeter and midrange drivers increase and smooth output without coloring the sound, while also protecting the drivers from getting damaged.

Patented Active Ridge Technology (ART) Surrounds

Premier features Paradigms patented Active Ridge Technology (ART) surrounds, made in-house and overmolded directly onto each woofer and midrange cone. This design achieves greater excursion, for a 3dB gain in output and 50% reduction in distortion. Crafted from injection-molded thermoplastic elastomer, ART surrounds are more durable and more reliable, ensuring a lifetime of superior sound.

Specifications:

DESIGN	4-driver, 3-way acoustic suspension center channel
CROSSOVER	2nd-order electro-acoustic at 2.5 kHz (tweeter/mid) and 600Hz (mid/woofers)
HIGH FREQUENCY DRIVER	1 (25mm) X-PAL dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA) Lens
FREQUENCY RESPONSE^ON-AXIS	3dB from 73 Hz - 25 kHz
FREQUENCY RESPONSE^{30 OFF-AXIS}	3dB from 73 Hz - 20 kHz
MIDRANGE FREQUENCY DRIVER	4 (102mm) Black Anodized X-PAL cone, Perforated Phase-Aligning (PPA) Lens
LOW FREQUENCY DRIVER	Two 5-1/2 (140mm) ART Surround Carbon-Infused polypropylene cones
SENSITIVITY ROOM / ANECHOIC	92 dB / 89 dB
LOW FREQUENCY EXTENSION	47 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE	15 - 120 watts
MAXIMUM INPUT POWER	80 watts
IMPEDANCE	Compatible with 8 ohms
DIMENSIONS^HXWXD	7.125" 20.125 13.75" (18cm 51.5 32cm)
WEIGHT	26 lbs. (11.8 kg)
FINISHES	Gloss Black, Gloss White, Espresso Grain MK 2
