Paradigm Surround 1 Surround Speaker - each
Dipole Surround Speaker
Built On Research
Monitor SE loudspeakers benefit from Paradigms fundamental research into the science of sound. This research, conducted by Paradigm in conjunction with the Canadian National Research Council, has resulted in many of the innovative materials and patented audio technologies found throughout the Paradigm speaker.
Realism in AudioImagine lifelike musical performance in any listening space; breathtaking effects and realistic imaging details that bring your movies to life. | |
TweeterX-PAL Pure-Aluminum Dome Tweeters with patented Perforated Phase-Aligning (PPA) Lens. This exclusive design acts as a refined phase plug, blocking a wide range of out-of-phase frequencies which increases and smooths output without coloring the sound. Both visually stunning and functional, our signature PPA Lens technology improves performance while also protecting the tweeter from getting damaged. US patent: 10,003,869. | |
Bass/MidrangeHigh-performance mineral-filled polypropylene cones with inverted dust caps are lightweight and rigid. Downroll surrounds give them a clean, low-profile look. | |
EnclosureBeautiful Monitor SE speaker cabinets, with their unmistakably European fit and finish, complement todays most stylish dcor. Each model is available in high-gloss white or matte black finishes. |
Specifications

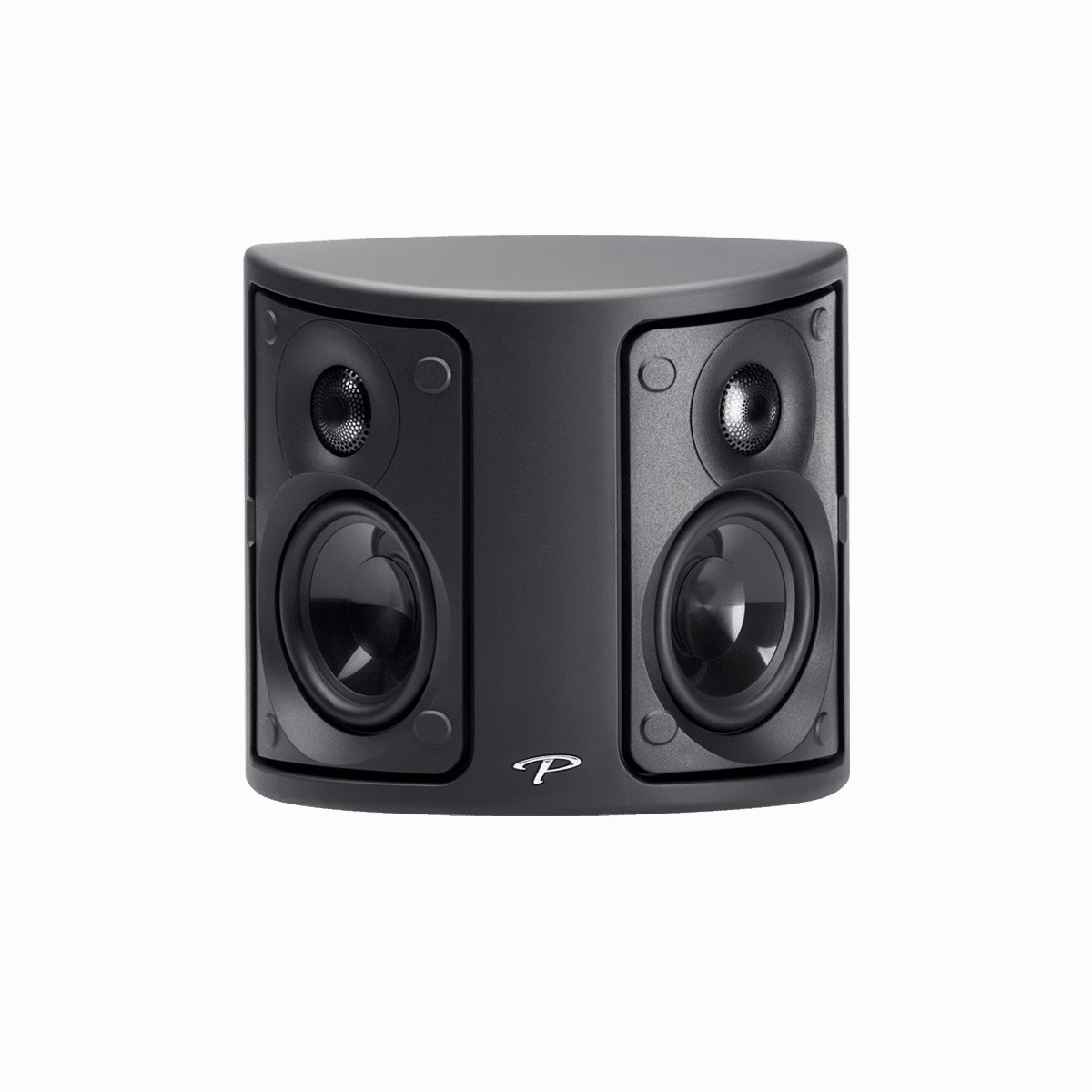

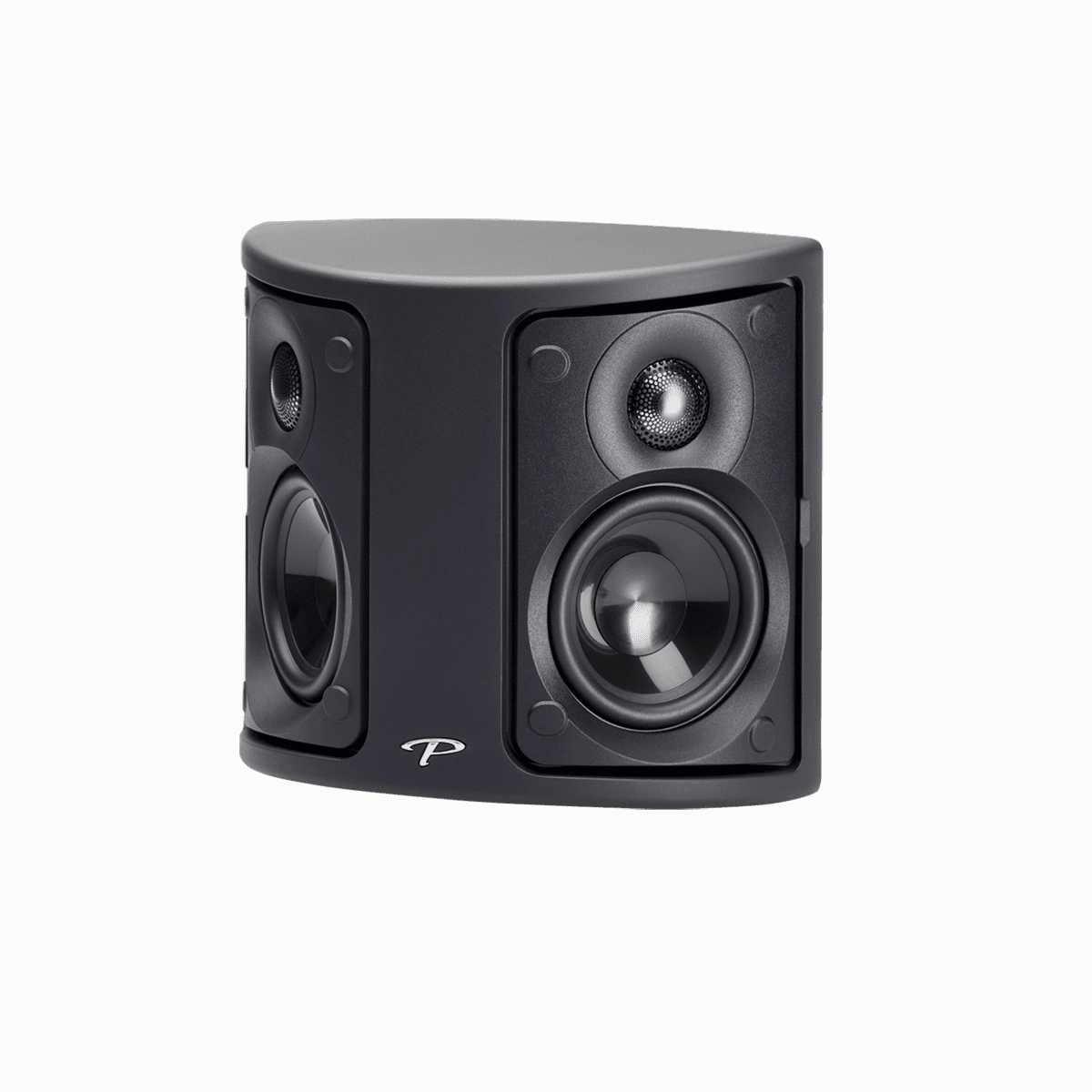

| DESIGN | 4-driver, 2-way bi-directional surround/rear |
| CROSSOVER | 2nd-order electro-acoustic at 2.0 kHz |
| HIGH FREQUENCY DRIVER | Two 1 (25mm) X-PAL dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA) Lens |
| FREQUENCY RESPONSEON-AXIS | 2dB from 120 Hz - 20 kHz |
| FREQUENCY RESPONSE30 OFF-AXIS | bi-directional soundfield |
| MID/BASS FREQUENCY DRIVER | Two 4-1/2" (140mm) X-PAL cones, 1" (25mm) voice-coils, oversize ceramic / ferrite magnets, steel chassis |
| SENSITIVITY ROOM / ANECHOIC | 89 dB / 86 dB |
| LOW FREQUENCY EXTENSION | 71 Hz |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 100 watts |
| MAXIMUM INPUT POWER | 100 watts |
| IMPEDANCE | Compatible with 8 ohms |
| DIMENSIONSHXWXD | 8.50" 9.25 5.11" (21.6cm 23.5cm 13cm) |
| WEIGHT | 7.25 lbs. (3.28 kg) |
| FINISHES | Black |
Specifications are subject to change without notice.
