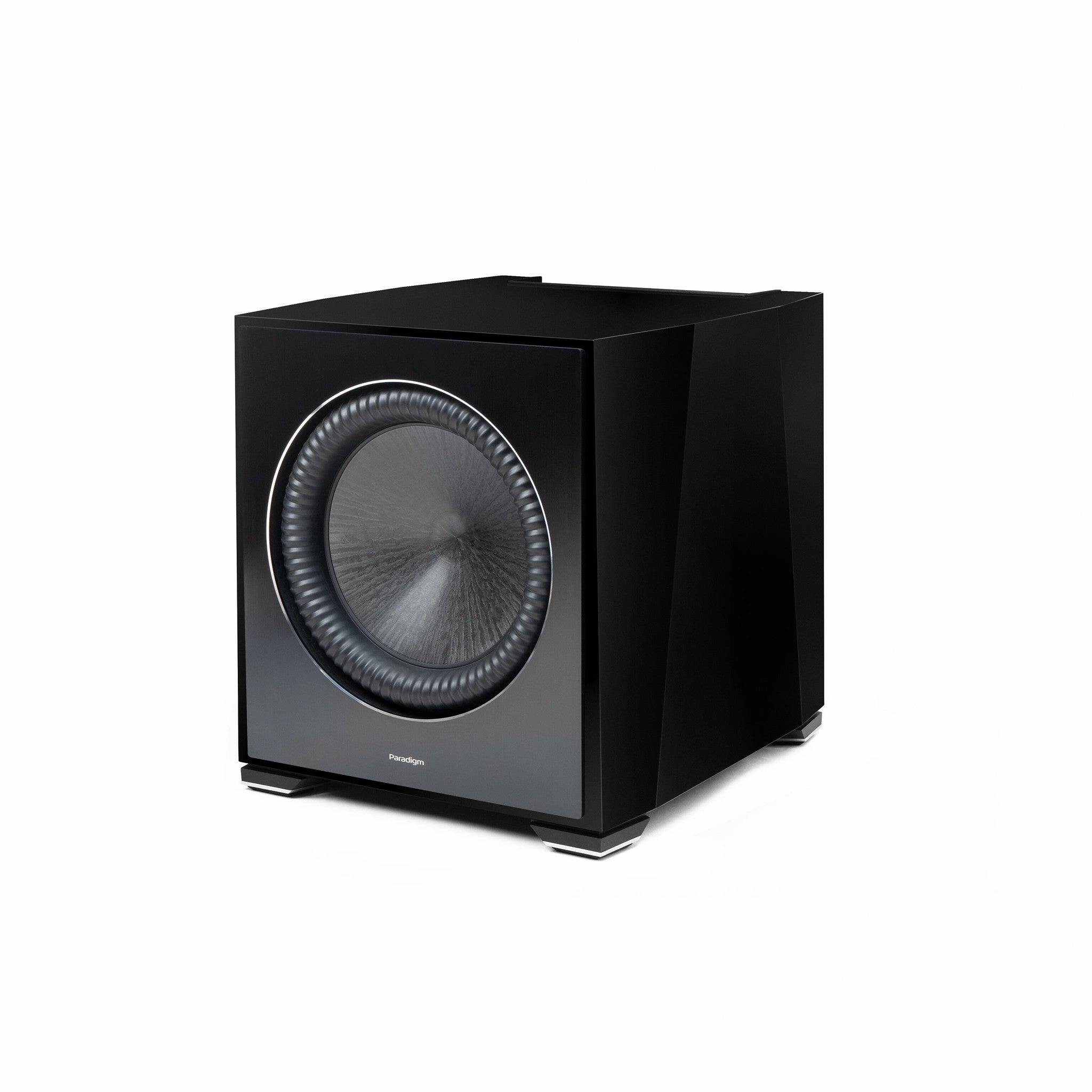

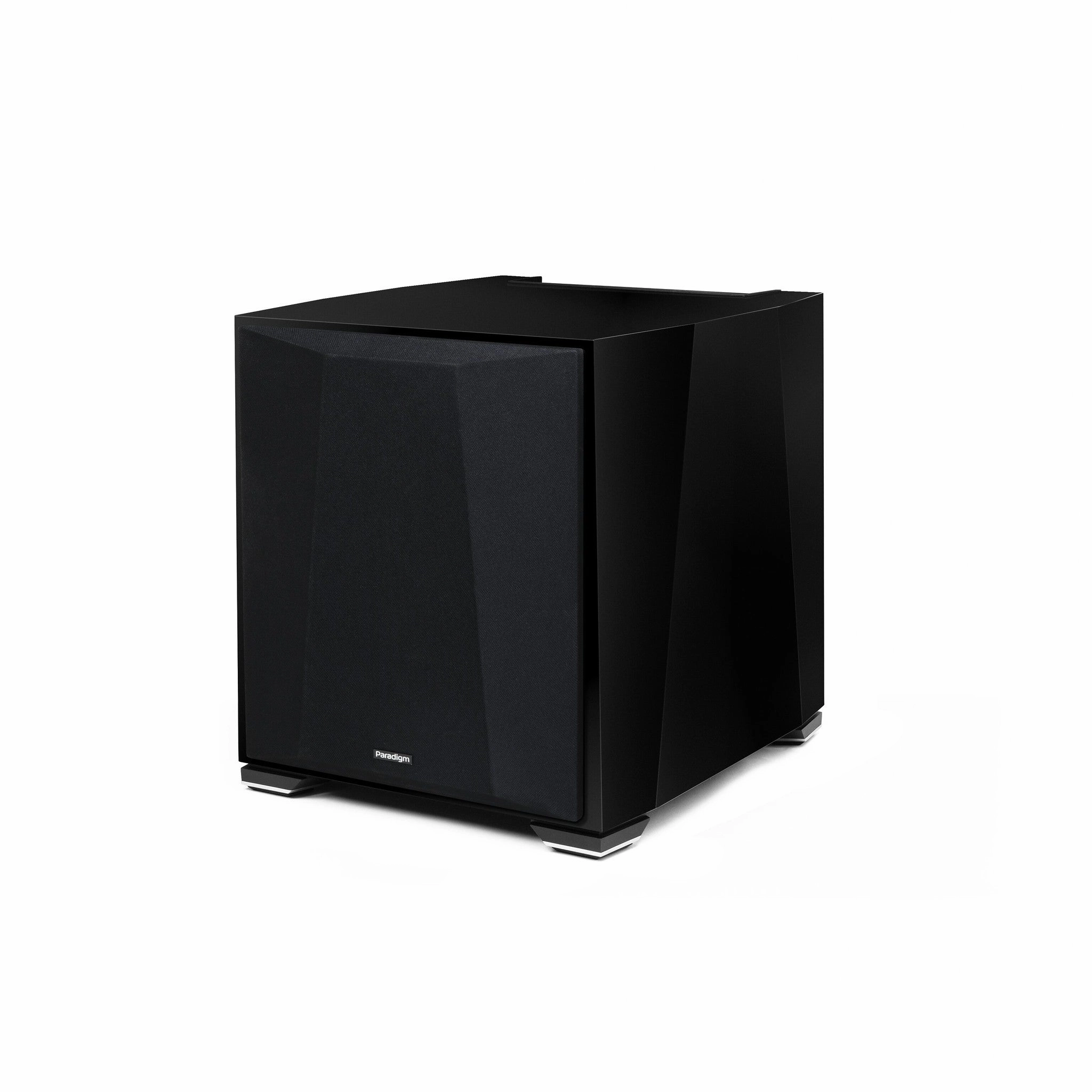

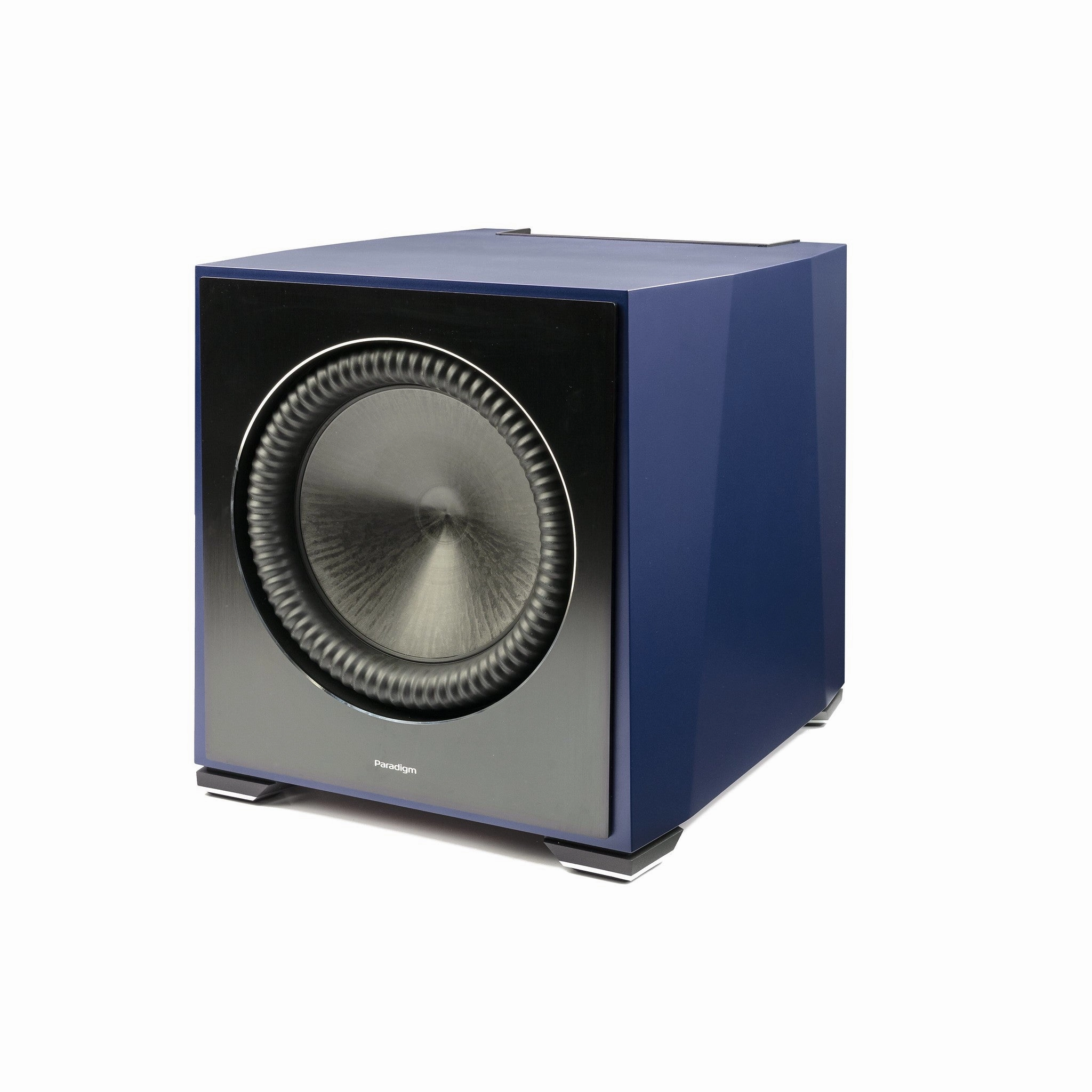

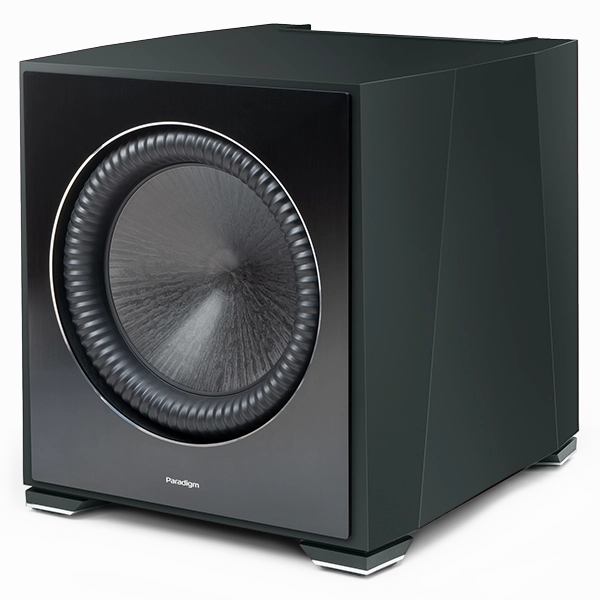

Paradigm XR13 Subwoofer
13 (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART), sealed enclosure with Cascade-FusionTM Bracing and ADVANCED Shock-Mount, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC) Included

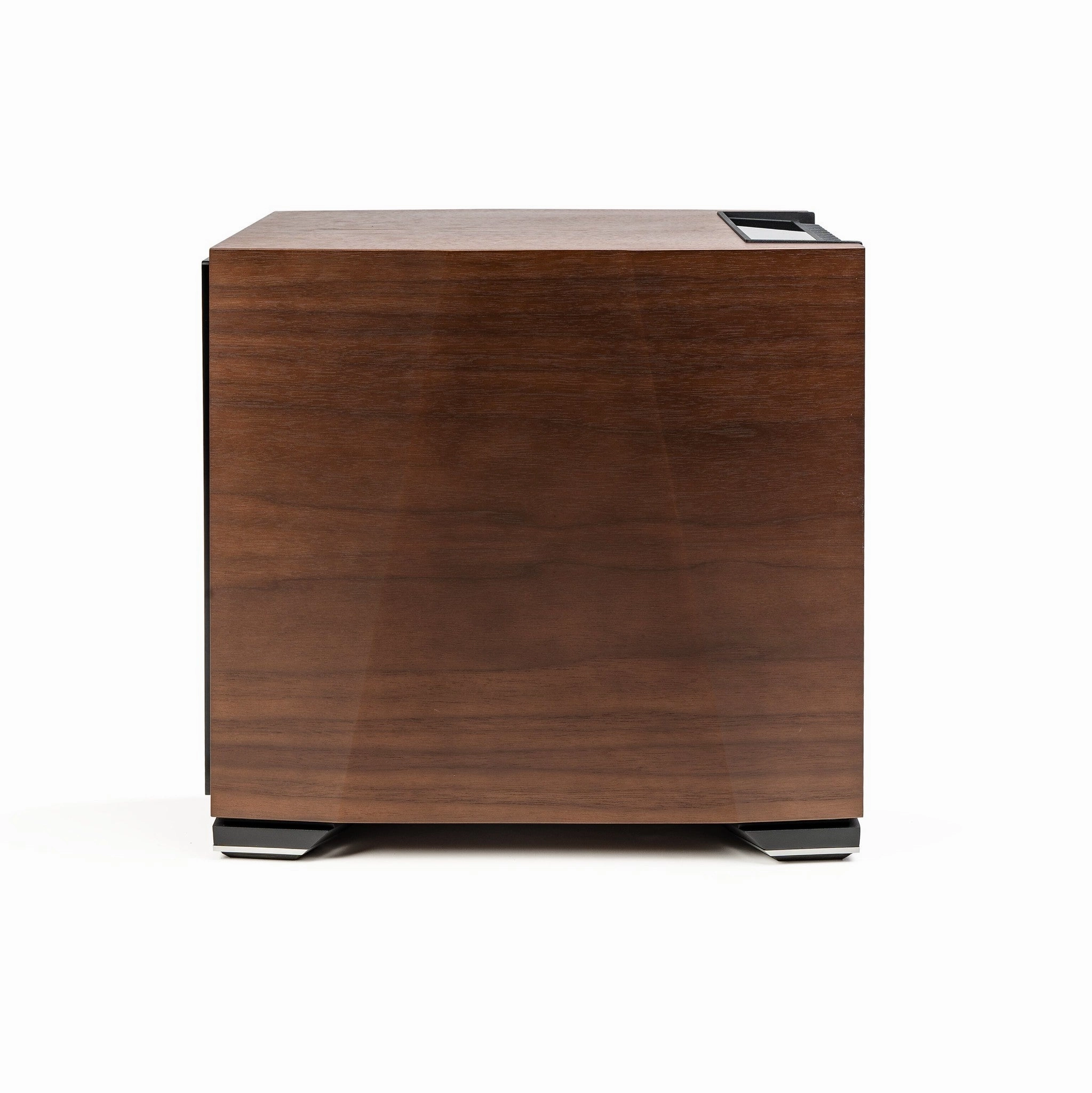

Advanced Shock-Mount Technology
Paradigms exclusive Advanced Shock-Mount enabled outriggers are designed with multi-layered durometer rubber-metal matrices to provide industry-leading isolation whose benefits can be measured and heard in the real world.
Not only does this give a more accurate sound while elevating low-frequency performance, but it is also a neighbour-friendly technology.
By isolating the massive forces generated by the Ultra Long Throw Trilinear Suspension woofer, we prevent that energy from being transferred to your floor. This drastically reduces distracting bass-induced rattles and vibrations around the room and helps avoid noise complaints from adjoining spaces and neighbours.
Specifications
| DESIGN | 13 (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART), sealed enclosure with Cascade-Fusion Bracing and ADVANCED Shock-Mount, built-in Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC) Included |
| AMPLIFIER FEATURES | Auto-On / Off, Trigger On / Off |
| ROOM CORRECTION | ARC Genesis (microphone included) |
| FREQUENCY RESPONSEON-AXIS | 3dB from 17 Hz to 140 Hz |

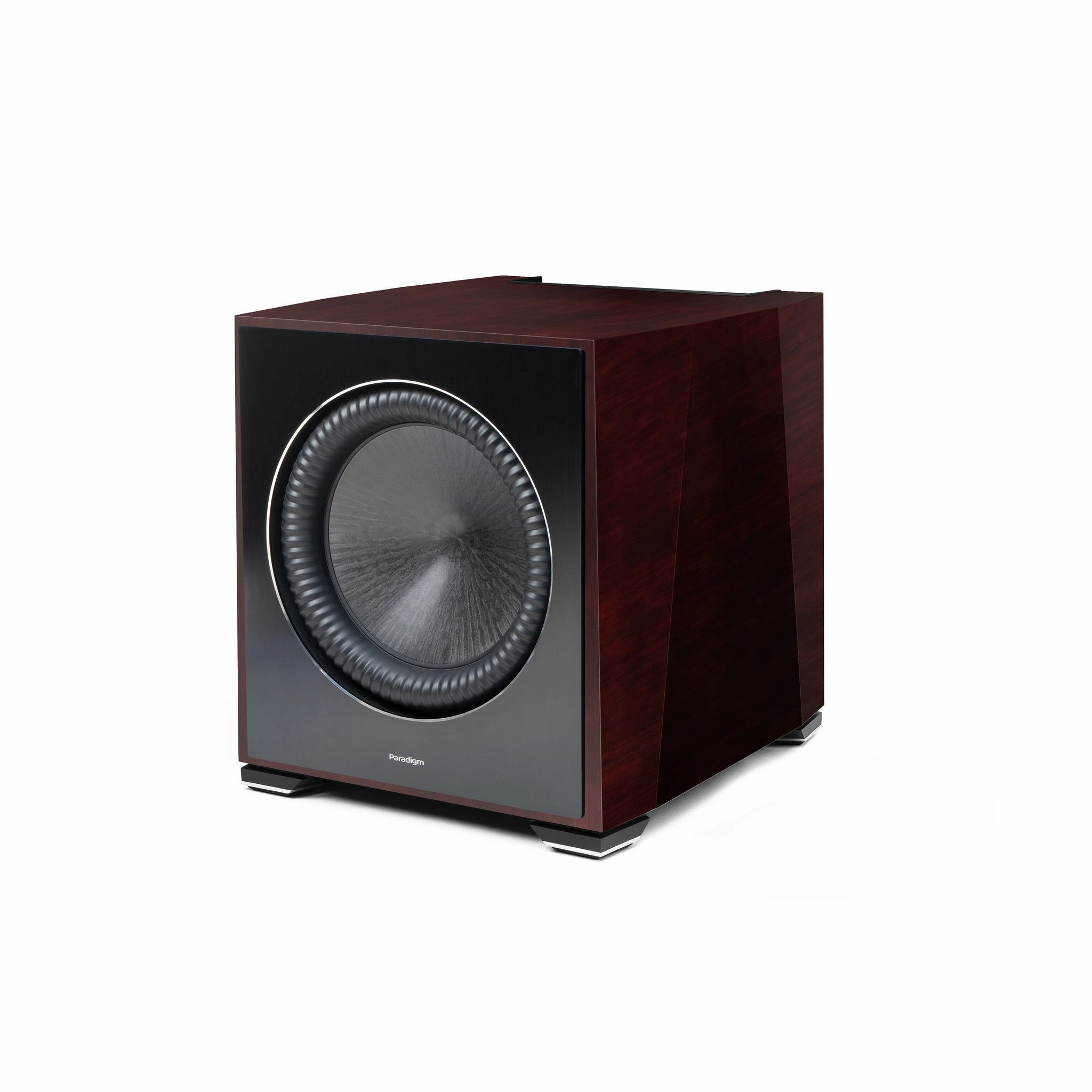

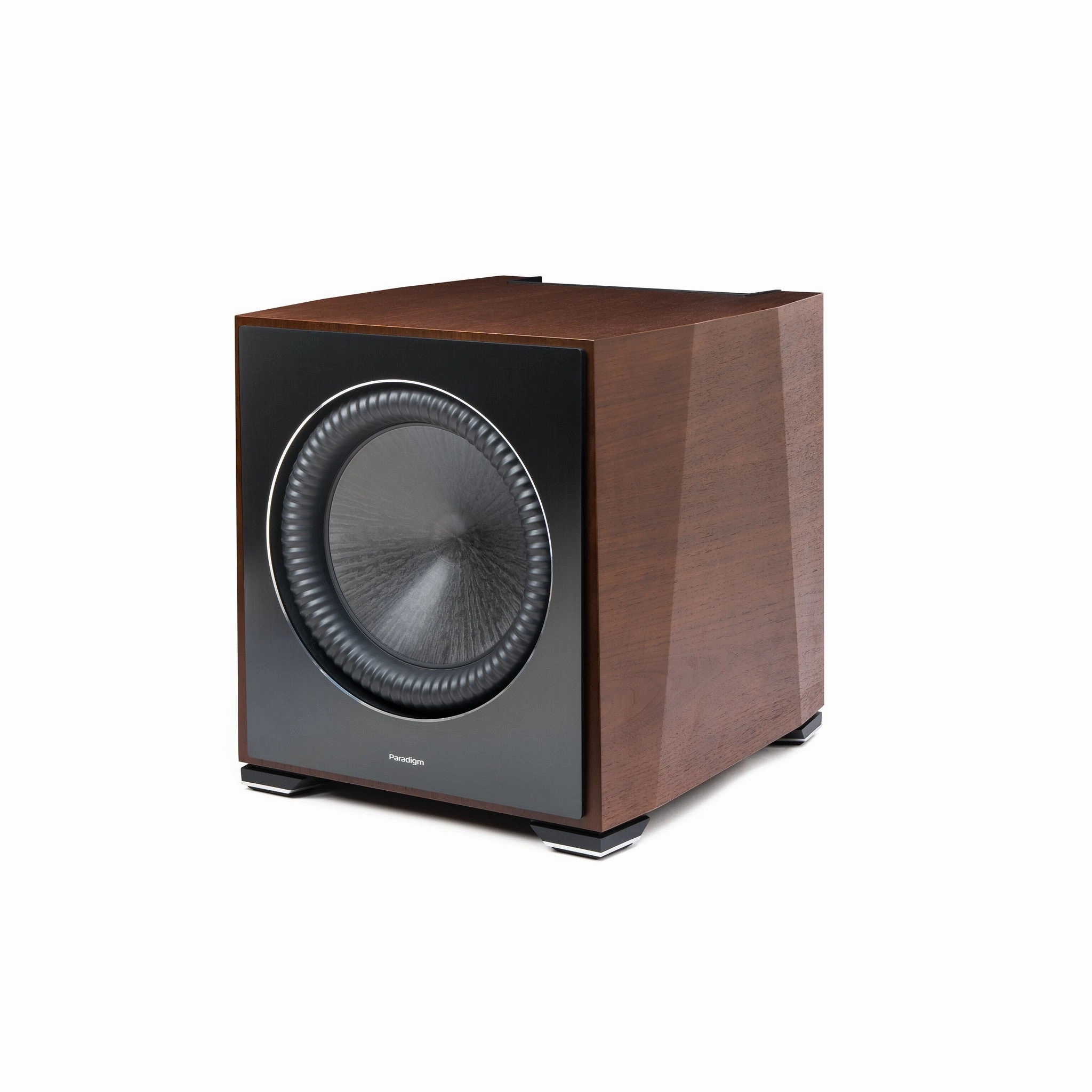

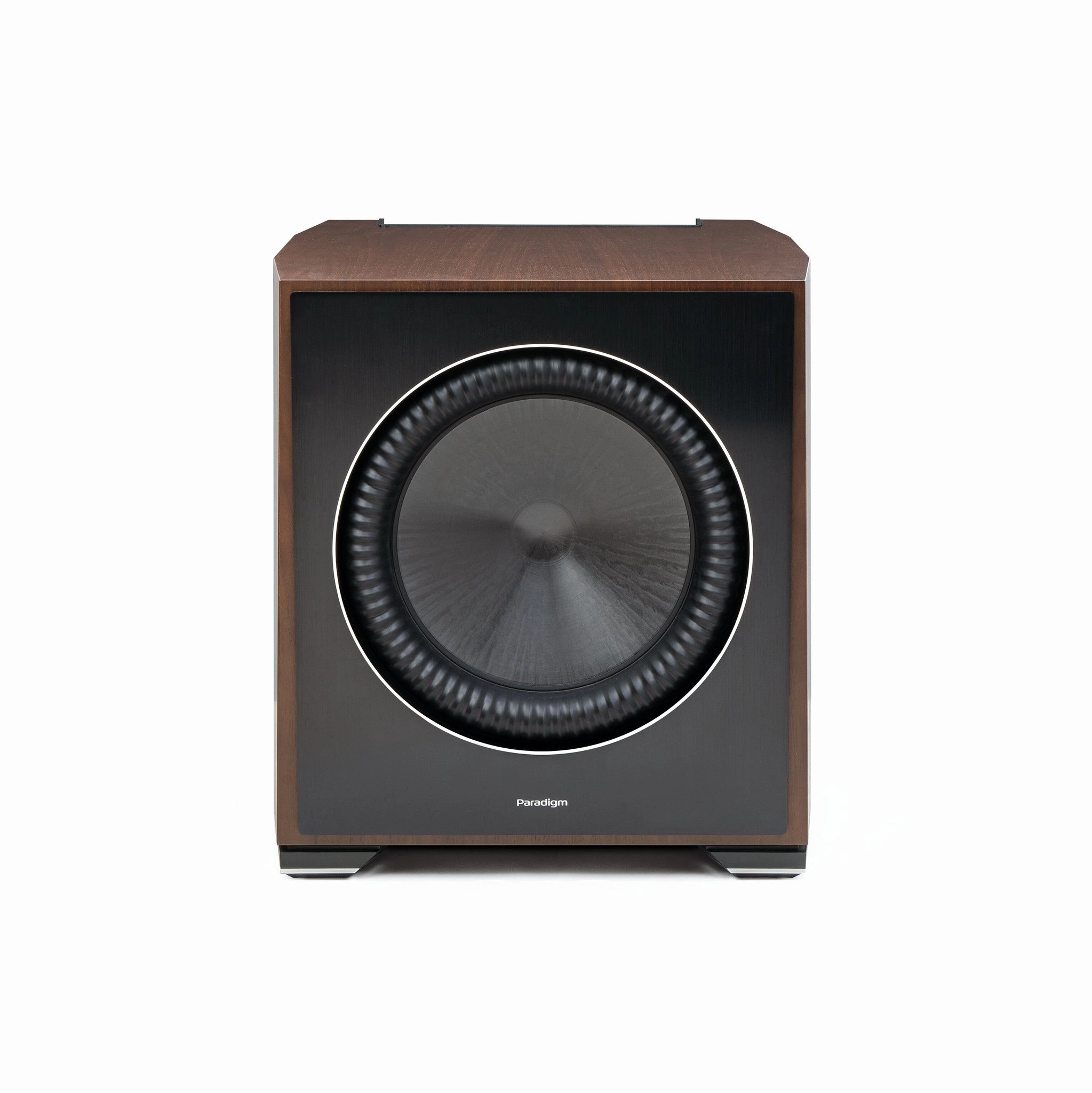

| LOW FREQUENCY DRIVER | 13 (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART), 2 high-temperature voice coil |
| EFFECTIVE PISTON AREA (SD) | 93.7 sq in / 0.06 sq m |
| EFFECTIVE DISPLACEMENT | 366.1 cu in/6 L |
| LOW FREQUENCY RESPONSE | 12 Hz (DIN) |
| AMPLIFIER POWER | Power measurements underway to ensure compliance with new FTC regulations |

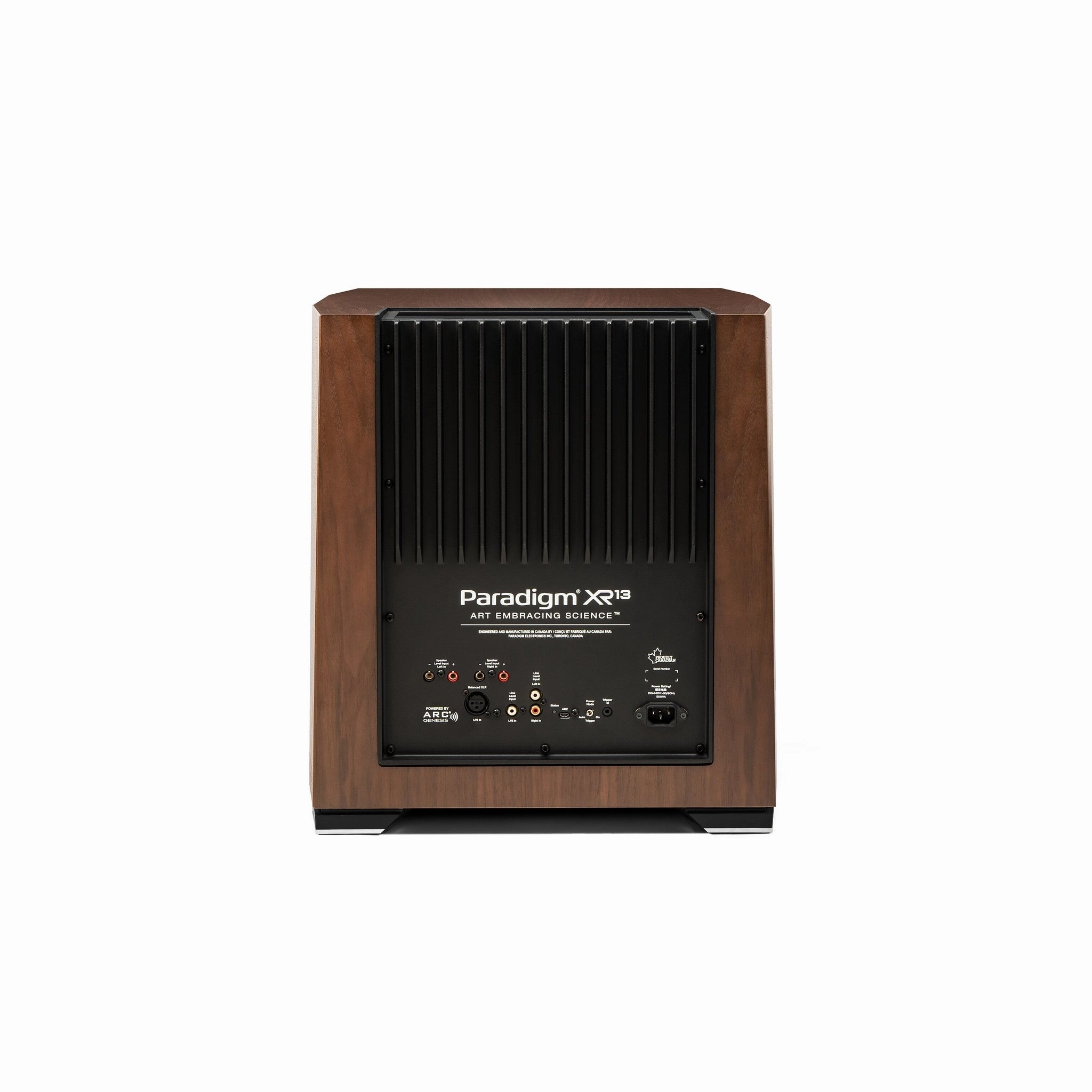

| UNBALANCED INPUTS | Stereo or Mono (dual RCA jacks)/LFE RCA jack |
| BALANCED INPUTS | One Balanced XLR (LFE) |
| SPEAKER/HIGH-LEVEL INPUTS | Left and right speaker level inputs |
| INPUT GROUNDING | Grounded |
| POLARITY | 0 or 180 degrees |
| PHASE | Variable 0-180 |
| DIMENSIONSHXWXD | 18.8 x 17.3 x 19.4 (47.8cm x 43.8cm x 49.3cm) |
| WEIGHT | 103.8 lb / 47.1 kg |

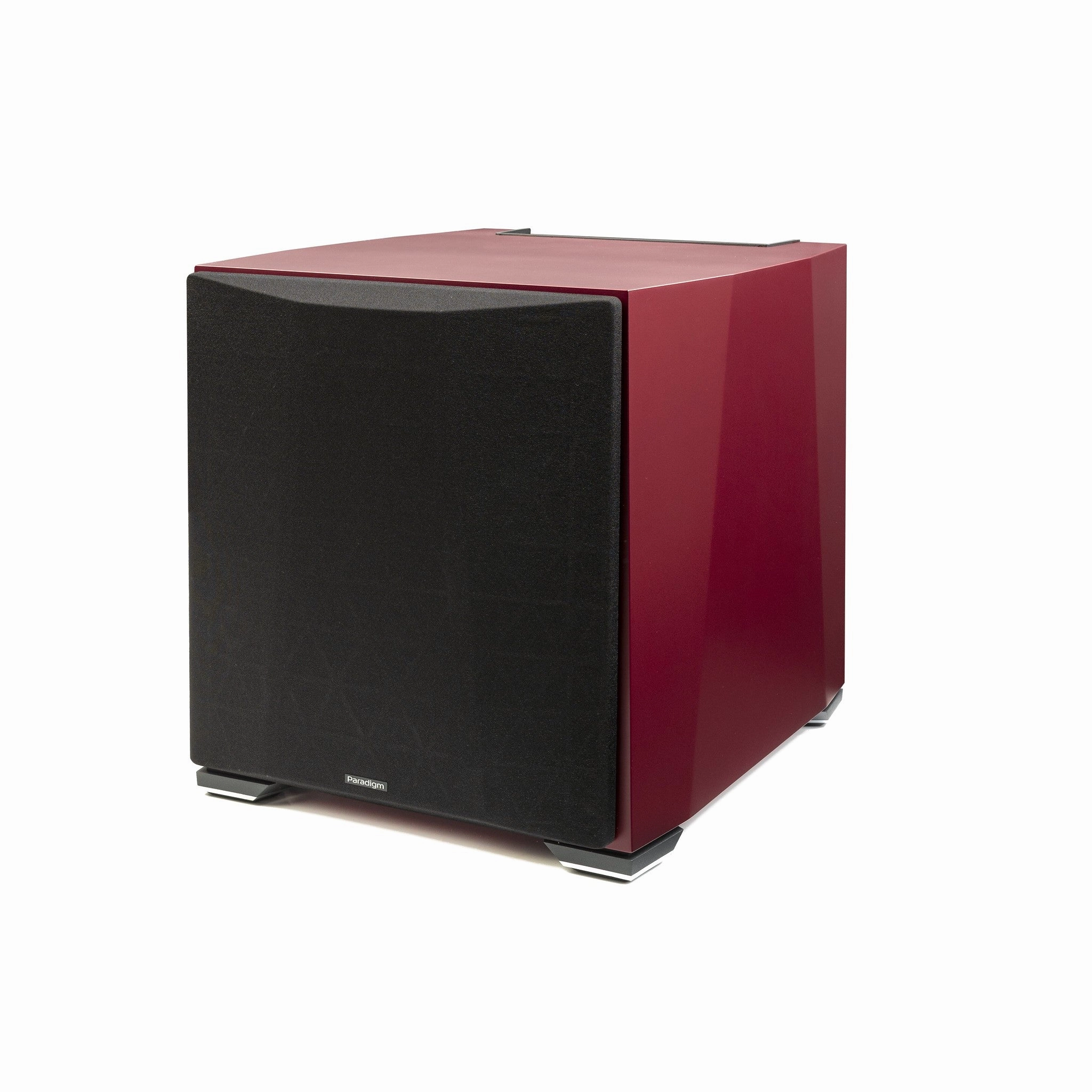

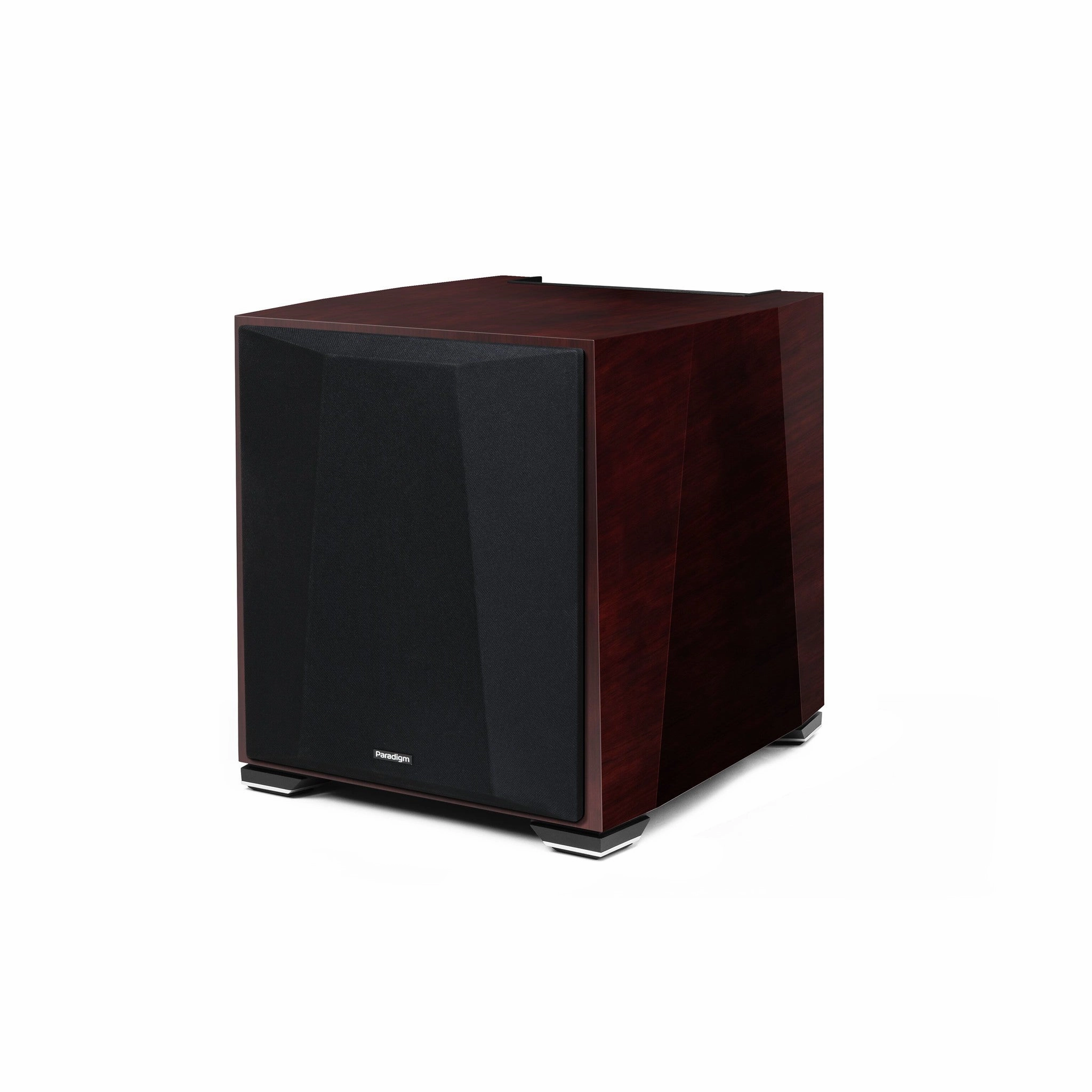

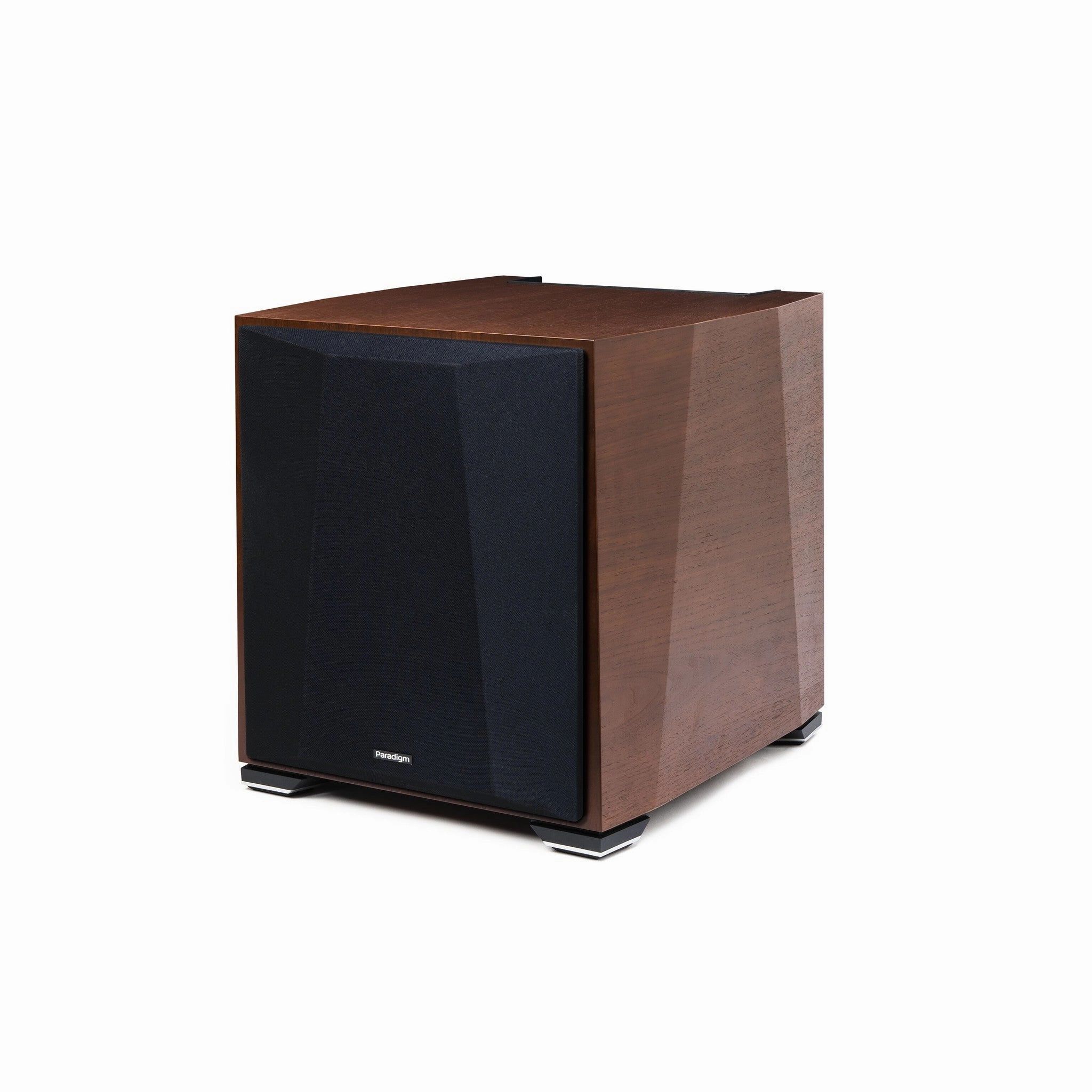

| FINISHES | Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut |
