Home Audio Components Turntables
PS Audio Stellar Phono Preamplifier Turntables,Record Players,LP Spinners

PS Audio Stellar Phono Preamplifier

$ 55.41

$ 221.64

Unavailable
PS Audio Stellar Phono Preamplifier Turntables,Record Players,LP Spinners

PS Audio Stellar Phono Preamplifier

$ 55.41

$ 221.64

Color:
  • Black
  • Silver
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The midrange on this phono preamp is as open, uncongested, transparent, and revealing as that of any phono preamp Ive heard at any

price.

- Michael Fremer.


PS Audios first product was a phono preamplifier that took the Hi-Fi world by storm in 1975. Its designers, Paul and Stan, labored for years over every circuit detail with one goal in mindmaking musical magic. Stellar Phono shares that same ethos.

Based on a unique all discrete FET topology, Stellar Phono stands out in a crowded field of conventional IC designs. Its sound is rich, warm and enticing as only vinyl through hand-tuned class-A circuitry can be.

Stellar Phono is a triumph of performance and value that youll instantly recognize from that first needle drop, as music emergesfrom a velvet blackness, filling the room as if there were no speakers.

Specifications

Stellar Phono Preamplifier


Unit Weight

21.6lbs. (9.8 kg)

Unit Dimensions

17W x 13D x 3.25H
(43cm x 33.02cm x 8.255cm)

Shipping Weight

25.1lbs (11.4 kg)

Shipping Dimensions

22W x 8H x 17D
(55.88cm x 43.18cm x 20.32cm)

Color Options

Black
Silver

Voltage Options
(Factory set only)

Japan 100V
North America 120V
Europe/Asia/Australia/New Zealand 230V

Mains Power Input

IEC C14

Idle Power Consumption

26W

Fuses

100V: T250V-2.0AH (2A Slow Blow)
120V: T250V-1.6AH (1.6A Slow Blow)
230V: T250V-1AH (1A Slow Blow)

Accessories Included

US (NEMA 5-15P) (100V/120V versions)
Schuko (CEE7/7) (230V version)
UK (BS1363) (230V version)
Remote Control

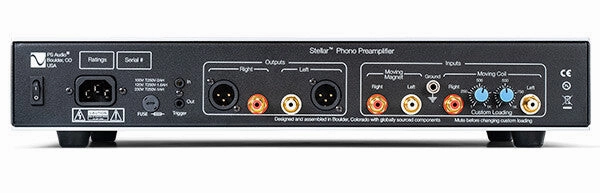

Audio Inputs

RCA (Unbalanced) MM,MC

Audio Outputs

RCA (Unbalanced) 1 Stereo Pair
XLR (Balanced) 1 Stereo Pair

DC Trigger

3.5mm 12VDC (2)


Performance

All measurements are with both channels operating,
gain set to low, and balanced outputs.
Input frequency is 1kHz.

Gain

MM: 44dB, 50dB, 56dB
MC: 60dB, 66dB, 72dB

Input Loading

MM: 47K (100pF)
MC: 60, 100, 200, 47K, Custom 1-1K

Output Impedance

Unbalanced <200
Balanced <200 per leg

Frequency Response

20Hz - 20KHz /- 0.25dB

THD

0.5V out @ 1kHz: <0.01%

Maximum Output

@1%THD: 24VRMS

Overload Margin

@1kHz: >22dB

S/N Ratio

MM: >82dB A-Weighted
MC: >74dB A-Weighted

Interchannel Crosstalk

>74dB

Power Consumption

26W
