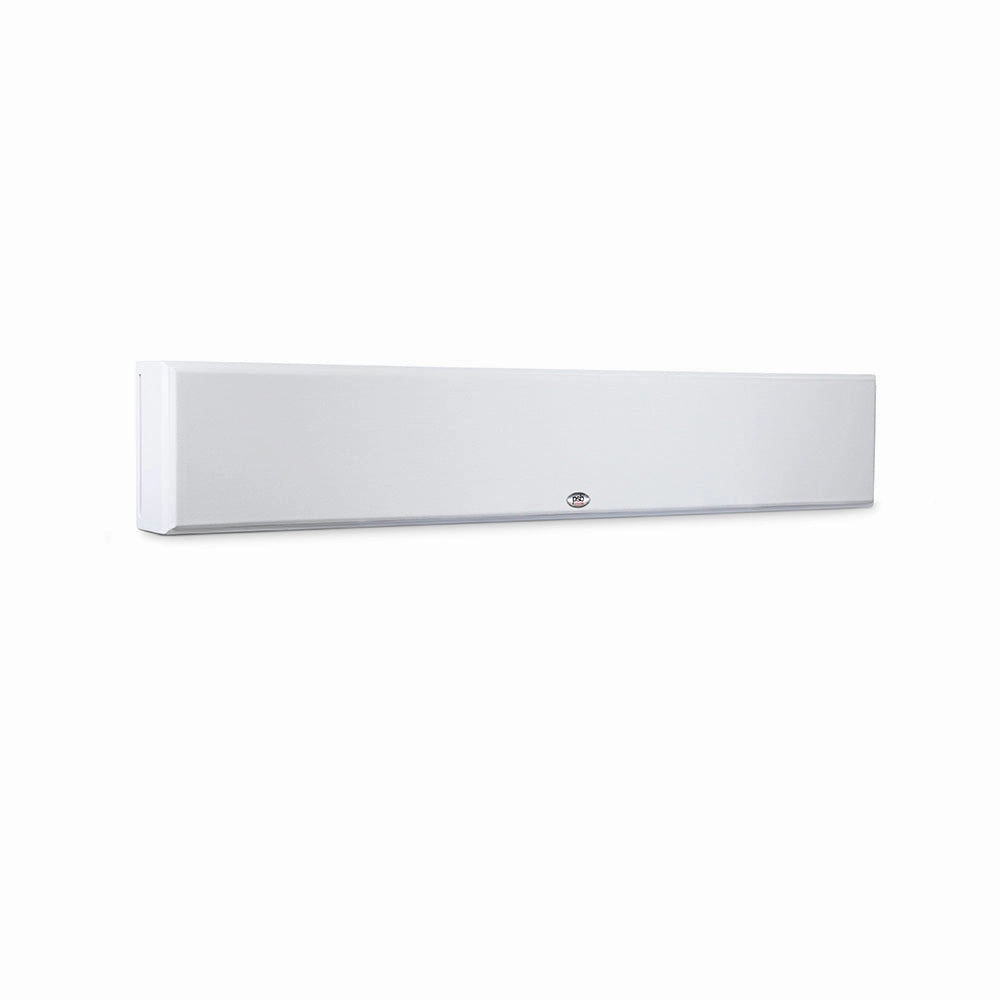

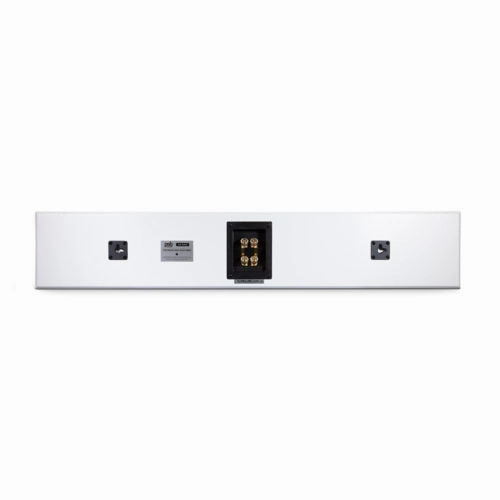

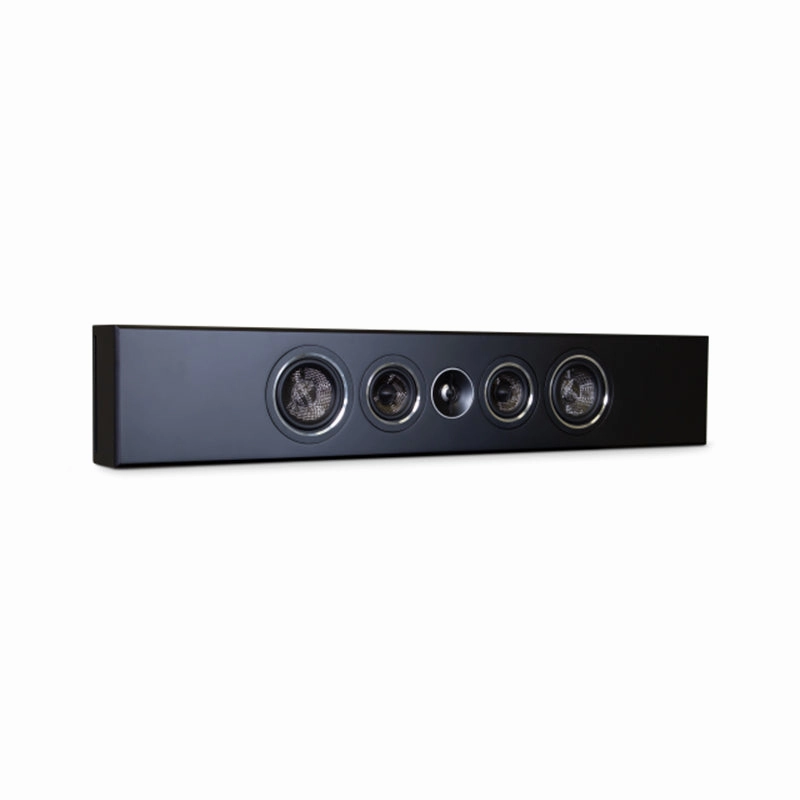

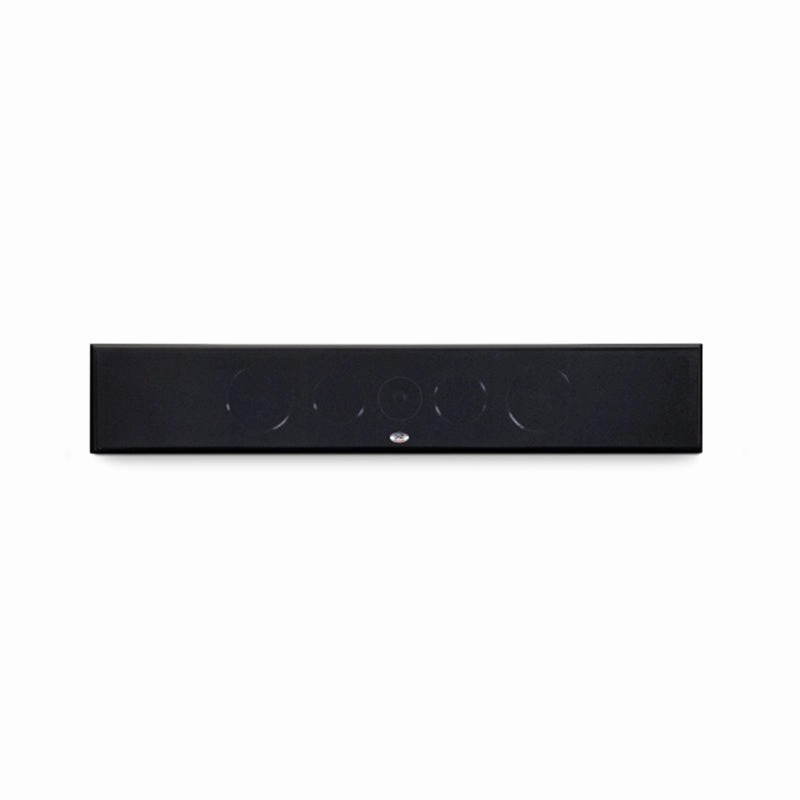

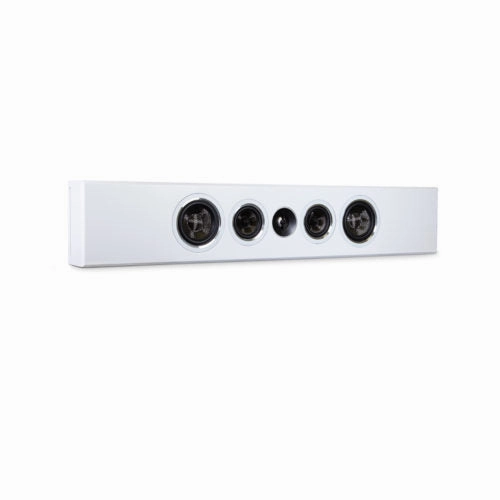

PSB PWM2 - On-Wall Speaker

PSB PWM2 - On-Wall Speaker

$ 26.51

$ 106.06

Unavailable
PSB PWM2 - On-Wall Speaker

PSB PWM2 - On-Wall Speaker

$ 26.51

$ 106.06

Colour:
  • Black
  • White
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

  • PWM2 is an on-wall speaker that can be mounted vertically or horizontally (mount included)
  • Can be used for left, center, or right channel or as a surround speaker
  • Available in Satin White or Satin Black
  • Designed and voiced by the growing PSB design team mentored by PSB founder and speaker industry icon, Paul Barton

Todays home audio applications demand solutions that traditional designs are simply not able to fulfill. Regardless of the installation, PSB believes that the sound should never be compromised. PWM Series melds refined, elegant looks, versatile application, and unwavering performance.

The slim profile hugs the wall and maintains a minimal visual presence. Their clean and simple lines complement virtually any design aesthetic. Interior designers, architects, custom home builders and system integrators will appreciate the understated elegance and highest performance levels offered by the Performance Wall Mount Series.

Newly developed drivers employing four-layer voice coils with powerful magnets and carbon fiber cones for exceptional detail, low distortion, and superior power handling. The new proprietary 1 titanium dome tweeter is ferrofluid cooled and features a Neodymium magnet for high sensitivity and power handling. A waveguide on the front of the tweeter helps match the response of the tweeter near the crossover point with the woofer for a seamless transition.

Whether as part of a complete on-wall system, a basic TV application, or as an on-wall center channel solution for floor-standing speakers; PWM series delivers legendary PSB sonic performance coupled with aesthetics and install cues desired in todays interior design.

Key Features of the PSB PWM2:

  • Slim Profile premium On-Wall speaker system
  • 2 x 4 woofers with carbon fiber cones, rubber surrounds
  • 2 x 3 chambered midrange drivers with carbon fiber cones, rubber surrounds
  • 1 Titanium Dome Tweeter
  • Vertical or horizontal mounting options
  • Wall mount bracket included
  • LCR or for surround speaker application
  • Design and final voicing engineered by Paul Barton
  • Available in Satin White or Satin Black

SPECIFICATIONS

  • Sensitivity

Anechoic Chamber

86dB

Typical Listening Room

89dB

  • Frequency response

On-Axis /- 3db

70Hz-23kHz

LF Cutoff

40Hz

  • Impedance

Normal

8 Ohms

Minimum

6 Ohms

  • Recommended Amplifier Power (Acoustic Design)

Tweeter (Nominal)

1 (25mm)
Titanium Dome with Ferrofluid

Midrange (Nominal)

2x 3 (75mm)
Carbon Fibre Cone Rubber Surround
Cast Basket

Woofer (Nominal)

2x 4 (100mm)
Carbon Fibre Cone Rubber Surround
Cast Basket

Design Type

Bass Reflex

  • Construction

Cabinet

MDF

Grille Face

Acoustic Transparent Cloth

Frame

MDF

  • Size (W x H x D)

Net W

36 (914mm)

Net H

6.5 (165mm)

Net D

3.38 (85mm)

  • Finish

Available Finishes

Satin Black, Satin White

Grille Type

Magnetic, Cloth Grille

  • Mount

Wall Bracket

Wall Mount included for Vertical and Horizontal Mounting Note: Bracket is not designed as a ceiling mount
