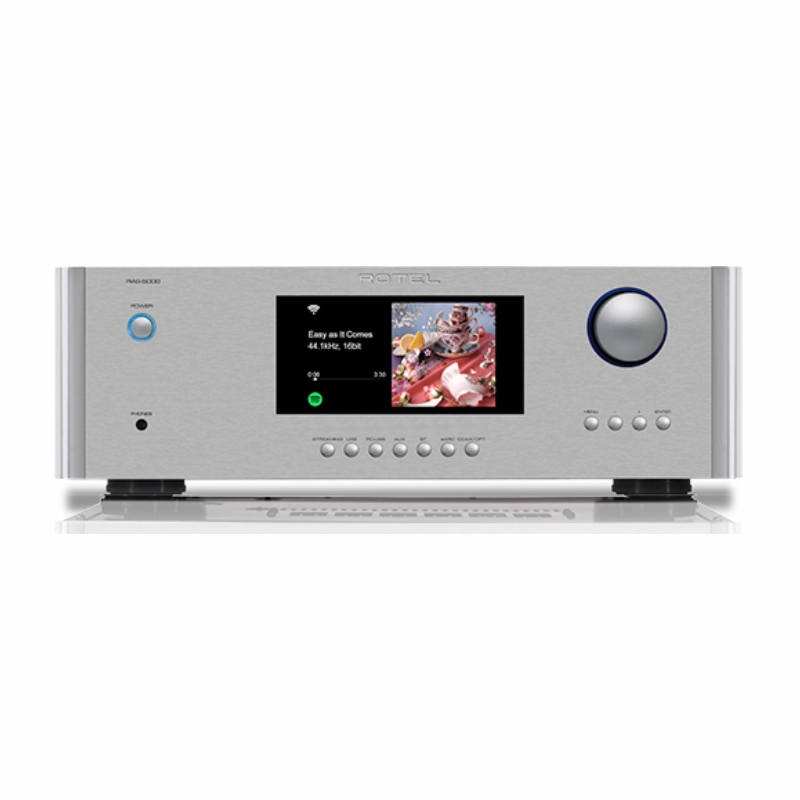

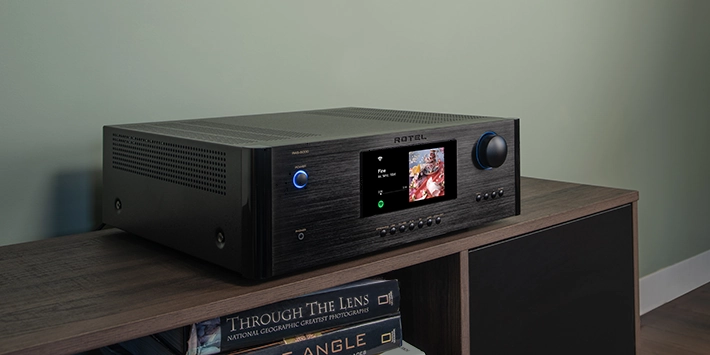

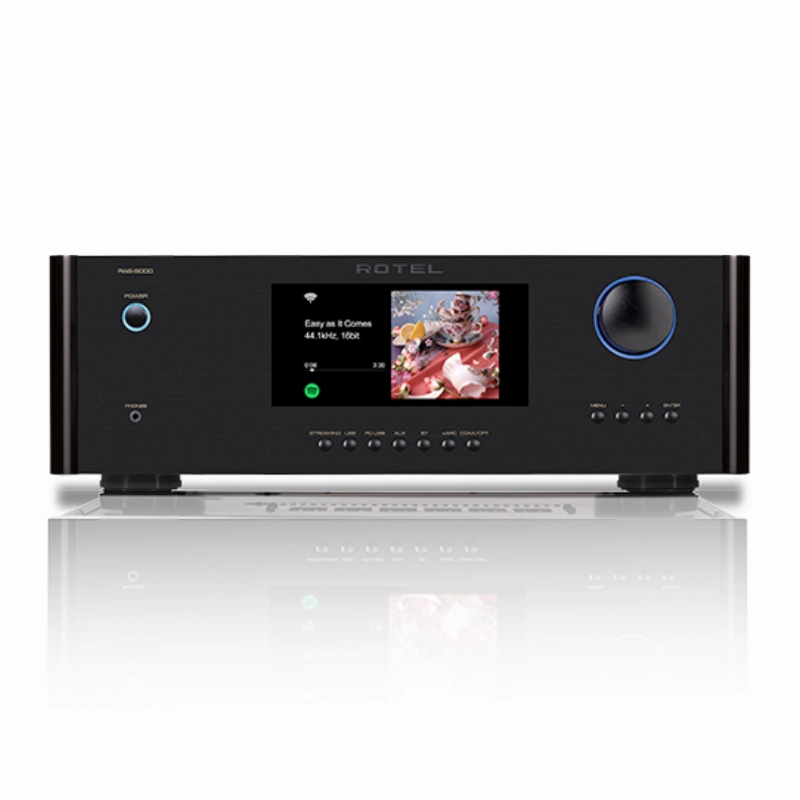

Simplicity and performance meet in the Rotel RAS-5000 designed to effortlessly fit into your lifestyle and elevate your entertainment experience. Stream your favorite music from Spotify Connect, Tidal Connect, Internet Radio, or any service available on your computer, tablet, or mobile device via Airplay 2, Google Cast, Roon, or aptX HD Bluetooth.
The HDMI ARC (Audio Return Channel) connection ensures dynamic, high resolution sound for your favorite live sports, TV shows, movies, and games directly from your TV powering 220 watts of Class AB output into 4 ohms.
Enhance and simplify your home entertainment experience without compromise today with the Rotel RAS-5000 and immerse yourself in sound.
---
Specifications
DIMENSIONS (W H D)
431 x 144 x 425 mm
17 x 5 7/8 x 16
431 x 144 x 425 mm
17 x 5 7/8 x 16
FRONT PANEL HEIGHT
132.6 mm / 5 1/4
POWER REQUIREMENTS
230V, 50Hz
POWER CONSUMPTION
380W
STANDBY POWER CONSUMPTION
<0.5W
NET WEIGHT
15.7 kg, 34.6 lbs
BTU RATING(4, 1/8th power)
1027 BTU/h
POWER OUTPUT
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)
220 Watts / ch (4 Ohms)
140 Watts / ch (8 Ohms)
TOTAL HARMONIC DISTORTION
(THD)
<0.03%
FREQUENCY RESPONSE
Line Level Inputs:
10Hz - 100kHz, 0.5dB
Digital Inputs:
10 Hz 70k Hz, (3 dB, MAX)
S/N RATIO(IHF "A" Weighted)
Line Level Inputs: 103dB
Digital Inputs: 105dB
