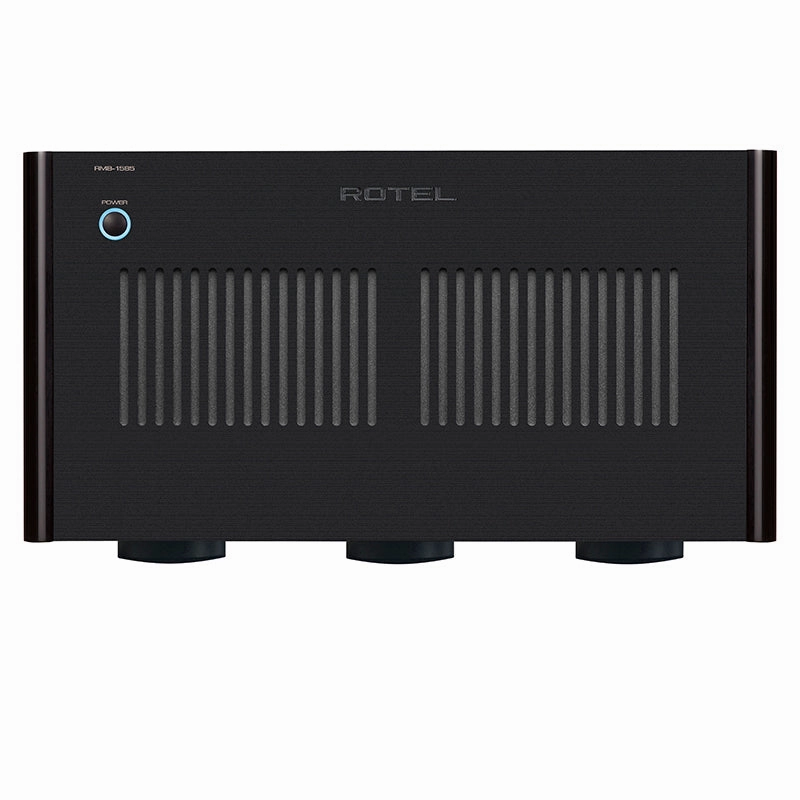

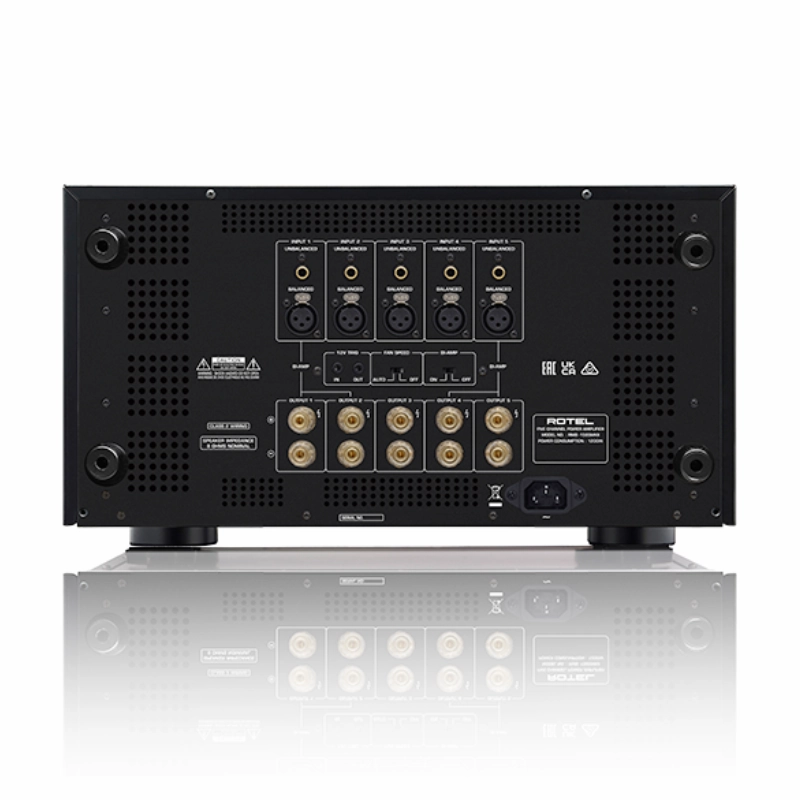

The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
Rotels new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.
Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5 channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
The RMB-1585MKII is available in both black and silver colours.
Features:
- 5 x 340 Watts of robust power, 4 Ohms
- Class AB amplifier design
- Massive power supply using Dual Toroidal Transformers
- High-quality slit foil capacitors
- Rack ears included
Specifications:
Dimensions (W H D): 431 237 456mm
17" 9.4" 18"
Front Panel Height: 5U / 221mm (8.75")
Power Requirements: 120V, 60Hz
Power Consumption: 1200W
Net Weight: 37.4kg (82lbs.)
BTU Rating (4, 1/8th power): 3317 BTU/h
Power Output: 210W/Ch (5 channels driven, 8)
340W/Ch (5 channels driven, 4)
440W/Ch (2 channels driven, 4)
Total Harmonic Distortion (THD): <0.03%
Frequency Response: 10Hz - 100kHz, 0.1, -0.3dB
Signal to Noise Ratio (A Weighting): 120dB
Gain: 26.9dB
Intermodulation Distortion (60Hz:7kHz, 4:1): <0.03%
Damping Factor (1kHz, 8): 223
Crosstalk/Separation: >55 dB
Input Sensitivity: Unbalanced: 1.89V
Balanced: 4.7V
Input Impedance: Unbalanced: 12k
Balanced: 50k
