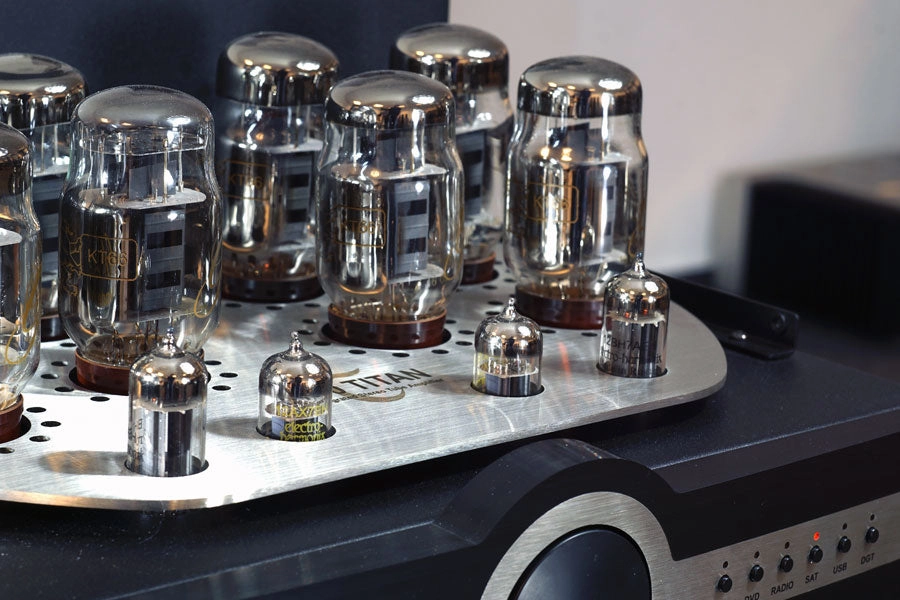

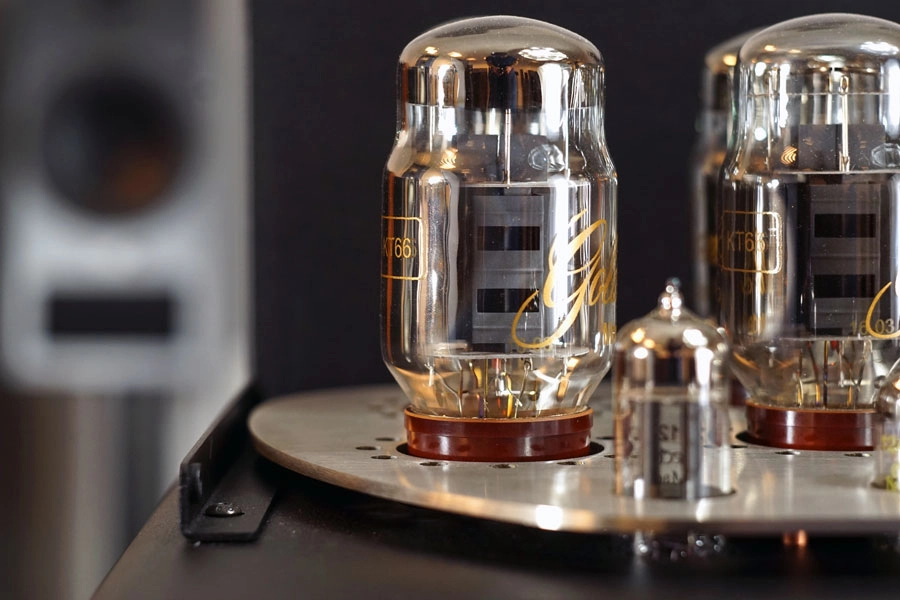

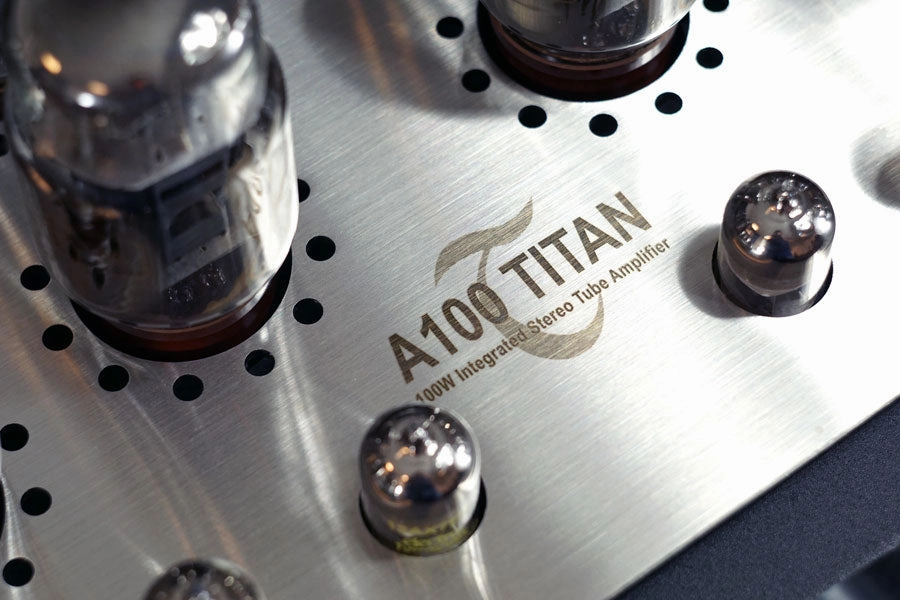

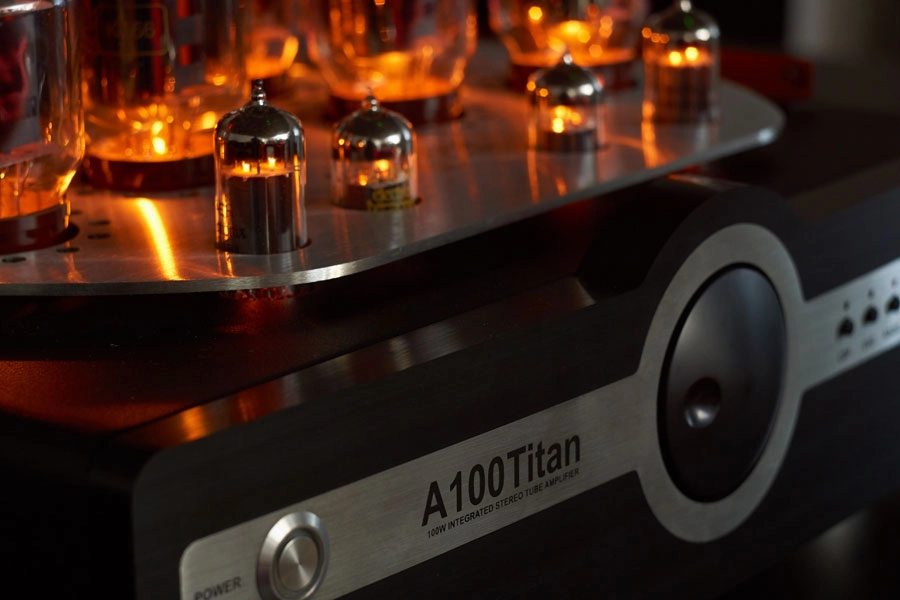

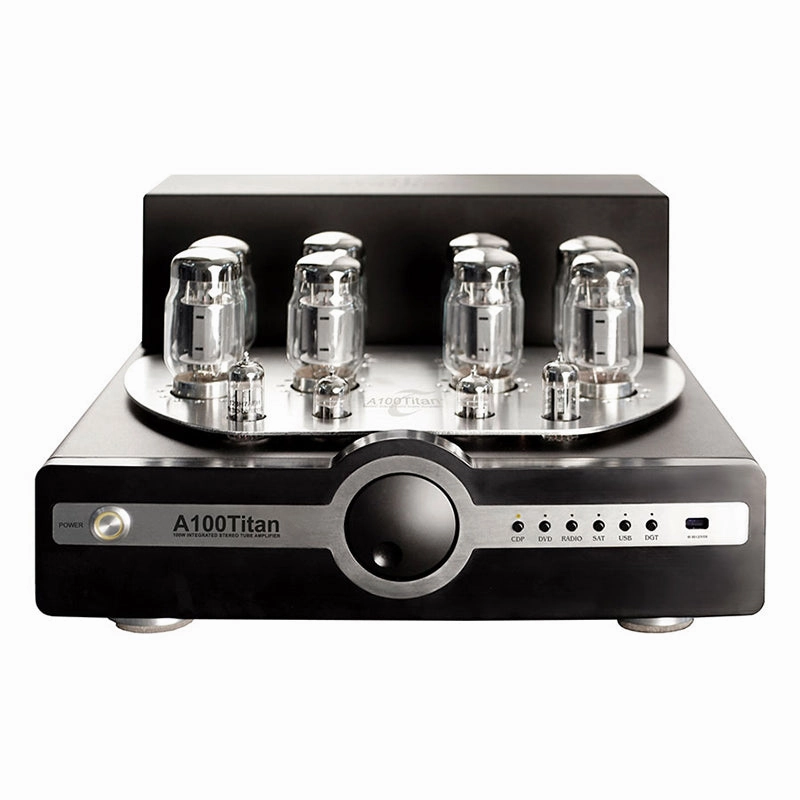

The A100 Titan provides a minimum of 200 watts (100W per channel), power output from 8, KT66's in Ultra-Linear (UL) - push/pull operation.

The A100 Titan like it's bigger brother also features a newly designed custom output transformer resulting in a rich sound stage but with an authority that belies its 100W.

FEATURES

• USB & S/PDIF input
  For the first time, we include an onboard 24Bit 192KHz Wolfson DAC for an extraordinary listening experience.
• DC Powered tube heater
  All tubes, except KT66, have DC stabilized heater circuits to reduce hum noise to a near in-audible minimum.
• Output transformer
  The Output transformer uses a Hi-Grade Iron-Silicon for superb frequency reproduction & width. With this newly designed custom output transformer unique to the A100 Titan we are able to achieve a highly delicate & precise sound reproduction faithful to the original recording.
• Mechanical chassis construction
  The power supply & output transformers are held by an extremely rigid "H" structure that keeps the unit free from unwanted vibrations which further helps reduce unwanted noise to the tubes.
• Remote control
  Featuring a superb CNC machined case it has a soft button design, perfectly matching the aesthetics for the "ACTION" series.
• Feet
  Four CNC machined aluminum feet with an insert of natural rubber. The depth & form of these rubber feet has been calculated to minimize vibrations of the amplifier in isolation from its surroundings.
• Binding posts
  Gold plated professional binding posts for a continued oxidization free connection further improve sound refinement.
• Sockets
  Gold plated ceramic sockets for a continued oxidization free connection further improve sound refinement.
• Components
  Components for the A100 Titan have been selected with great care throughout. Only the best available components are considered & all must undergo an exhaustive analysis of their sonic influence prior to final selection.

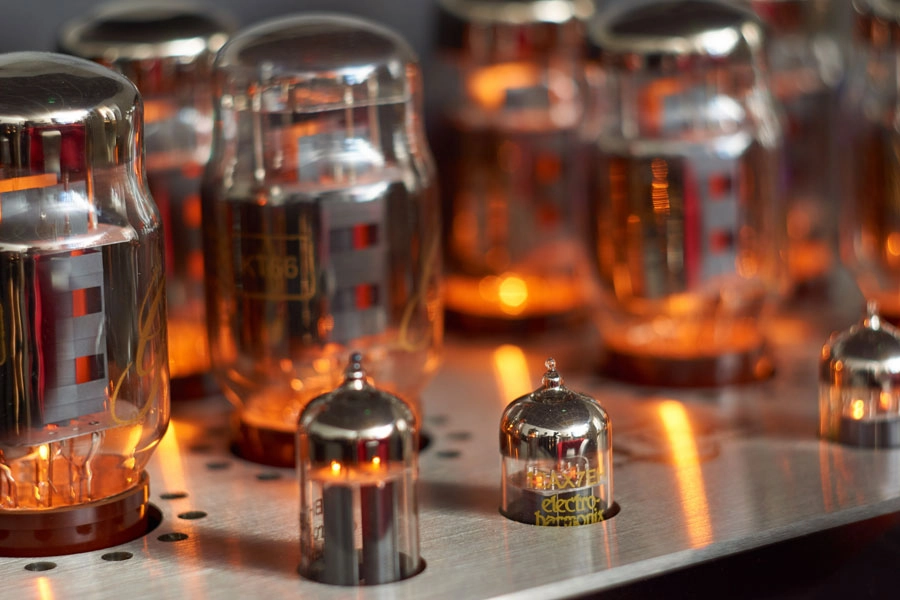

• Selected tubes
  All tubes used are selected after 2 stages warm-up. A fully computer monitored machine controls the process & at the end of this, selects the perfect tubes which are then matched for a perfect balance.

SPECIFICATIONS

Type: Vacuum tube integrated amplifier with DAC
Tube Compliment: Two KT88, 12BH7 and ECC83/12AX7
Frequency Response: 20 Hz to 20 kHz
Input Impedance: 50 kOhms
Output Impedance: 6 Ohm
SNR: >90dB, A weighted
DAC: 24-bit/192kHz Wolfson chip

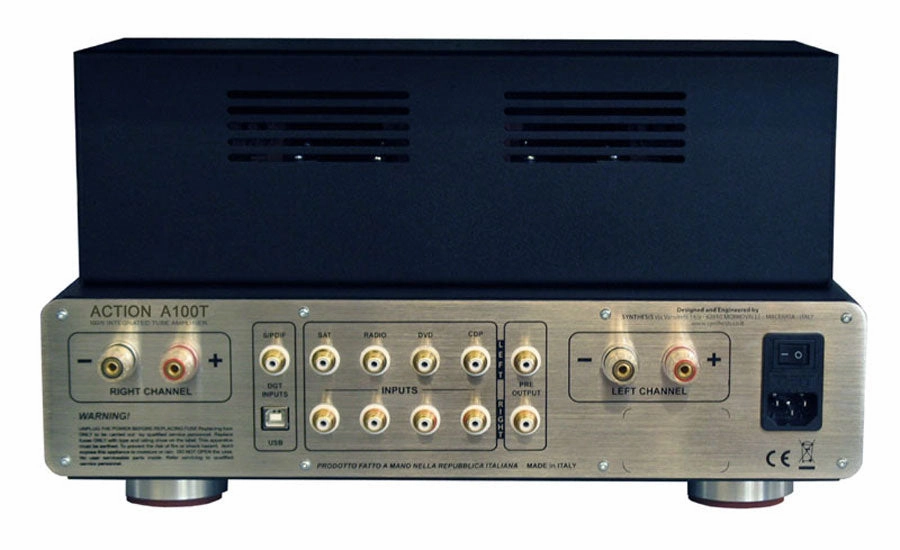

Inputs: RCA gold plated connectors, USB and S/PDIF coax RCA
Output: Preamplification output via RCA jacks plus gold-plated loudspeaker binding posts.
Dimensions: 19" x 16" x 9.25" (DxWxH)
