The high quality of components used gave to the project a better resolution that reveal to the listener hears a life-like presentation of the musical performance.
FEATURES
- Aluminium Knobs
60mm CNC machined control knobs with integral soft light and laser etched indication segments. - DC Powered tube heater
All tubes, have DC stabilised heater circuits to reduce hum noise to a near in-audible minimum. - Output transformer
The Output transformer uses a double C-core Hi-Grade Iron-Silicon for superb frequency reproduction and bandwidth. With this newly designed custom output transformer unique to the FCO-300B we are able to achieving highly delicate and precise sound reproduction faithful to the original recording. - Mechanical construction of the frame.
The power supply, choke and output transformers are resin cast in a metal case which provides the unit free from unwanted vibrations which further helps reduce unwanted noise at the tubes. - Remote control
A superb CNC machined aluminium body with soft button design, perfectly matching the aesthetics for the "FCO" series. - Bias control
The factory set fine bias control is microprocessor controlled to maintain the optimum settings. No adj are required when the power tube is changed. - Dual mono Circuitry
A completely dual mono design minimises the crosstalk across channels. Power transformers use hi-grade iron silicon M0 and separate supplies with hi-grade selected capacitors to produce extremely low ripple levels. Independent to the mains transformer, each channel has a separate power supply guaranteeing a large reservoir of energy to meet the demands of the amplifier circuit and to maintain excellent interference immunity between channels. - Binding posts
Gold plated professional binding posts for a continued oxidisation free connection further improve sound refinement. - Socket
Gold plated ceramic sockets for a continued oxidisation free connection further improve sound refinement. - Components
Components for the FCO-300B have been selected with great care throughout. Only the best available components are considered and all must undergo an exhaustive analysis of their sonic influence prior to final selection. - Selected tubes
All tubes used are selected after 2 stage warm up. A fully computer monitored machine controls the process and at the end of this, selects the perfect tubes which are matched for a perfect balance.Possibility to run the FCO-300B as power amp
Single Channel Specifications:
- Power Stage: 300B
- Input Stage: 1x 12AU7 1x 12AX7
- Driver: 1x 6CG7
- Power Supply: 1x 5U4G
- Power Supply Filter: CLC configuration
- Tube Filament: Electronic stabilized
- Power Transformer: Toroidal transformer Hi-Grade Iron Steel
- Output Transformer: Double C-Core transformer Hi-Grade Iron Steel
- Output Tap: 4 ohm / 8 ohm
- Power Stage Configuration: Single Ended class A
- Bias Setting: Automatic Bias controlled by dedicated circuit
- Power Output (1kHz): Distortion 1%: 8W@ 4/8 ohm
Distortion 3%: 10W @ 4/8 ohm - Frequency Response: 10Hz to 50KHz 1dB
- Input Impedance: 100Kohm
- Input Sensitivity (Integrated): 250mV for rated power
- Input Sensitivity (Power Amp): 250mV for rated power
- Signal/Noise Ratio: >90dB, A weighted

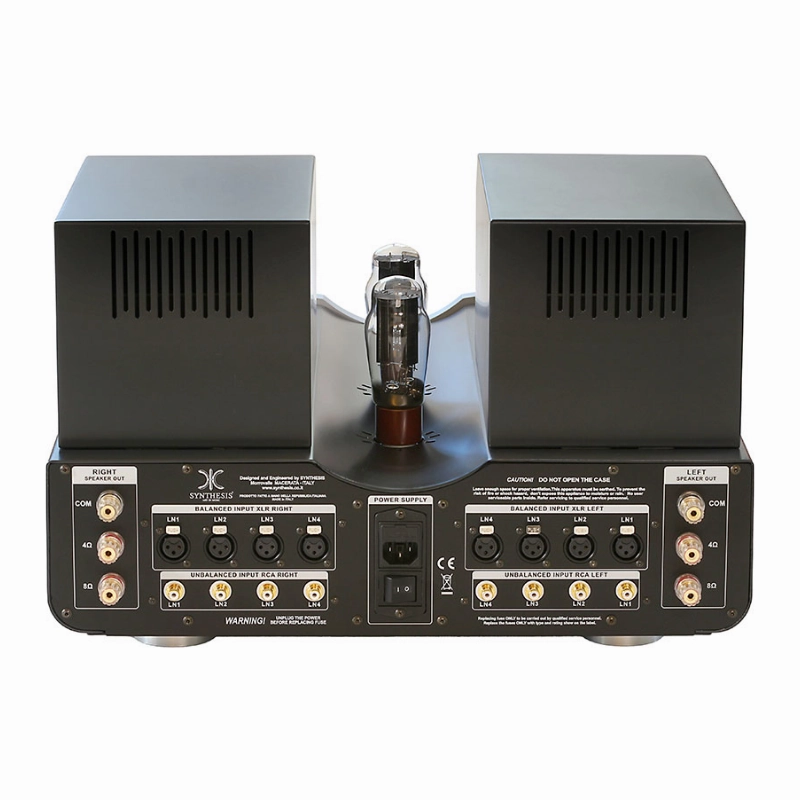

- Inputs (Line): 4 Balanced line input (XLR)
4 Unbalanced line input (RCA)

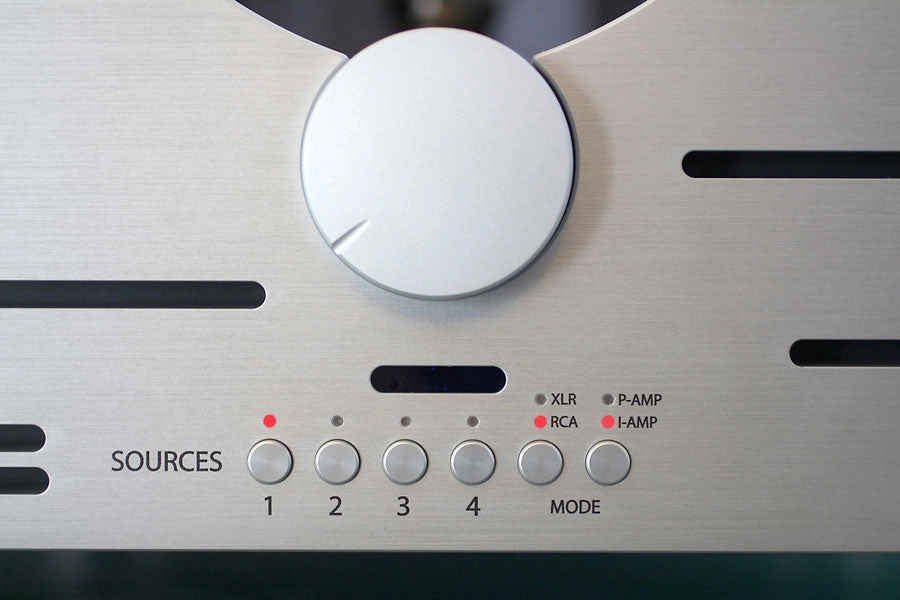

(switchable from front panel and remote control) - Integrated/Power Amp: Modality switchable from front panel
- Remote Control: Volume, Mute, Inputs, Stby.
- Finish (Front Panel): Anodized Aluminum Silver
- Finish (Body): Metal painted dark grey
- Dimensions (W,D,H): 505x635x320mm
- Weight: 45 Kg
- Line Power: 100-120V 60Hz
220-245V 50Hz - Power Consumption: 300W max
- Remote Control: Body: Anodized black aluminium
Transmission Type: Infrared
Protocol: RC5
Functions: Volume, mute
Batteries: 2 x CR2032
Weight: 200g
